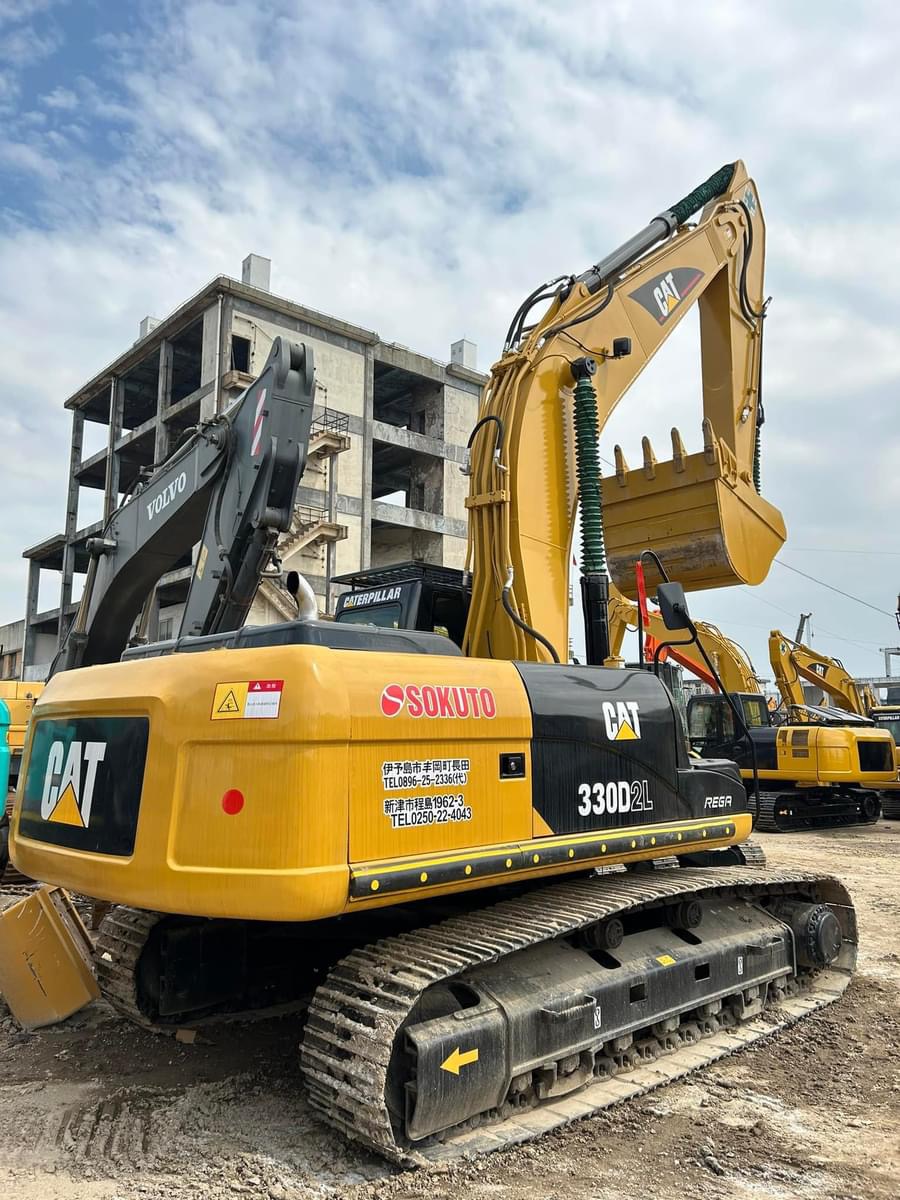

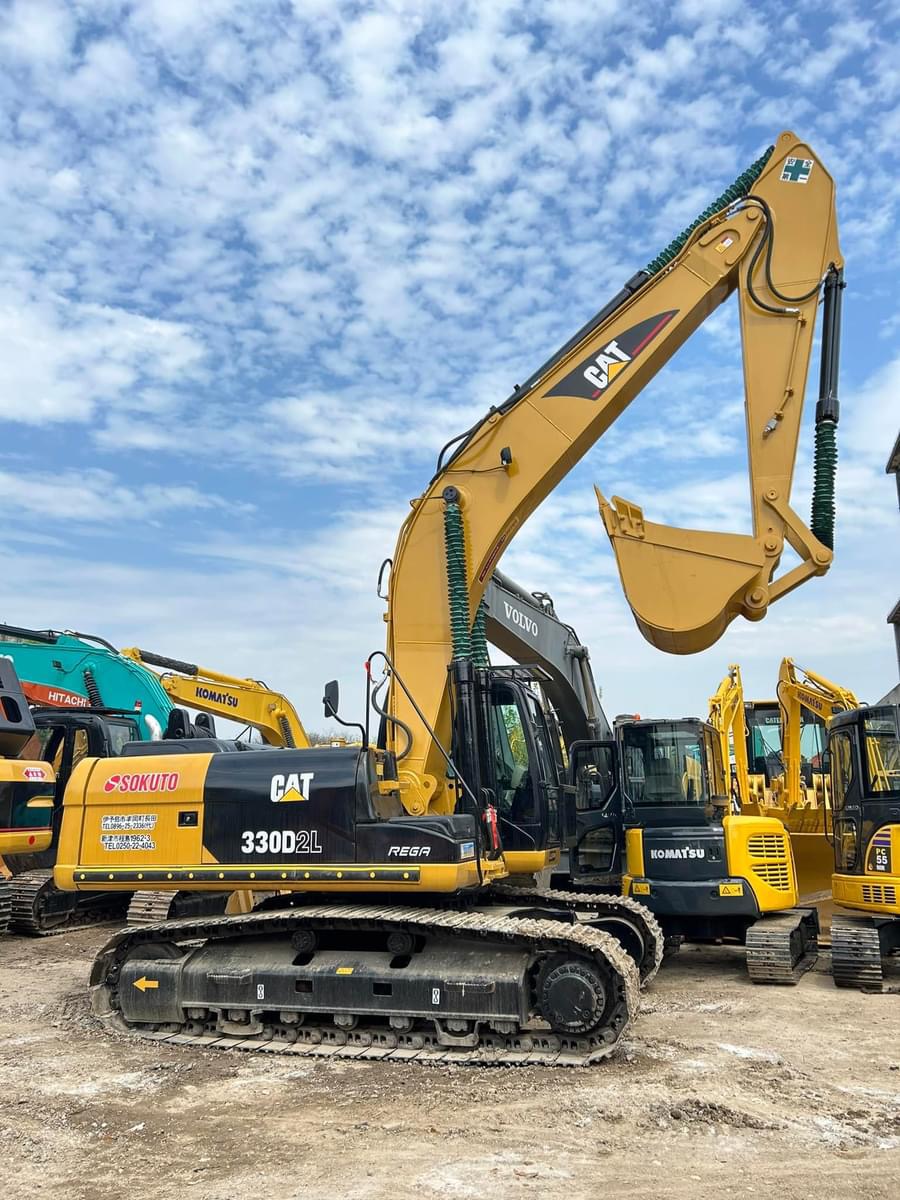

330D2L

330D2L

0 out of 5

Body structure: The X-shaped box-section body has excellent anti-twisting ability and can adapt to harsh working environments.
– Crawler system: The extended crawler is equipped with a 3-piece protective plate. The crawler track rollers, carrier rollers and idlers all adopt a sealed lubrication design. The crawler links are sealed with grease to reduce internal bushing wear, lower driving noise and extend service life.
– Chassis system: The extended chassis system (L) improves stability and lifting capacity, providing a stable working platform for operations.

Free shipping on orders over $50!

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

Engine: Equipped with a Cat C7.1 ACERT engine, with a rated power of 156kW, a maximum torque of 900N·m, a displacement of 7.01L, and compliant with China’s Non-road Vehicle Stage III emission standards.

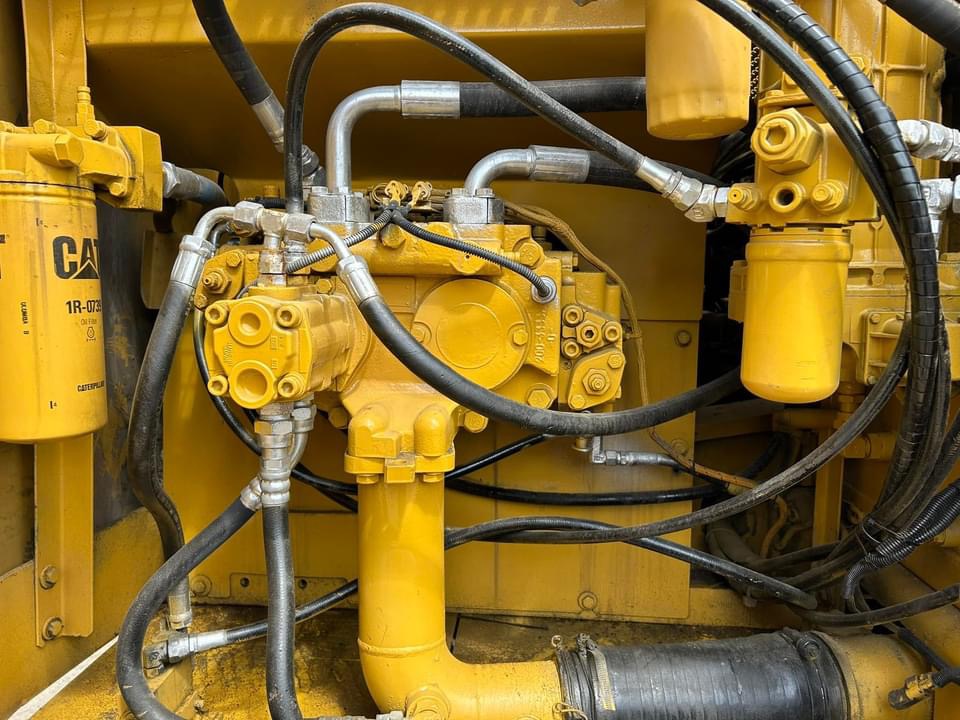

– Hydraulic system: Adopts a dual hydraulic pump system, with the main pump having a maximum flow rate of 254×2L/min, the travel hydraulic circuit pressure being 35Mpa, and the swing hydraulic circuit pressure being 27.5Mpa, ensuring excellent excavation performance and productivity.
– Digging force: The bucket digging force reaches 179kN, the arm digging force is 126kN, and the maximum traction force is 248kN, which can easily handle various excavation tasks.
– Working range: The maximum digging radius is 10720mm, the maximum digging depth is 7290mm, the maximum digging height is 10040mm, the maximum dumping height is 6900mm, and the maximum vertical digging depth is 6160mm, meeting a wide range of operating needs.
