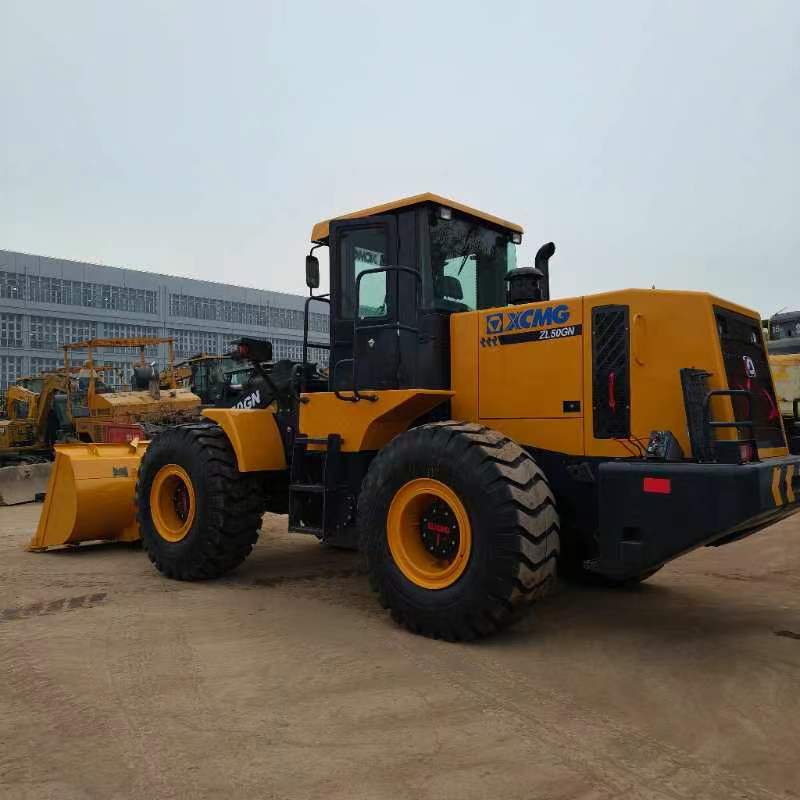

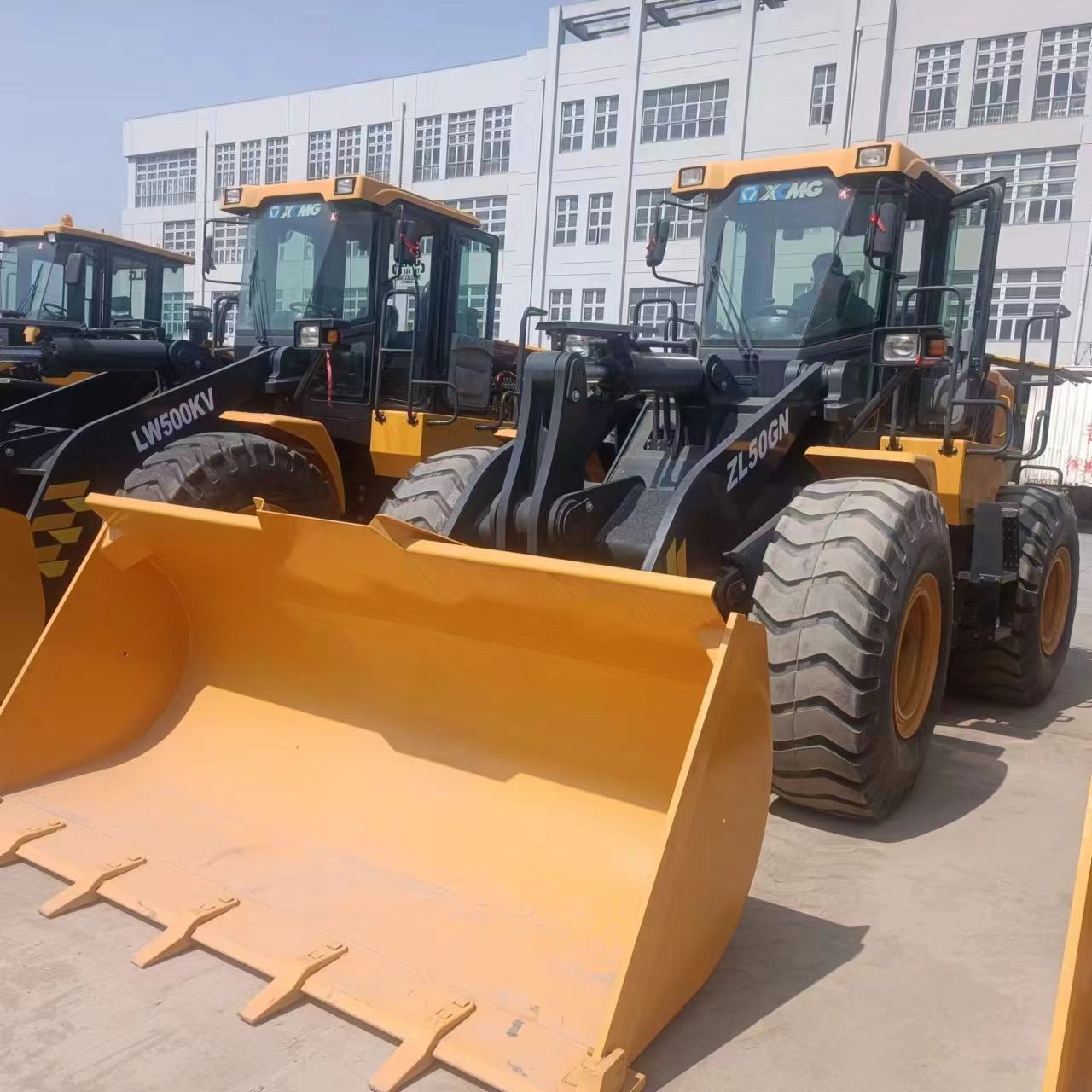

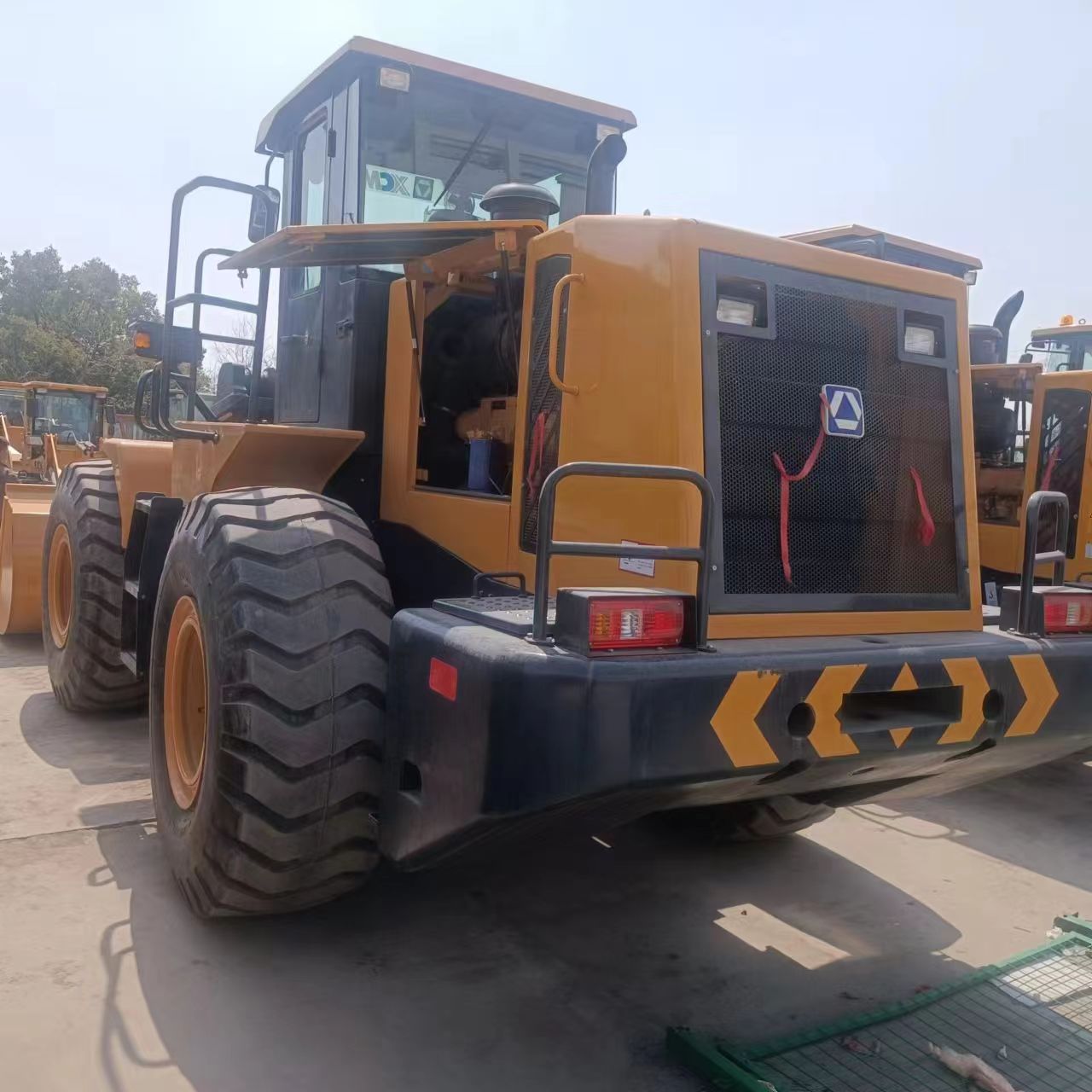

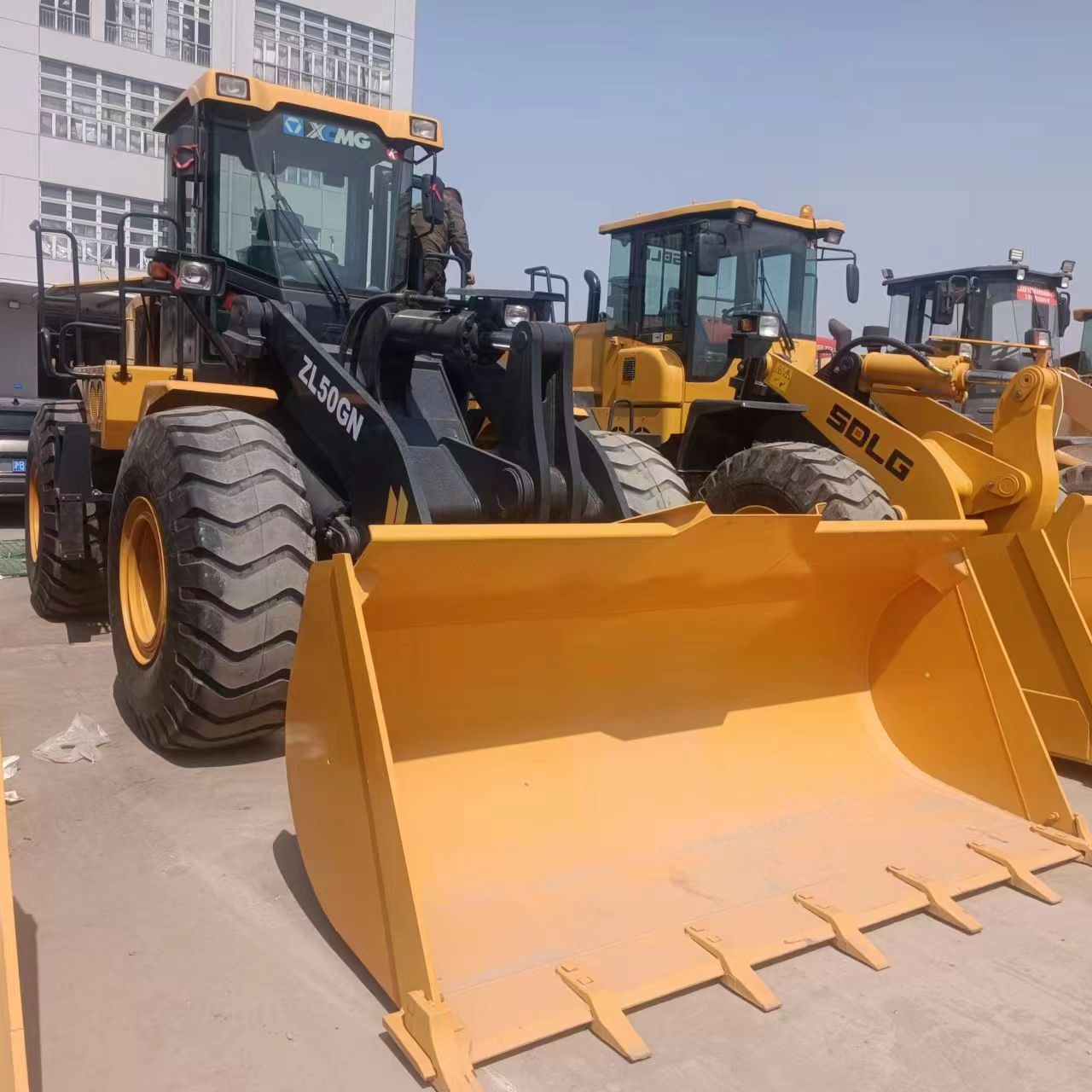

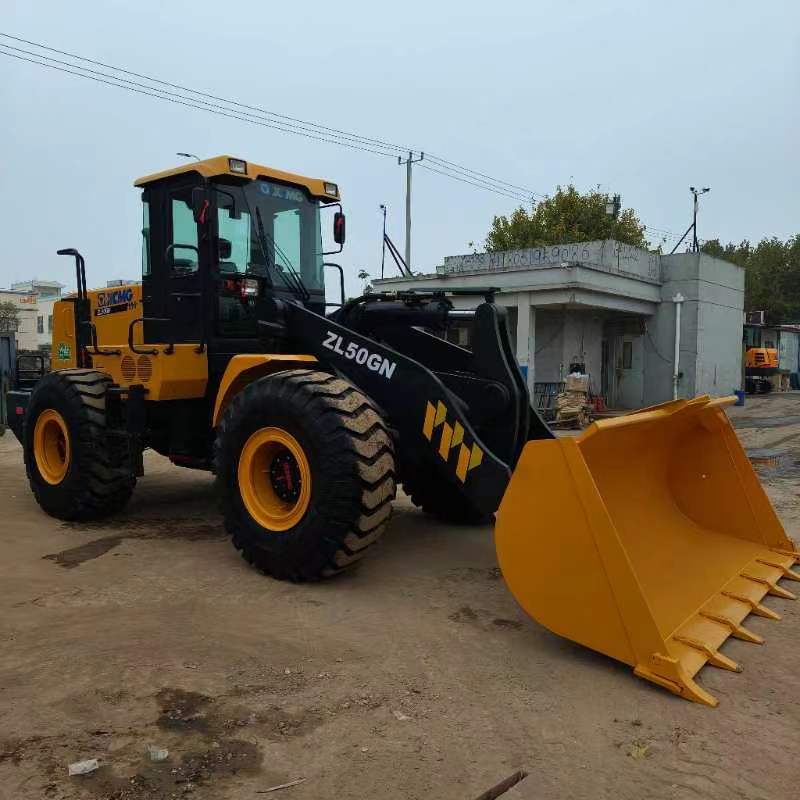

ZL50GN

Basic Parameters

– Rated load: 5000kg
– Bucket capacity: standard 3.0m³, optional range 2.5-4.5m³
– Total machine weight: approximately 18t
– Engine: commonly used SC11CB220G engine, rated power 162KW (220HP), rated speed 2200r/min
– Travel speed: 1st gear forward/backward speed is 11.5/16.5km/h, 2nd gear forward/backward speed is 37km/h

Performance Features

– Powerful动力: The engine has a high torque reserve coefficient, which can meet the demand for instantaneous overload. Equipped with a three-stage desert filter element, it is easy to maintain and has low cost.
– Efficient transmission: Adopts XCMG’s patented heavy-duty energy-saving transmission and torque converter components. The special large-capacity torque converter ensures the maximum utilization of engine power. Key load-bearing components use imported products or reinforced designs, effectively improving the overload capacity of the transmission system.
– Robust structure: The front frame adopts a box-type structure with integral cast lugs. The rear frame uses a variable-stiffness curved plate welded special-shaped box beam, which has strong bearing capacity. The articulation of the front and rear frames adopts a structure of rolling bearings + spherical plain bearings, ensuring high working stability.
– Flexible operation: Short wheelbase design, small turning radius, high maneuverability and flexibility, and strong site adaptability.

Cab and Comfort

– Adopts an ergonomic cab with an integral frame structure, featuring exquisite interior, sound insulation and noise reduction measures, wide field of vision, super large space, and high operating comfort.
– The cab is equipped with a high-power air conditioning system. The steering wheel, seat and joystick can be freely adjusted according to the operator’s habits, providing a comfortable driving experience for drivers of different body types.

Applicable Scenarios

– This loader is a new generation product developed by XCMG based on global technical resources. It has significant efficiency advantages in fields such as engineering construction, aggregate yards, and coal logistics. Through diversified configurations and complete accessories, it can fully adapt to construction needs in different regions and working conditions.
