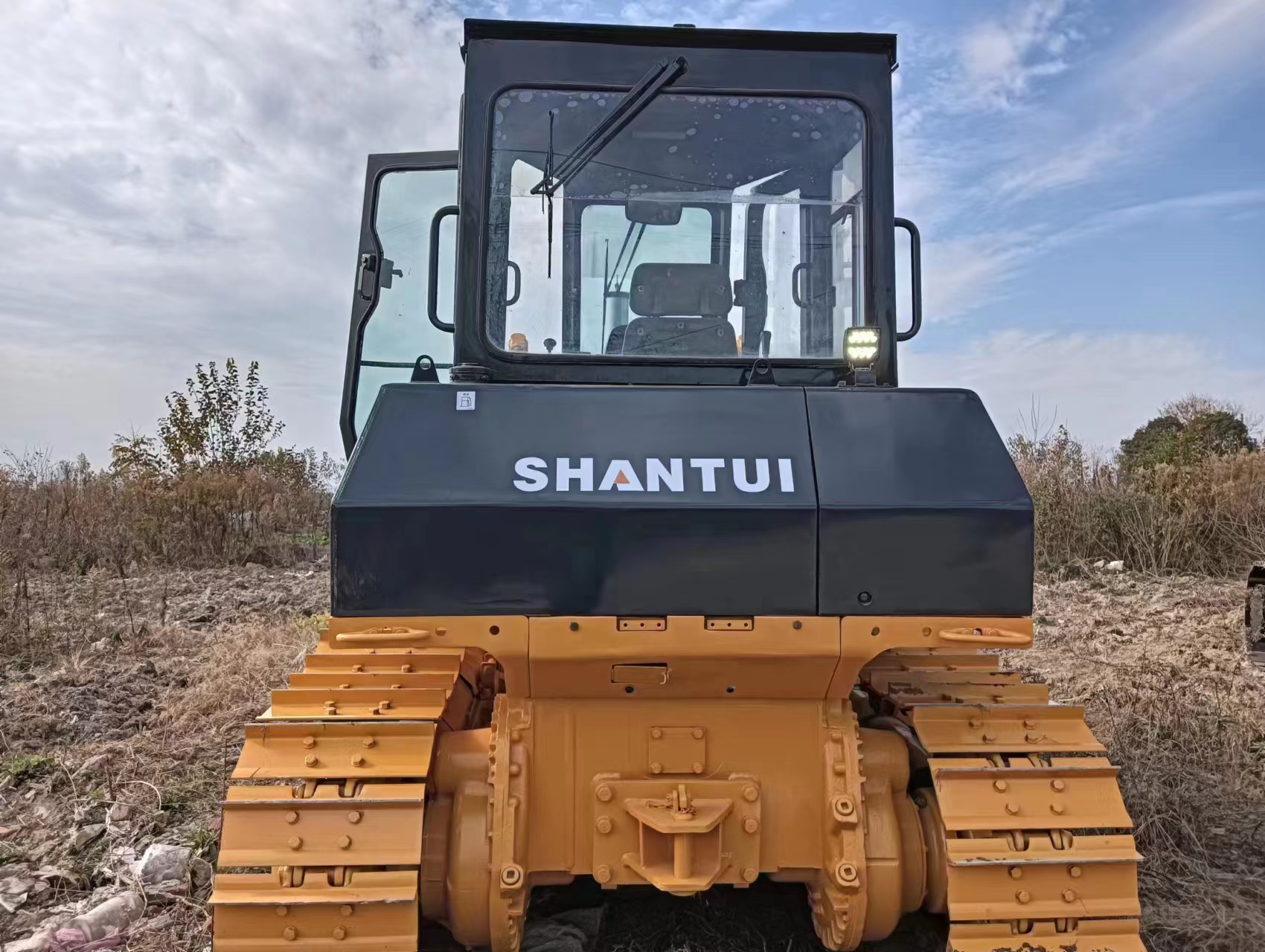

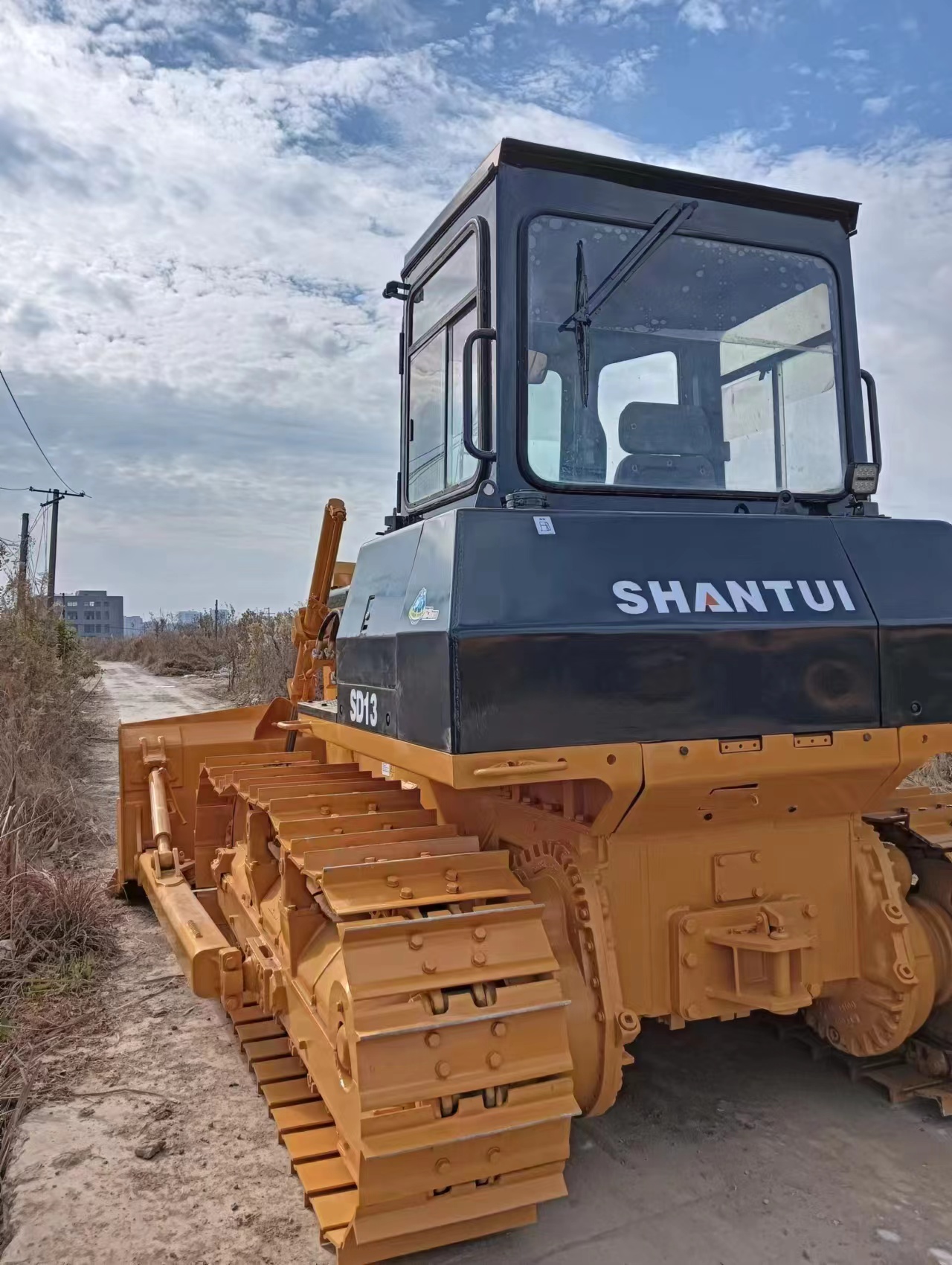

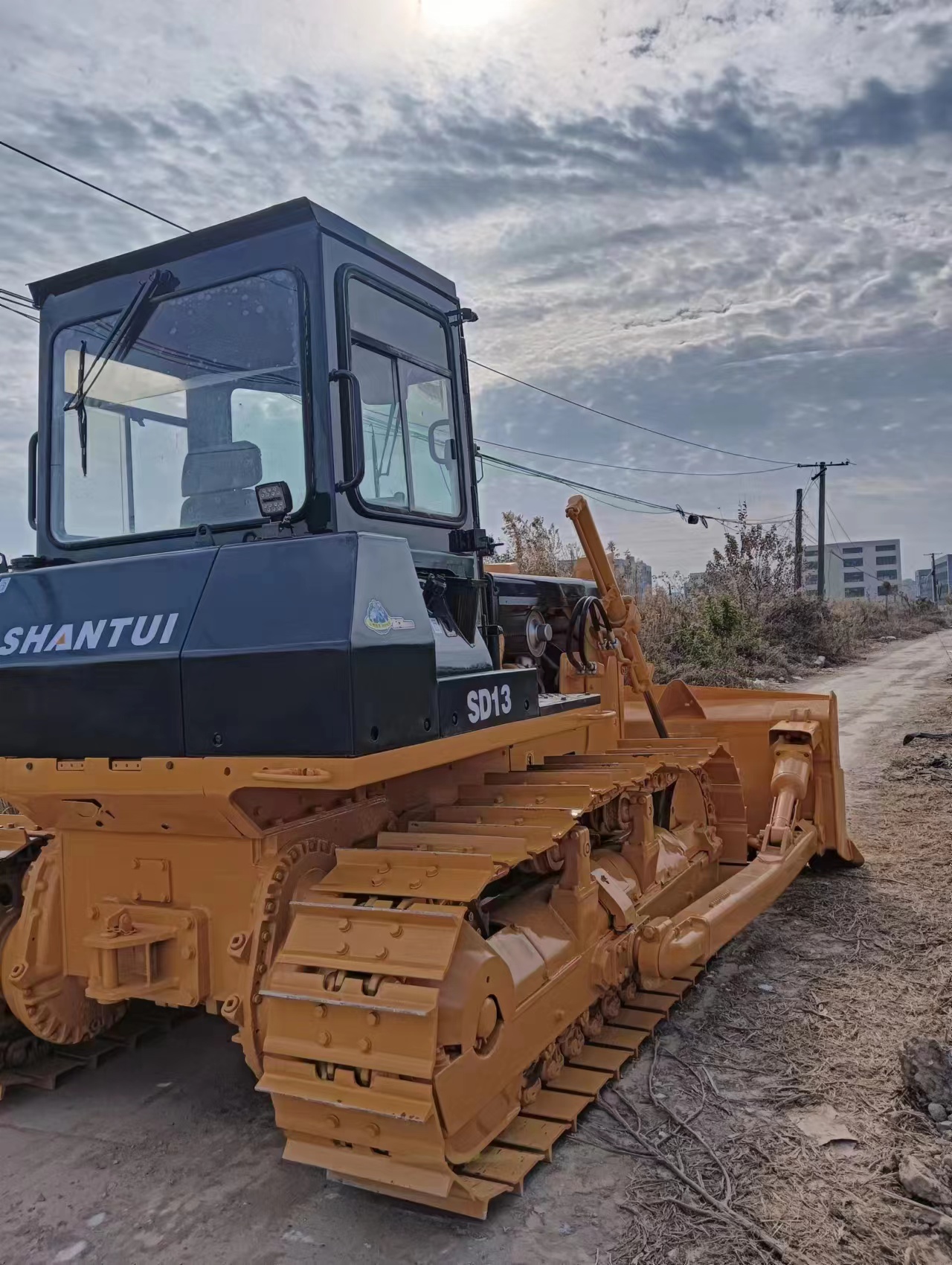

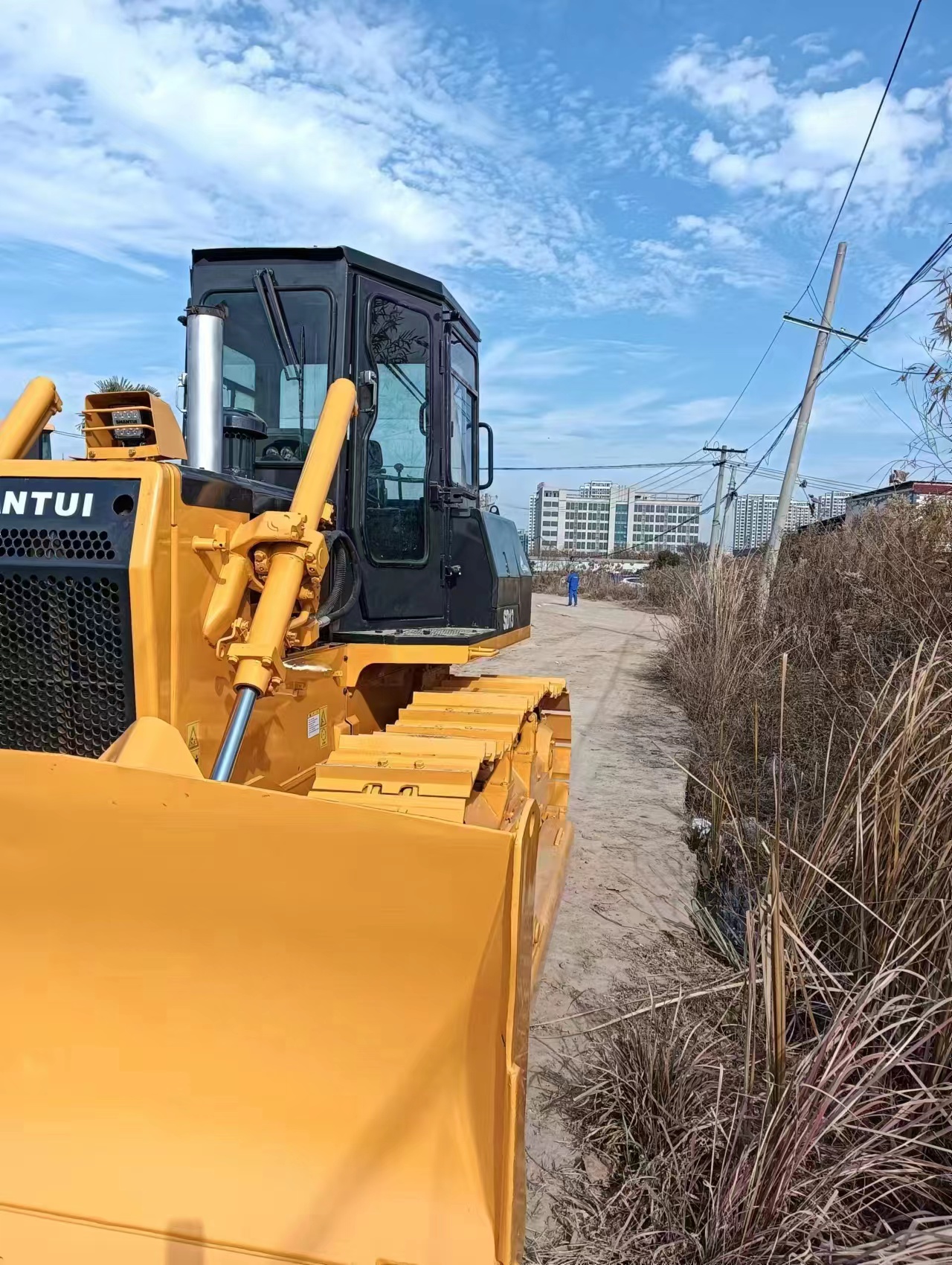

SHANTUI SD13

Basic Parameters

– Engine Model: SC8DK.
– Rated Power: 105kW/1900rpm.
– Overall Weight: 13700kg (standard configuration).
– Overall Dimensions: 4492mm × 3185mm × 2950mm (standard version).
– Travel Speed: Three forward gears with speeds of 0-3.2km/h, 0-5.9km/h, 0-9.8km/h; three reverse gears with speeds of 0-3.9km/h, 0-7.1km/h, 0-11.9km/h.

Power System

Equipped with the SC8DK electronically controlled engine, which meets National III emission standards, featuring a large torque reserve coefficient, strong power, high efficiency, energy saving, and low maintenance costs. The improved air filter and intake and exhaust systems have a filtration accuracy of 99%, effectively extending the engine’s service life.

Transmission System

The transmission system perfectly matches the engine curve, with a wider high-efficiency range and higher transmission efficiency. Shantui’s self-developed transmission system has undergone long-term market testing, ensuring stable performance and reliable quality.

Driving Environment

Adopting a hexahedral cab with a large internal space and wide field of vision, it can be equipped with FOPS/ROPS for safety and reliability. Equipped with electronically controlled hand and foot throttles for precise and comfortable operation, as well as an intelligent display and control terminal, heating and air conditioning, etc., to provide a humanized driving experience.

Work Adaptability

The stable and reliable chassis system is suitable for various harsh working conditions. It has a long grounding length and large ground clearance, ensuring stable driving and good passability. It can be equipped with sanitation shovels, rippers, universal shovels, etc., according to working conditions, with strong operation adaptability. Standard LED work lights enhance the safety of night construction.

Maintainability

The structural components are of excellent quality, and the electrical wiring harnesses are protected by corrugated pipes and divided by wire splitters, with a high protection level. Fuel filters, air filters, etc., are designed on the same side for one-stop maintenance.
