855N

Basic Parameters

– Rated load capacity: 5300kg
– Rated power: 170kW
– Operating weight: 17100kg
– Bucket capacity range: 2.7-5.0m³
– Standard bucket capacity: 3m³
– Maximum breakout force: 175kN
– Dumping height: 3480mm
– Dumping distance: 1072mm
– Three-item sum: ≤10s
– Overall length: 8175mm
– Outer width of bucket: 2970mm
– Overall height: 3500mm
– Wheelbase: 3310mm

Performance Features

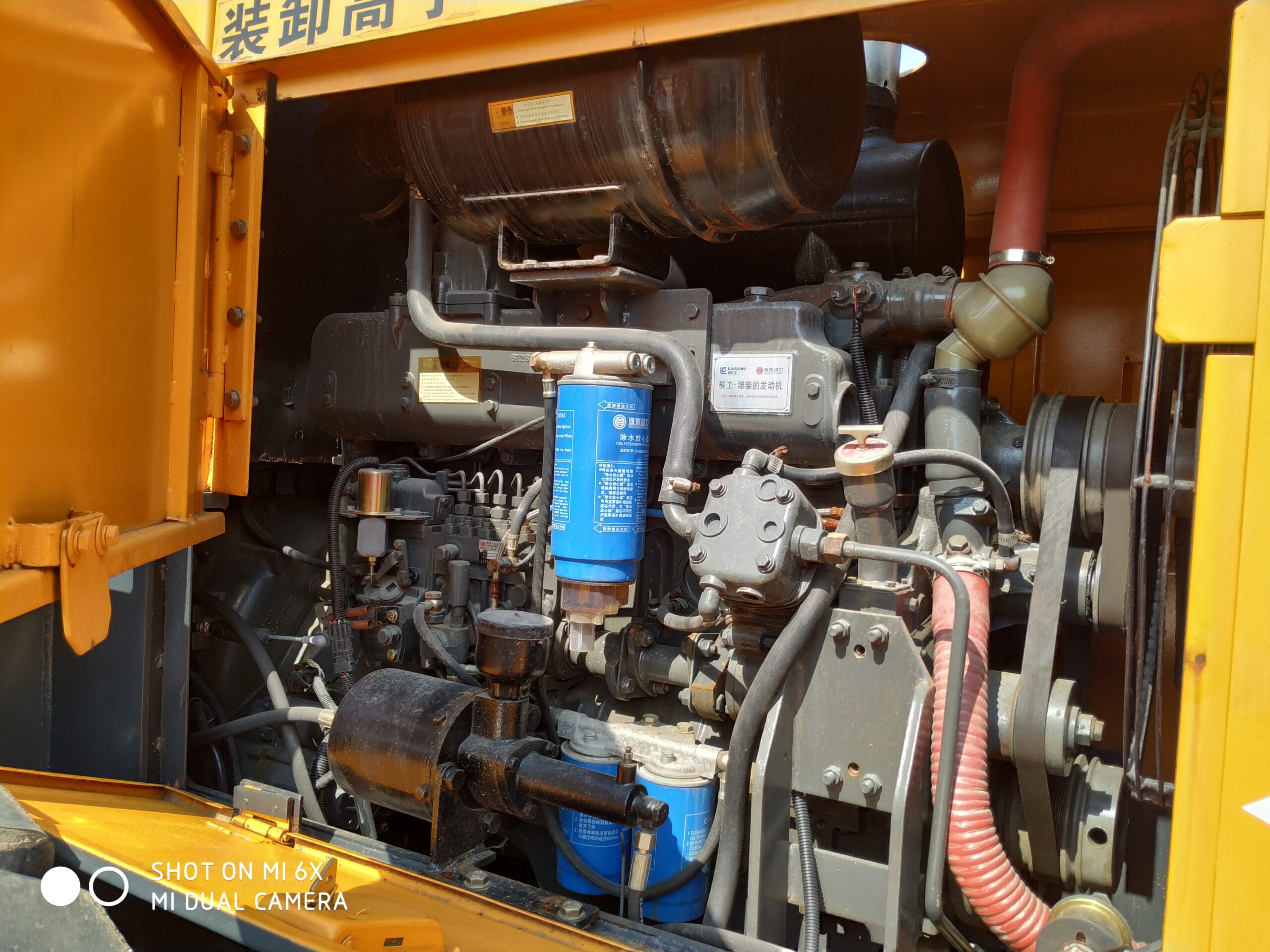

– Powerful power: Equipped with the new Cummins National IV L9 engine, both power and speed have been increased by 8%-10%. The aftertreatment and engine are integrally designed, with Liugong’s exclusive power curve, making it more powerful and with lower fuel consumption. The overall fuel consumption of the machine is 20% lower than that of the same level.
– Efficient operation: Adopts a non-isolated ring overrunning clutch, which reduces shift impact while ensuring the acceleration time of the whole machine. The newly optimized large-displacement steering hydraulic system makes the steering the lightest among the same level. Its three-item sum time is ≤10 seconds, which can effectively improve operation efficiency.
– Stable and reliable: The wheelbase is long, one of the longest wheelbases in the same level. Coupled with the large-opening articulation design, the whole machine is more stable and reliable during operation. The heavy-duty swing axle is solid and durable, and the latest transmission developed by Liugong has strong bearing capacity and durability.
– Comfortable operation: Equipped with a micro-pressurized cab, which effectively prevents dust from entering and protects the driver’s health. The air conditioner has a multi-air outlet design, with high wind speed and fast cooling. The cab is reasonably designed with a wide field of vision, which is convenient for observing the working environment and improving operation safety.
– Convenient maintenance: The single-layer radiator has high efficiency, low noise, and is easy to clean, facilitating daily maintenance and repair, and can reduce downtime and maintenance costs.
