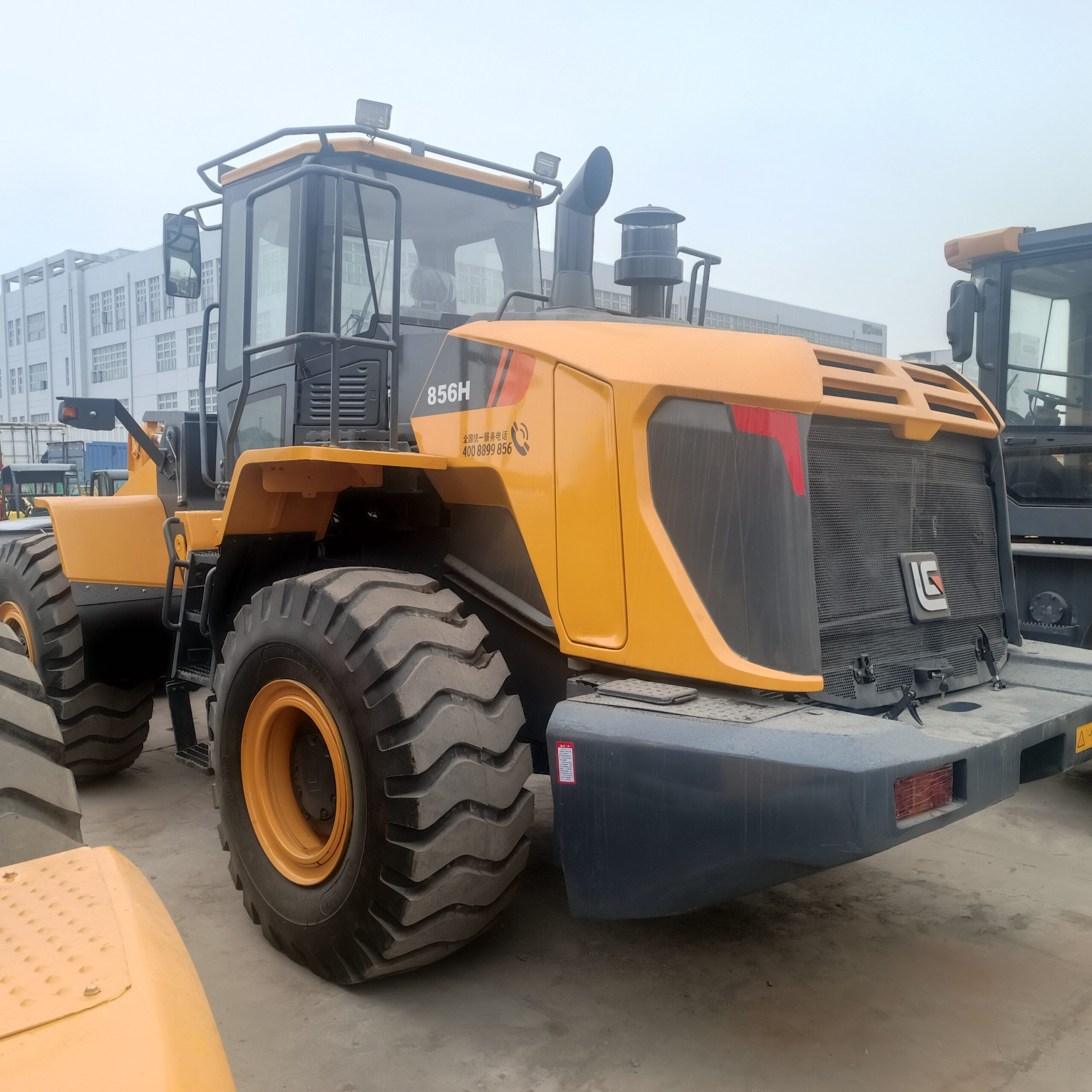

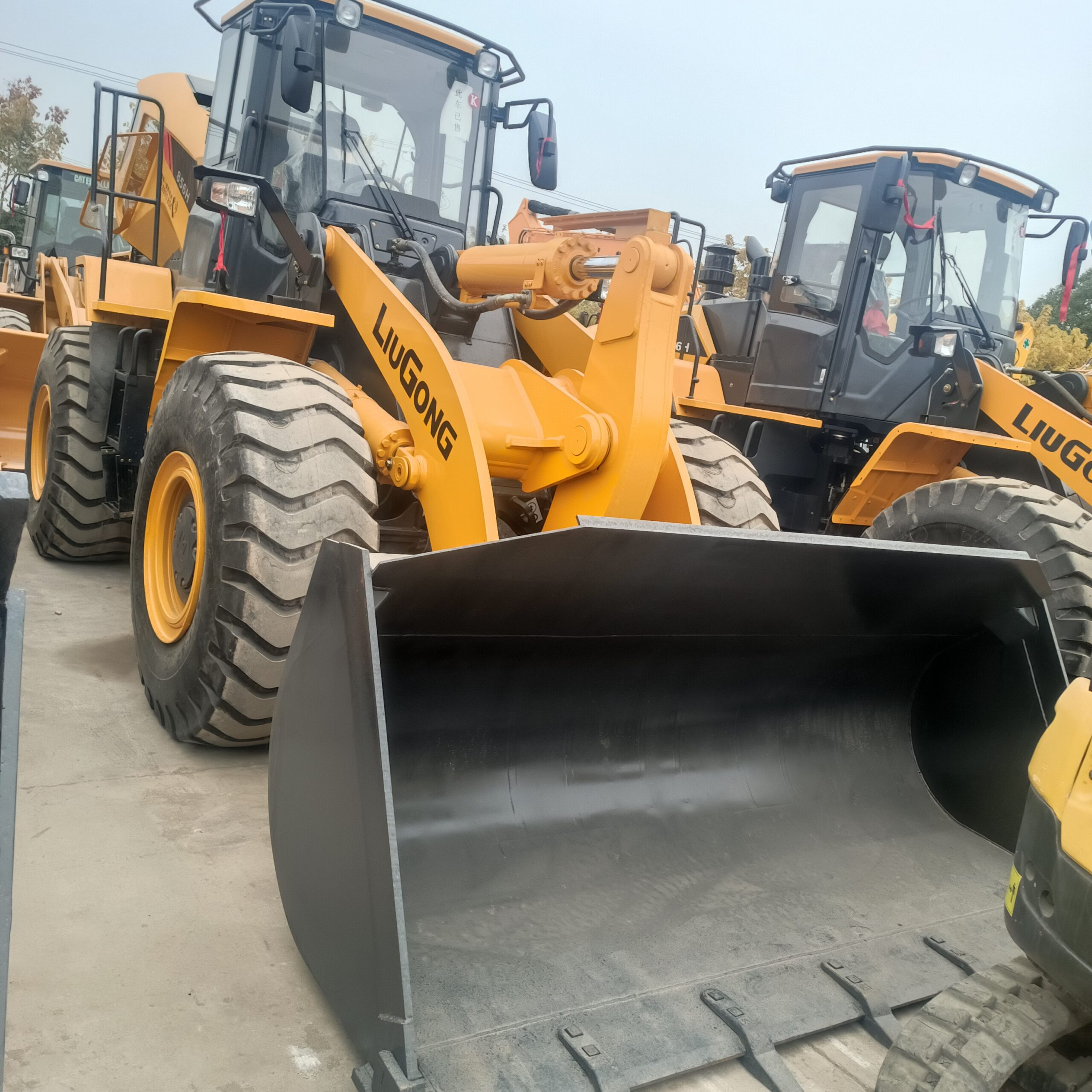

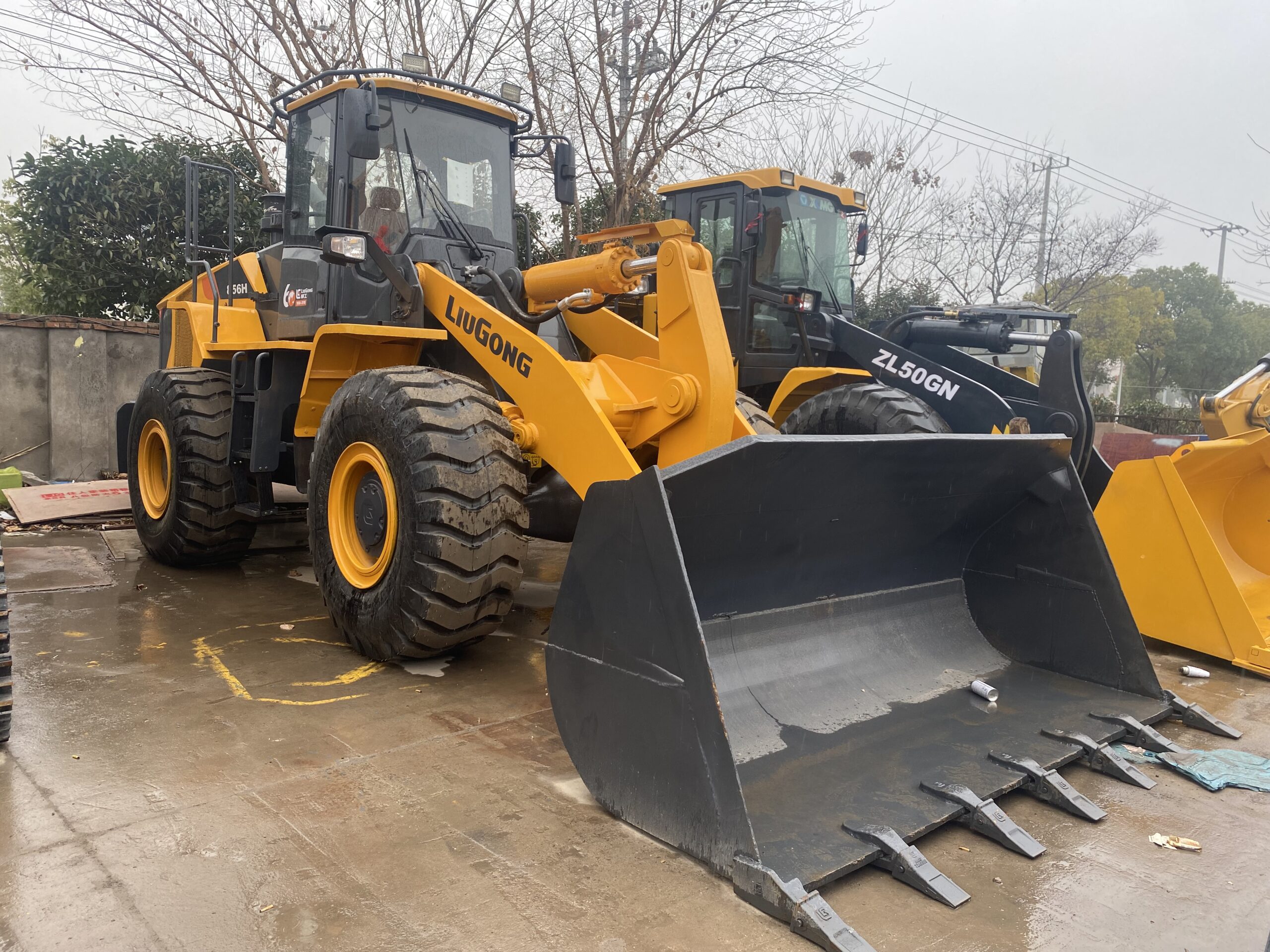

856H

Basic Parameters
– Rated load capacity: 5500kg
– Rated power: 170kW
– Operating weight: 17500kg
– Standard bucket capacity: 3m³
– Unloading height: 3480mm
– Maximum breakout force: 180kN
– Three-item sum: 9.7s
– Overall length: 8565mm
– Outer width of bucket: 2970mm
– Overall height: 3500mm
– Wheelbase: 3370mm
– Performance Features
– Powerful动力: Equipped with a Cummins engine, it delivers strong and stable power output, capable of meeting the operational needs of various harsh working conditions.
– High efficiency and energy saving: Adopts a fixed-variable hydraulic system, which can automatically adjust the hydraulic flow according to the working load, reducing fuel consumption and improving work efficiency. Its LiuGong patented BS308 transmission has high reliability and a long service life.
– Comfortable operation: Equipped with a spacious and comfortable cab, with a luxurious seat inside that can slide forward and backward and rotate 360 degrees, and an air conditioner can be optionally installed. It adopts a precise pilot control system, which makes operation flexible and convenient, and can effectively reduce the labor intensity of the operator.
– Convenient maintenance: The engine hood is easy to open, and the maintenance points are easily accessible. Daily maintenance can be carried out on the ground, which helps reduce maintenance costs and downtime.
– Robust structure: Structural components such as the boom and frame are made of high-strength steel, optimized in design, sturdy and durable, and can withstand large loads and impact forces.
