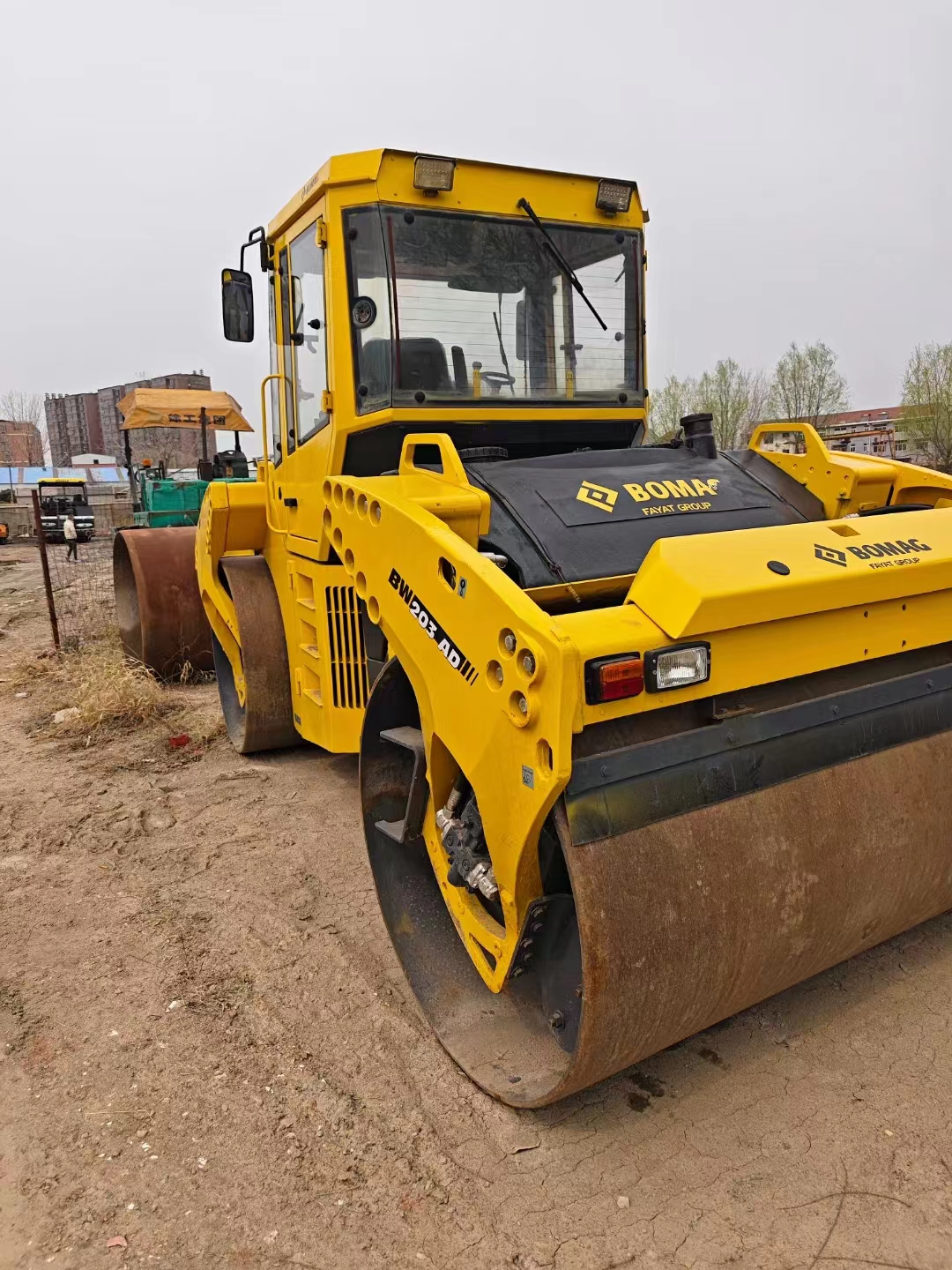

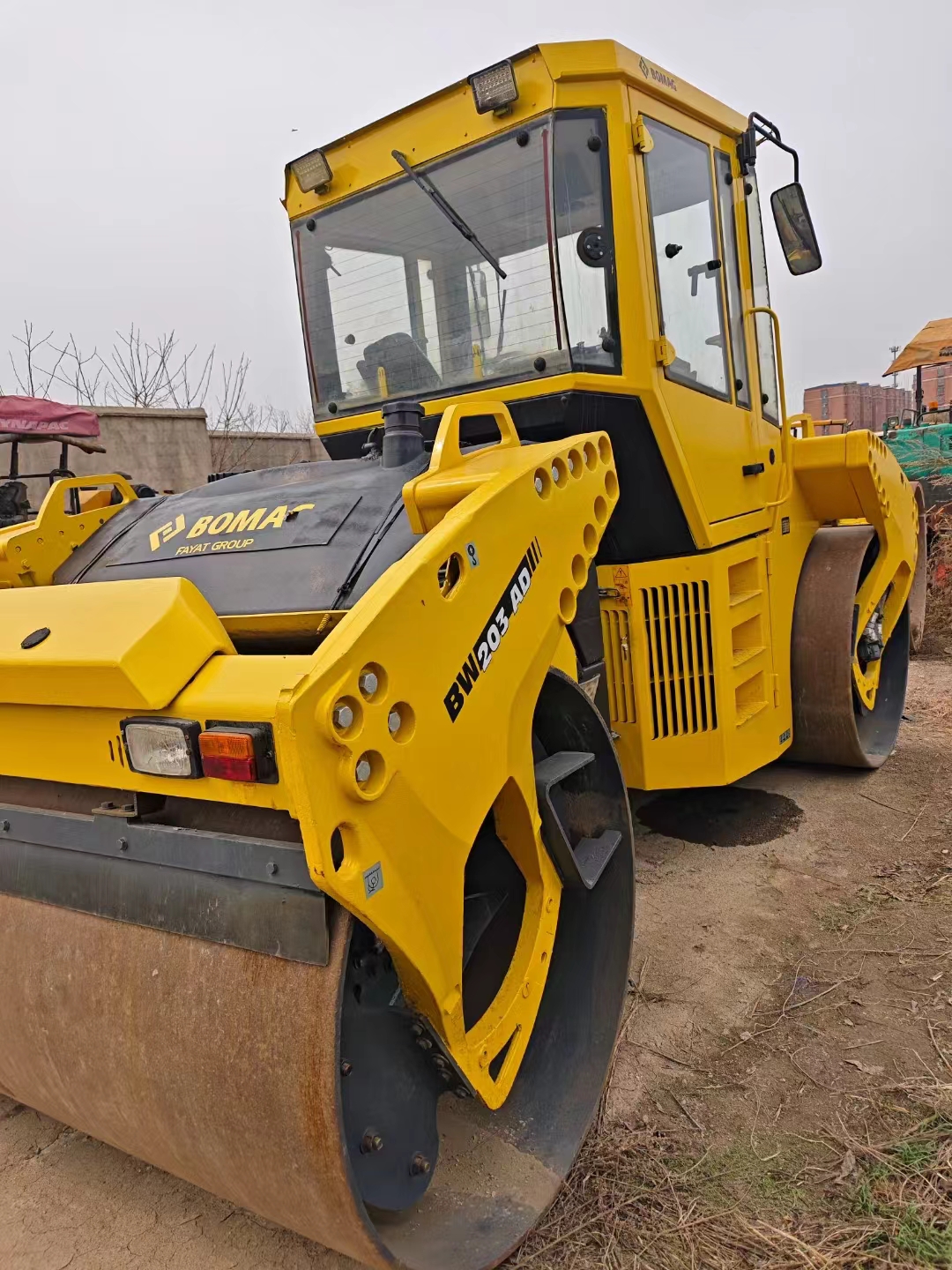

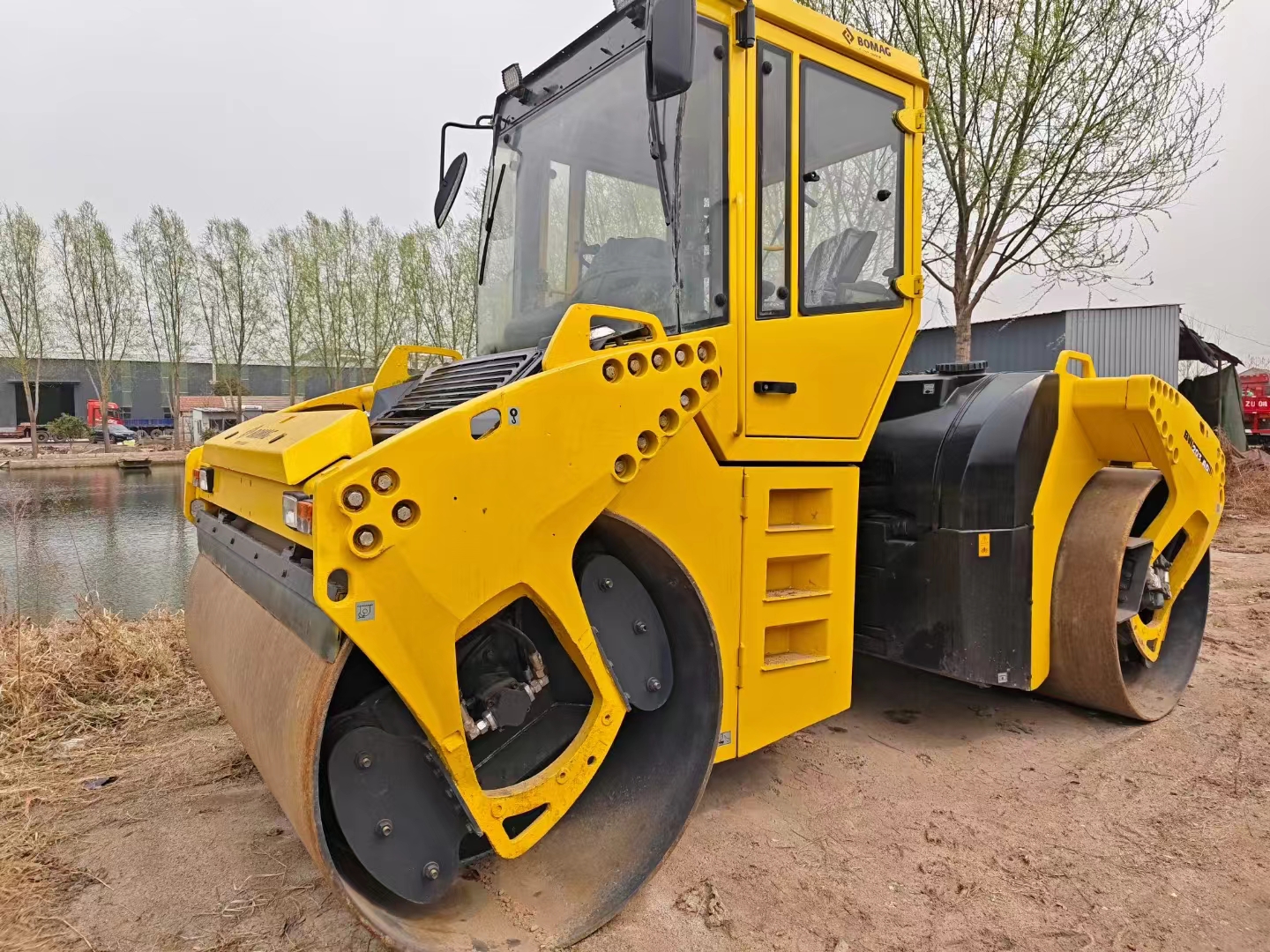

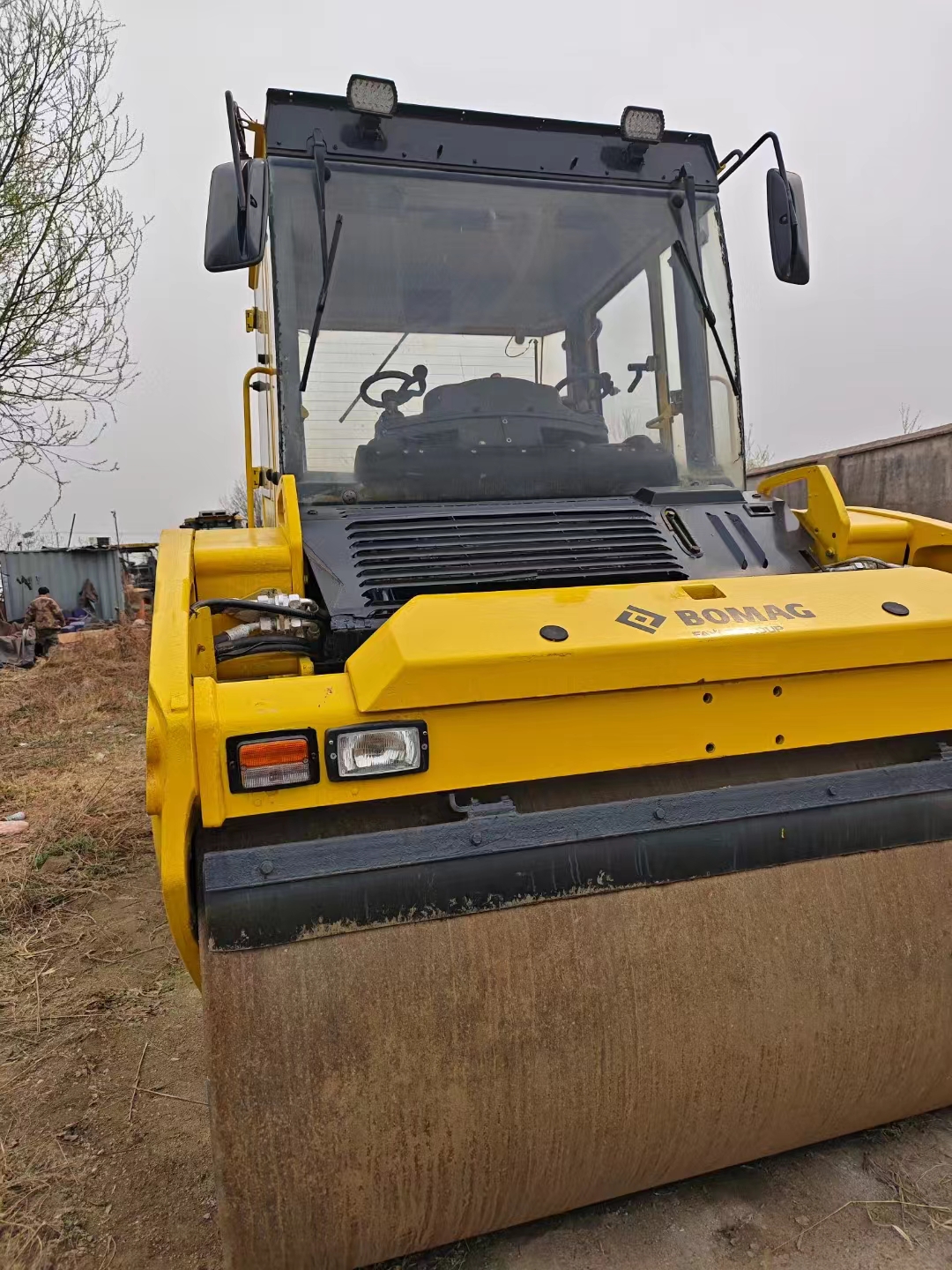

Bomag BW203AD

Its operating weight (including the cab) is 13300kg, with the weight distribution of the steel wheels being 6900kg at the front and 6400kg at the rear. The overall length of the machine (without a tow hook) is 4540mm, and the total width is 2135mm. The travel speed in the first gear is 0-5.7km/h, and in the second gear is 0-11.0km/h. The maximum climbing capacity without/with vibration is 40%/35%. The engine adopts Deutz TCD2012L042V, with an output power (according to ISO14396 standard) of 100kW. The vibration frequencies of the front steel wheel/rear steel wheel are 50/40Hz and 40/50Hz. The vibration amplitude of the front steel wheel is 0-0.76mm, and that of the rear steel wheel is 0.69/0.29mm. The exciting force of the front steel wheel is 0-247/
