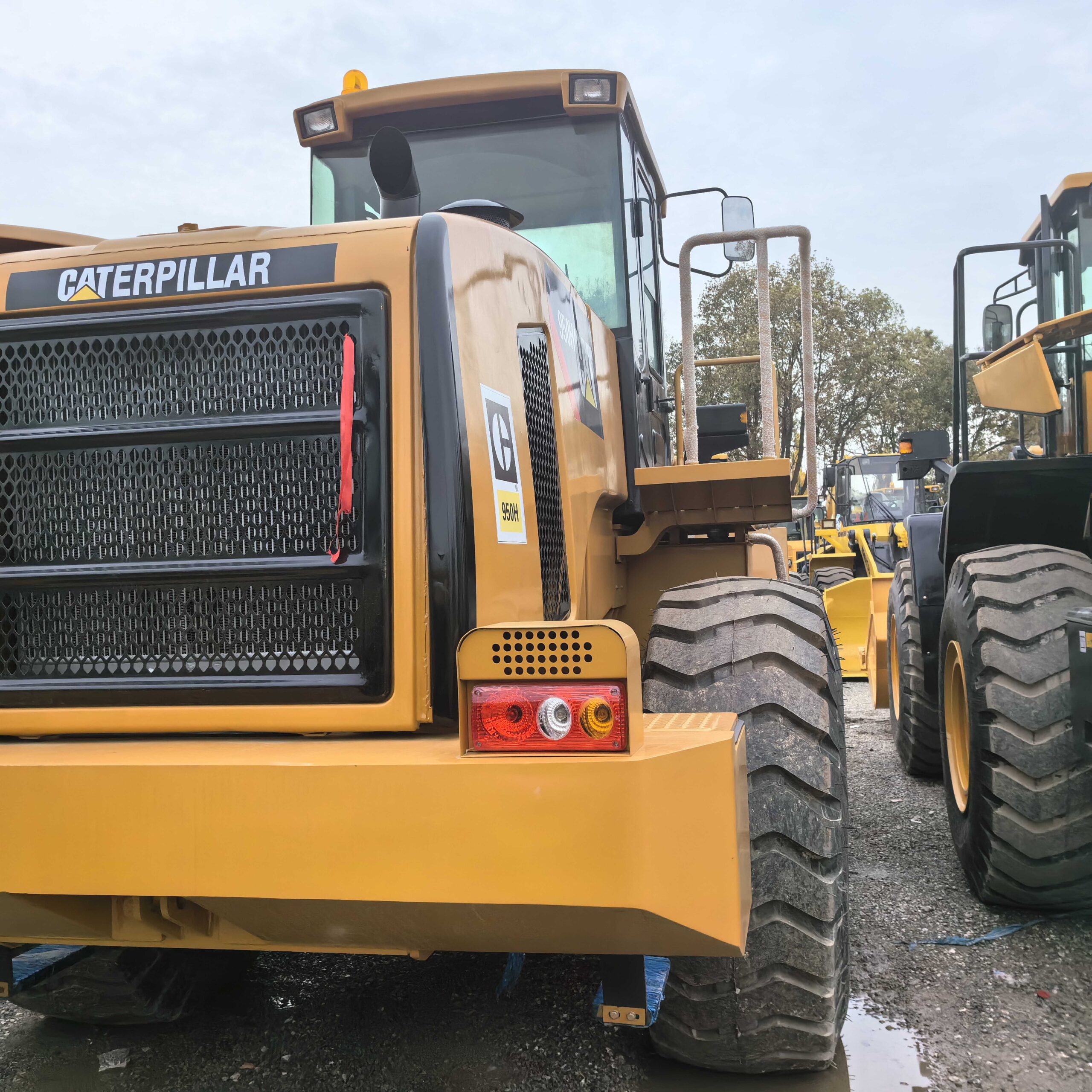

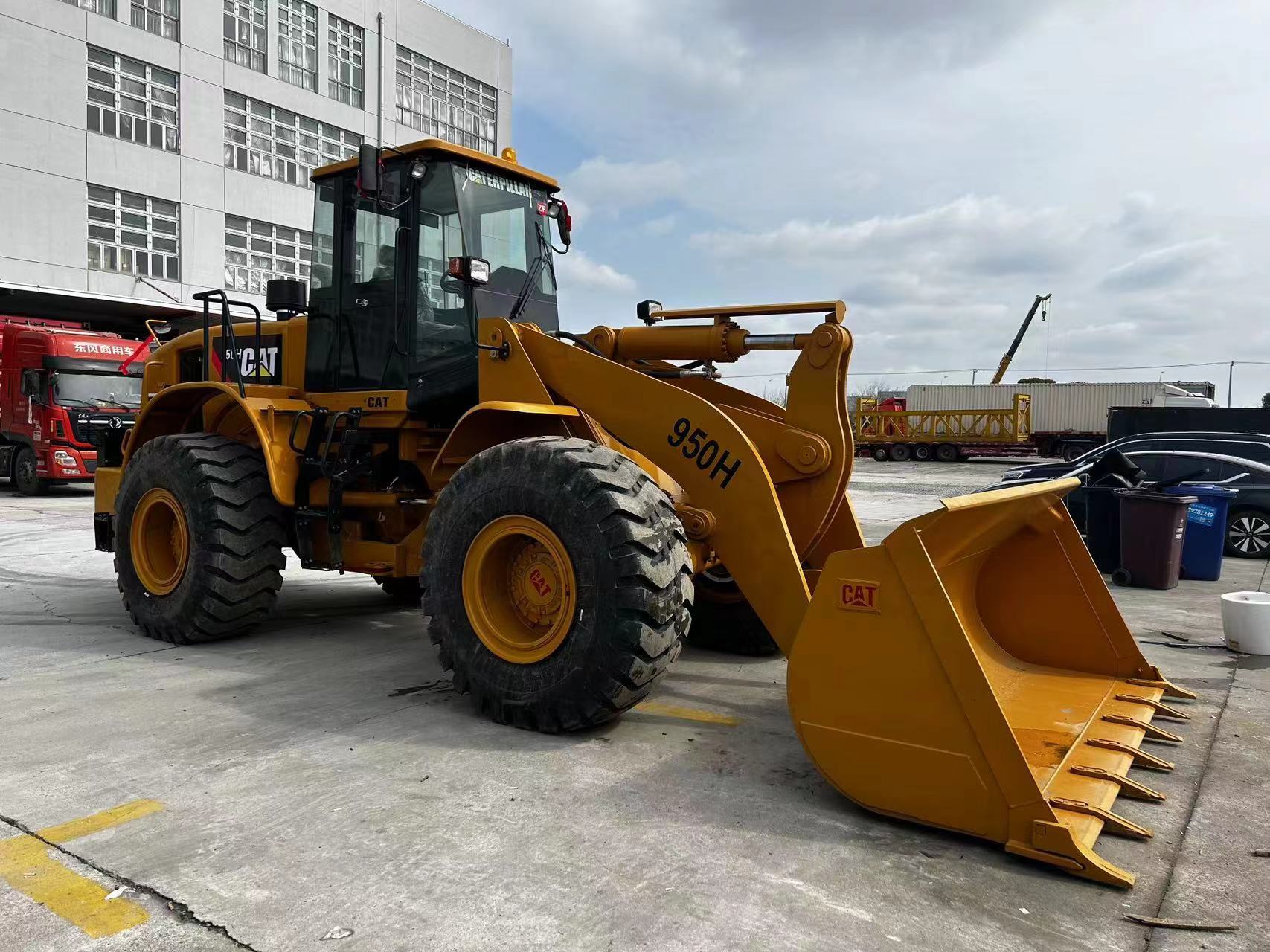

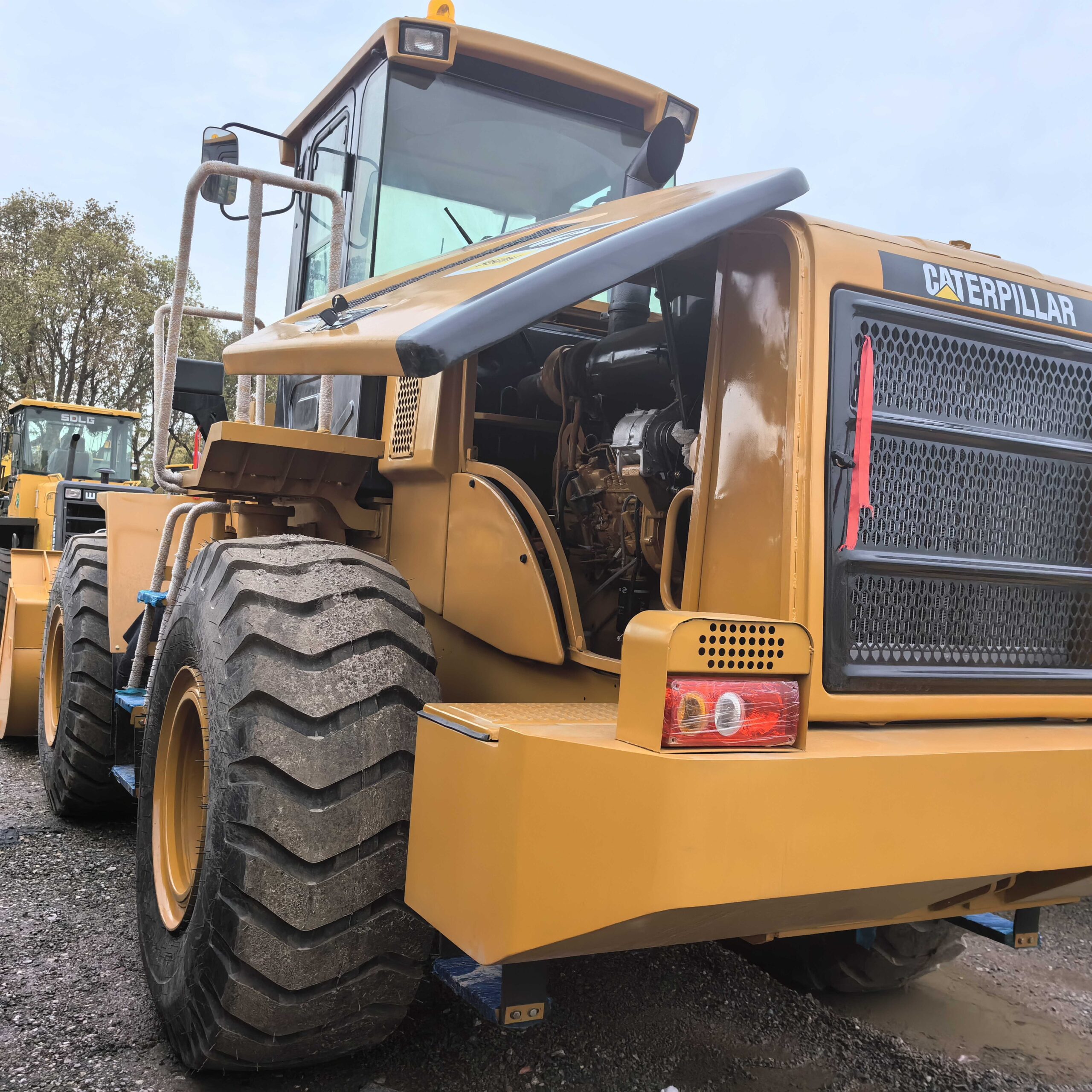

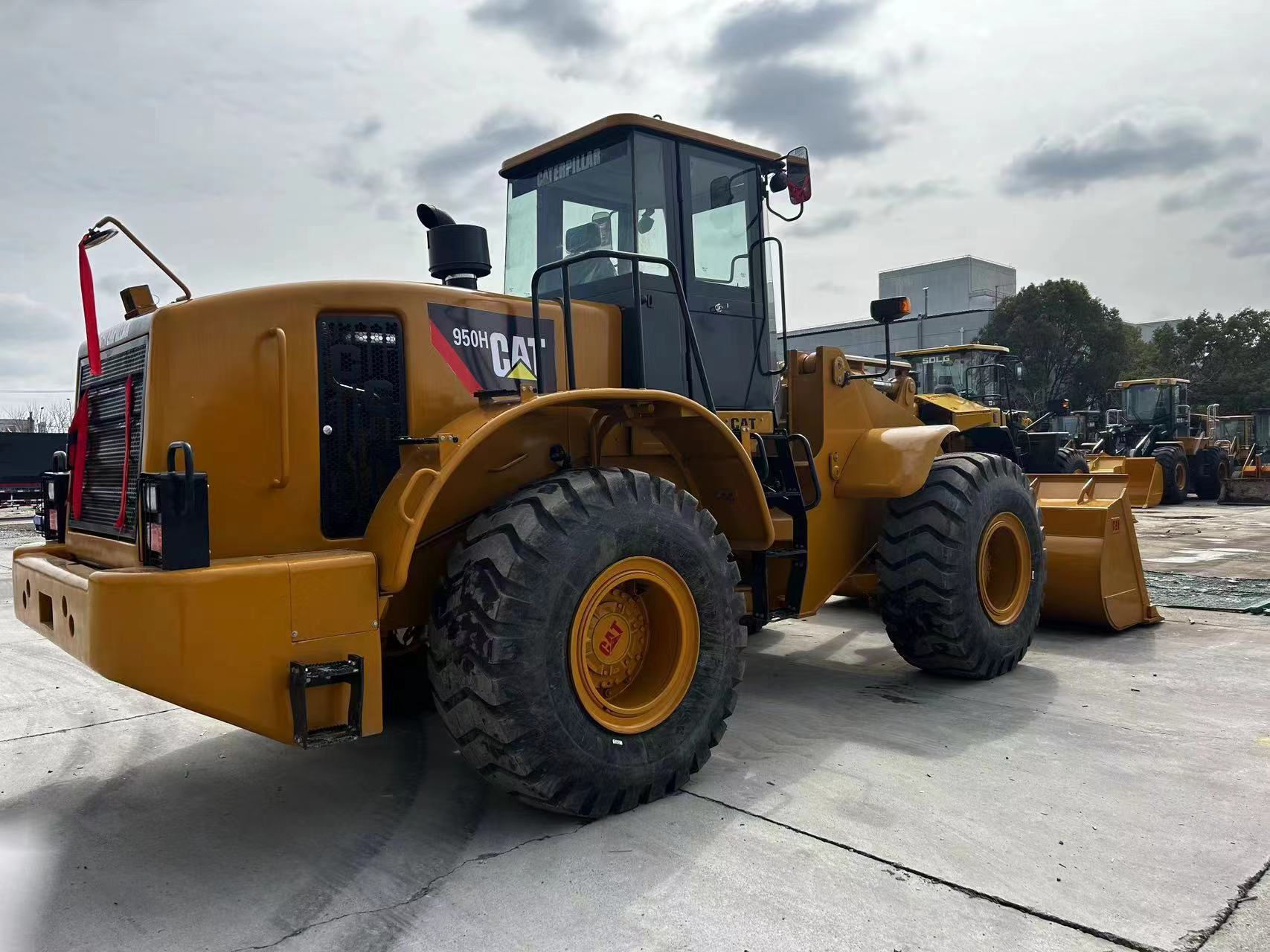

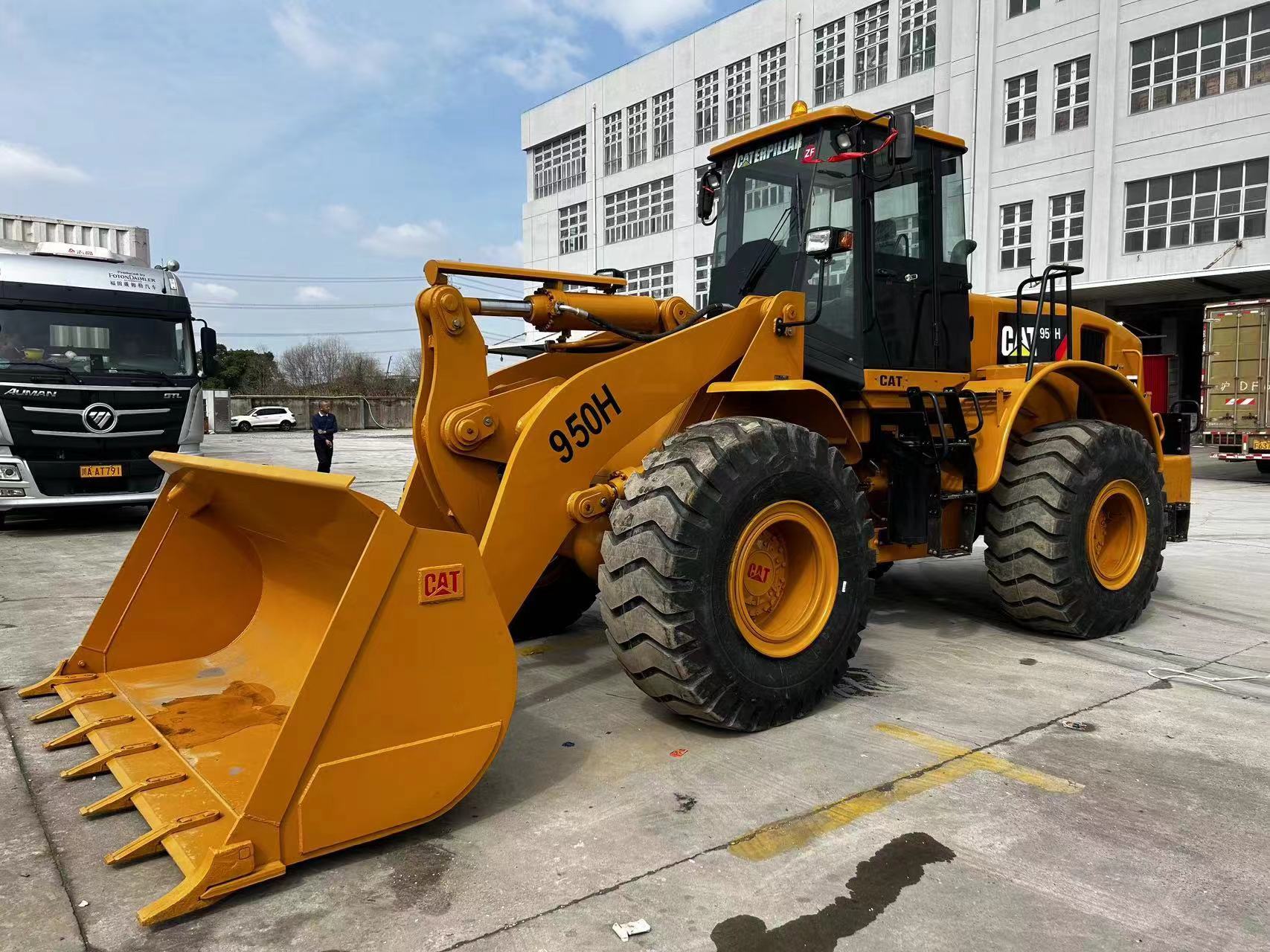

CAT 950H

Basic Parameters

– Overall operating weight: 18338kg
– Bucket capacity: 2.5-3.5m³
– Engine model: Cat C7 ACERT
– Rated power: 147kW
– Maximum dumping height: 2922mm
– Bucket width: 2927mm
– Fuel tank capacity: 314L
– Hydraulic oil tank capacity: 110L

Performance Features

– Powerful: Equipped with the Cat C7 ACERT engine, it delivers strong and stable power output. Its net torque can reach 907N·m at 1400rpm, which can meet the operational needs of various complex working conditions.
– Efficient operation: The equipped hydraulic system has a pump output flow of 270L/min, with a short hydraulic cycle time. The lifting time is 6.2s, the lowering time of the empty bucket is 2.5s, and the unloading time is 1.3s. The sum of the three is 10s, resulting in high operating efficiency.
– Comfortable operation: Equipped with a world-class cab, featuring a ROPS/FOPS structure that meets SAE and ISO standards, it offers a wide field of vision. The seat is adjustable and suspension-type, which can effectively reduce driver fatigue.
– Convenient maintenance: Adopting a modular design, each component and system are independent of each other, facilitating replacement and maintenance, and reducing downtime and maintenance costs.
