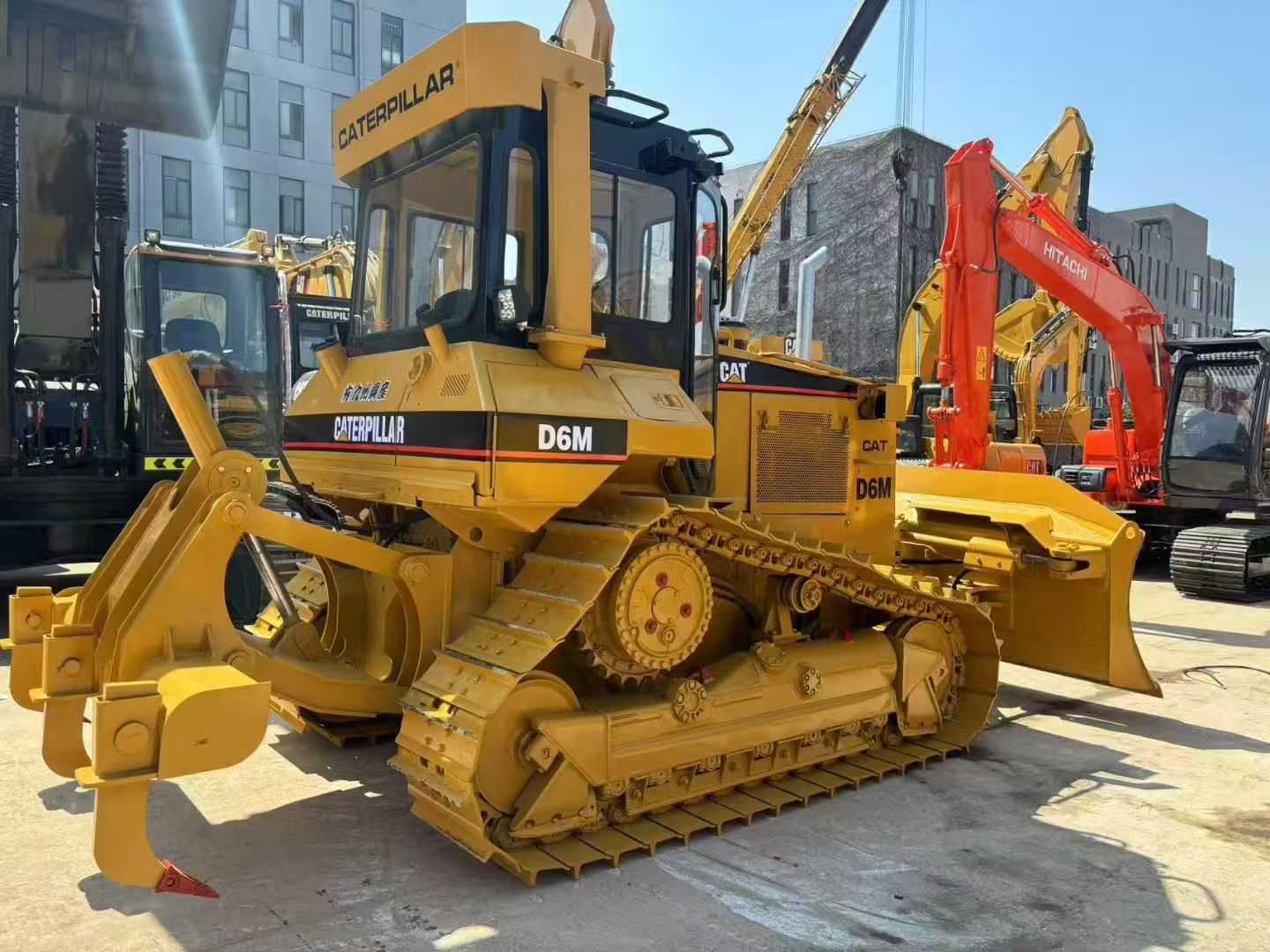

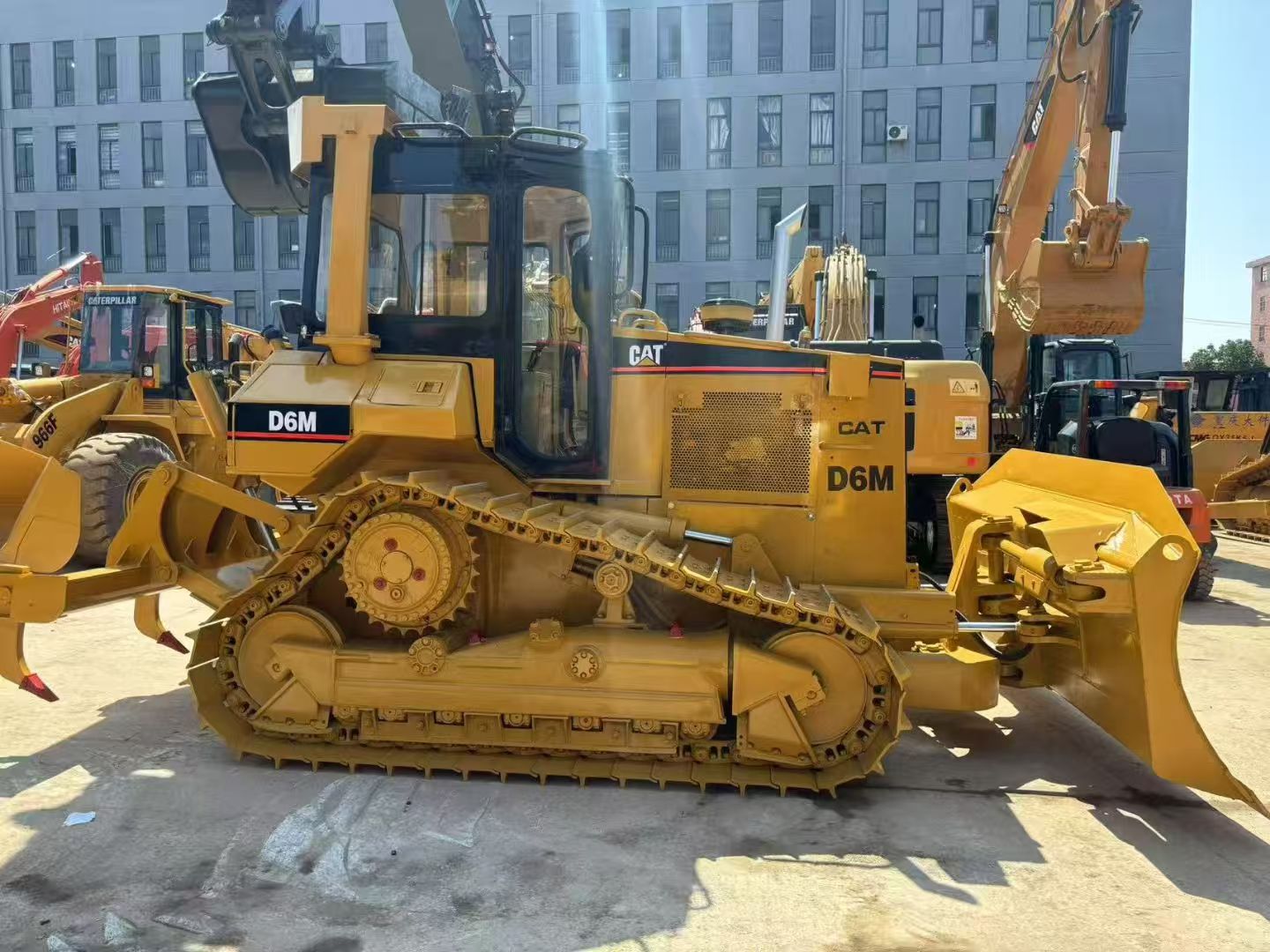

CAT D6M

Performance Parameters

– Engine: Equipped with a 3116T engine, with a flywheel power of 140 horsepower and a displacement of 402.76 cubic inches.
– Weight: The operating weight is approximately 34,240 pounds.
– Blades: There are two types of blades: VPAT and SU. The width of the SU blade is 10.5 feet, and the width of the VPAT blade is 10.75 feet.
– Transmission system: Adopts a power shift transmission with 3 forward gears and 3 reverse gears. The maximum forward speed is 6.4 mph, and the maximum reverse speed is 7.95 mph.
– Chassis system: The track shoe width is 23.62 inches, with 40 track shoes on each side, and the ground pressure is 7.22 psi.

Structural Features

– Durable structural design: Uses high-strength steel and high-quality castings, making the body strong and durable, able to withstand heavy loads and harsh working conditions.
– Humanized design: The cab is spacious and comfortable, equipped with advanced seats and air conditioning system, providing a good working environment and operational comfort.

Working Devices

– Blades: Can be equipped with different types of blades, such as semi-universal (SU) and variable angle pitch (VPAT). The VPAT blade has better performance during grading operations, can maintain levelness, and provide a smoother slope.
– Ripper: Adopts a parallelogram structure with 3 teeth, which can effectively break up hard soil and rocks.
