CAT D8R

Engine model: Cat C15 ACERT engine with 242kW flywheel power.
– Emissions and technology: Meet the US EPA Tier 3/European Union Stage IIIA equivalent emission standards, US EPA Tier 2/European Union Stage II equivalent emission standards or China’s non-road National III emission standards. Equipped with advanced ACERT technology, the engine can operate stably under various operating conditions and provide strong power.

performance parameter

Working weight: standard type is about 38351kg, LGP type is about 36763kg.

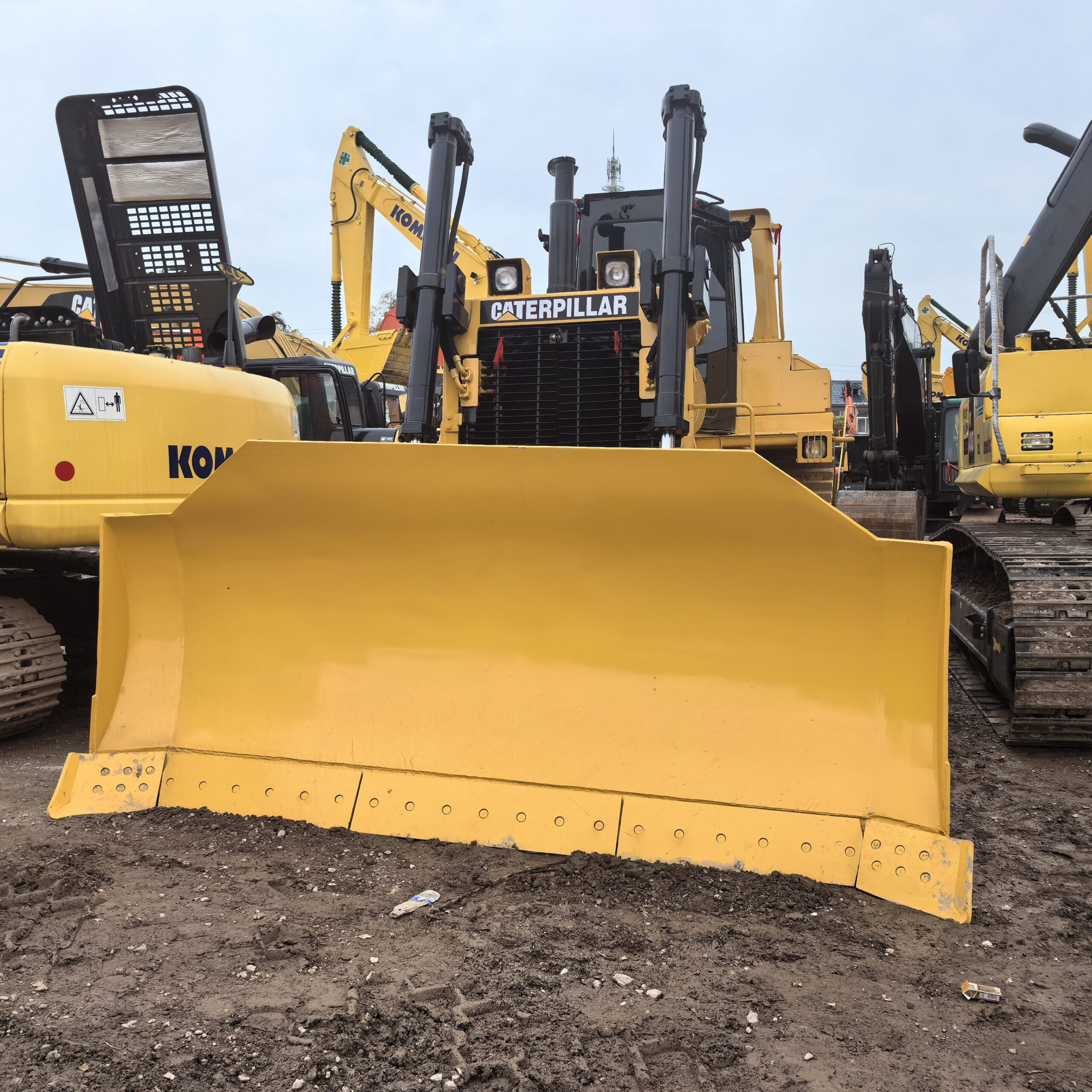

Blade capacity: The largest standard blade in the same class is used, with a capacity of 10.3m ³, which can transport up to 13% more material per trip.
– Driving speed: The forward gear has three gears, with speeds of 3.4km/h, 6.1km/h, and 10.6km/h; the reverse gear also has three gears, with speeds of 4.5km/h, 8km/h, and 14.2km/h.

Technical features

– Cooling system: A more efficient drivetrain, hydraulic fans, and new radiators increase the machine’s environmental performance by up to 23%. A special “desert” configuration assembly provides higher cooling performance and more protection so that the machine can work efficiently in conditions of dust or extreme wear.
– Transmission and handling: The power shift gearbox is equipped with a differential steering system to ensure flexible steering even at full load. Optional electro-hydraulic controls reduce operator workload for more precise and responsive operation, and can also be used with Cat Connect GRADE technology to improve operational accuracy.
– Comfort and safety: The cab is equipped with an integrated roll protection structure (ROPS) to provide a good view and safety guarantee. The interior is designed with noise reduction and pressurization to reduce dust ingress and create a clean and comfortable operating environment.
