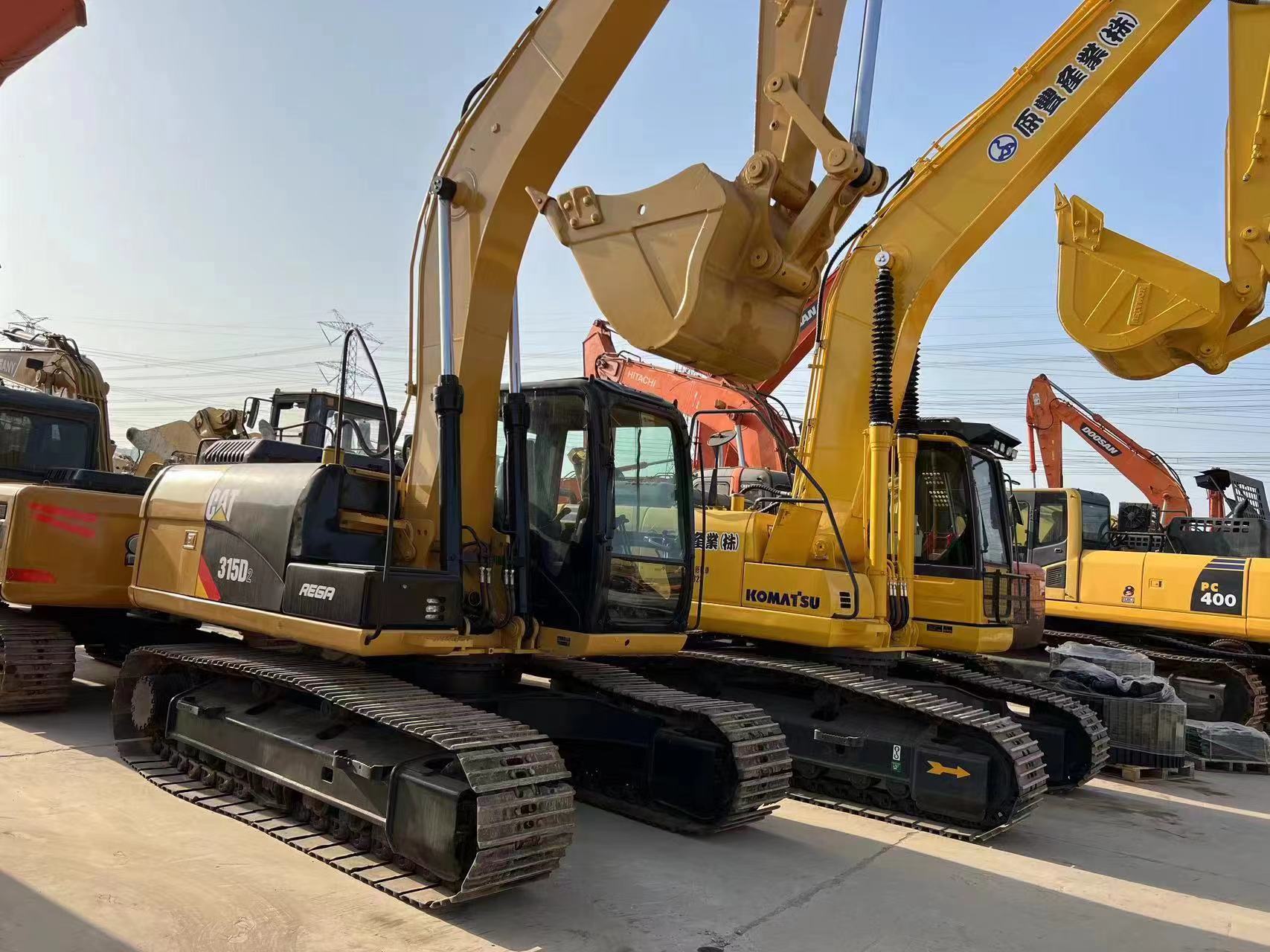

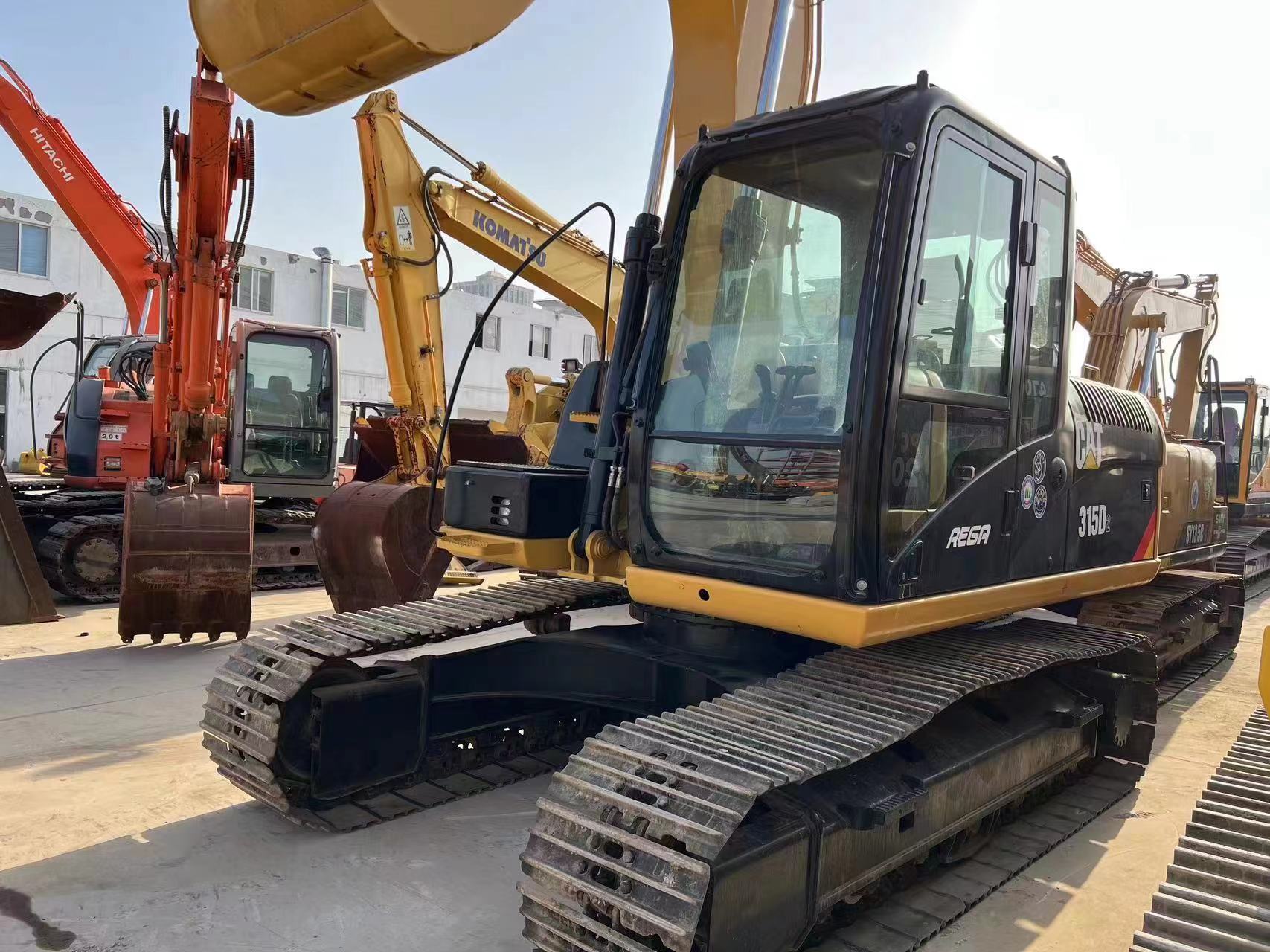

CAT315D2
Efficient and energy-saving: Equipped with automatic engine speed control function, which reduces engine speed when there is no operation. It also has fuel-saving functions such as one-key low idle speed control and enhanced economic mode. At the same time, the constant power strategy can quickly respond to load changes and optimize fuel consumption.
– High operating efficiency: The dedicated slewing pump can maximize the slewing performance without reducing the power of other hydraulic functions, making the combined actions smoother; the one-key heavy-load lifting function can increase the lifting capacity by 10%.

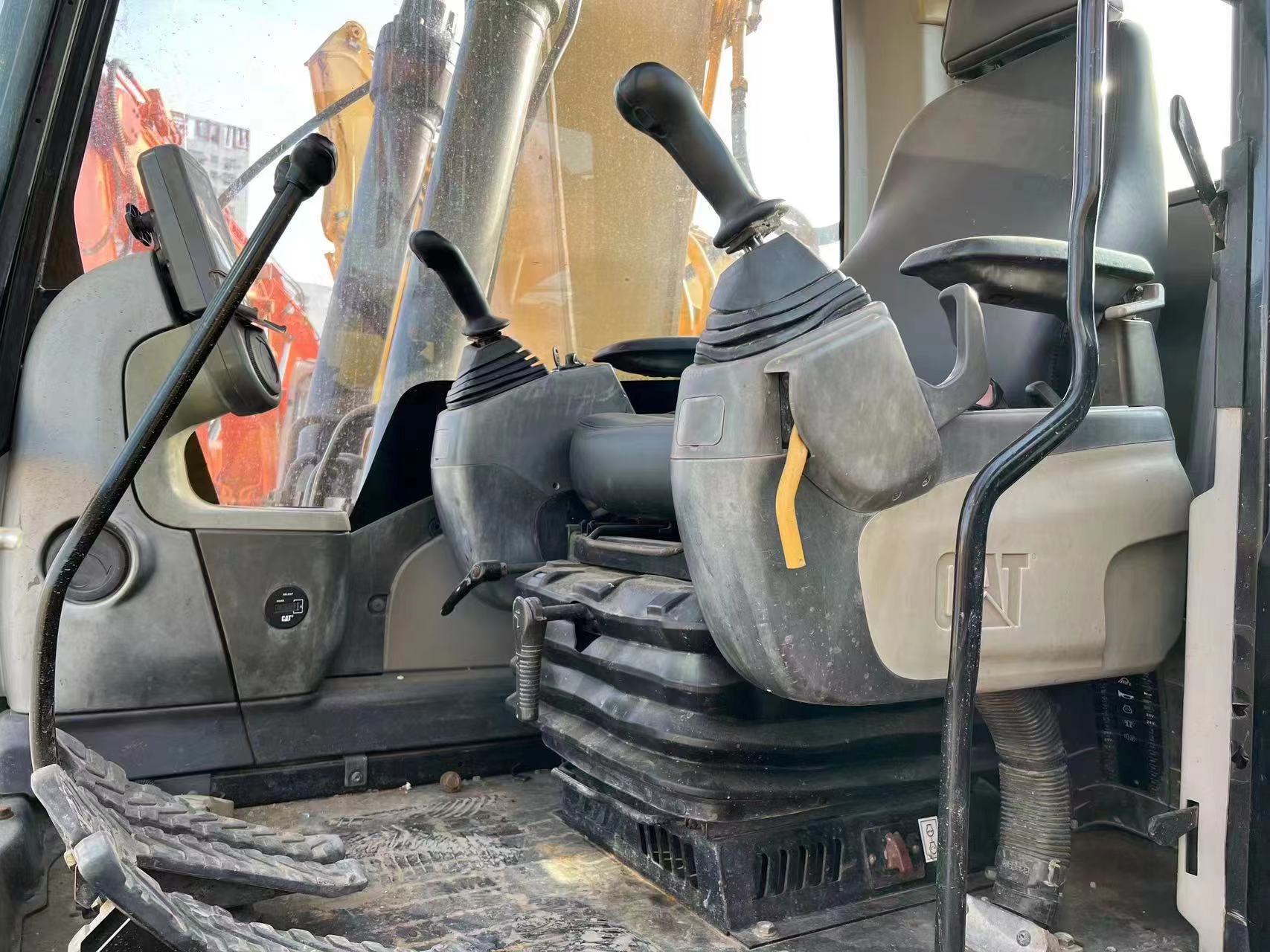

– Good comfort: The cab adopts a full ergonomic design, with comfortable seats and control interfaces, and is equipped with an all-weather automatic air conditioner, providing a good working environment for the operator.
– Safe and reliable: Equipped with an emergency ground parking device, the electrical system has flame-retardant, dust-proof and moisture-proof functions to ensure the safety of equipment and personnel.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Engine: Equipped with a Cat® C4.4 ACERTâ„¢ engine, with a net power of 101kW (137hp), a displacement of 4.4L, a cylinder bore of 105mm, a stroke of 127mm, and a maximum torque of 550N·m (at 1400rpm), meeting China’s Non-road National III, US EPA Tier 3/EU Stage IIIA equivalent emission standards.
– Operating weight: Depending on the configuration, the operating weight ranges from 13500kg to 15200kg.
– Slewing mechanism: The slewing speed is 10.5r/min, and the slewing torque is 35kN·m.
– Hydraulic system: System capacity is 180L, maximum flow rate of the implement/travel circuit is 190L/min, maximum flow rate of the slewing mechanism is 80L/min, maximum pressure of the standard circuit is 350bar, and maximum pressure of heavy-duty lifting is 375bar.
– Travel speed: The maximum travel speed is 37km/h.
