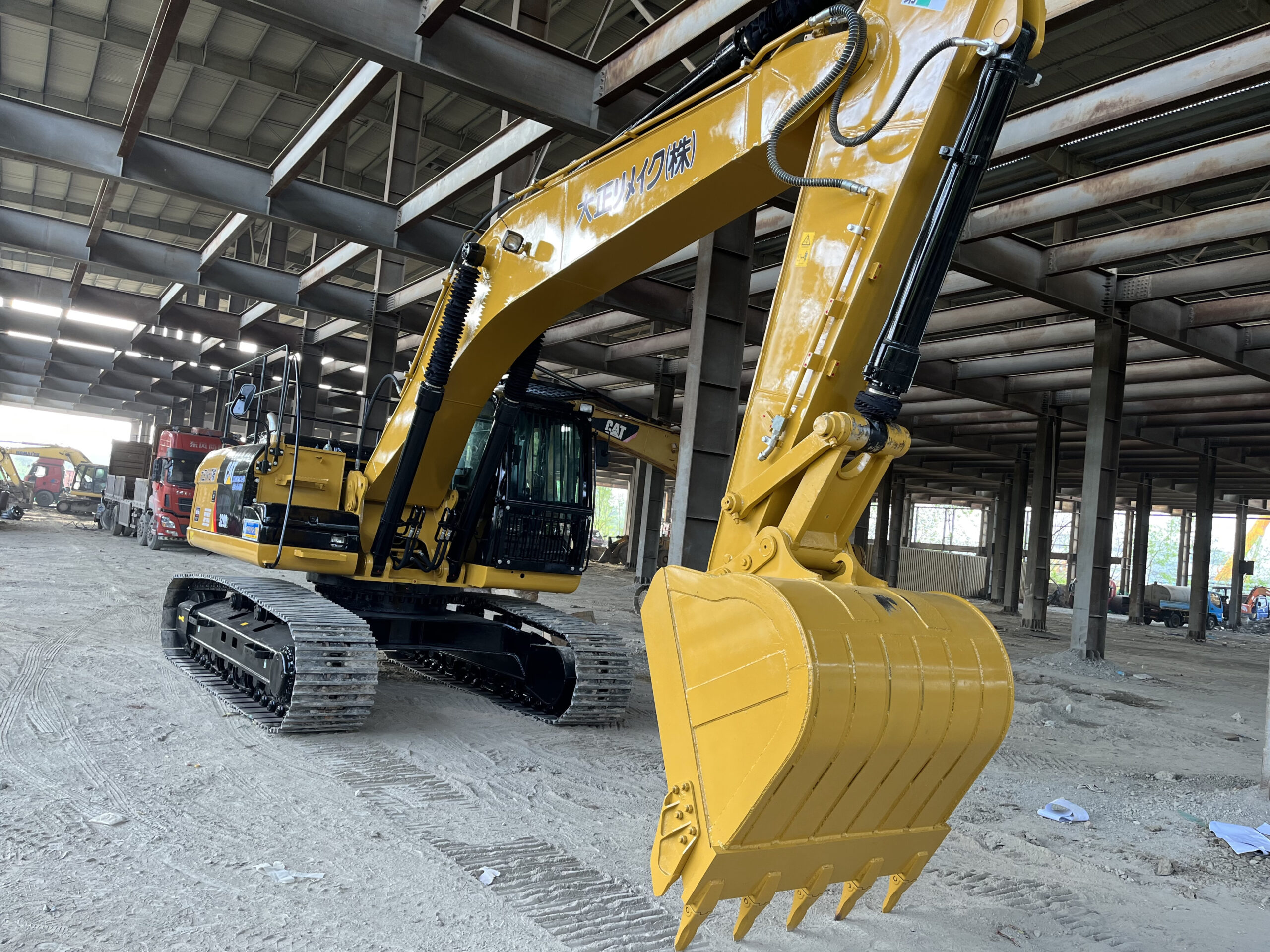

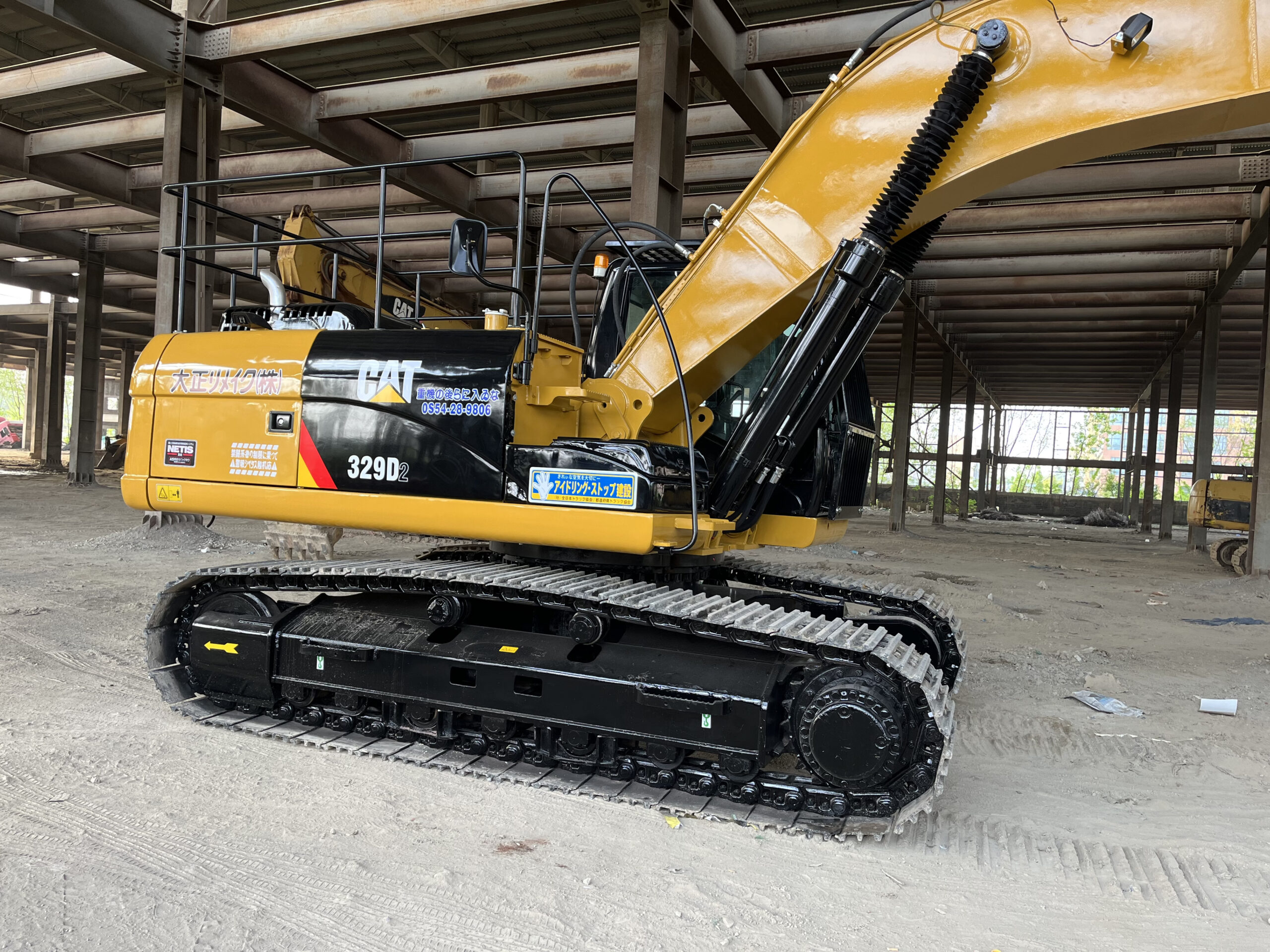

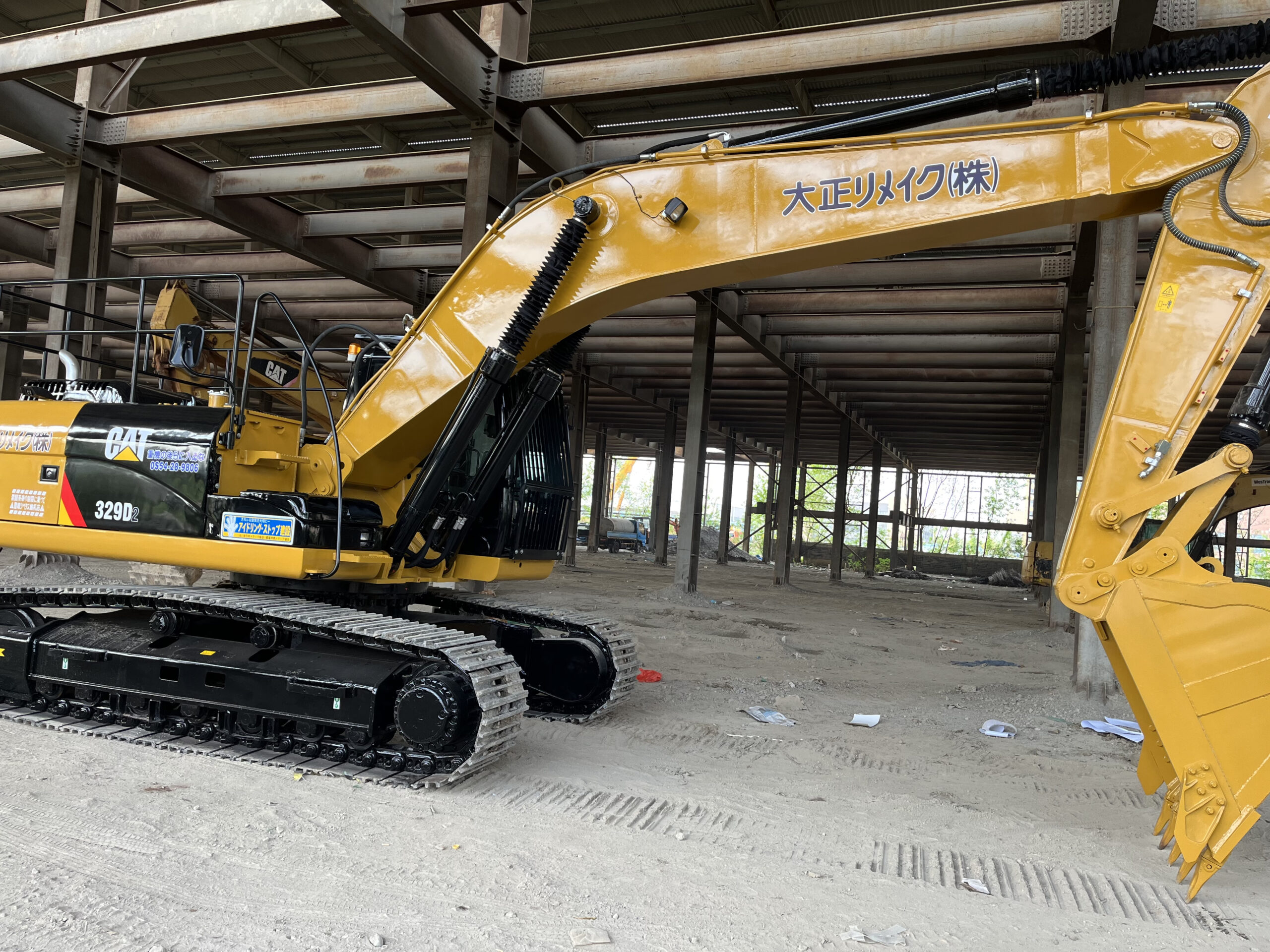

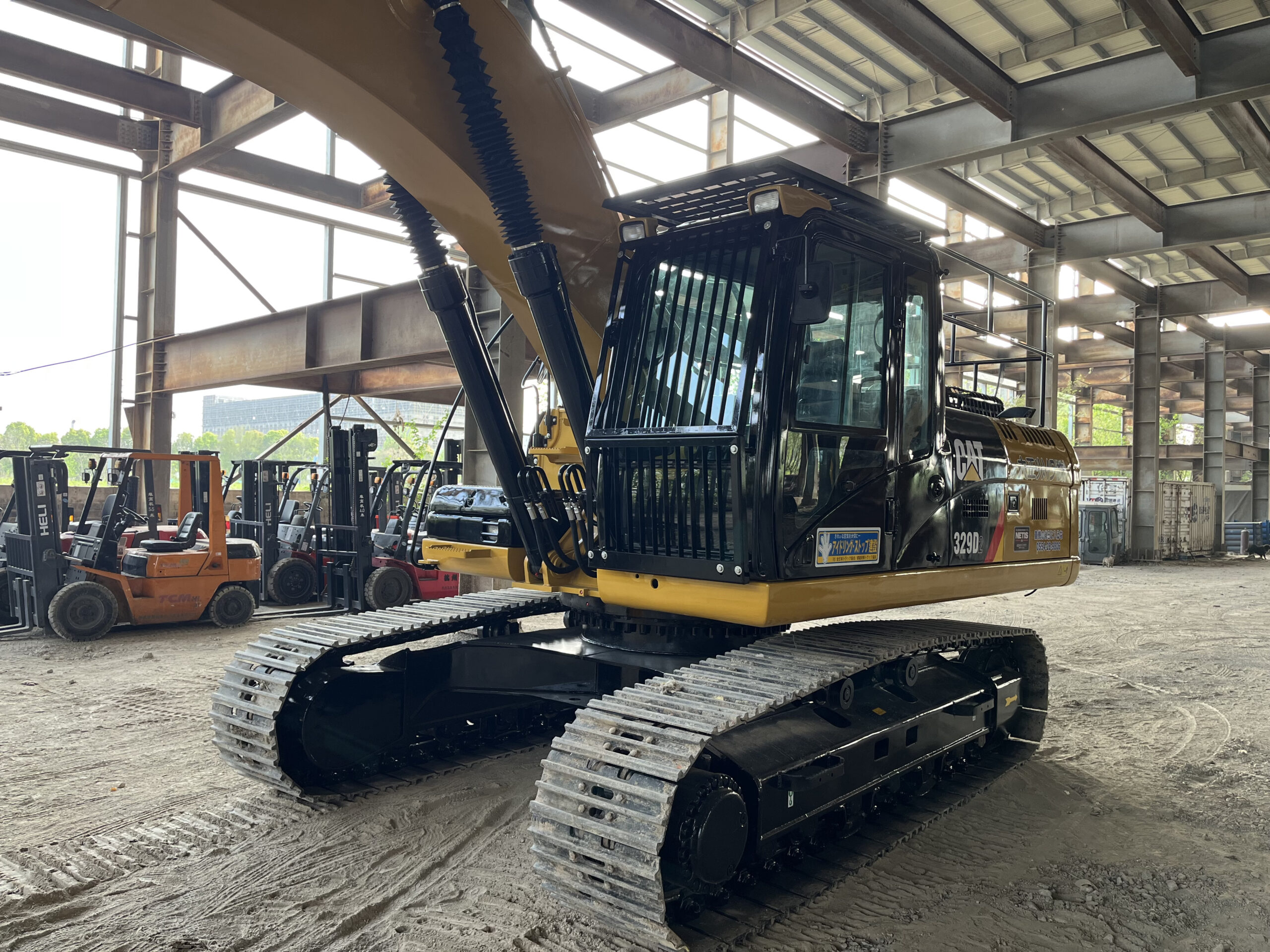

CAT329
– Good fuel economy: By managing the synchronous control function of the pump and engine speed, fuel consumption can be reduced by up to 11%. The automatic engine speed control function reduces the speed to save fuel when there is no load or light load.
– Comfortable and convenient operation: The cab adopts a humanized design, the seat and control handle can be flexibly adjusted. The visible screen area of the new monitor is increased by 40%, the resolution is improved by 4 times, and it can display 42 languages.
– Reliable and durable structure: The body is strong, the X-shaped frame structure has strong anti-twisting ability, 95% of the structural welding is done by manipulators, and the track links are sealed with grease, which has a long service life.
– Easy maintenance: Most maintenance points can be operated from the ground, the replacement intervals of filters and oil are displayed on the monitor, there are remote lubrication points on the boom, and regular oil sampling ports facilitate technicians’ testing.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Overall dimensions
Length × width × height (transport state) is 10360mm × 3330mm × 3040mm, total track length is 4360mm, track gauge is 2390mm, minimum ground clearance is 470mm, and rear swing radius is 3080mm.
Working range
Maximum digging radius on the停机面 is 10720mm, maximum digging depth is 7290mm, maximum digging height is 10040mm, and maximum vertical digging depth is 6160mm.
Oil capacity
Fuel tank 520L, hydraulic oil tank 257L, engine oil replacement capacity 22L, coolant 31L.
Hydraulic system
Maximum flow of main pump is 240 × 2L/min, pressure of working hydraulic oil circuit and traveling hydraulic circuit is 35Mpa, pressure of swing hydraulic circuit is 27.5Mpa, and pressure of pilot oil circuit is 3.92Mpa. Boom cylinder diameter is 140mm, stroke is 1407mm; arm cylinder diameter is 150mm, stroke is 1646mm; bucket cylinder diameter is 135mm, stroke is 1156mm.
