HAMM HD 14

Basic parameters: The maximum operating weight is 5250kg, the axle load (front/rear) is 2255/1795kg, the static linear load at the front is 16.3kg/cm, the rear tire size is 10.5/80-16, and the number of tires is 4. The total length of the equipment is 2965mm, the total width is 1506mm, the total height including the cab is 2720mm, and the wheelbase is 1950mm.
– Engine: Adopts Kubota’s V2403-CR-E5B engine with a power of 36.8kW (per ISO 14396 standard), meeting the EU Stage V / EPA Tier 4 emission standards.

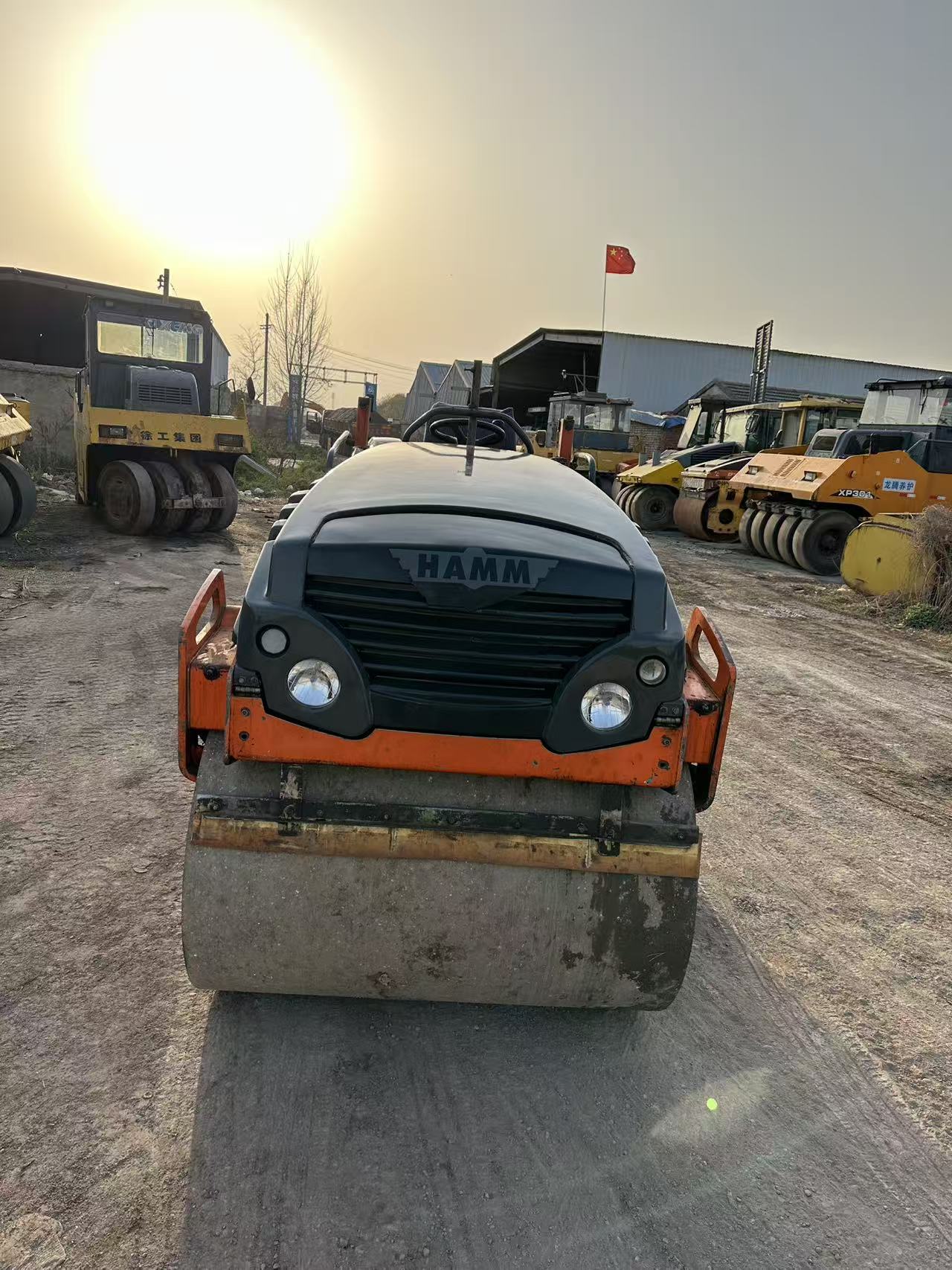

– Compaction performance: The front steel wheel has two vibration frequencies: 60Hz and 51Hz, with amplitudes of 0.51mm and 0.31mm respectively, and excitation forces of 64kN and 39kN respectively, achieving excellent compaction results.

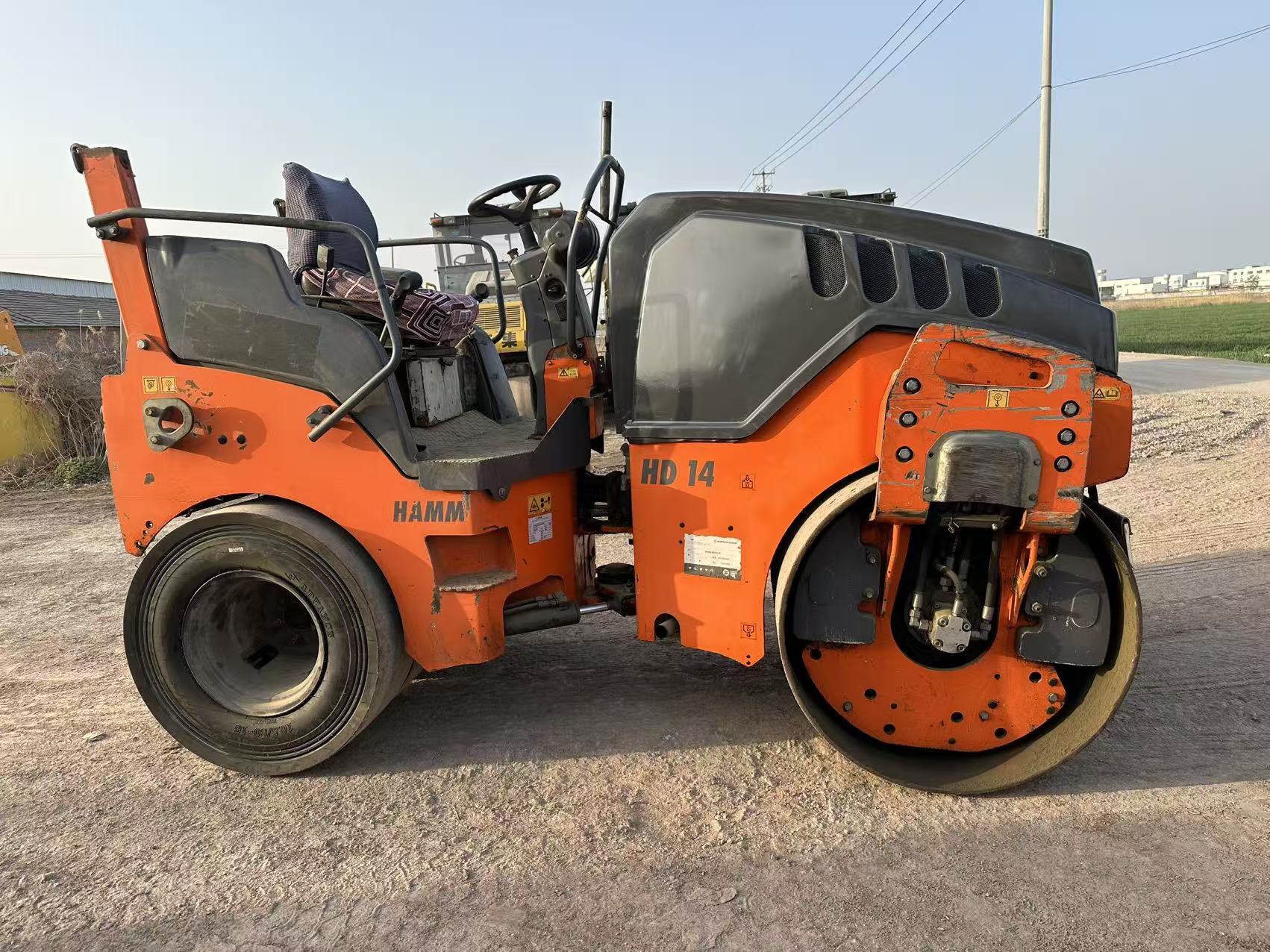

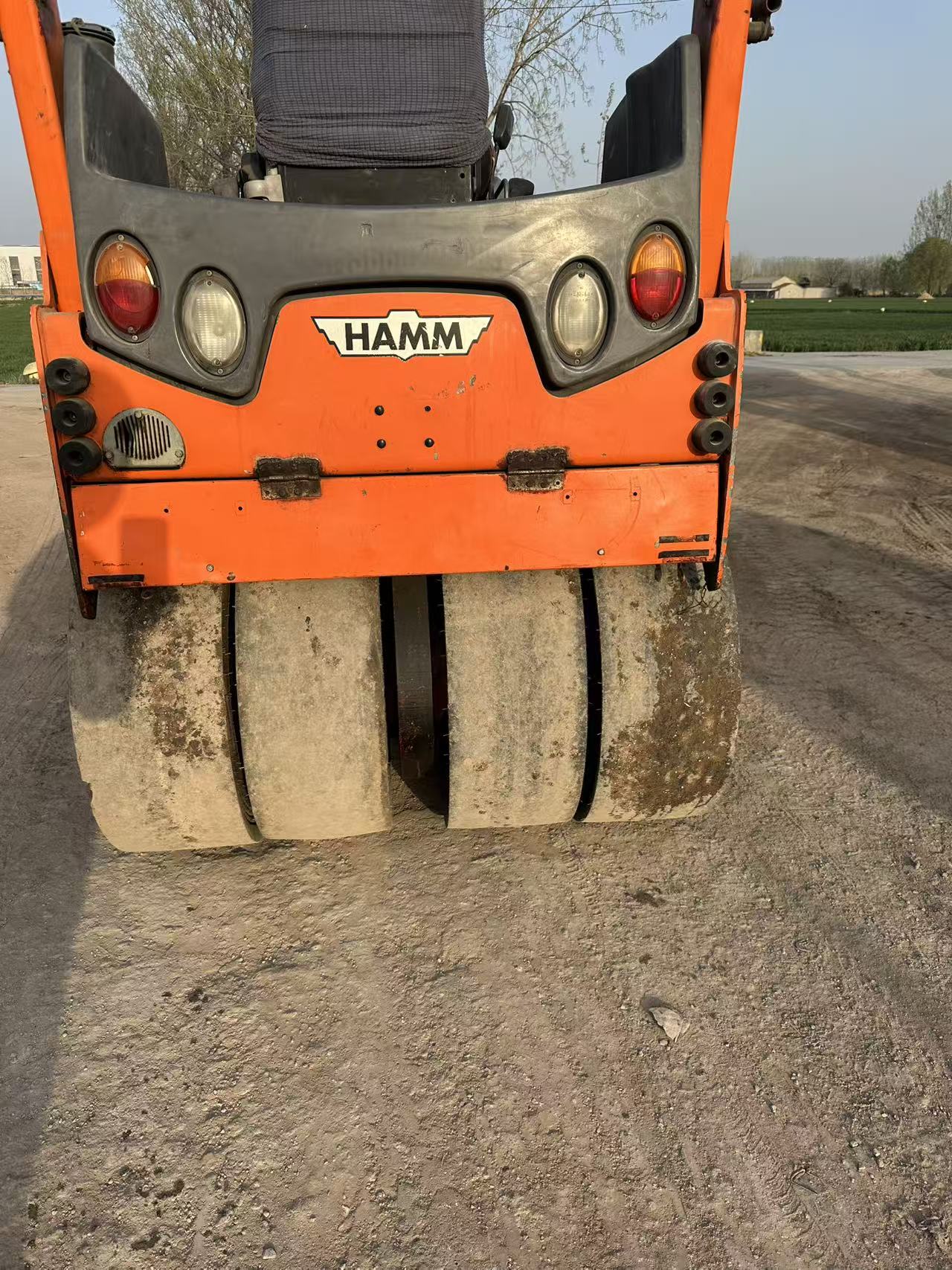

– Structural features: The front steel wheel adopts a wasp-waist design, providing a good view for edge compaction. The rear rubber tires are 10.5/80-16 vacuum-pneumatic tires, arranged in two spaced groups to effectively manage compaction wheel marks. The machine uses a three-point articulated structure, which is stable and durable, with a turning radius of 2.65 meters, a swing angle of 8 degrees, and a wheelbase of 1.95 meters, adaptable to compaction operations on different terrains.
– Other features: Equipped with a pressure sprinkler system, with a water tank capacity of 285L. Optional devices such as the HAMM Compaction Quality indicator (HCQ) and HAMM Thermometer (HTM) are available, facilitating operators to monitor the compaction status and equipment operating conditions in real-time.
