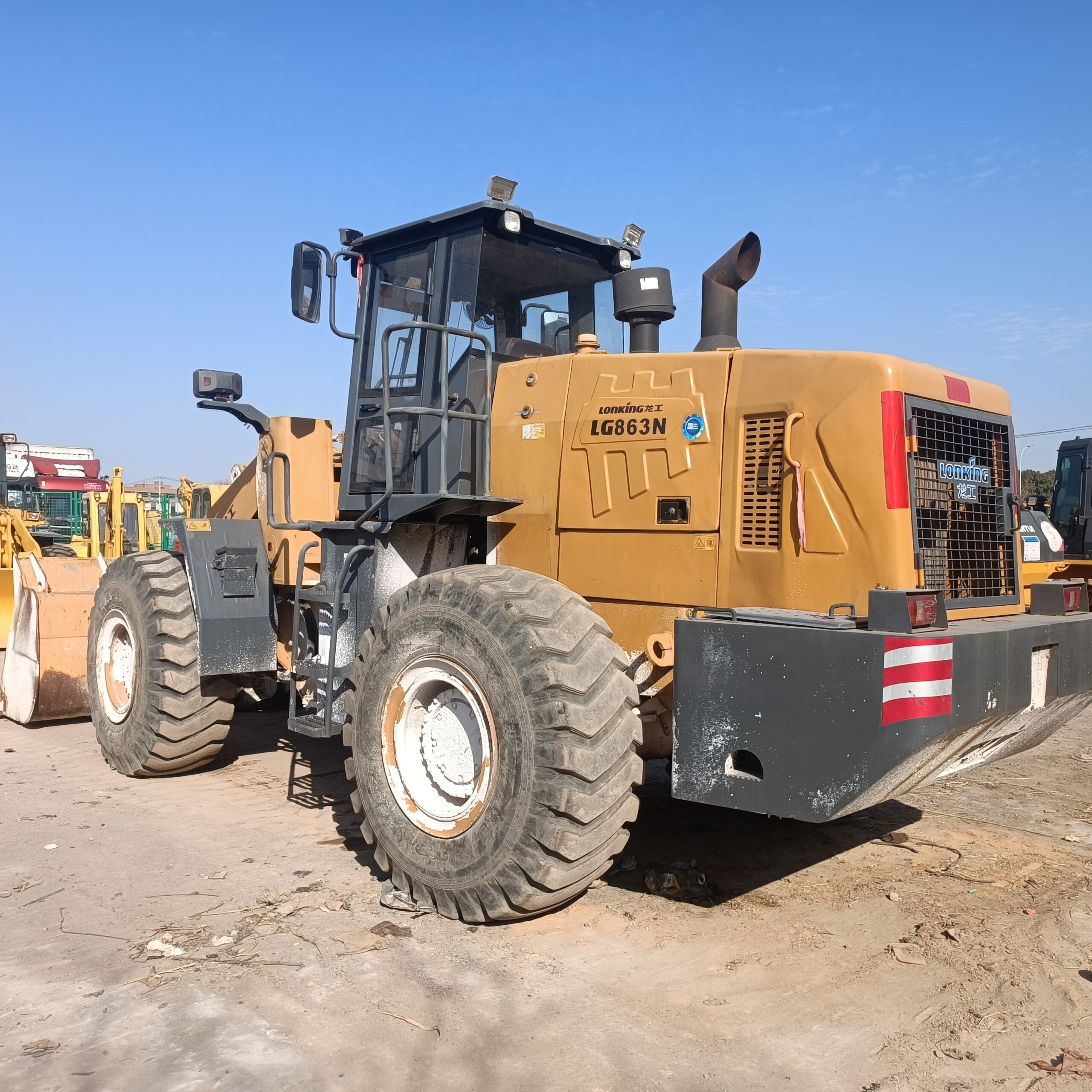

LG863N

Basic Parameters

– Standard bucket capacity: 3.5-5.6m³
– Rated load capacity: 6000kg
– Overall operating weight: 22010kg
– Maximum traction force: 190±3kN
– Maximum breakout force: 200±3kN
– Unloading height: 3580-3840mm
– Rated power: 178kW/rpm

Performance Features

– Powerful动力: Equipped with Weichai WP10G240E341 engine with a rated power of 178kW, it delivers strong power output and can meet the needs of various heavy-duty working conditions.
– Reliable transmission: Adopts a hydraulic torque converter and planetary hydraulic shift transmission, ensuring smooth shifting and easy operation. The Lonking self-developed 6-ton drive axle, with optimized internal and brake pad materials, offers high reliability.
– Comfortable operation: Uses a hydraulic pilot operating system for flexible and precise operation, and the automatic bucket leveling function simplifies operation. The integrated fully enclosed cab has a large space, wide field of vision, and is equipped with a safe aviation seat for comfortable riding.
– Robust structure: Adopts a high-strength frame structure, with reasonable stress distribution and strong torsional resistance through finite element analysis and robot welding technology. The reinforced transmission, thick bucket cylinders, extra-thick manganese steel wear plates, etc., improve the heavy load adaptability and durability of the whole machine.
– Convenient maintenance: The brake air reservoir drain switch is designed in an extended manner, facilitating daily maintenance. Except for core components, other accessories of the whole machine have strong universality, reducing the time and cost of replacing parts.
