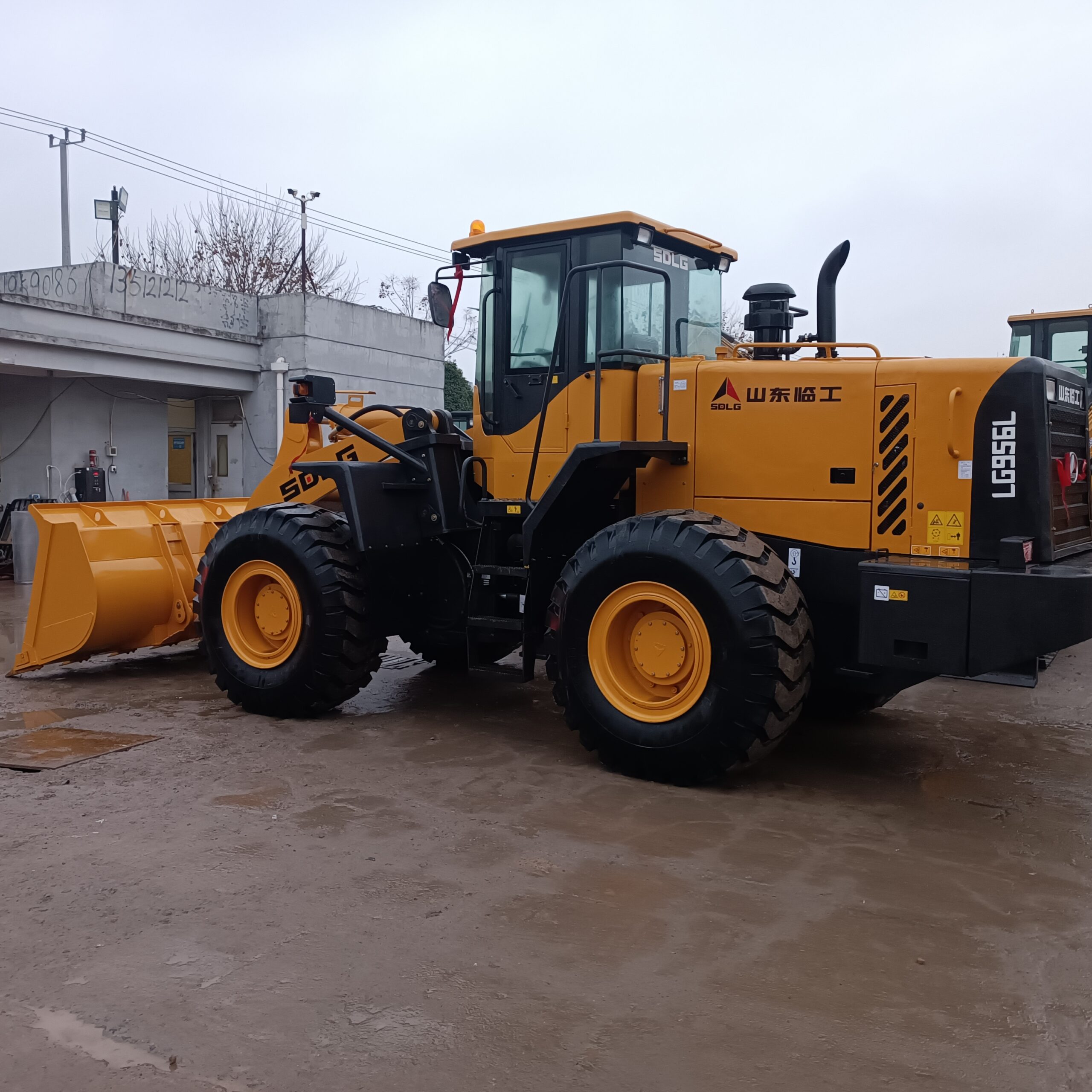

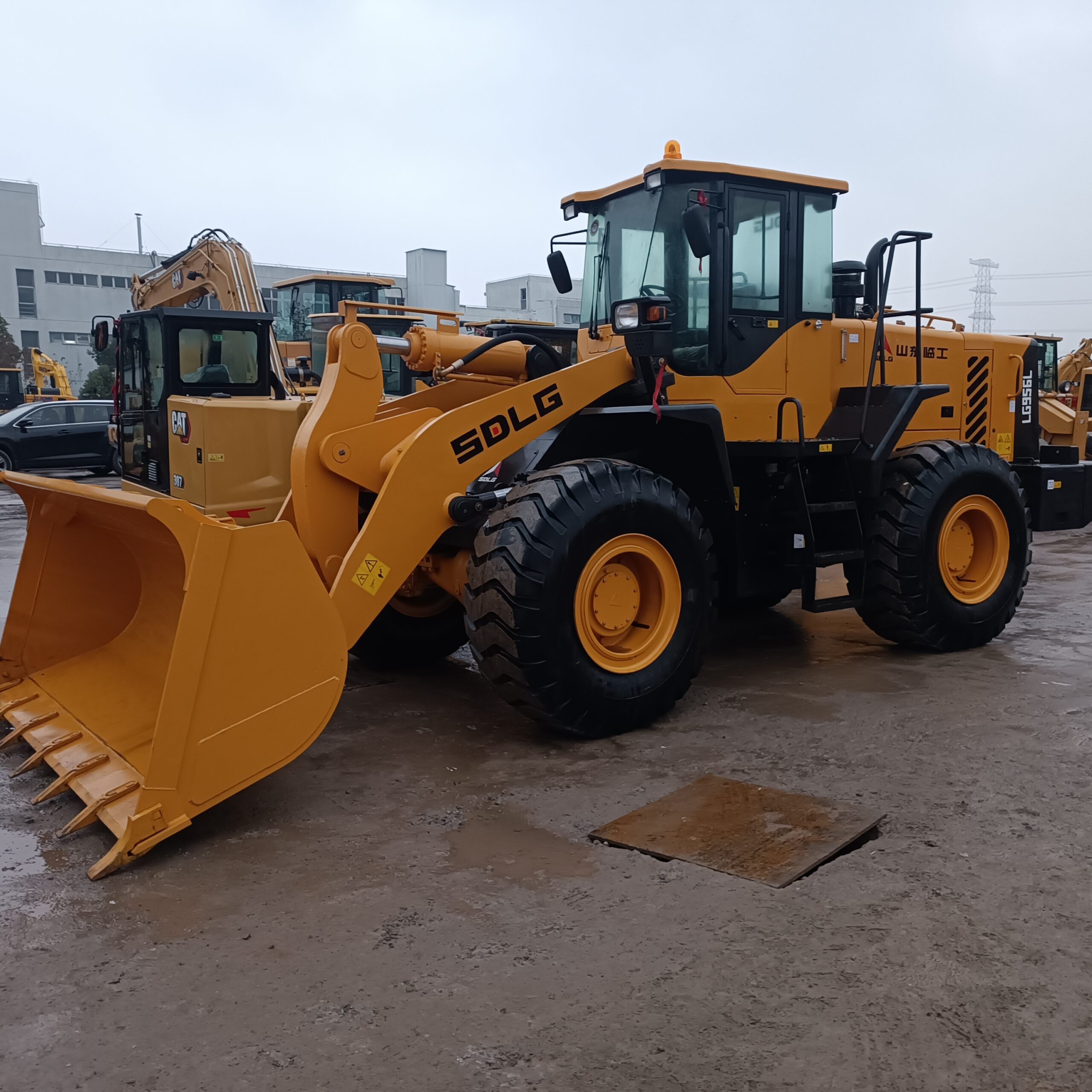

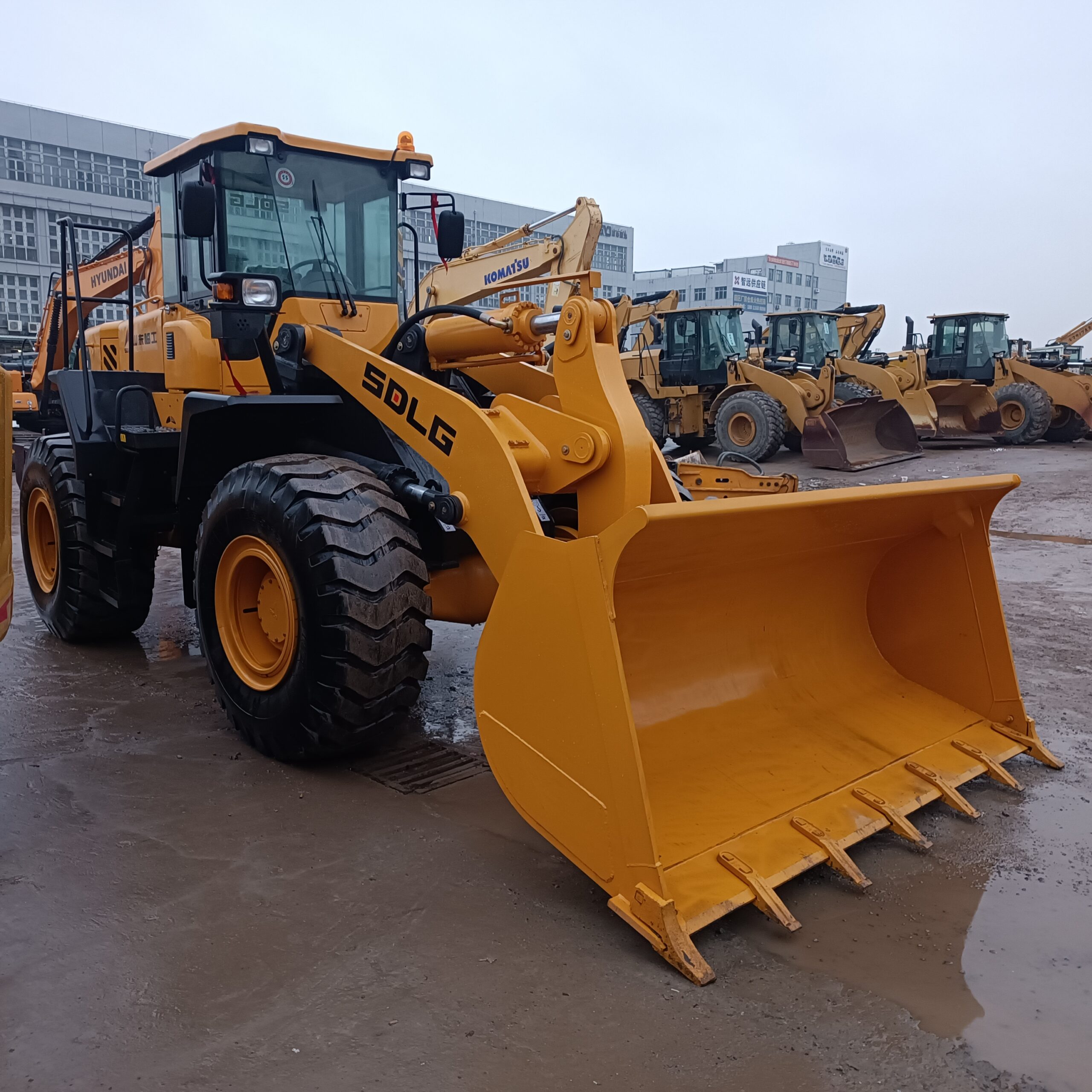

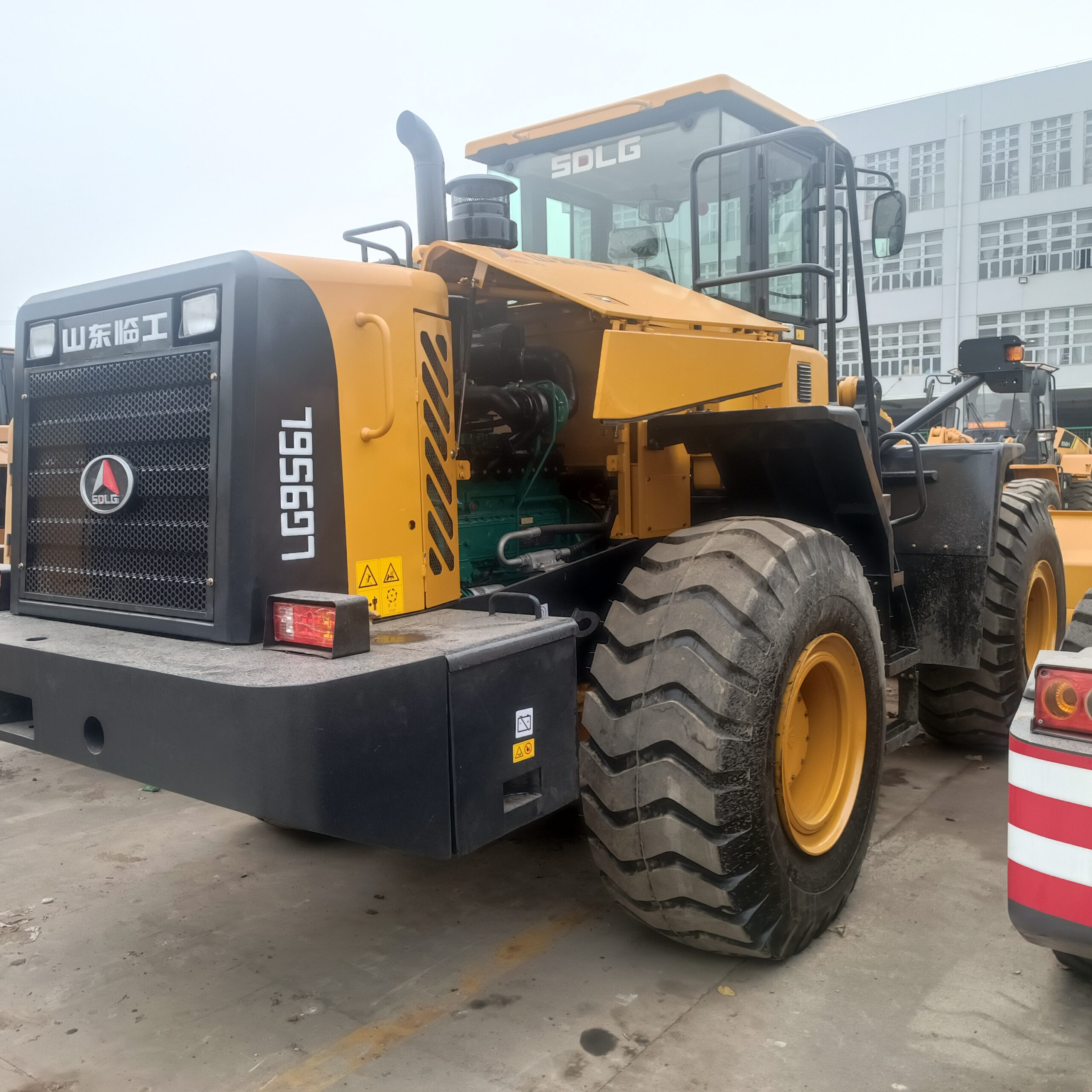

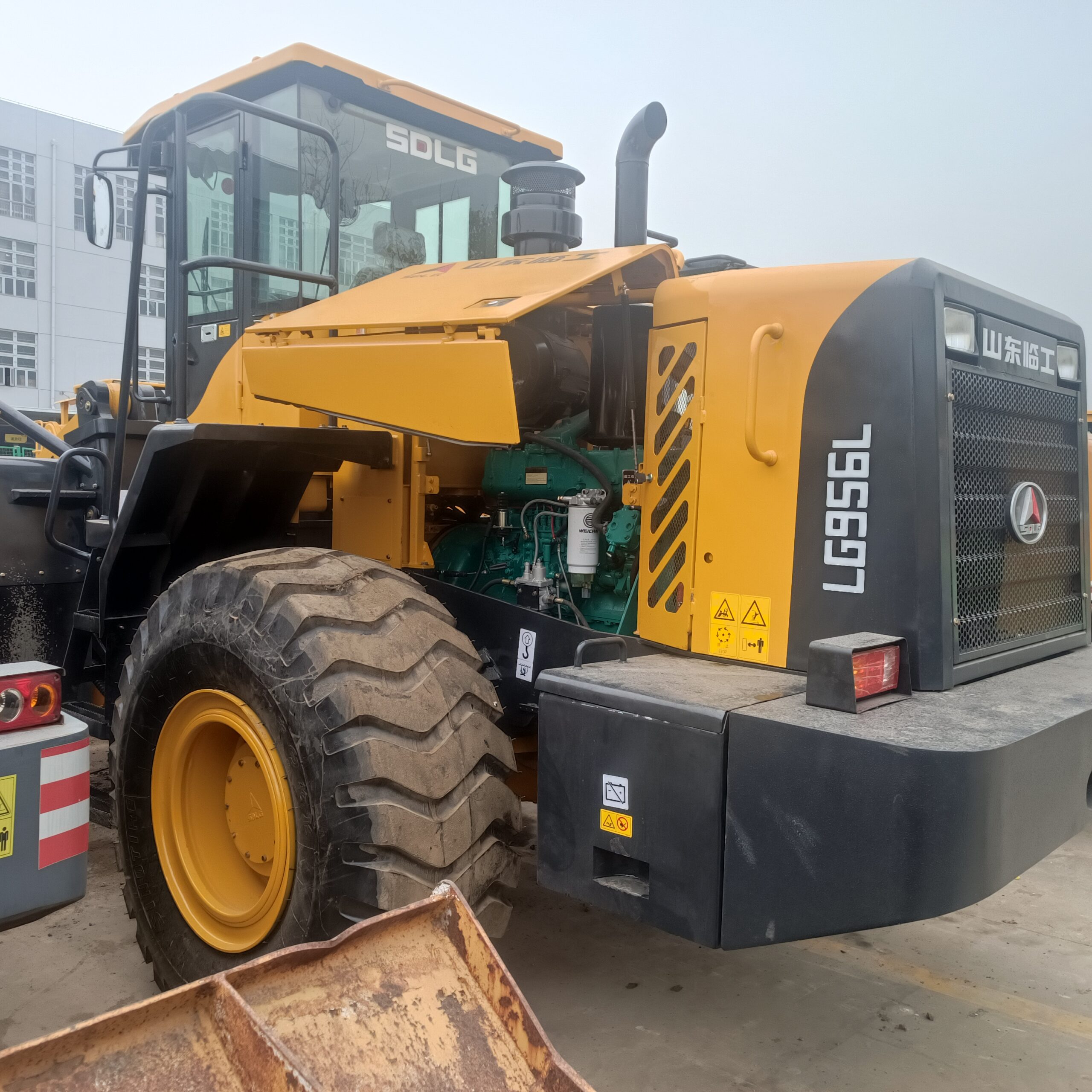

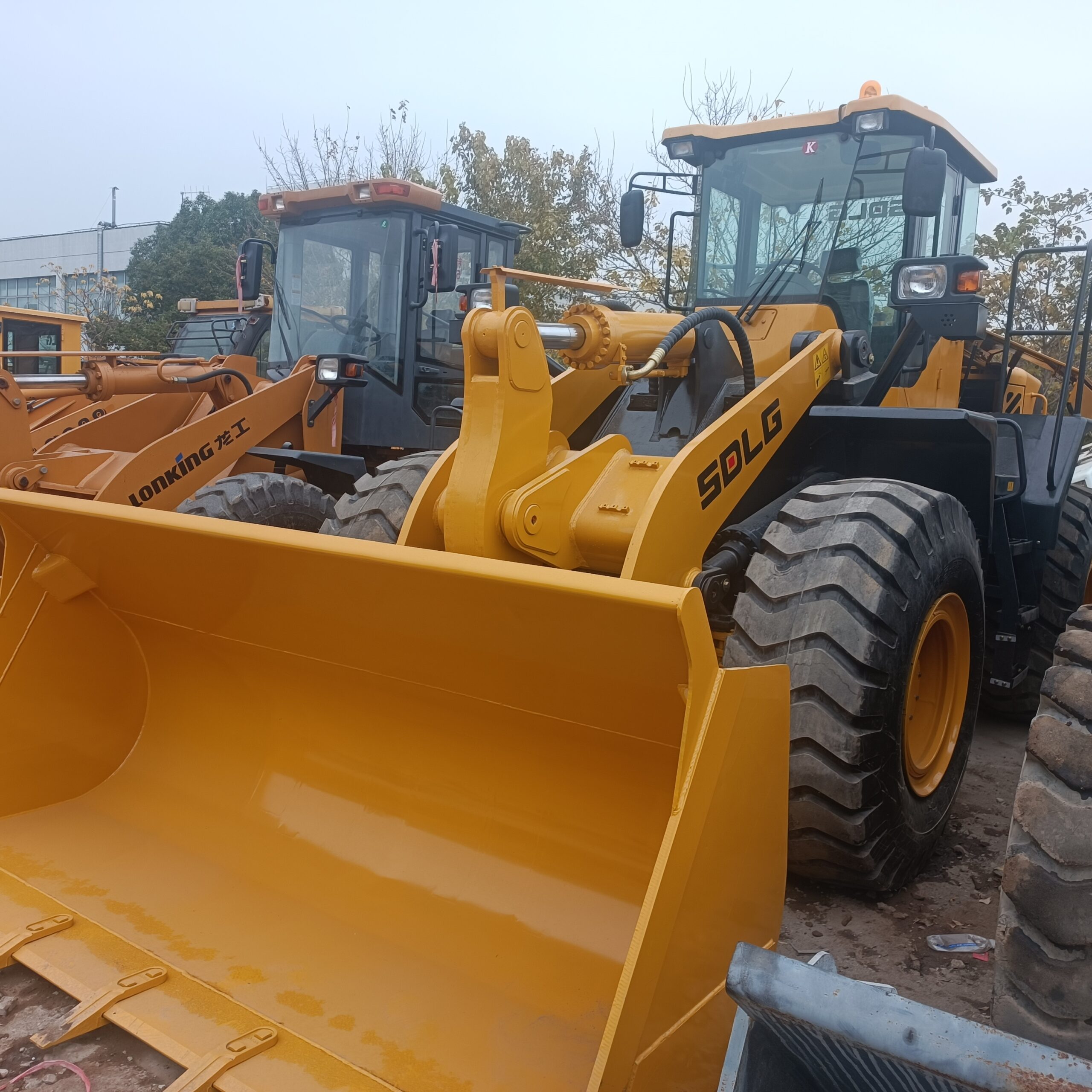

LG956L

Basic Parameters

– Overall operating weight: 17250kg
– Rated bucket capacity: 2.7m³
– Rated load capacity: 5000kg
– Engine model: Weichai Steyr
– Rated power: 162kW
– Maximum breakout force: 180KN
– Maximum dumping height: 3180-3700mm
– Maximum traction force: ≥167KN
– Maximum climbing capacity: 30°

Performance Features

– Power and energy efficiency: Equipped with an energy-saving low-speed engine that meets National II emission standards, matched with a high-efficiency and large-capacity torque converter, achieving an overall energy saving of more than 10%.
– Transmission system: Adopts a planetary power shift transmission with 2 forward and 1 reverse gears, featuring simple operation and long service life; paired with Lingong reinforced drive axle for strong load-bearing capacity.
– Operational comfort: Applies NVH technology, three-level vibration reduction optimization design, and is equipped with a new type of vibration-damping seat; the new steel structure cab offers a wide field of vision, comes standard with air conditioning, providing a comfortable driving environment.
– Hydraulic system: Load-sensing full hydraulic steering system for light and quick steering; pilot-operated working device hydraulic system for high operating efficiency; hydraulic pipelines adopt a double-seal structure, ensuring high reliability.
– Structural strength: The front and rear frames are designed with finite element optimization, passing 200,000 fatigue strengthening tests; the long wheelbase and increased counterweight design ensure good stability during traveling and operation.
