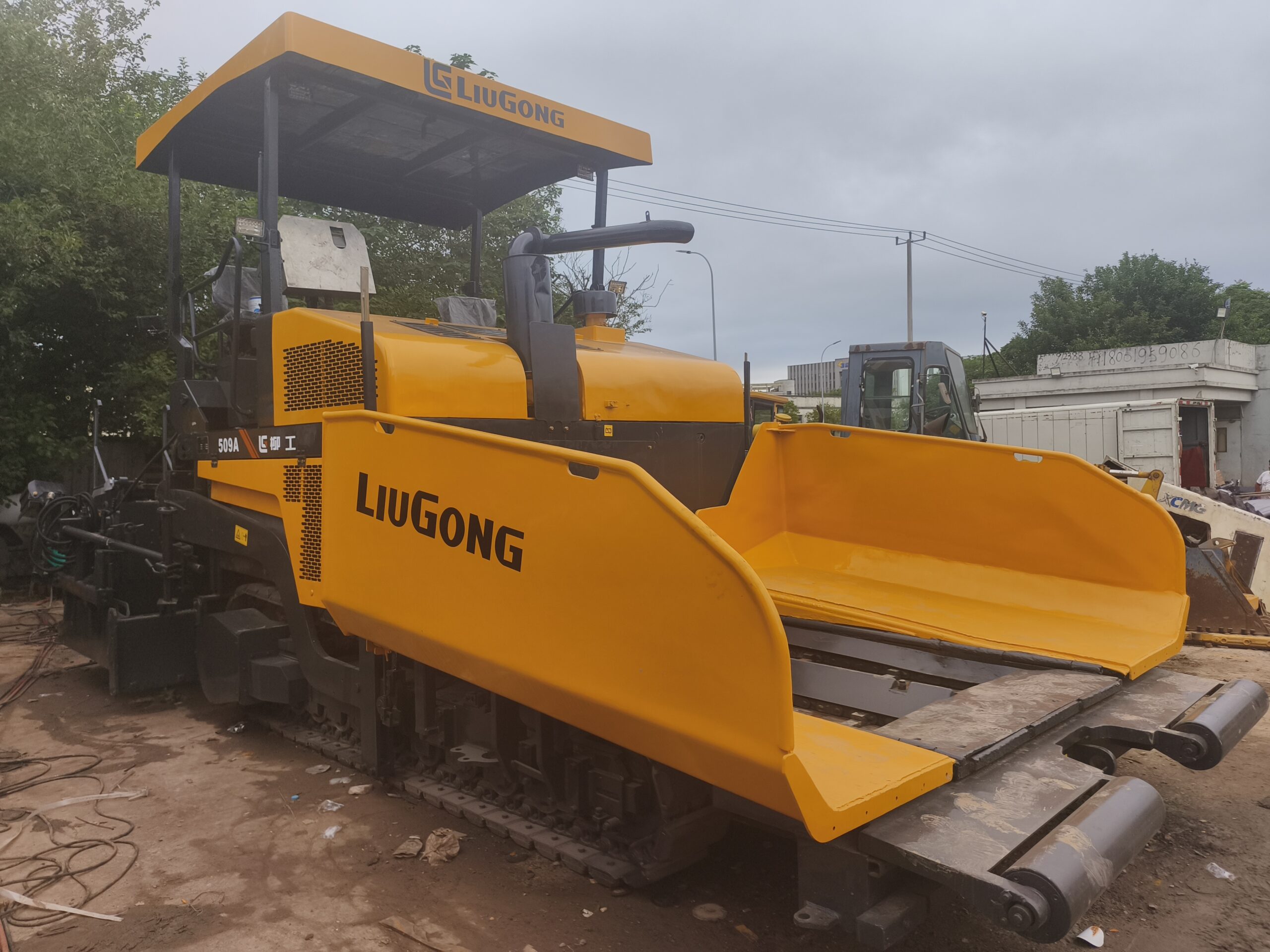

Liugong CLG509A

Engine: Equipped with the Dongkang QSB6.7-C215 engine, with a rated power of 158kW/2000rpm and a fuel tank capacity of 330L.
– Paving capacity: Basic paving width is 2.5m, maximum paving width with mechanical assembly is 9.5m, maximum paving width with hydraulic telescoping is 9m, maximum paving thickness is 350mm, and theoretical productivity is 800t/h.
– Travel speed: 0.8-18m/min when paving, and 0-2.8km/h when driving.
– Hopper capacity: 16t.

Performance features

– High paving quality: Equipped with a high-density screed device with vibration and oscillation functions. The compactness of asphalt concrete is ≥90%, the compactness of stabilized soil is ≥80%, and the flatness is ≤3mm/3m. Adopts load-sensing proportional control material distribution technology to reduce material segregation.
– Precise control: The original four closed-loop control technology realizes precise and stable paving during start-stop, straight-line movement, and steering. The electrical system information is integrated, and the parameters, status, and faults of the entire machine can be intuitively viewed through a 5.6-inch large-screen color display.
– Energy saving and environmental protection: Equipped with ECO energy-saving mode, realizing dual-power output of the engine, with a fuel-saving effect of more than 12%.
– Convenient maintenance: Uses imported brand hydraulic pumps and motors with a long service life. Equipped with a barrier grid-type radiator, which is easy to clean, and a large-flow, low-wind-resistance heat dissipation system, suitable for high-temperature working environments.
