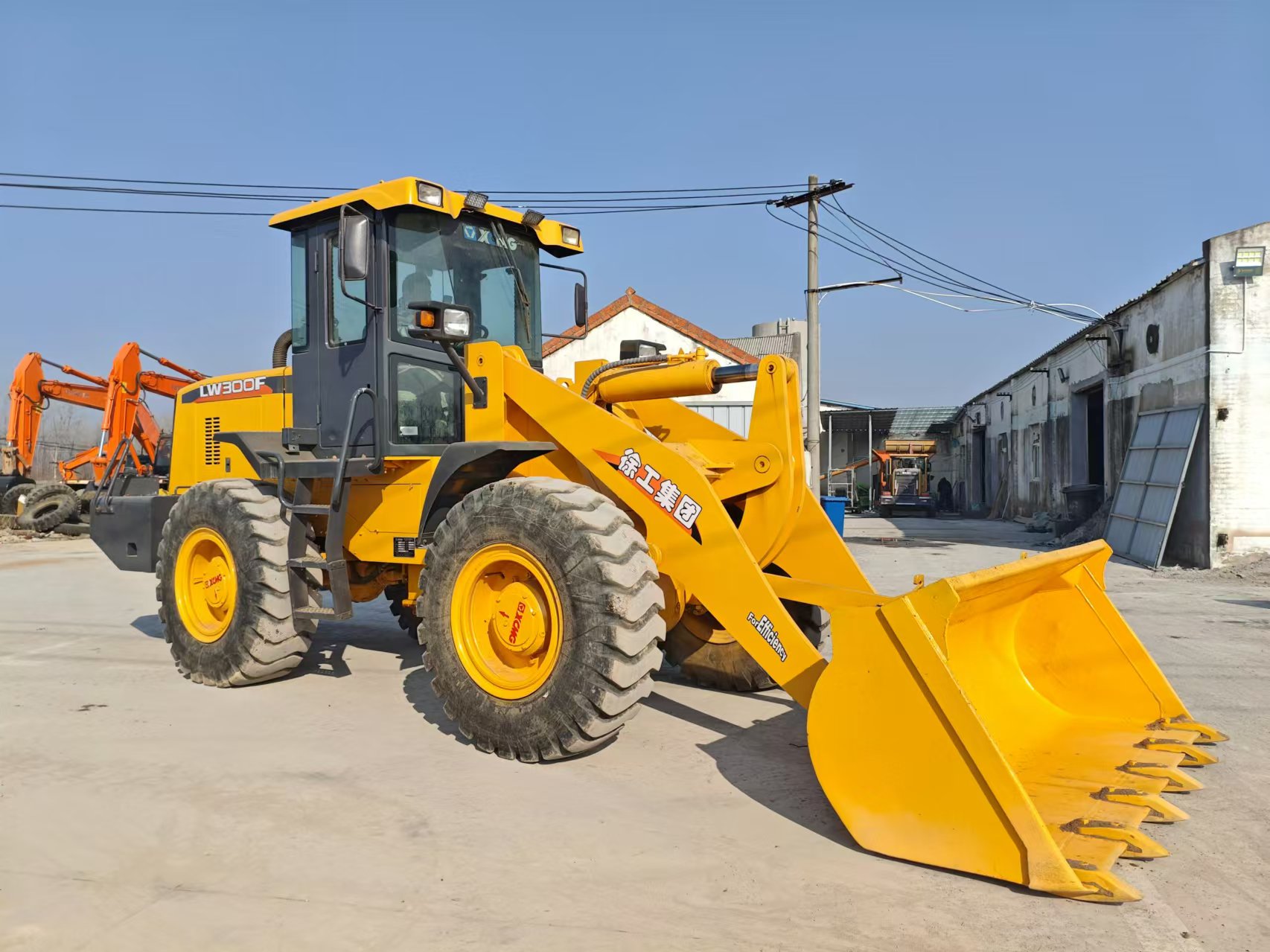

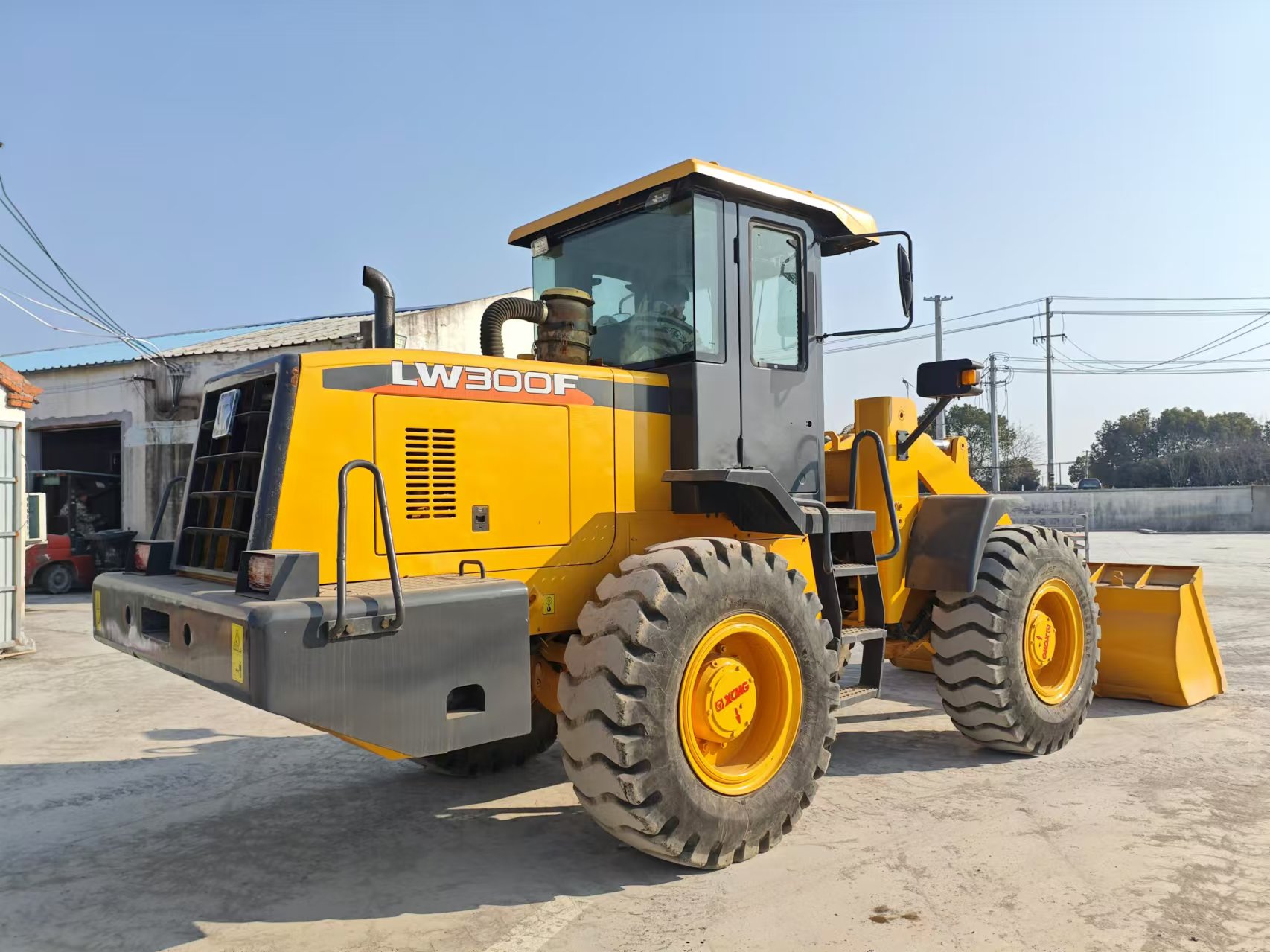

LW300KN

Basic Parameters

– Rated load capacity: 3000kg
– Bucket capacity: 1.5~2.5m³
– Total machine weight: 10900±200kg
– Maximum breakout force: 130kN
– Rated power: 92kW

Performance Features

– Power system: Equipped with Yuchai YC6J125Z-T22 engine with a rated power of 92kW, meeting the National II emission standards. It is paired with XCMG 50-type planetary power shift transmission and a large-capacity torque converter, providing strong power and being suitable for high-intensity operations.
– Hydraulic system: The working hydraulic system and steering hydraulic system adopt dual-pump confluence, which is energy-saving and efficient. Pressure measuring points are led out and a centralized pressure measuring device is used, facilitating detection and maintenance.
– Structural design: The front and rear frames adopt a super-strong structural design, and their strength is enhanced through finite element analysis, making them suitable for heavy-load working conditions. The working device is optimally designed, with the boom lifting force increased by 29% compared to the old model. At the same time, the wheelbase is extended, and the classic third-generation loader structure is adopted, resulting in higher working capacity, a smaller turning radius, and lower rear wheel wear.
– Operational comfort: Equipped with a full-visibility cab, fully considering ergonomics, ensuring safe and comfortable operation. It also adopts the concept of ground maintenance, with all maintenance points arranged reasonably, facilitating inspection and maintenance.
