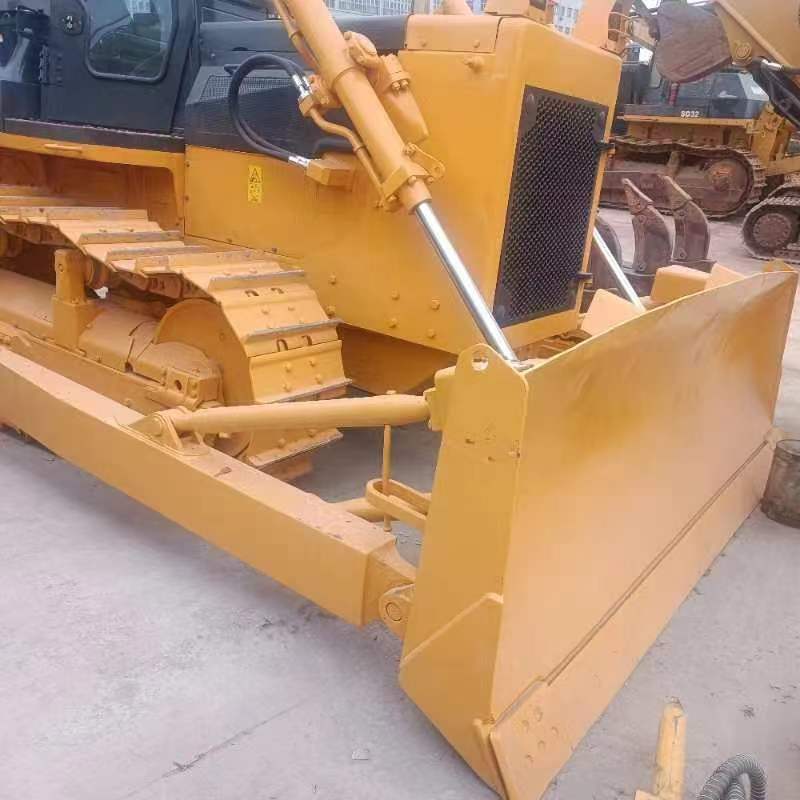

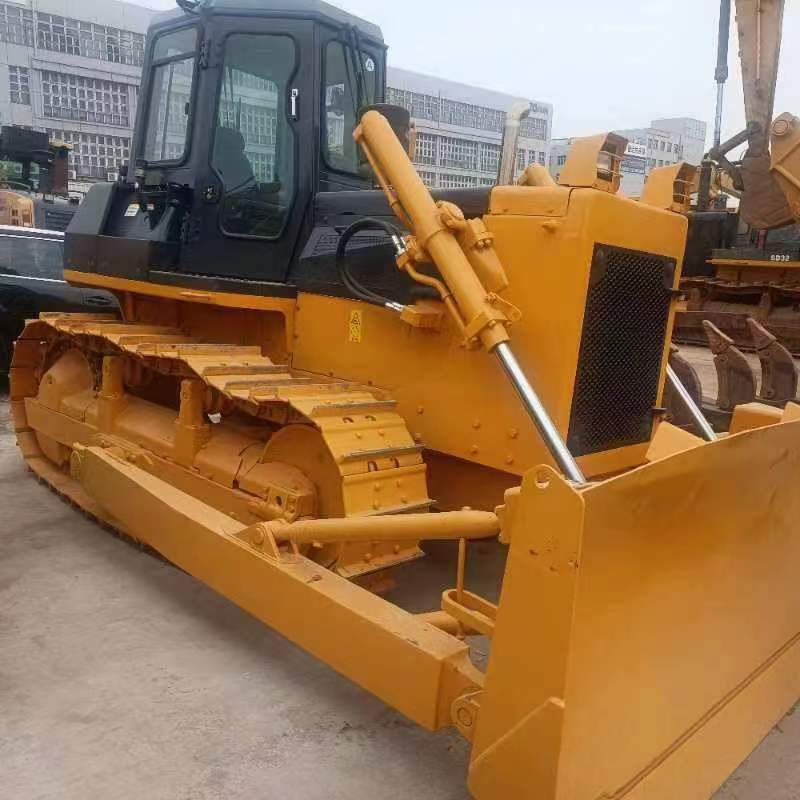

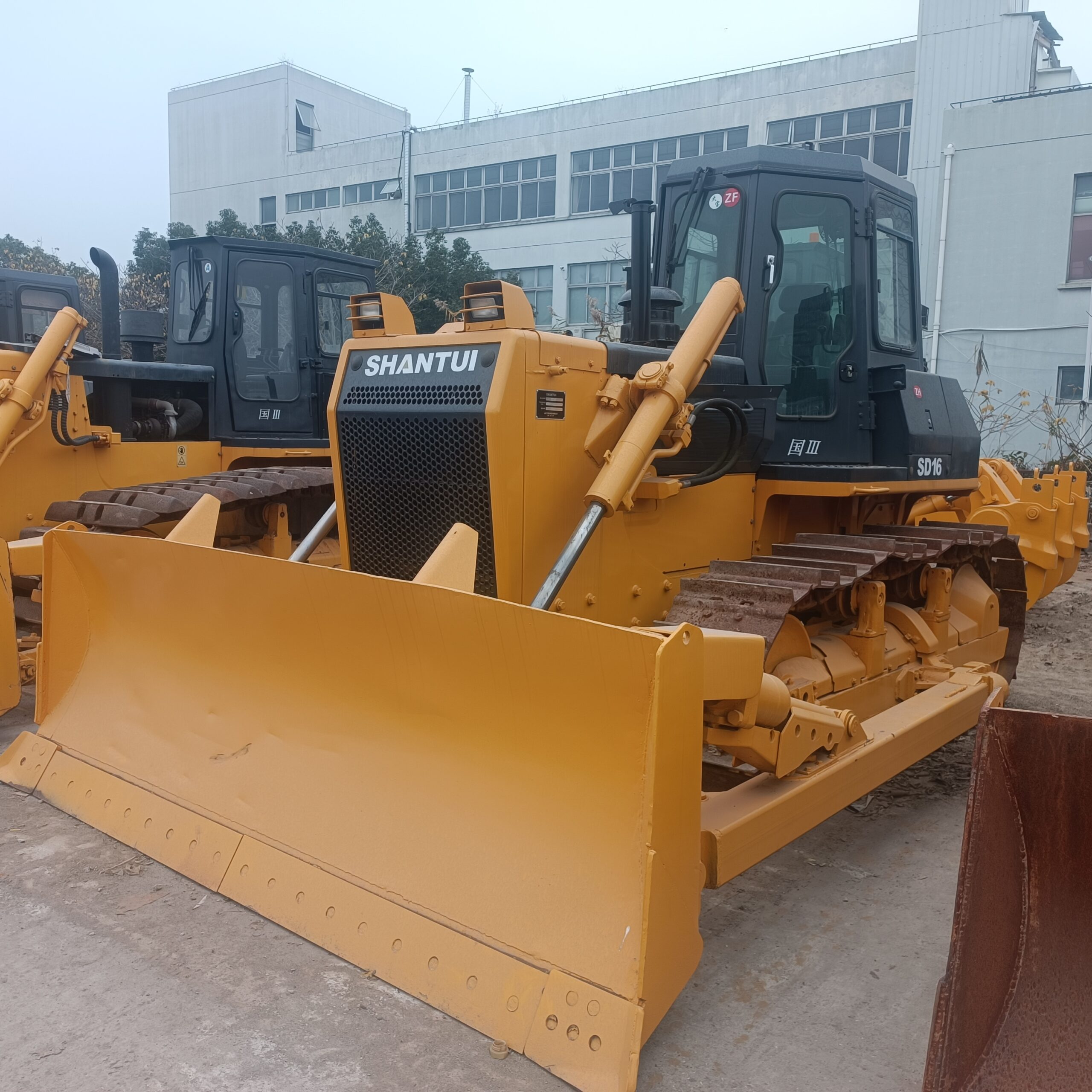

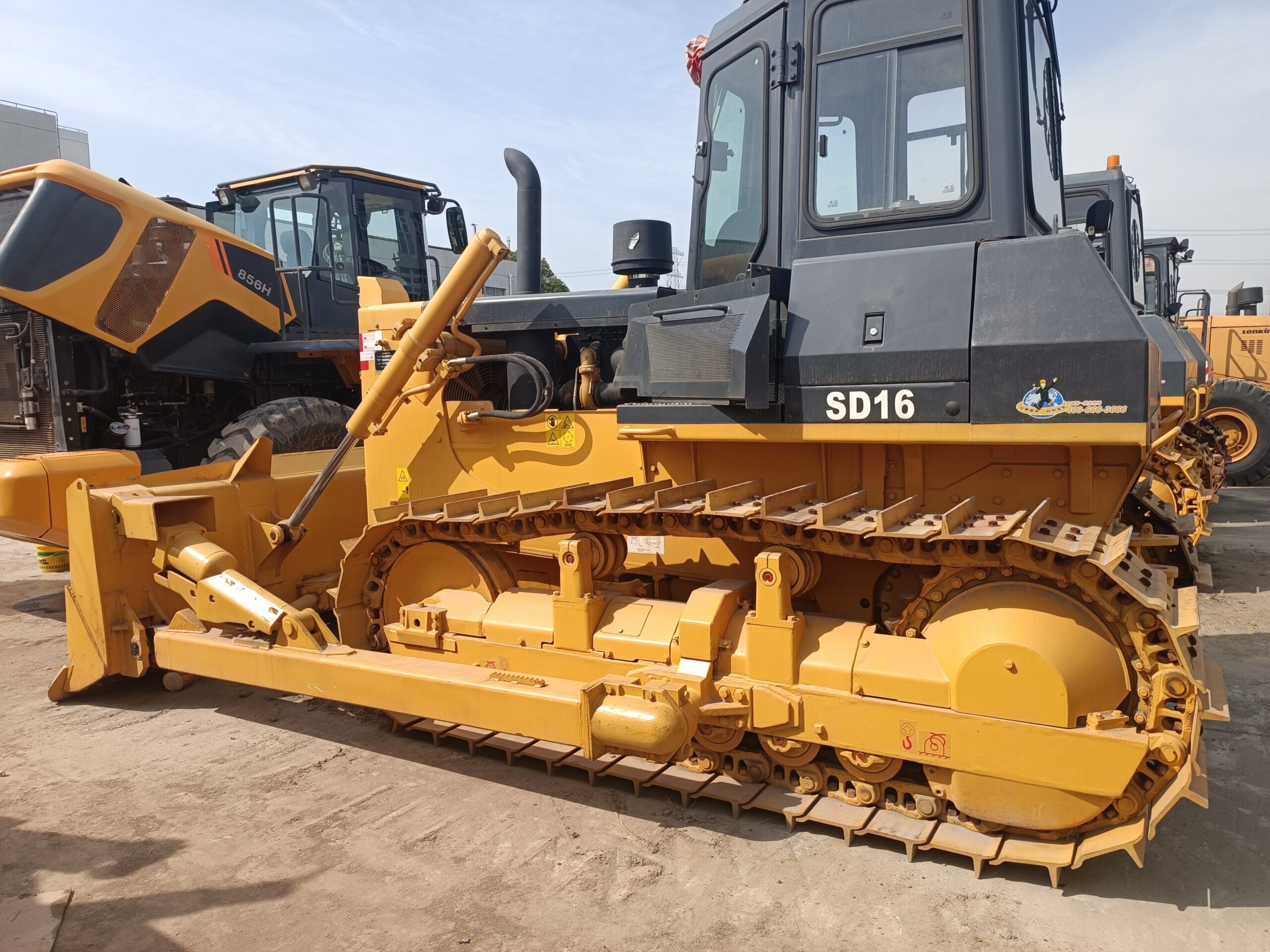

SAHNTUI SD16

Operating weight: The standard model is approximately 17,000 kg, with variations among different configured models. For example, the SD16C (coal version) is 17,500 kg, and the SD16L (ultra-wetland version) is 18,400 kg.
– Engine model: Commonly uses WD10 or WP10 engines, with a rated power of 131 kW and a rated speed of 1850 rpm.
– Overall dimensions: The overall dimensions (length × width × height) of the standard model are approximately 5140 × 3388 × 3032 mm. Different configured models have slight differences in length and width.
– Travel speed: There are three forward gears, which are 0-3.29 km/h, 0-5.82 km/h, and 0-9.63 km/h respectively; there are also three reverse gears, which are 0-4.28 km/h, 0-7.59 km/h, and 0-12.53 km/h respectively.

Performance features

– Powerful动力: Equipped with a WP10 electronic control engine, meeting the national Non-road Machinery National Stage Ⅲ emission requirements. It adopts a radial seal air intake system, effectively extending the service life of the engine, with strong power, high efficiency and energy saving.
– Efficient transmission: Shantui’s self-developed transmission system perfectly matches the engine curve. The planetary power shift, forced lubrication gearbox and hydraulic power steering system make the machine easy to operate with high transmission efficiency.
– Strong operational adaptability: It can be configured with various blades such as straight-tilting blades, U-blades, and angle blades according to specific working conditions. It can also be equipped with rippers, traction frames, etc., suitable for pushing, excavating, backfilling earth and rock, and other bulk material operations on various surfaces such as farmland, water conservancy, highways, and railways.
– Comfortable driving: Equipped with a hexahedral cab with a large internal space and a wide field of vision. It can be optionally configured with FOPS/ROPS, which is safe and reliable. It is also equipped with an intelligent display and control terminal, heating and air conditioning, etc. The driver’s seat and armrests are adjustable for comfortable operation.
– Convenient maintenance: The open large-space side shield, and the design of fuel filter, air filter, etc. on the same side. The electrical wiring harness is protected by corrugated pipes and divided by a wire divider, with a high protection level. The lubrication points of key parts such as the fan shaft and balance beam are led out for easy maintenance.
