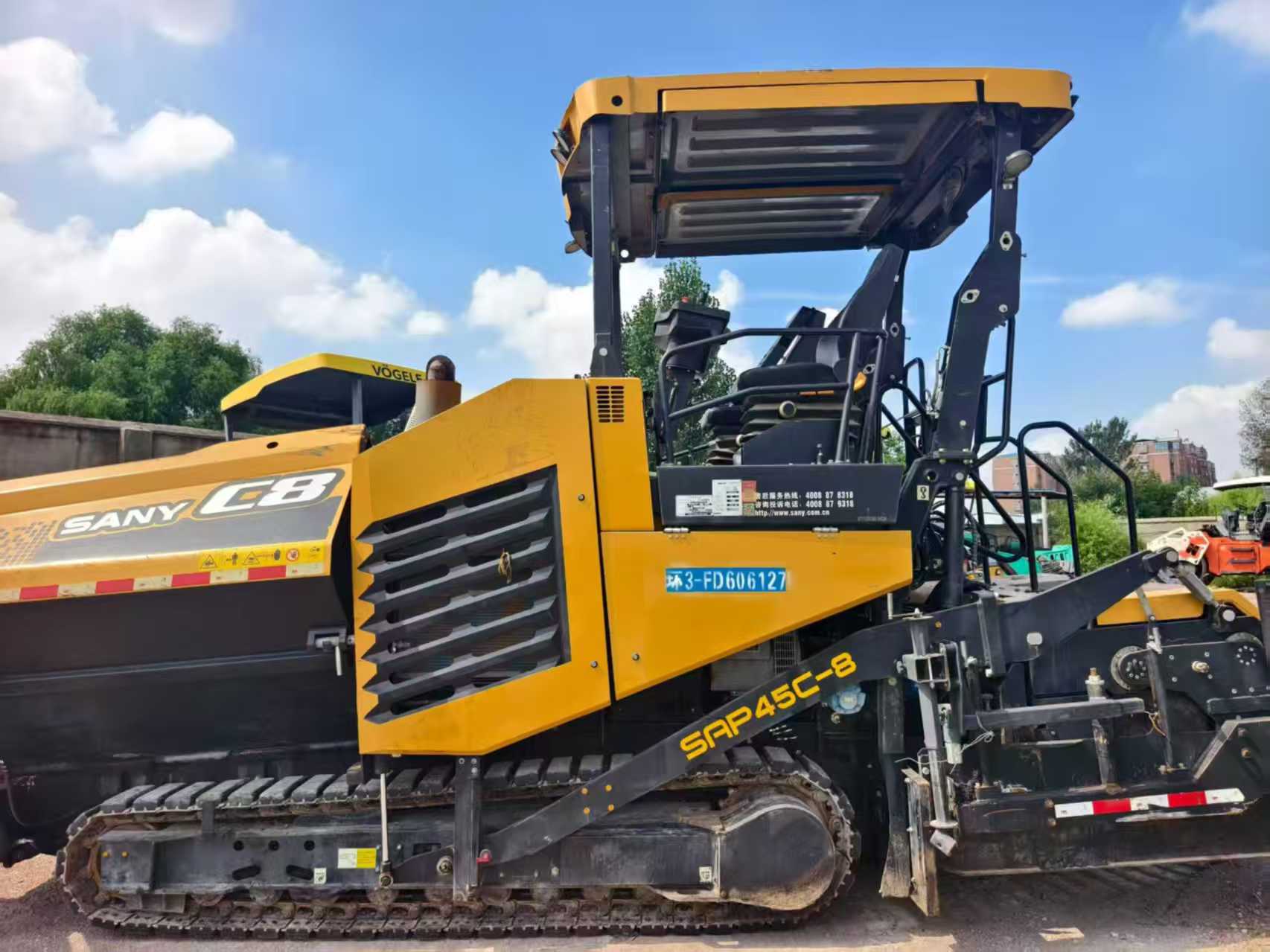

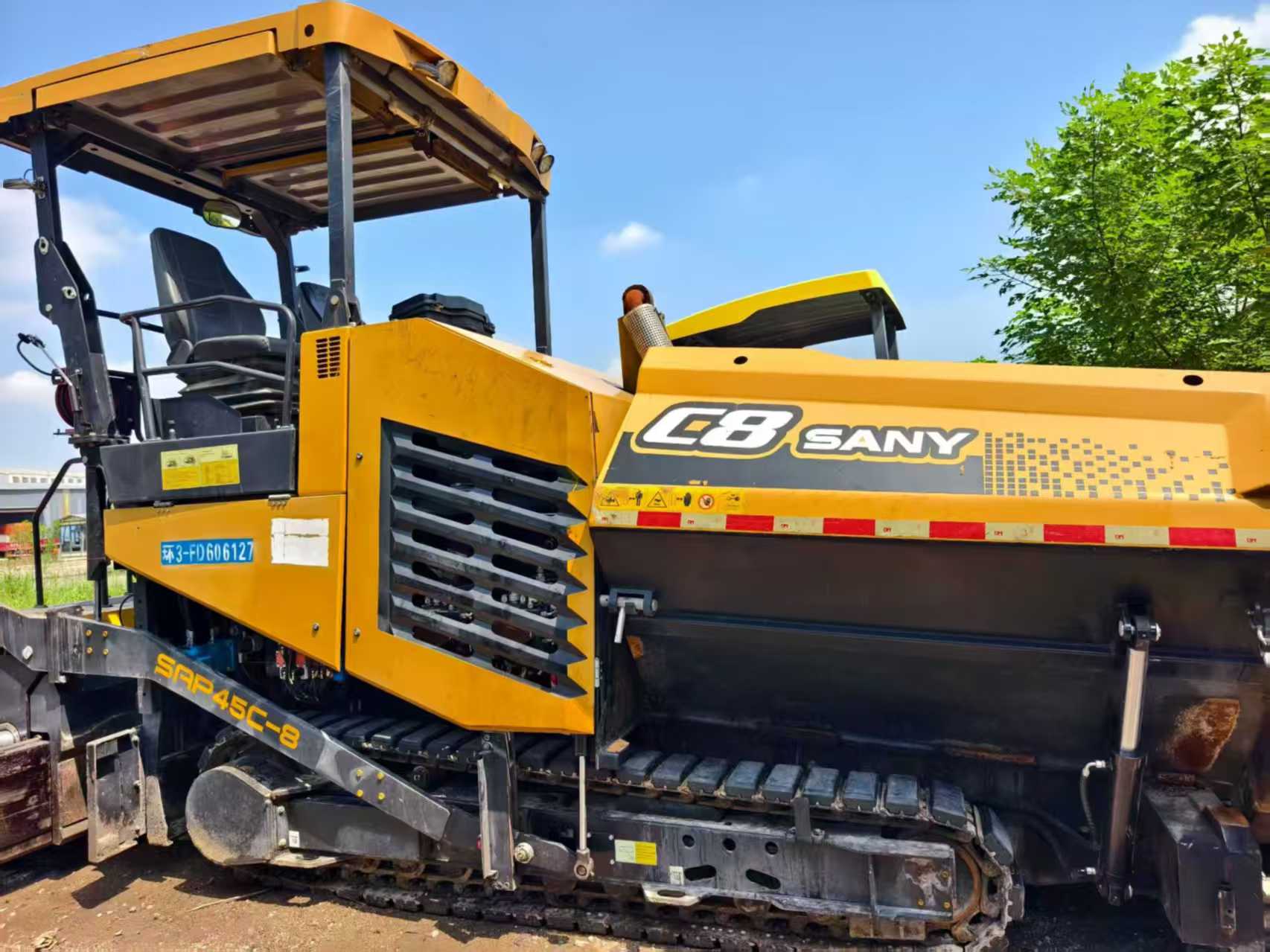

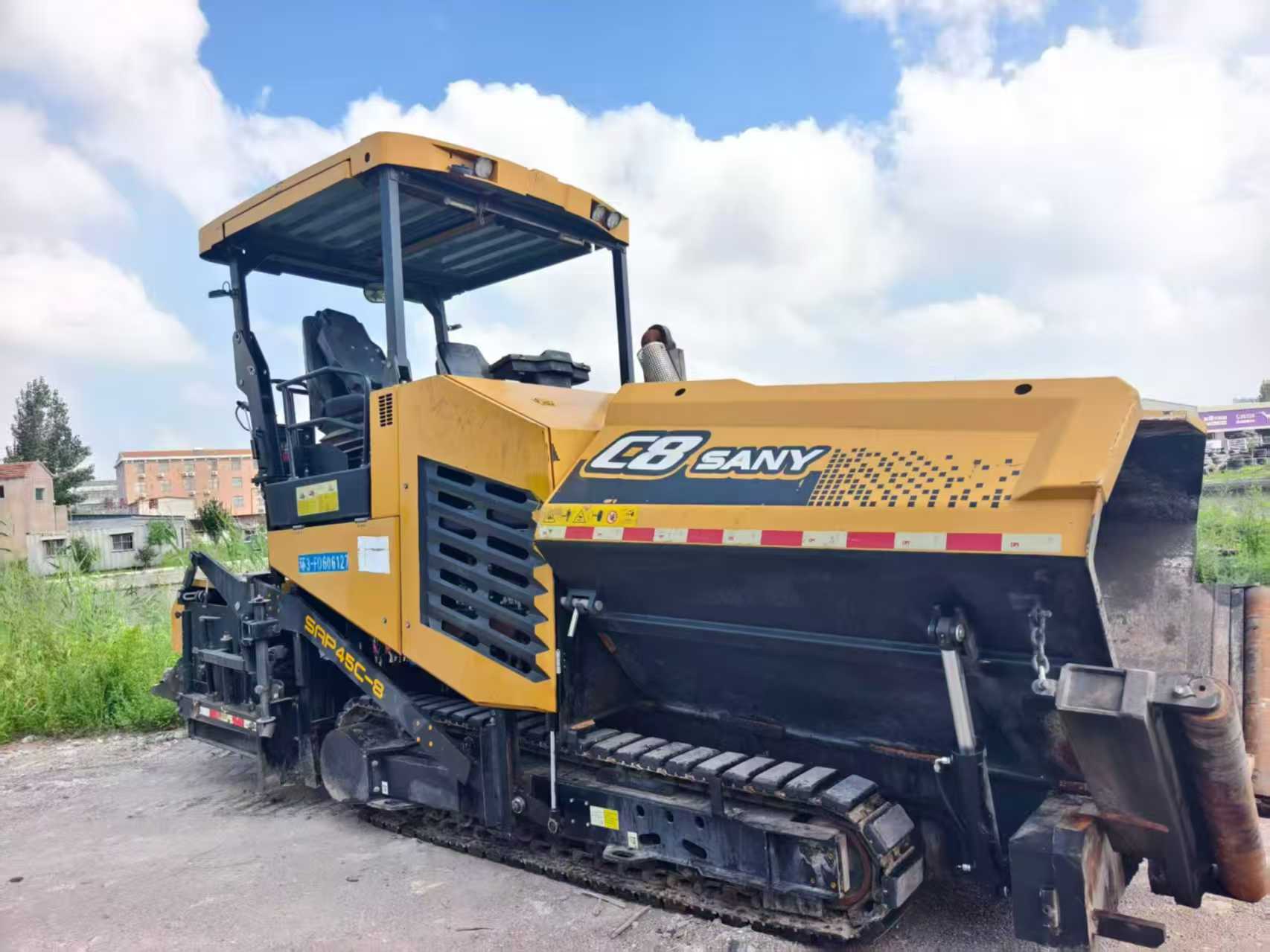

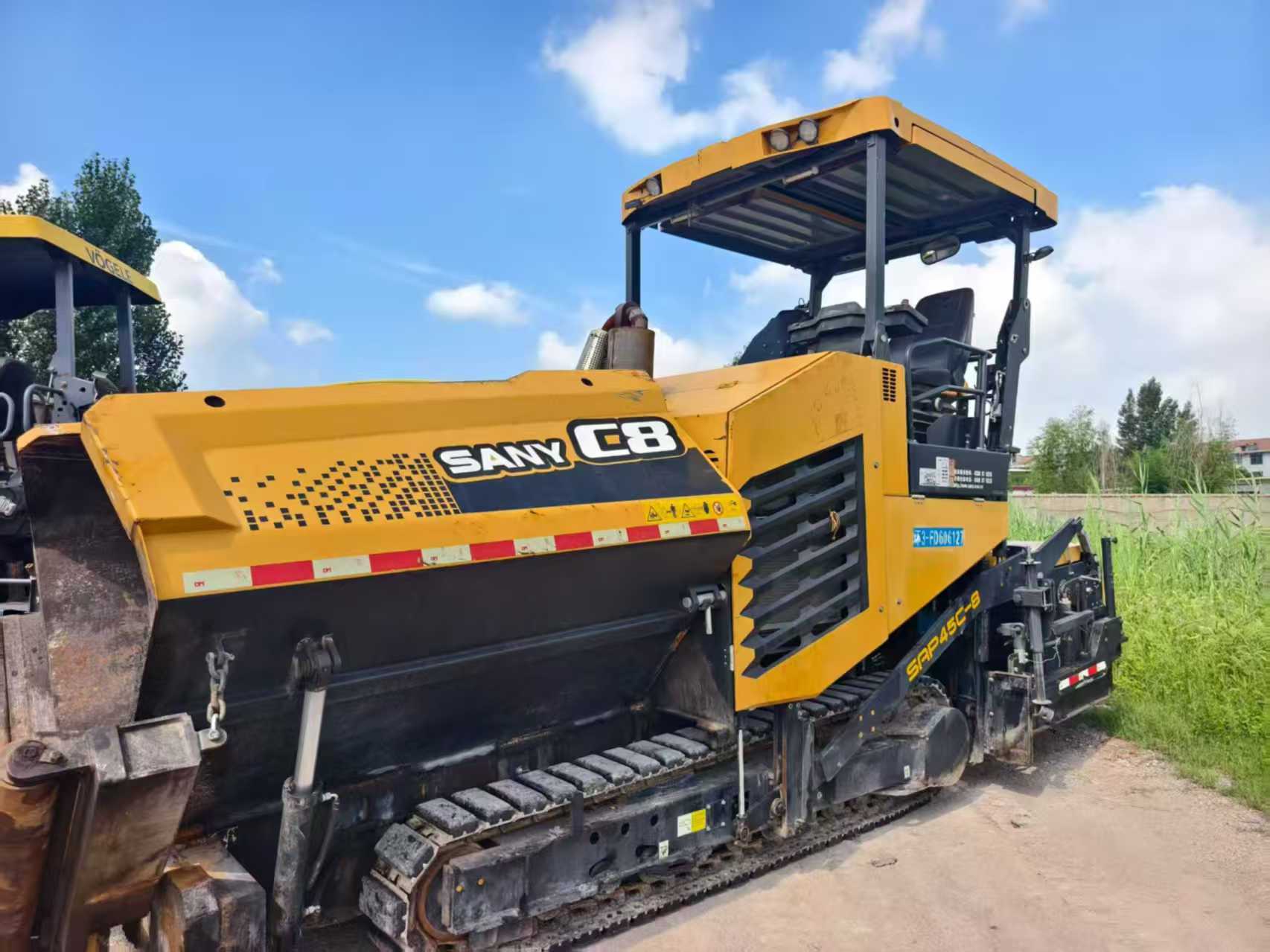

SANY SAP45C-8

Performance Parameters

– Engine: Equipped with a 92kW Weichai engine, with a rated power of 92/1800kw/rpm, a rated engine speed of 1800rpm, and an economic speed of 1600rpm, which plays a role in noise reduction and energy conservation.
– Paving capacity: The basic paving width ranges from 1700-4500mm, the maximum paving width can reach 4.5m, the paving thickness is 250mm, the paving speed can reach 20m/min, and the theoretical productivity is 320t/h.

Technical Features

– Screed design: The screed supports full-width telescoping, ranging from 1.8 meters to 4.5 meters in stepless telescoping, and 1.7 meters to 3.1 meters in symmetrical telescoping. It has vibration and oscillation functions, which can meet the needs of different road construction. The generator adopts independent drive technology, and the screed can be heated independently, meeting the requirement of heating while constructing.
– Hopper design: The inner width of the hopper is 3.2m, which meets the material dumping needs of 4-axle vehicles. The hopper can be opened and closed individually, and the pushing roller moves with the opening and closing of the hopper, ensuring normal paving along obstacles such as walls.
– Intelligent control: Equipped with an intelligent control system that can real-time monitor and adjust various parameters during the paving process, such as paving speed, temperature, thickness, etc. It is also equipped with a precise laser leveling device to ensure construction quality.
– Operation and maintenance: Configured with one-button cleaning buttons for material conveying, material distributing, and vibration. The hose reel can be automatically retracted, making it more convenient to clean the material truck. At the same time, the cab is equipped with a humanized operation control system, as well as an emergency stop device, tilt protection device, etc., to ensure comfortable and safe operation.
