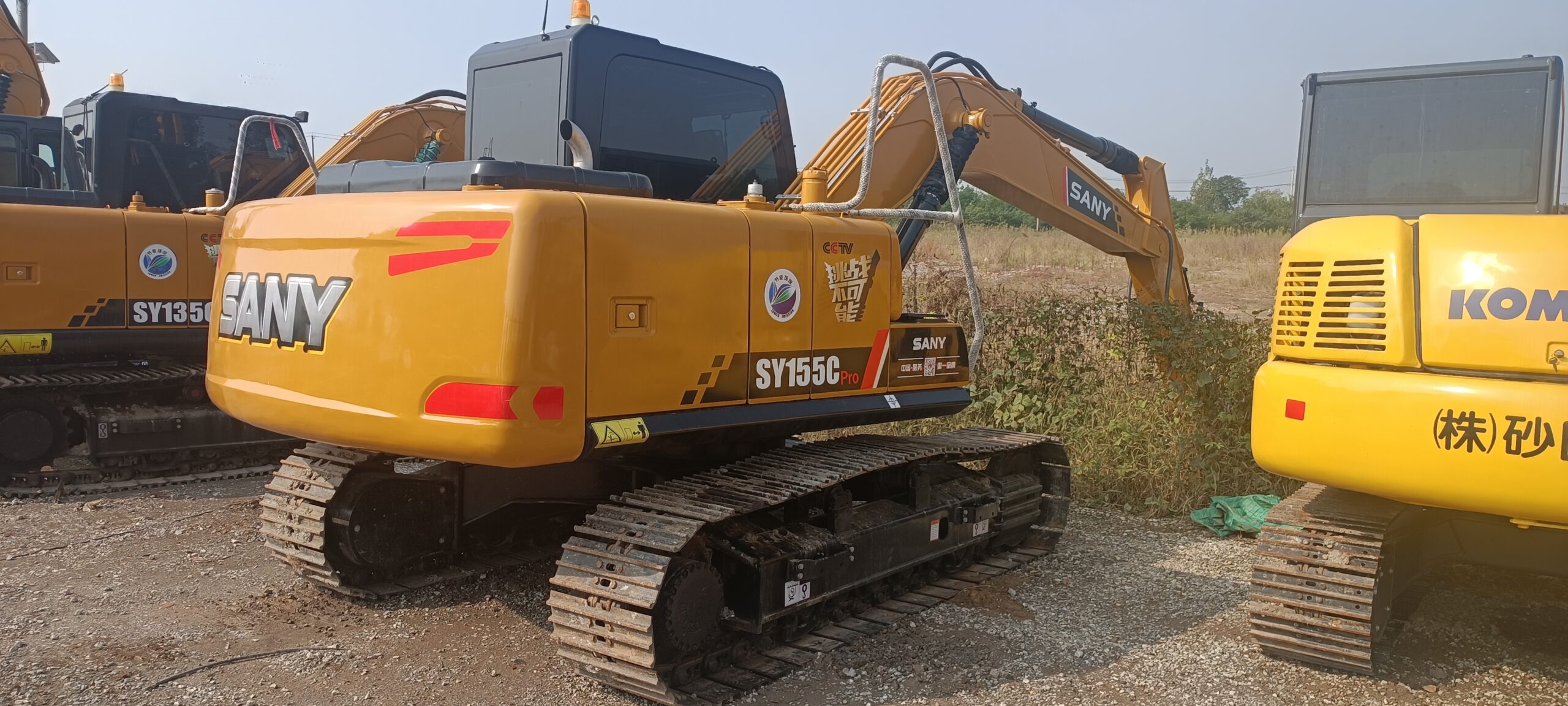

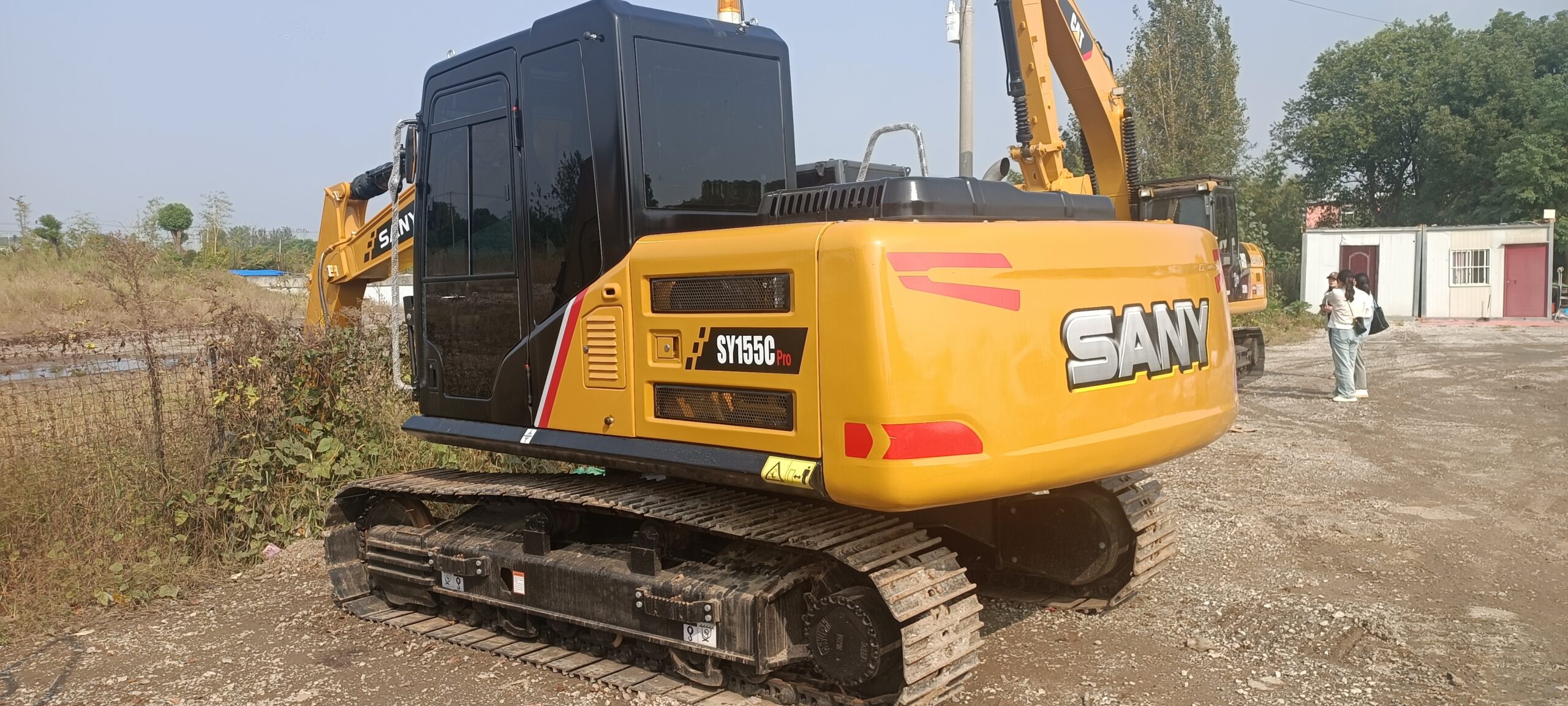

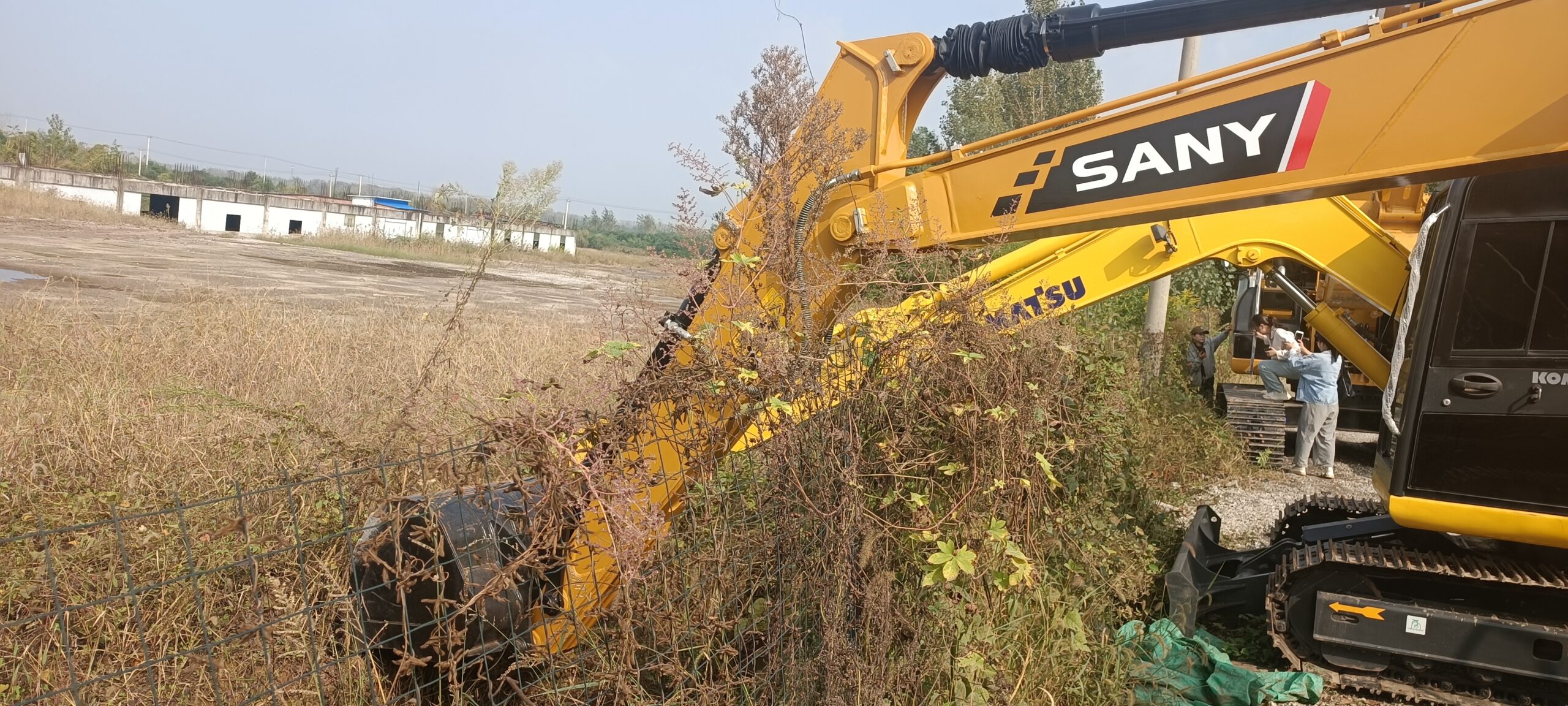

SANY SY155C

0 out of 5

Intelligent functions: Adopting advanced hydraulic systems and intelligent control technologies, it is easy and flexible to operate, improving work efficiency and accuracy.
– Cab: Designed to be spacious, sealed and quiet, equipped with a suspended seat and a user-friendly control layout, and adopts a roll-over and falling object protection structure design, achieving TOPS and FOPS safety certifications.

Free shipping on orders over $50!

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

Overall weight: 14100kg.
– Bucket capacity: 0.55m³.
– Engine: Isuzu 4JJ1-XDJAG-01-C3 engine is adopted, with a rated power of 73kW/2000rpm, a maximum torque of 365Nm/1600rpm, and a displacement of 2.999L.
– Travel speed: high/low is 5.5/3.5km/h respectively.
– Rotation speed: 12rpm.
– Bucket digging force: 92.7kN, arm digging force: 66.13kN.

– Climbing ability: 70% (35°), capable of adapting to complex terrains.
– Excavation range: maximum excavation radius 8250mm, maximum dumping height 6180mm, maximum excavation height 8685mm, maximum excavation depth 5470mm.

Structure and Design

– Track design: The standard track width is 500mm, which enhances passability and stability.
– Durability: Equipped with heavy-duty rock bucket teeth as standard, the optimally designed sub-arc shape reduces excavation resistance and wear; the industry’s first use of track rollers instead of carrier rollers doubles the service life, and the bilateral reinforced carrier roller fixing method makes the structure more robust.
