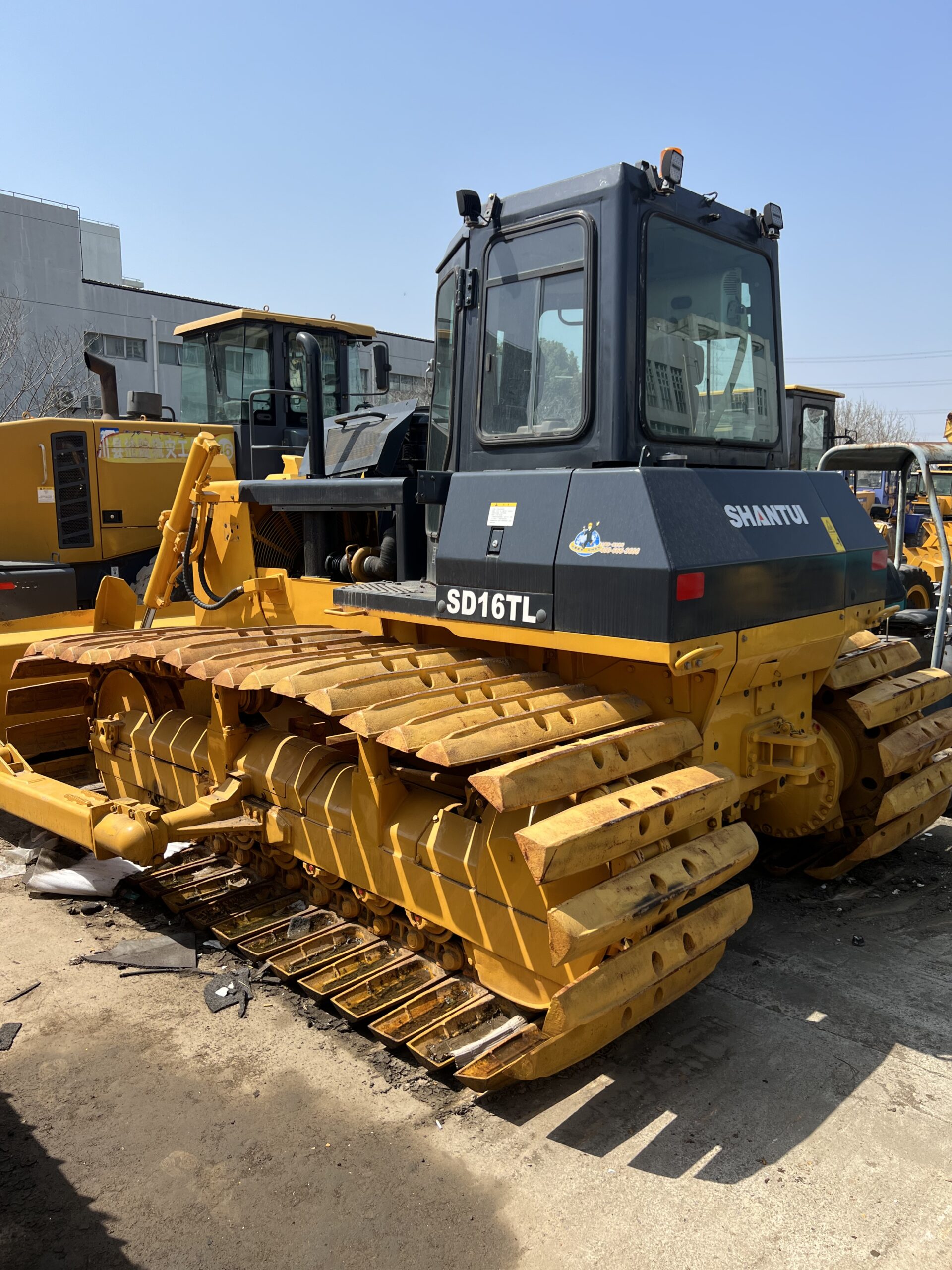

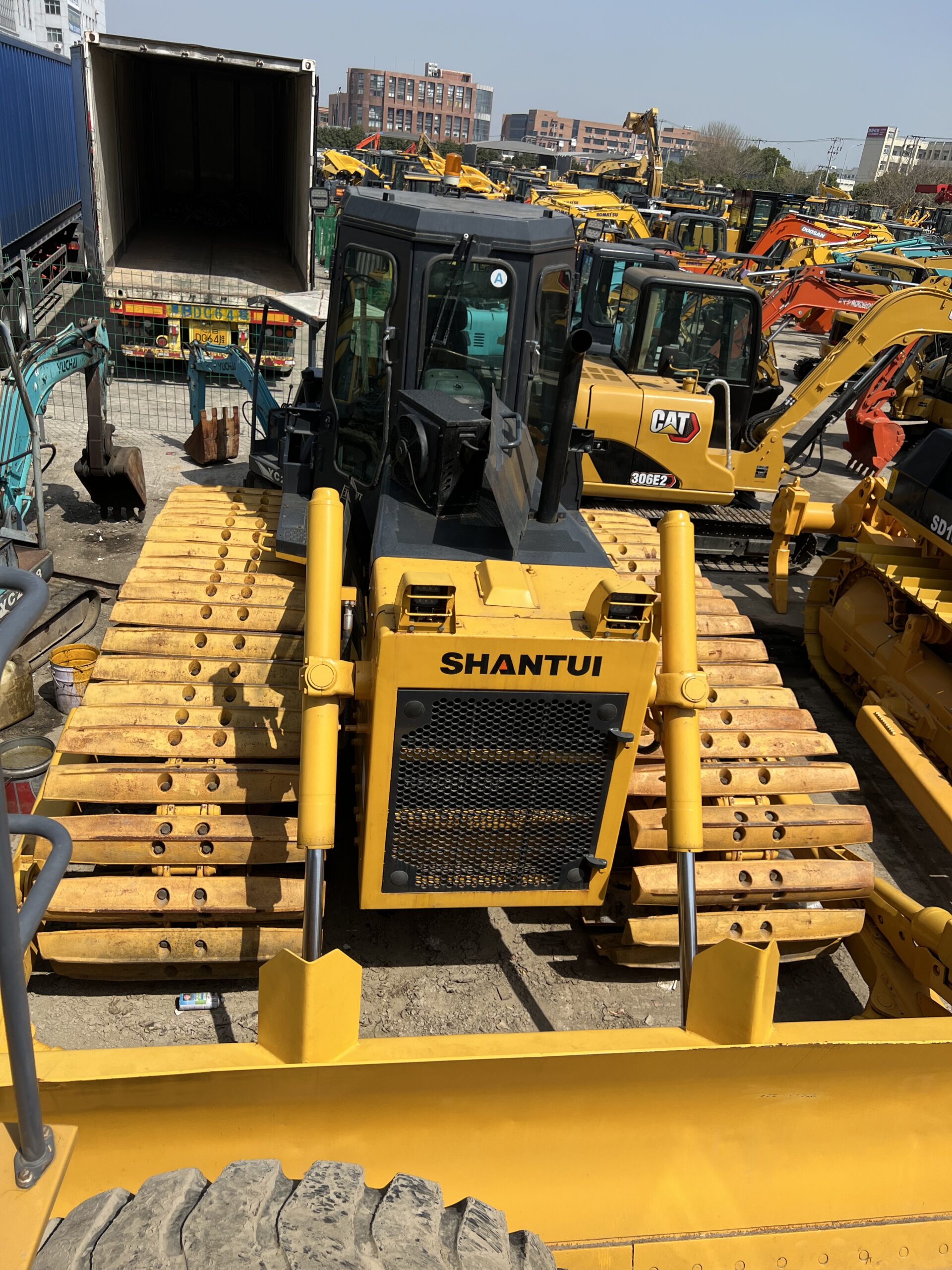

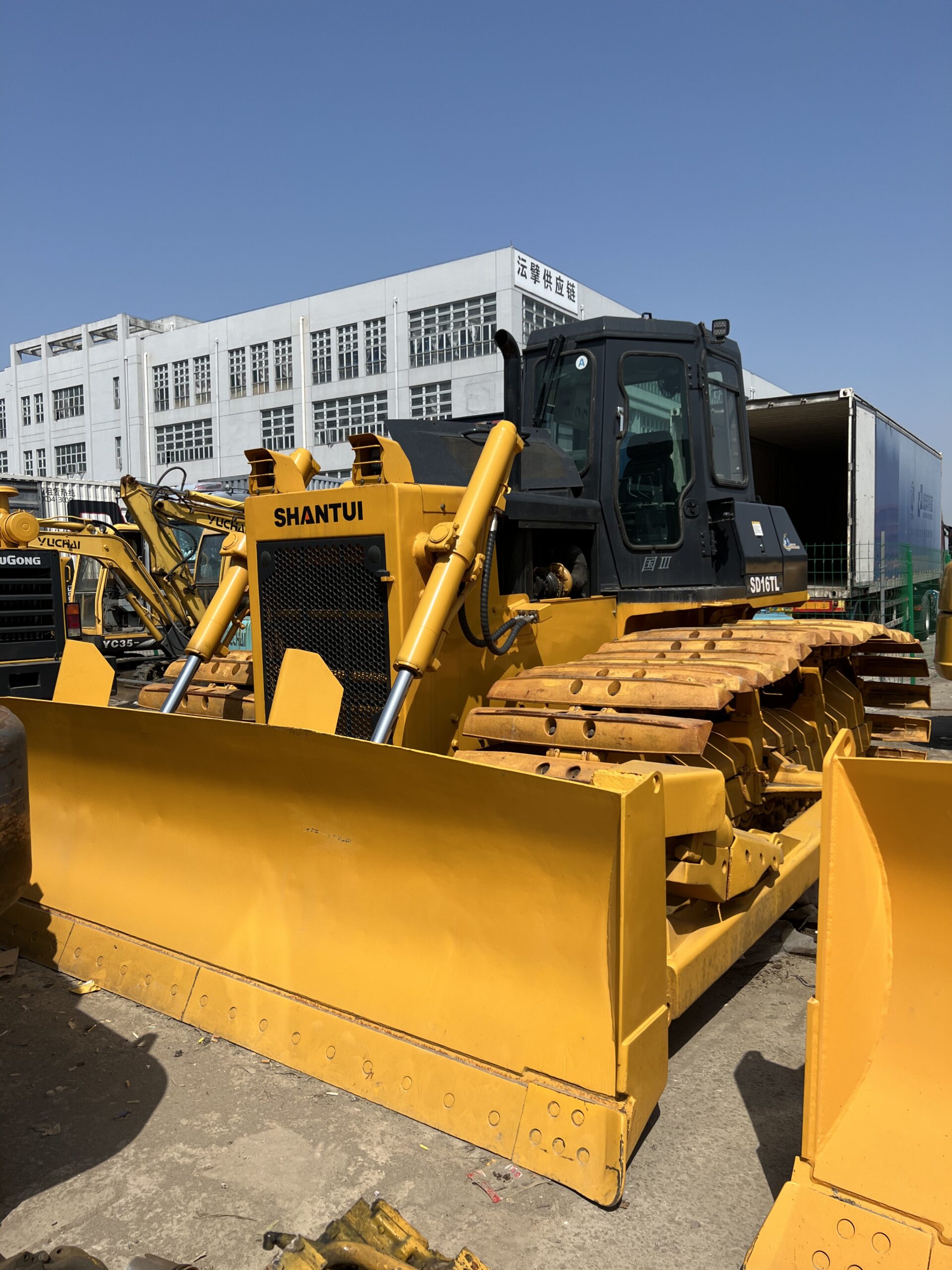

SHANTUI SD16L

Performance Parameters

– Power System: The engine model is usually WD10G178E25 or STEYR WD10G175E15, with a rated power of 131kW and a rated speed of 1850r/min.
– Weight and Dimensions: The operating weight of the whole machine is approximately 18400kg. The overall length of SD16TL is 5560mm, the width is 4150mm, the height is 3074mm, the width of the track shoe is 1100mm, and the ground contact length is 3140mm.
– Travel Speed: The 1st gear forward speed of SD16TL is 0-2.67km/h, and the reverse speed is 0-3.48km/h; the 2nd gear forward speed is 0-3.76km/h, and the reverse speed is 0-4.90km/h; the 3rd gear forward speed is 0-5.41km/h, and the reverse speed is 0-7.05km/h.

Product Features

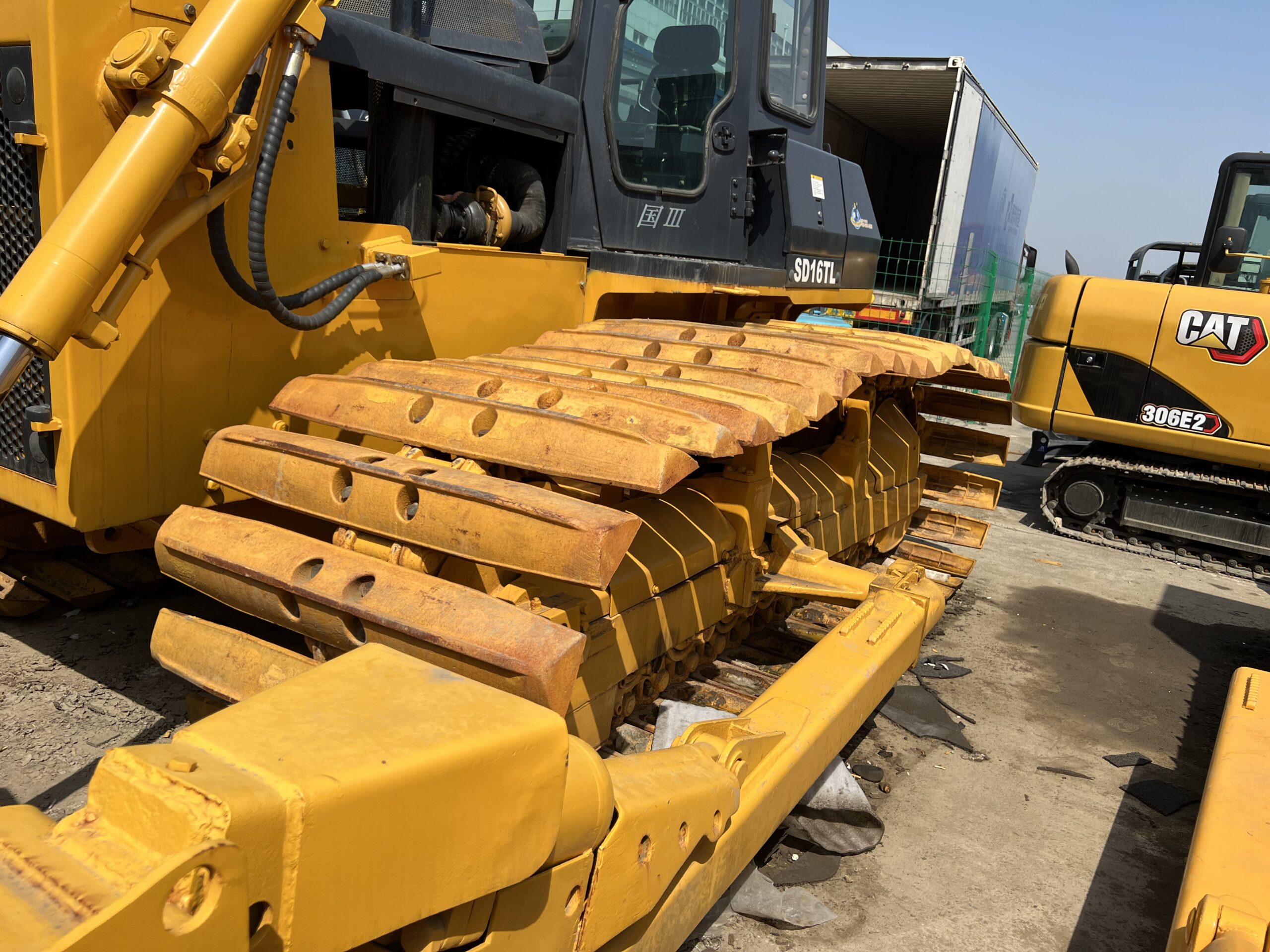

– Strong Adaptability: Equipped with an ultra-wetland working device and adopting a wide track design, it has a low ground pressure. For example, the ground pressure of SD16L is 25kPa, enabling stable operation in complex wetland conditions such as muddy areas and swamps.
– Comfortable Operation: The cab is reasonably designed with a wide field of vision. The SD16TL is equipped with a new generation of positive pressure cab, which has good sealing performance and low noise. It also has humanized configurations such as a rear-mounted heating and cooling air conditioner and sunshade curtains to improve driving comfort.
– Convenient Maintenance: The electrical fuses of SD16TL are centrally arranged, making fault diagnosis convenient. The working valve of the hydraulic system is external, and the center pin of the balance beam and lubrication points are led out, facilitating daily maintenance.
