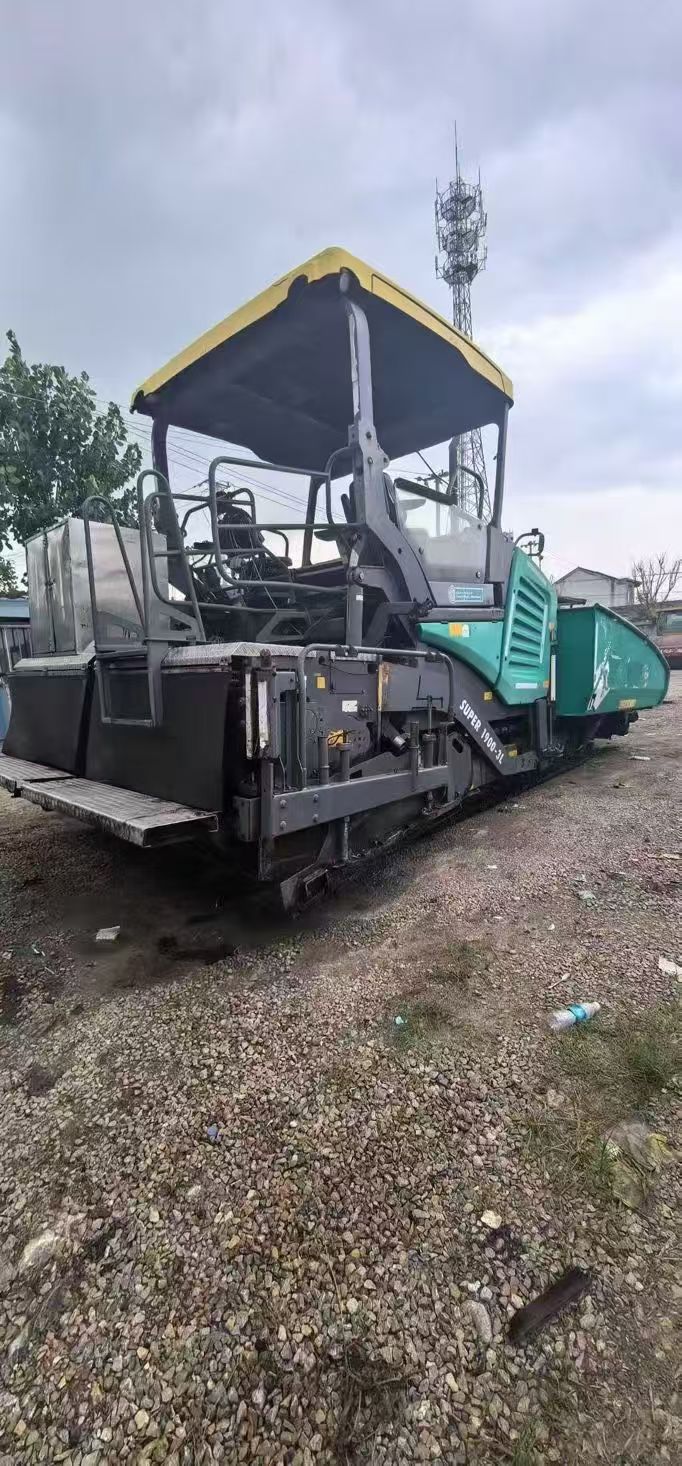

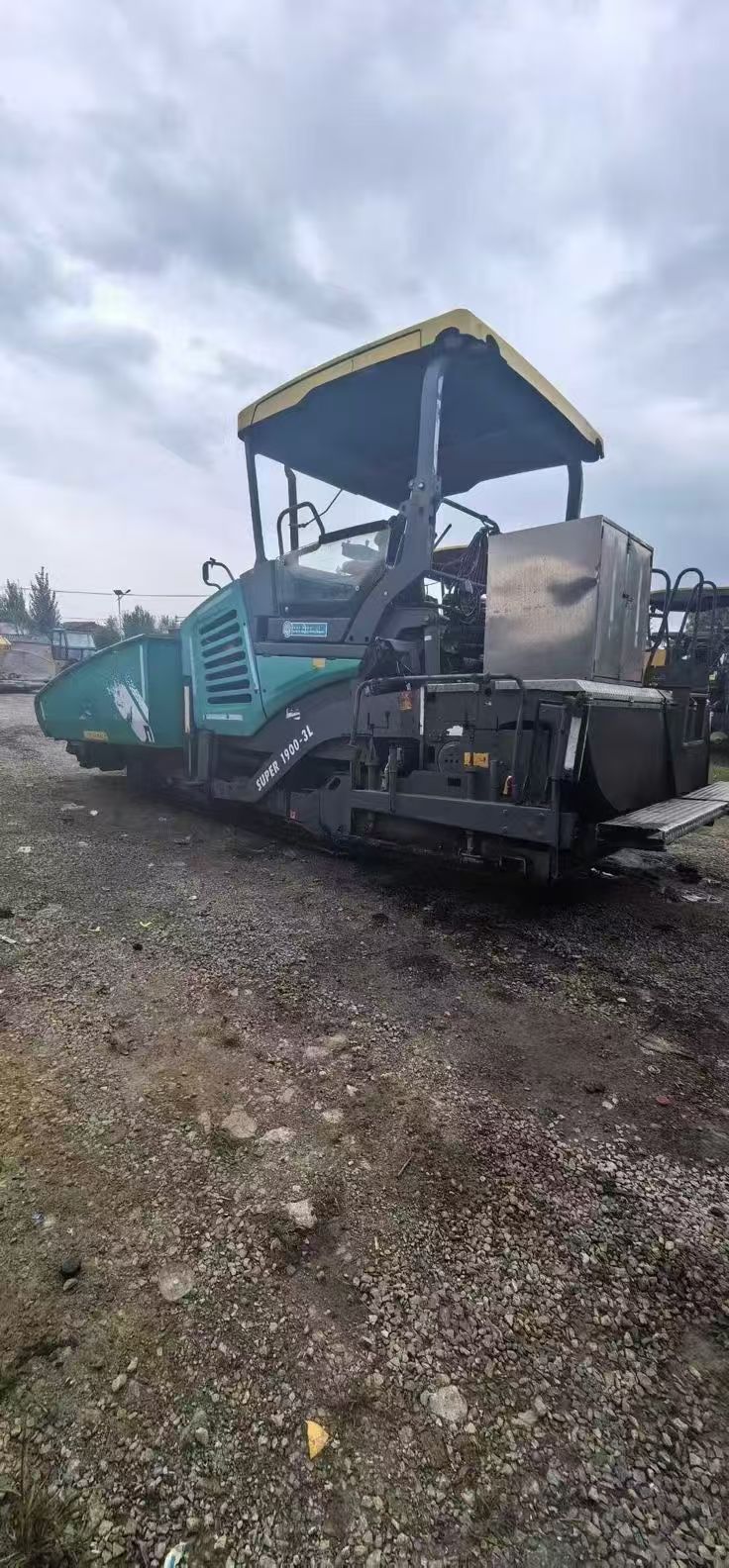

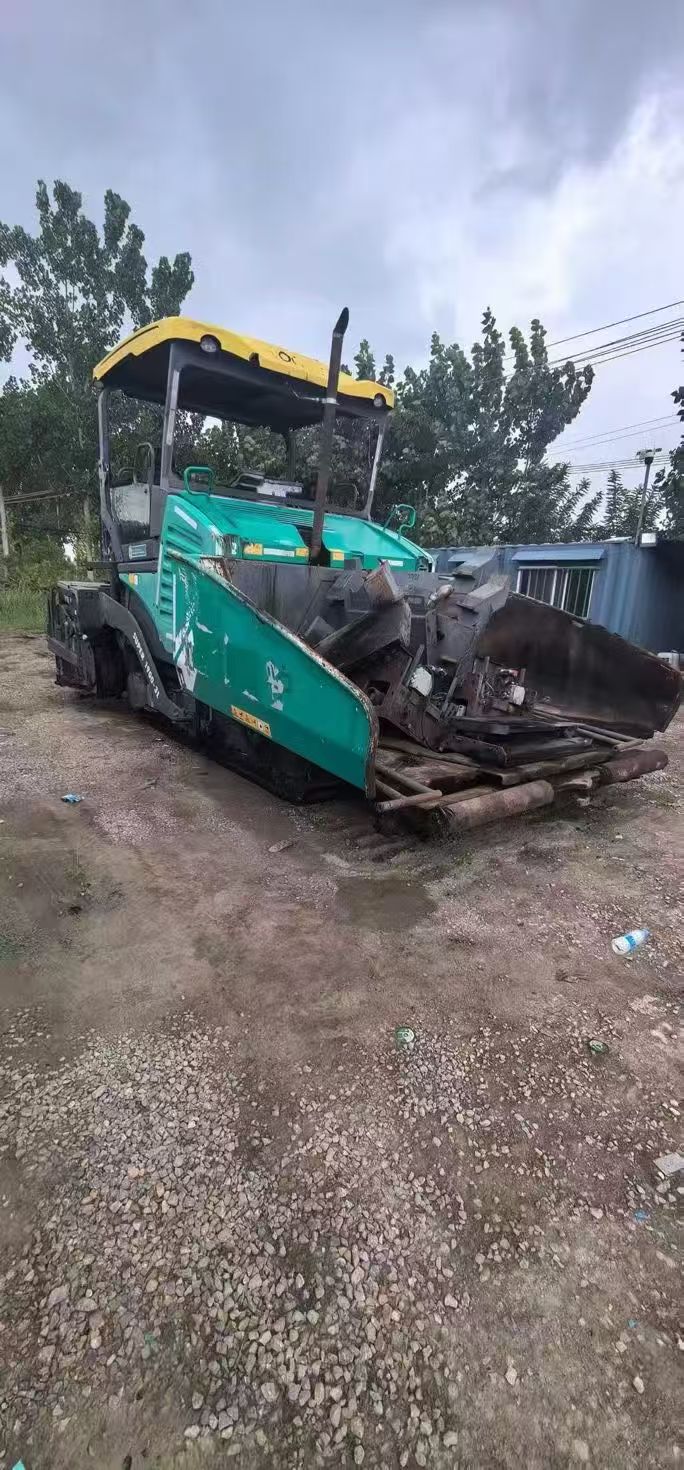

Vögele 1900- 3Li

Engine: Equipped with a Cummins B6.7 6-cylinder liquid-cooled diesel engine, with a rated power of 145kW/2000rpm, a power of 140kW/1700rpm in ECO mode, and a fuel tank capacity of 380L.
– Paving capacity: Maximum paving width up to 11m, maximum paving thickness 400mm, theoretical productivity 900t/h.
– Travel speed: Stepless speed change during paving, maximum 25m/min; stepless speed change during traveling, maximum 4.5km/h.
– Hopper capacity: 15t, width 3265mm.

Performance features

– Drive system: Electronically controlled independent hydraulic drive for crawler tracks on both sides, ensuring stable and efficient traveling and paving.
– Screed: Available in various models such as AB 600, SB 300, SB 300 HD, with a basic width of 3m. The heating method is electric heating (except for SB 300 HD).
– Control system: Adopts ErgoPlus3 operating system, with a large color display on the operator’s control panel. Control components are arranged clearly, and the night lighting mode automatically turns on, facilitating night construction.
– Cooling system: A large cooling system and innovative air flow path ensure that the engine coolant, hydraulic oil, and engine intake air can achieve ideal cooling effects under various weather conditions.
