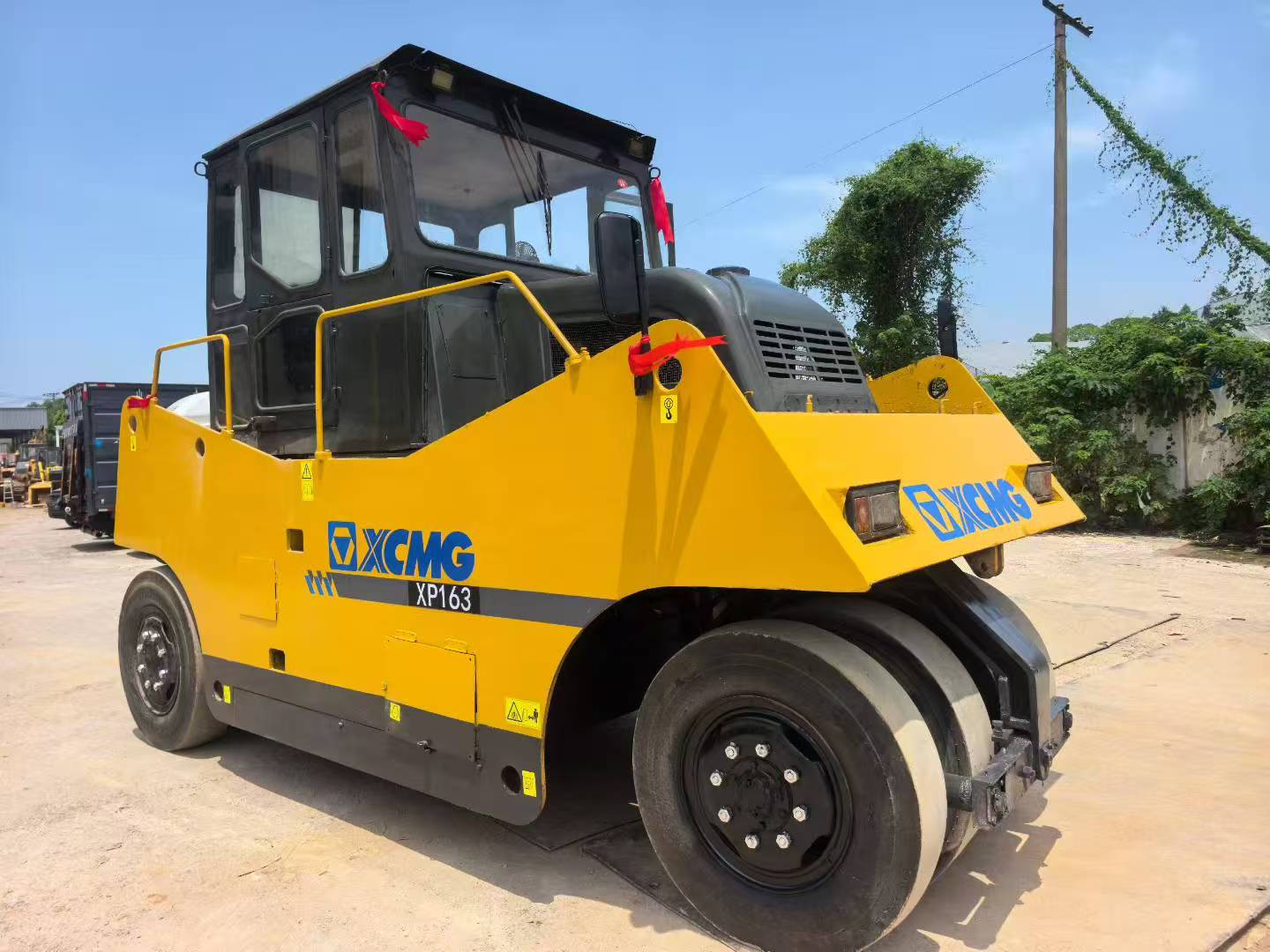

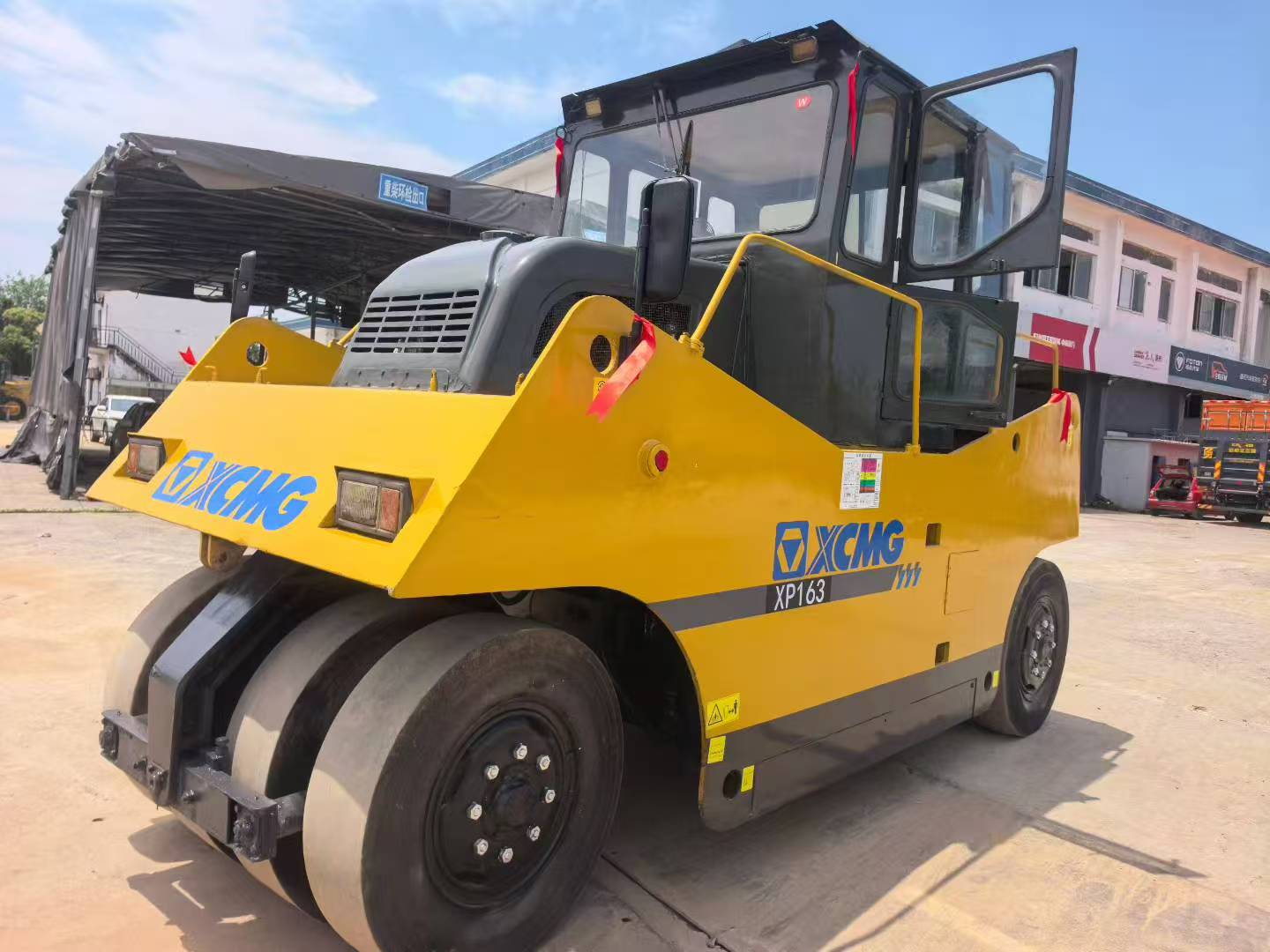

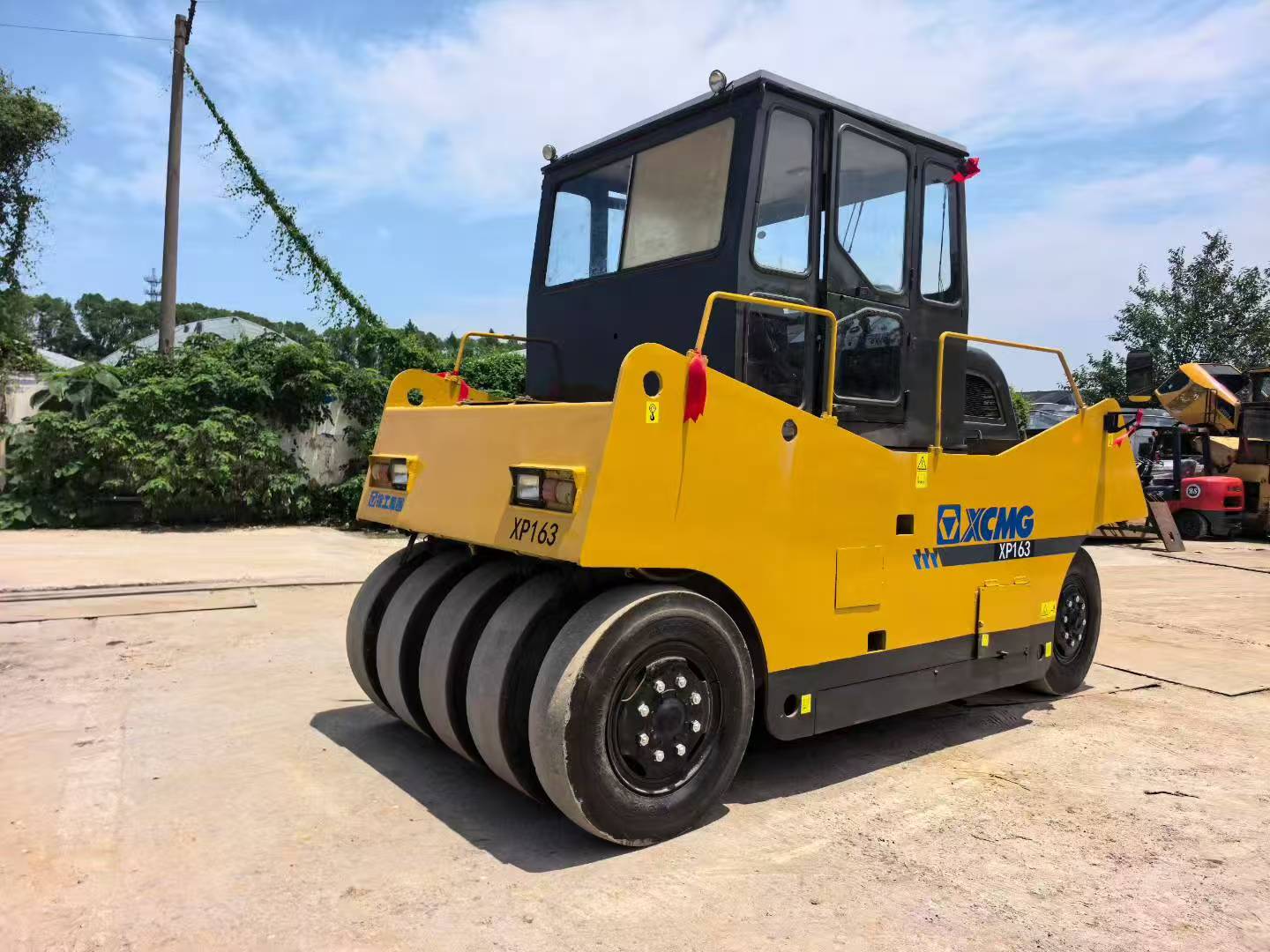

XCMG 16T rubber-tyred roller

Working weight: 16,000 kg, with the front wheel allocated weight being approximately 16 tons and the rear wheel allocated weight about 11 tons, plus a counterweight of 4,000 kg and water weight of 650 kg. Overall dimensions (length × width × height) are 4770 × 2210 × 3442 mm, compaction width is 2055 mm, wheelbase is 3700 mm, track width is 450 mm, and minimum ground clearance is 250 mm.
– Engine parameters: Engine model YC4A125Z, rated speed 2200 r/min, rated power 92 kW, fuel consumption 228 g/kW·h, maximum torque 450 N·m, total piston displacement 4.836 L.
– Driving performance parameters: Speed range – forward Ⅰ gear 4.2 km/h, forward Ⅱ gear 8.2 km/h, forward Ⅲ gear 17.4 km/h; reverse Ⅰ gear 4.2 km/h, reverse Ⅱ gear 8.2 km/h. Theoretical climbing capacity is 20%, and minimum turning radius is 7230 mm.
– Performance features: Equipped with an imported German roller drive shaft, it has strong power and can quickly compact various pavement materials. Adopting a dual-vibration tire design, it has high vibration frequency and large amplitude, resulting in high operating efficiency. At the same time, it uses four-wheel full-vibration technology and a scientific weight counterweight design, ensuring good operational stability and effectively preventing missed compaction and repeated compaction. In addition, this roller adopts a user-friendly operation design, equipped with an ergonomic seat and an adjustable steering wheel, making operation comfortable and convenient.
