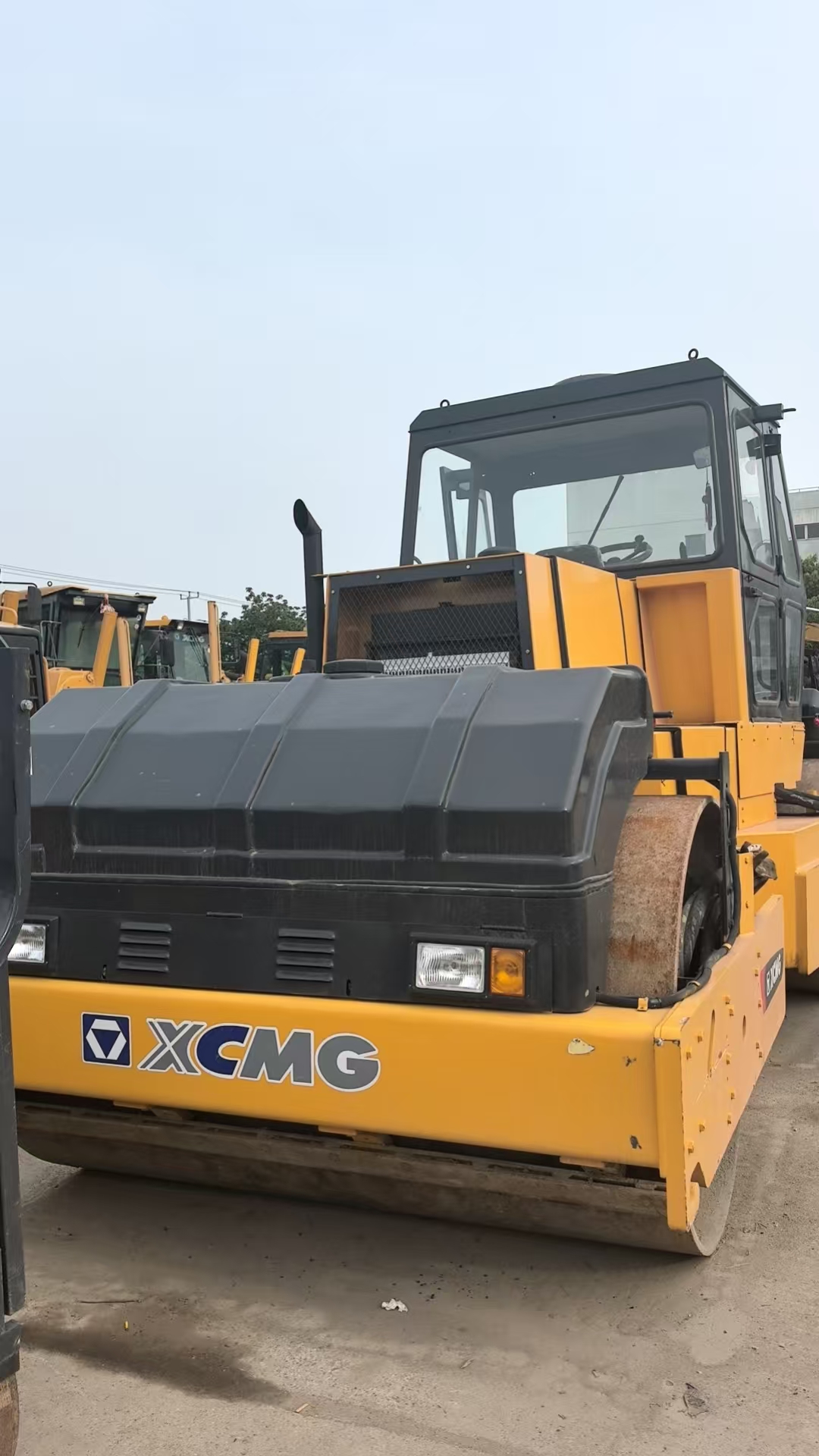

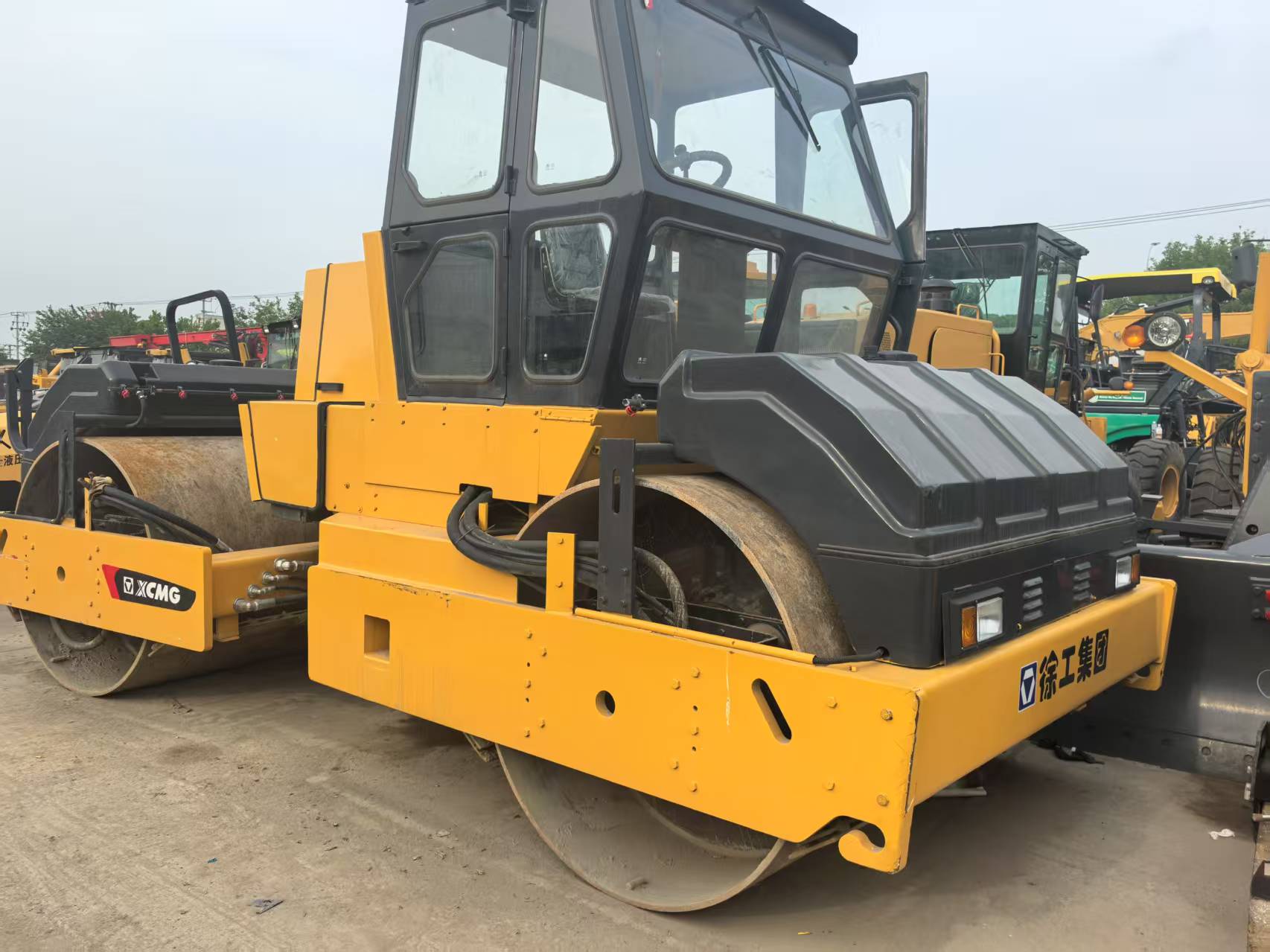

XCMG XD102

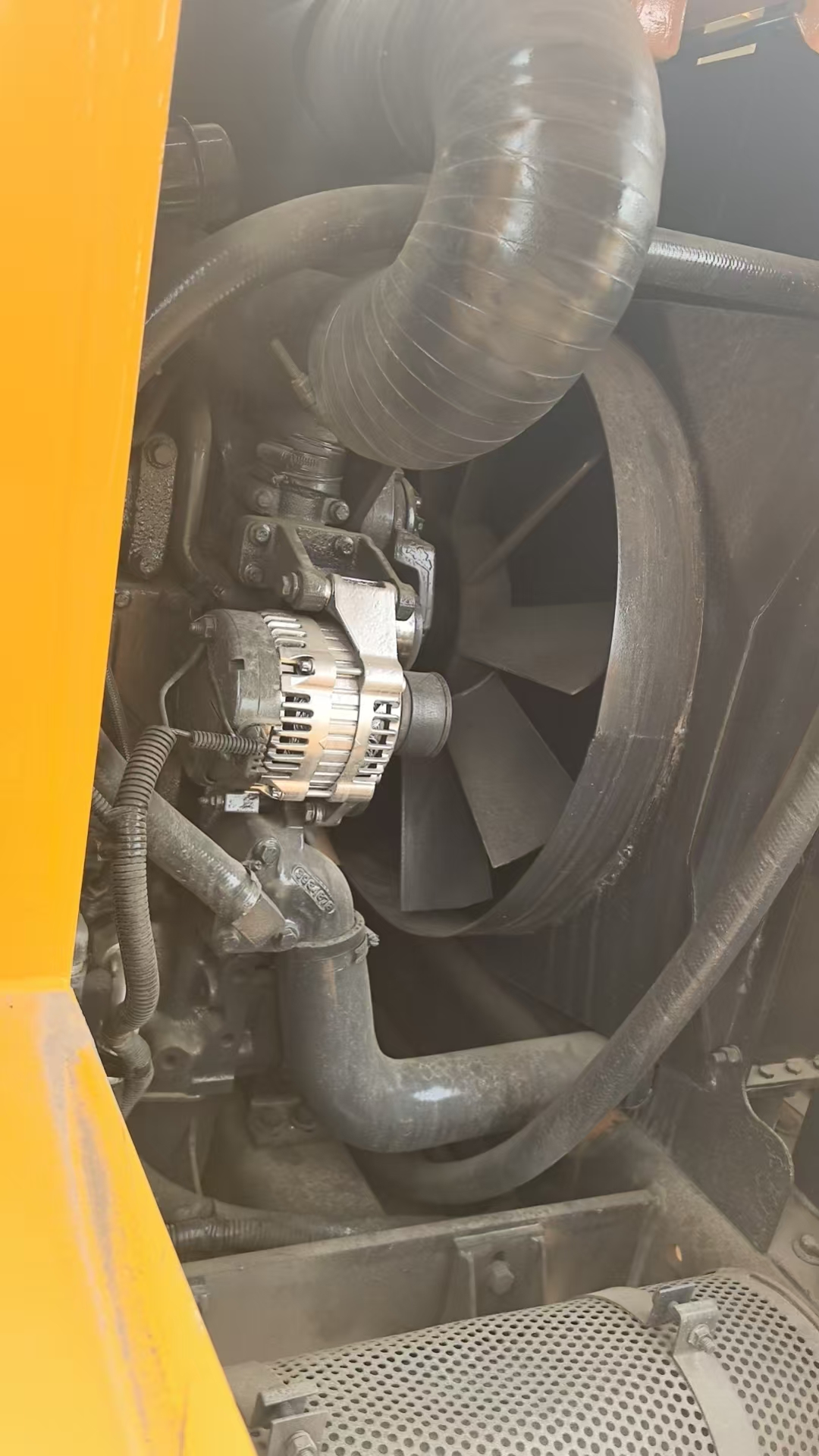

Basic parameters: The operating weight is 10000kg, with the front and rear wheels each distributing 5000kg. The engine model is DEUTZ BF4M2012-10T3R, with a rated power of 74.9kW and a rated speed of 2300r/min.
– Compaction performance: There are two vibration frequencies, 48Hz and 45Hz; the nominal amplitudes are 0.40mm and 0.80mm; the exciting force is 120kN at low frequency and 60kN at high frequency; the static linear load of both front and rear wheels is 280N/cm. The diameter of the vibrating wheel is 1150mm, and the width is 1750mm.
– Maneuverability: The speed range is 0-9.5km/h; the theoretical climbing ability is 30%; the minimum turning radius is 4065mm internally and 5900mm externally; the swing angle is ±8°; the steering angle is ±38°.
– Overall dimensions: The total length of the machine is 4890mm, the total width is 2042mm, the total height is 3087mm, and the minimum ground clearance is 330mm.
– Capacity parameters: The fuel tank capacity is 167L, the hydraulic oil tank capacity is 77L, and the water tank capacity is 2×370L.
