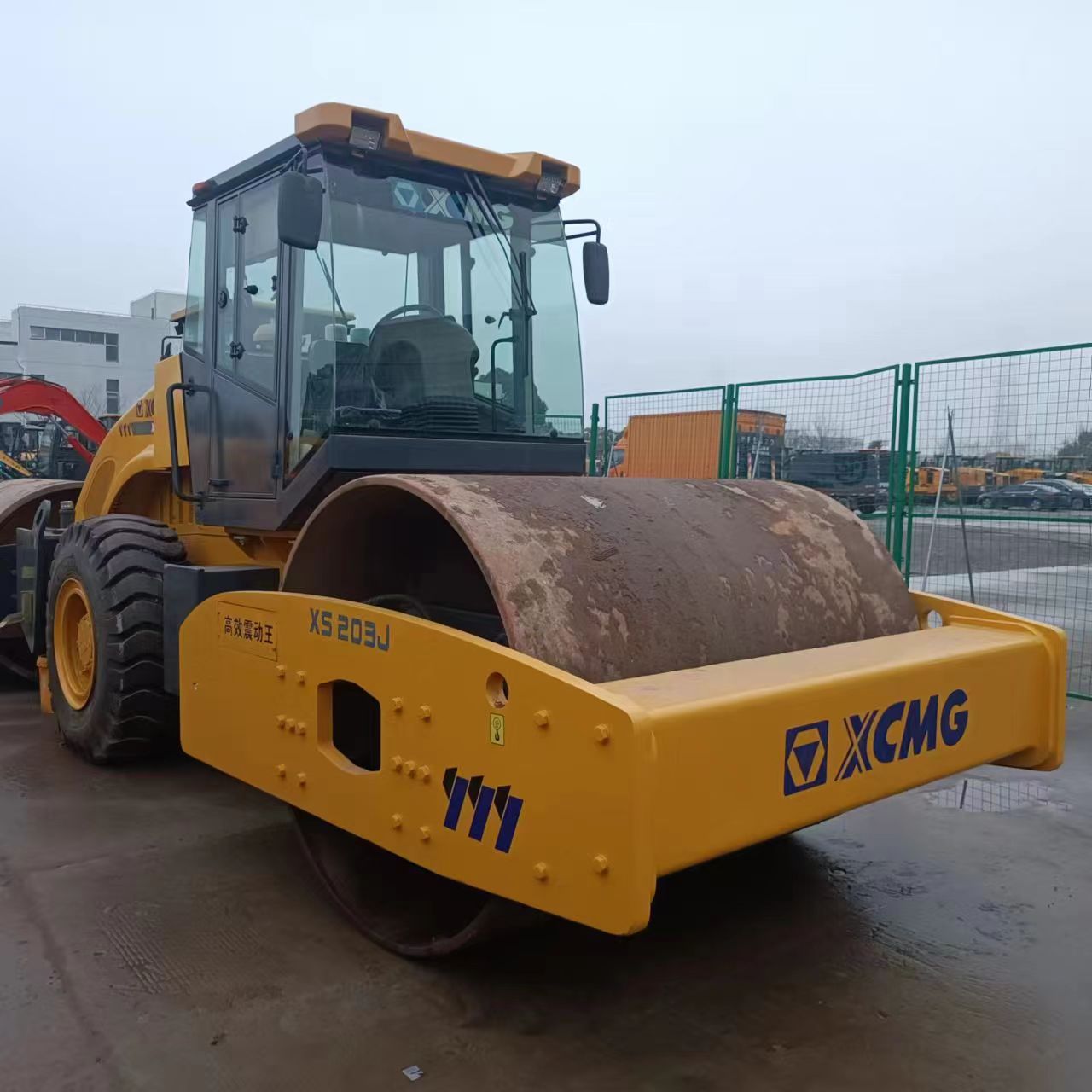

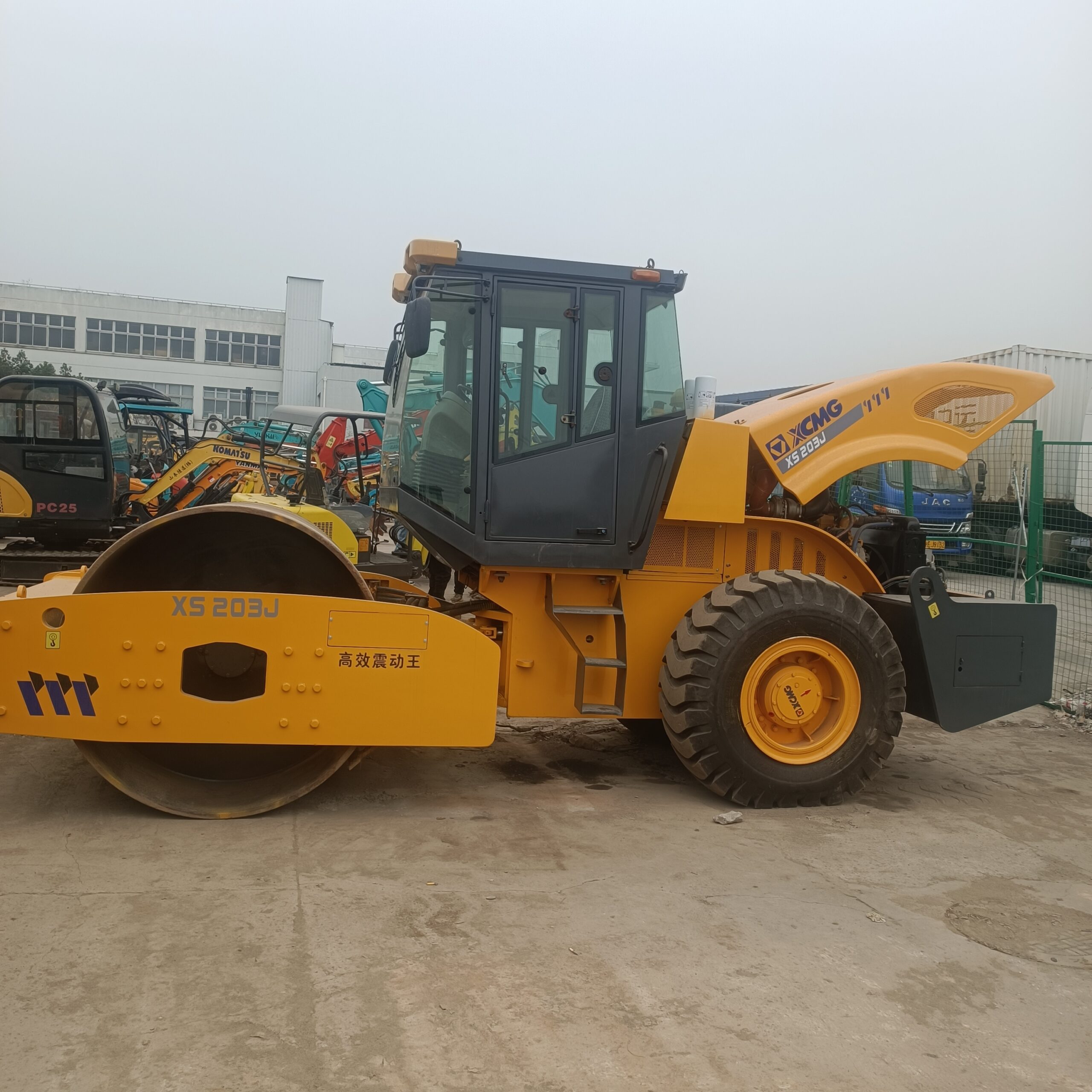

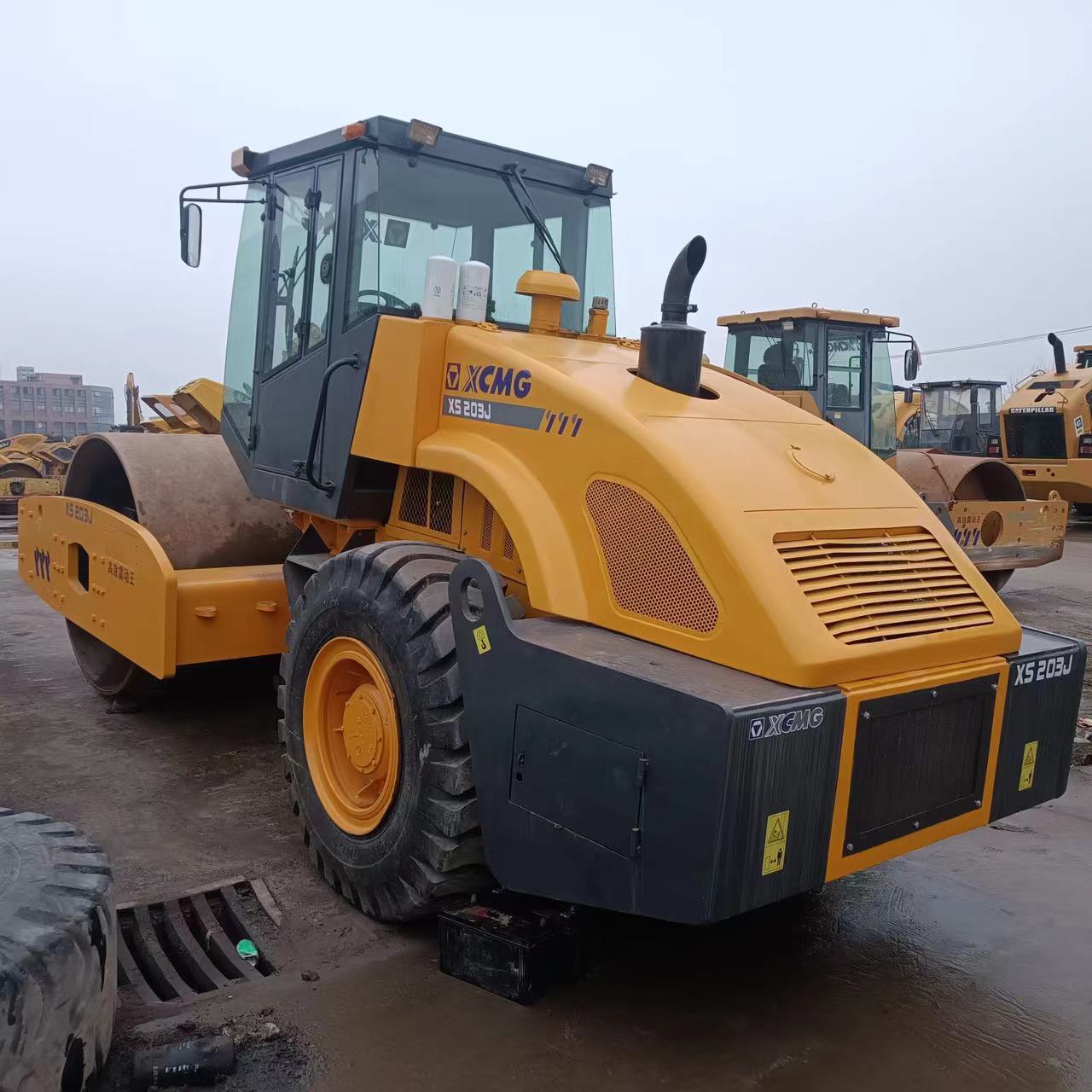

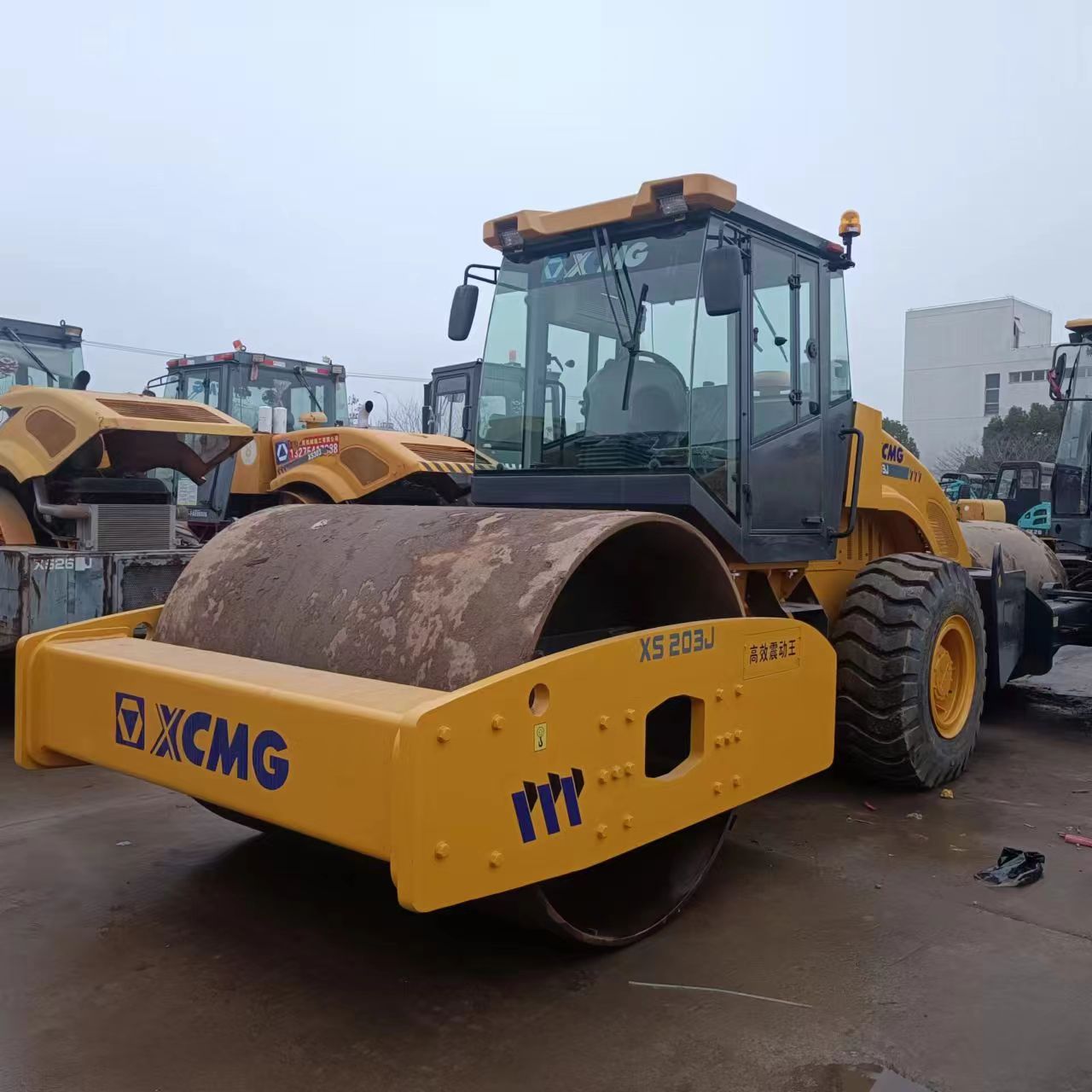

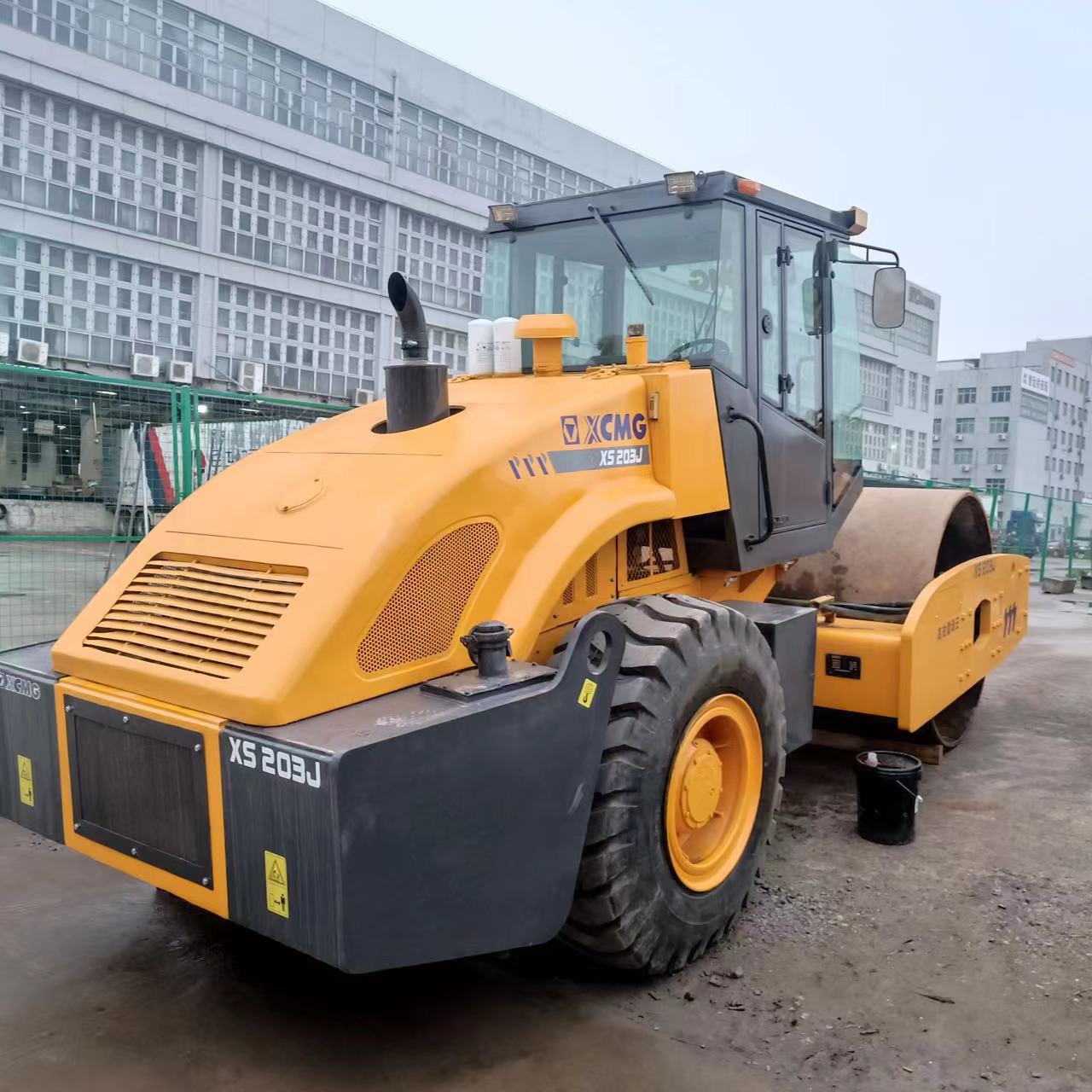

XCMG XS203J

Basic parameters: The total operating weight of the machine is 20000kg, with the vibrating wheel distributing 10000kg and the drive axle distributing 10000kg. The engine model is SC7H175.2G3, with a rated power of 128kW and a rated speed of 1800r/min.
– Compaction mechanism parameters: Vibration frequency is 28/33Hz, rated amplitude is 1.9/0.95mm, excitation force is 353/245kN, vibrating wheel diameter is 1600mm, vibrating wheel width is 2130mm, that is, the compaction width is 2130mm.
– Operating parameters: Travel speed range is 2.95-9.4km/h, theoretical climbing capacity is 30%, minimum turning radius is 6500mm, steering angle is ±33°, swing angle is ±11°.
– Overall dimension parameters: Length × width × height is 6320×2300×3200mm, wheelbase is 3230mm, minimum ground clearance is 440mm.

In addition, XCMG XS203J also features an Shangchai engine, reducing comprehensive fuel consumption by 10%, optimized transmission system matching, increasing operating efficiency by 8%, as well as intelligent control of the clutch engagement system, electro-hydraulic control power shift transmission, etc. Both operational comfort and reliability have been significantly improved.
