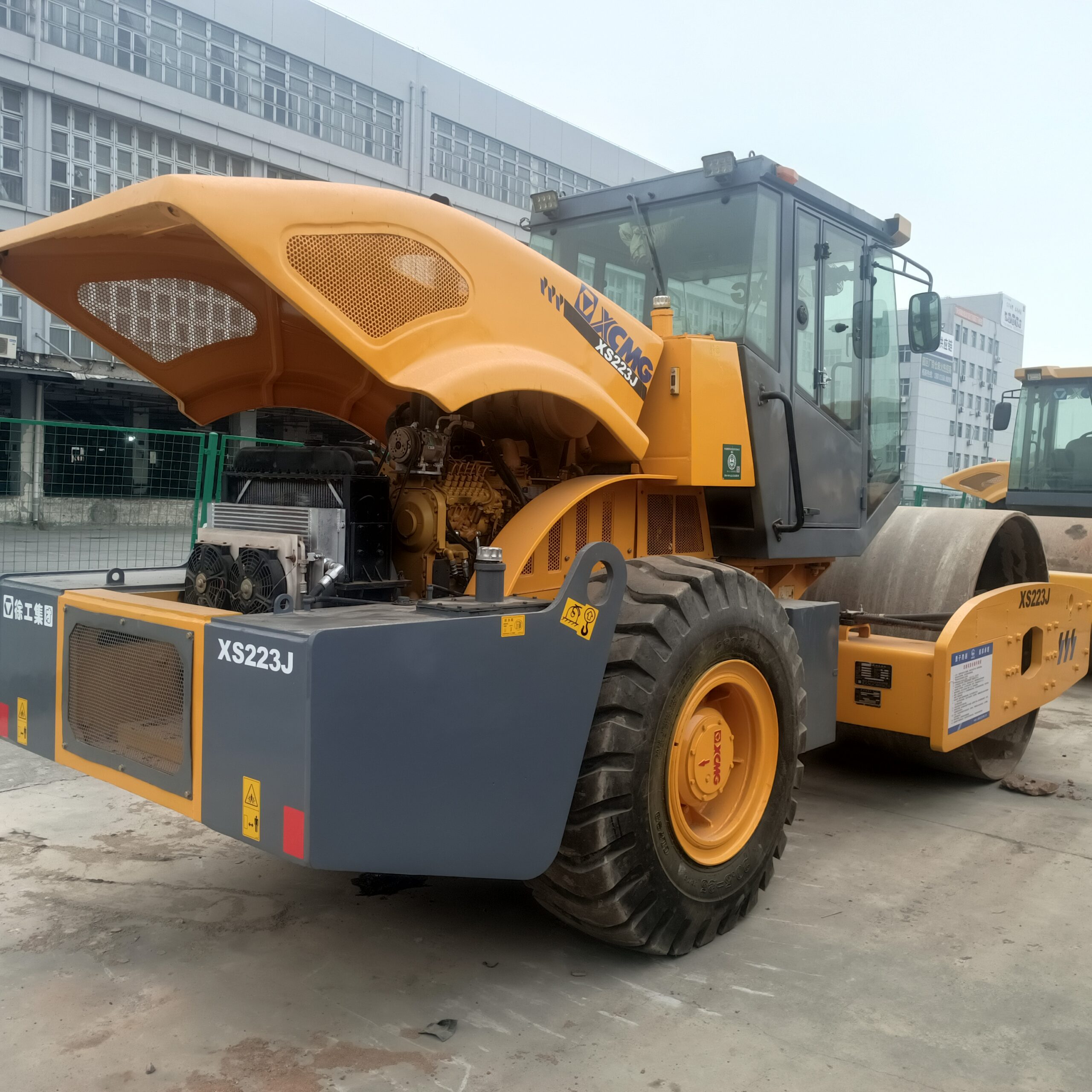

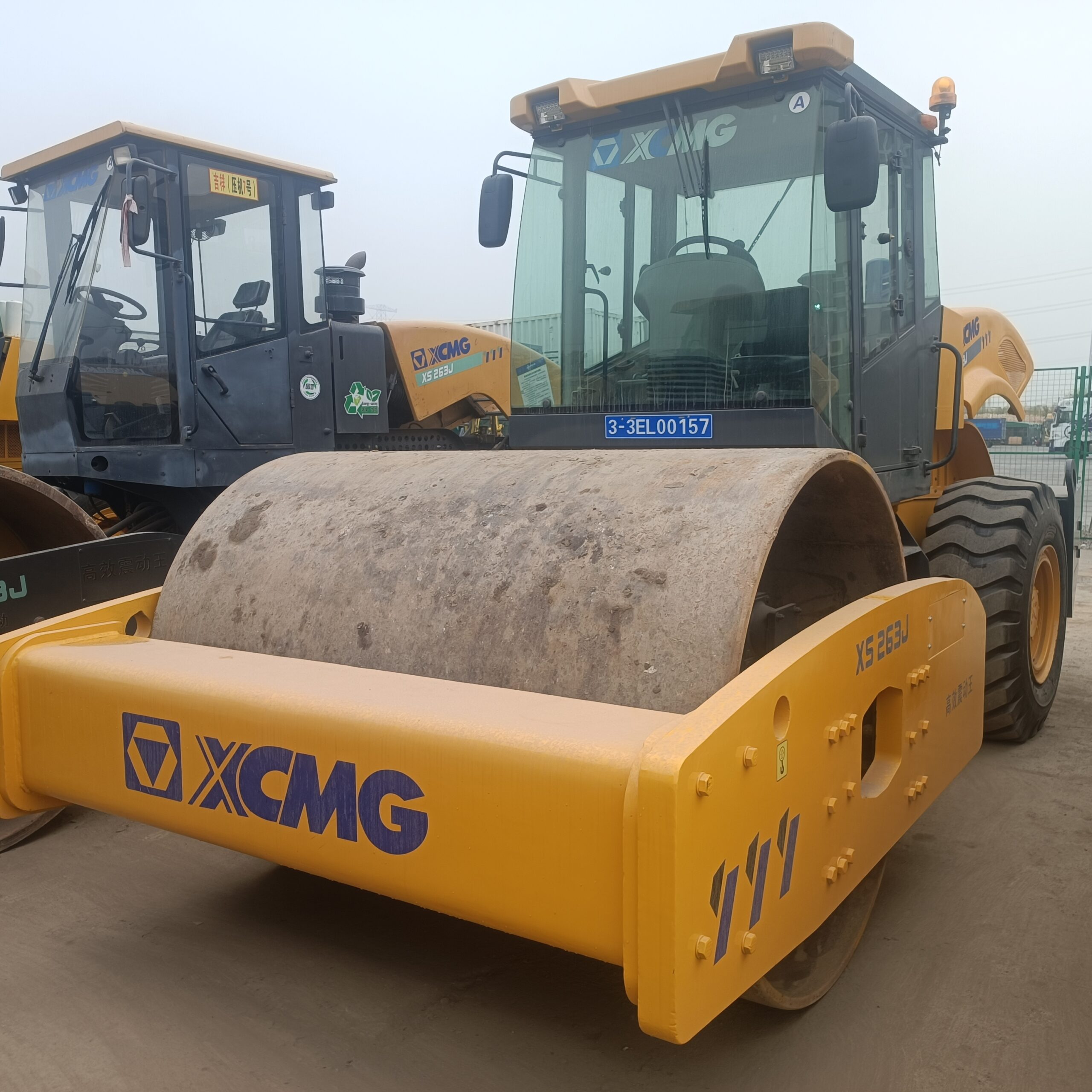

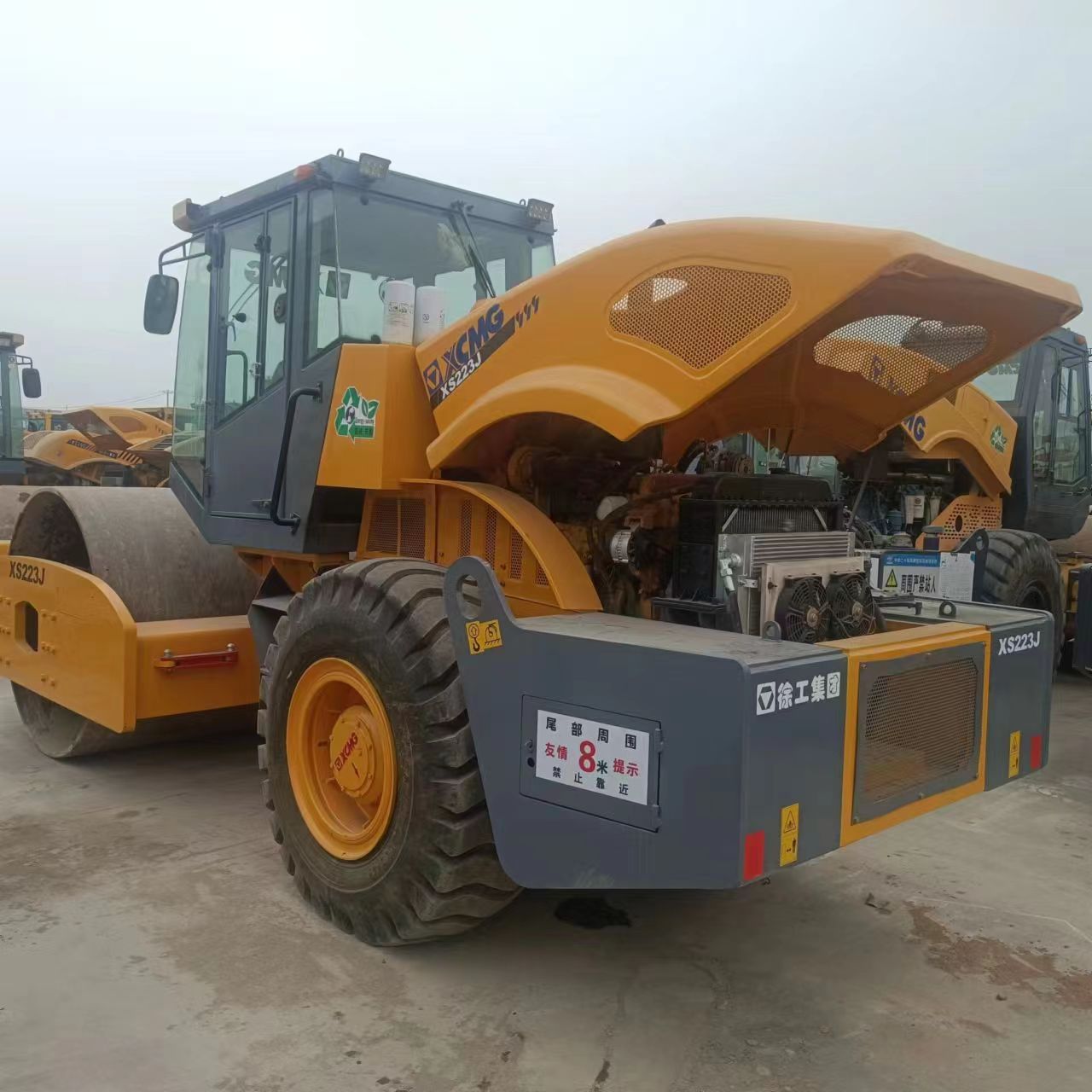

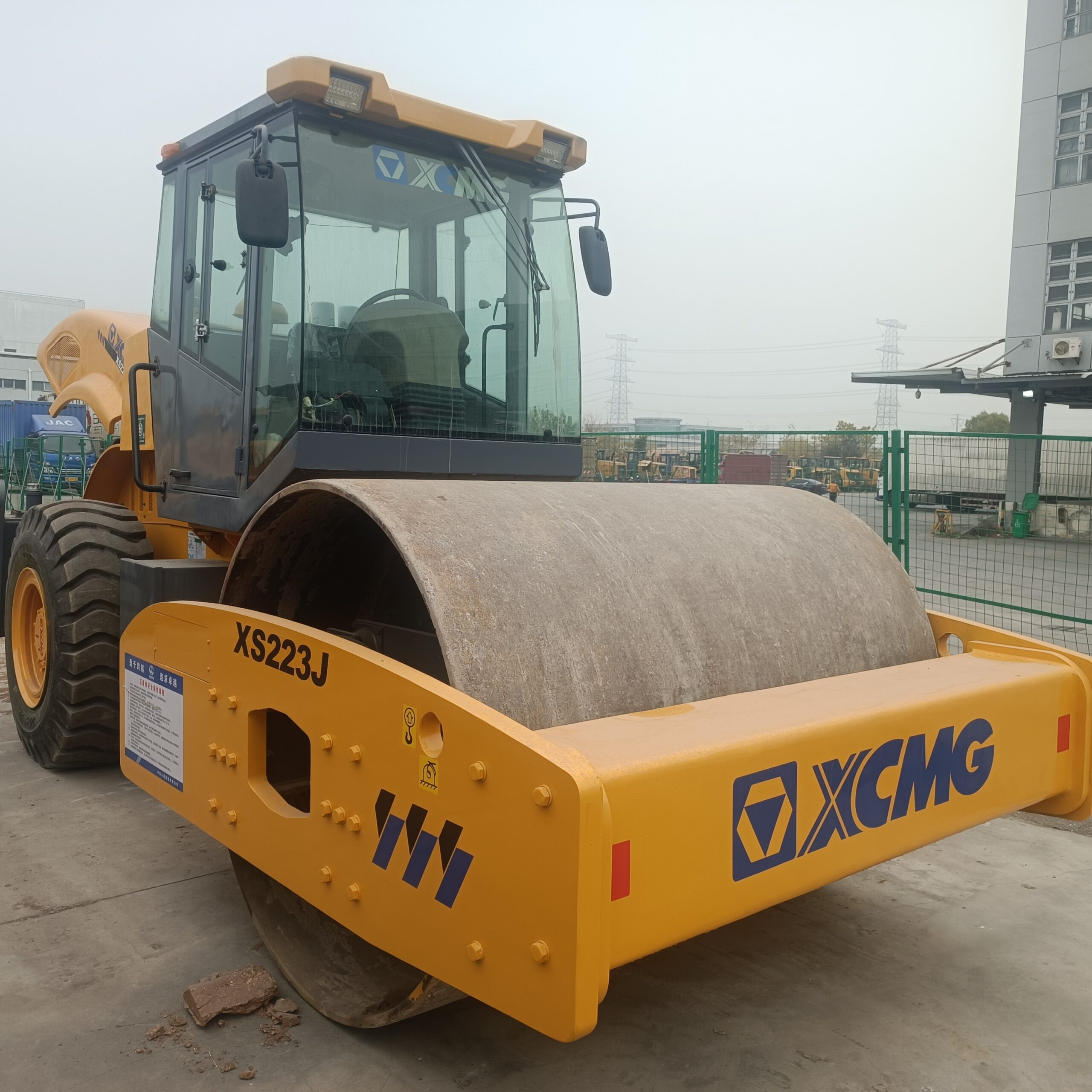

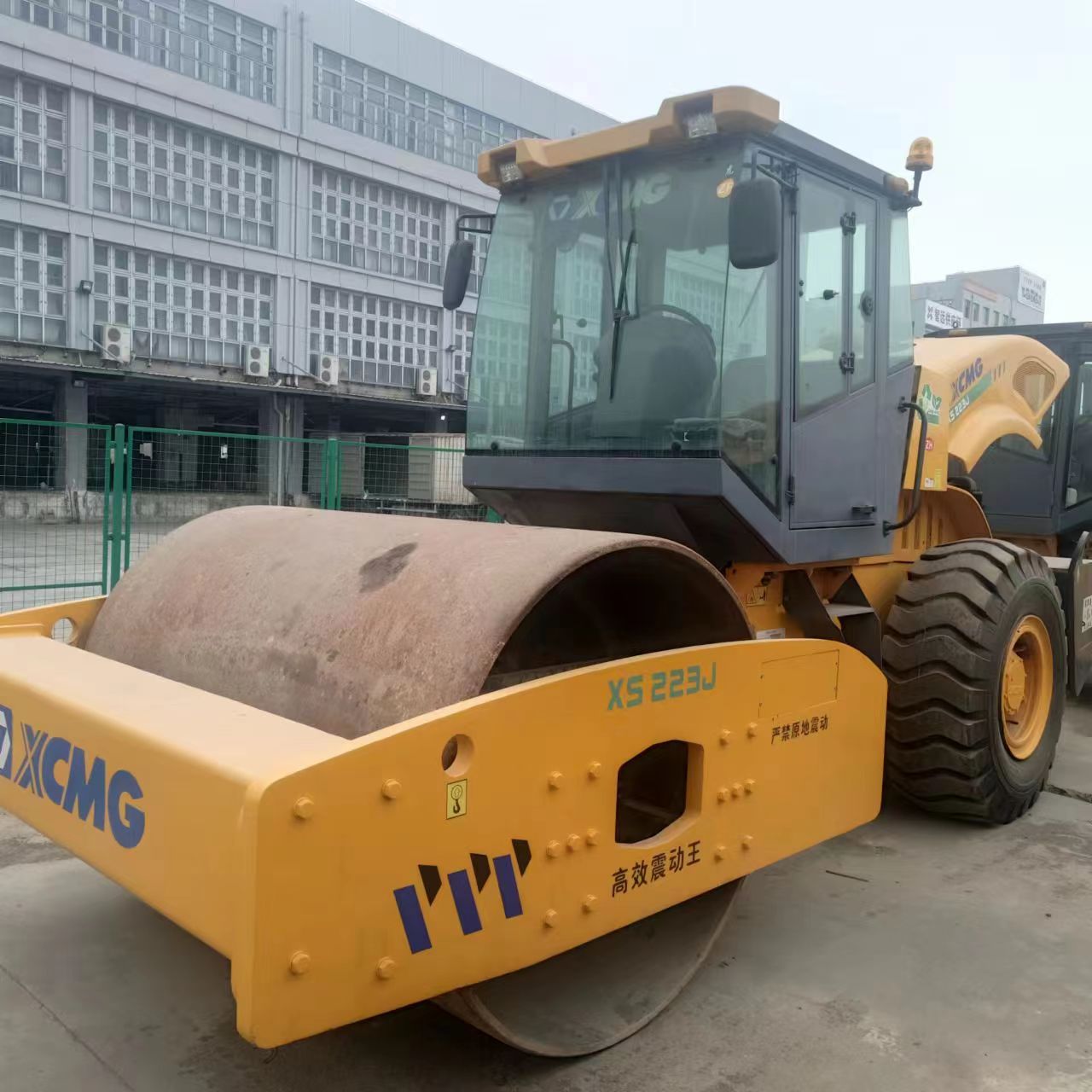

XCMG XS223J
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Basic parameters: The operating weight is 22,000 kg, with both the vibrating wheel distributed mass and the drive axle/wheel distributed mass being 11,000 kg, and the static linear load of the front wheels is 516 N/cm. The overall dimensions are 6220 × 2430 × 3200 mm, with a wheelbase of 3180 mm and a minimum ground clearance of 448 mm.
– Engine parameters: Equipped with the Shangchai SC8D185.2G2B1 engine, with a rated speed of 1800 r/min, a rated power of 136 kW, and emissions complying with the Non-road National II standard.
– Compaction mechanism parameters: The vibration frequency is 28/33 Hz, the nominal/rated amplitude is 1.86/0.93 mm, the excitation force is 374/290 kN, the vibrating wheel diameter is 1600 mm, and the vibrating wheel width (i.e., working width) is 2130 mm.
– Maneuverability parameters: There are three driving speed gears. The forward Ⅰ gear is 2.95 km/h, forward Ⅱ gear is 5.78 km/h
