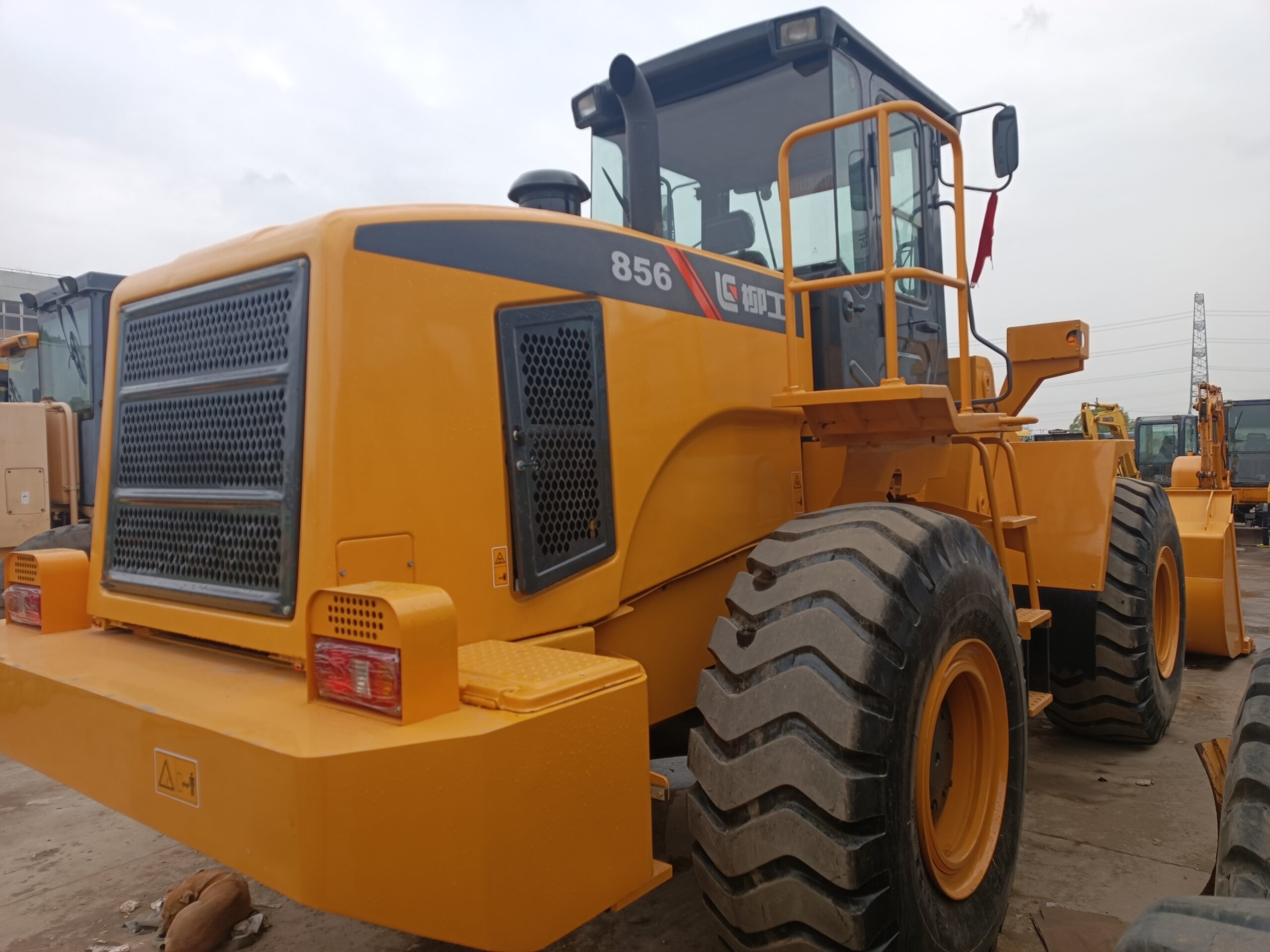

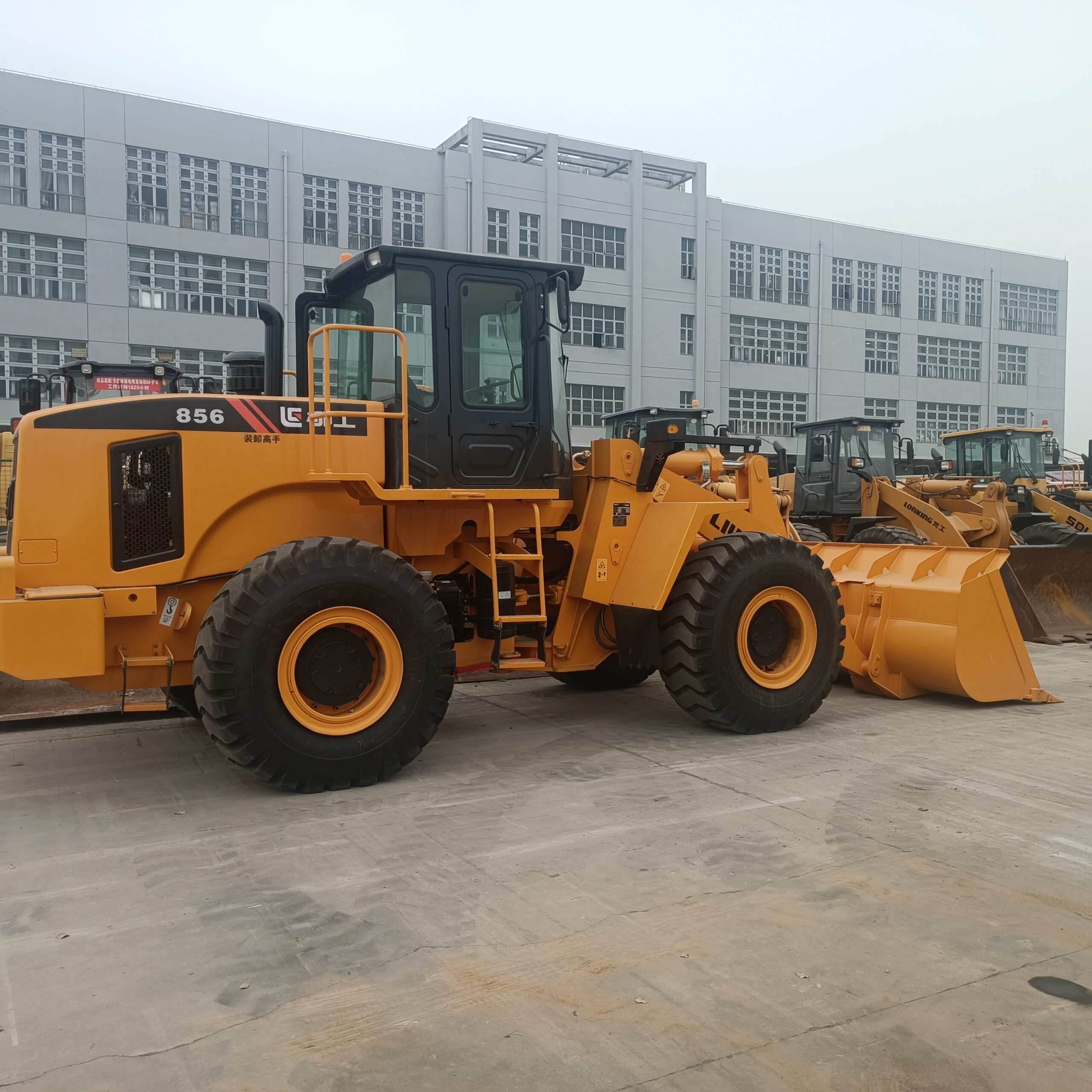

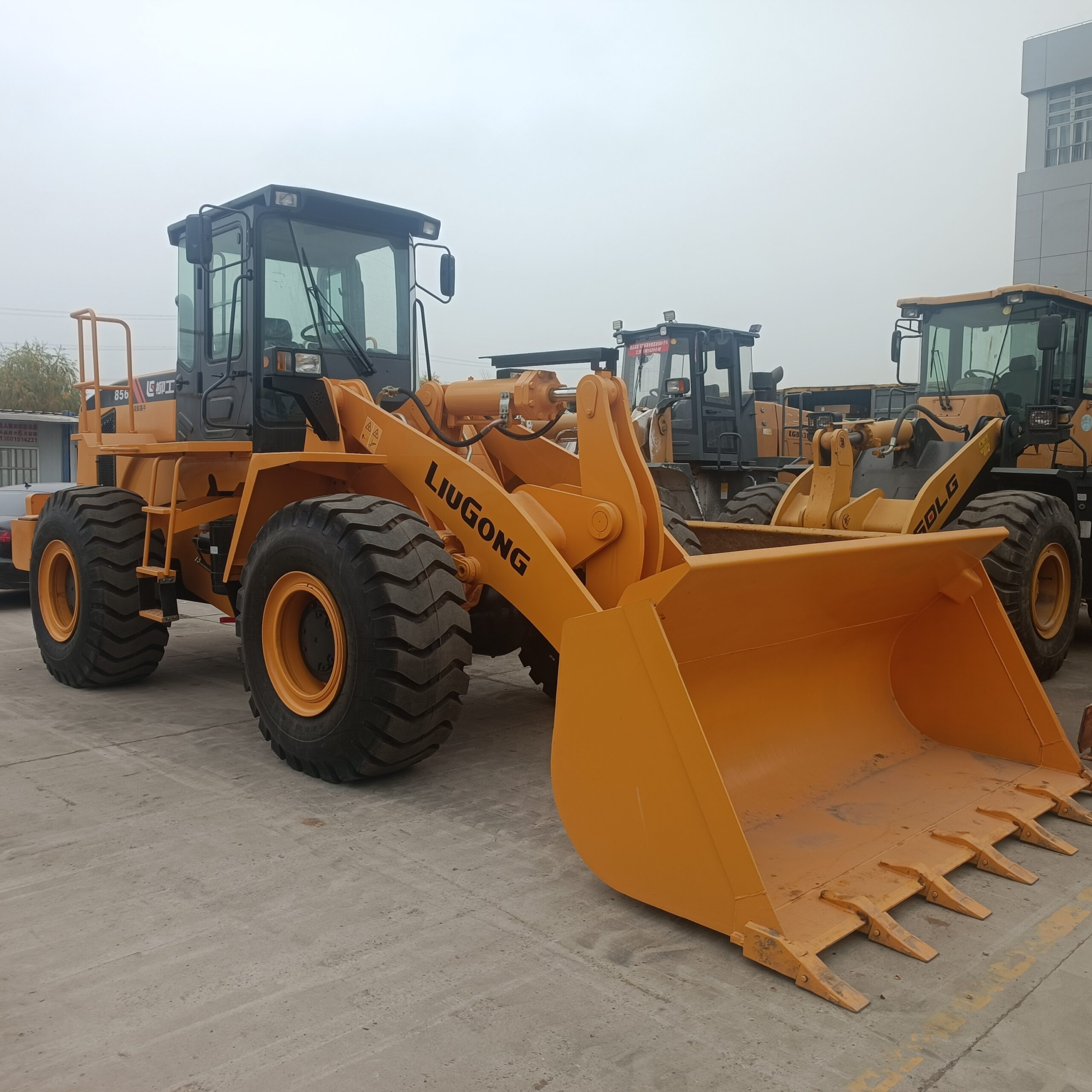

856

Basic Parameters
– Rated load capacity: 5800kg
– Rated power: 170kW
– Standard bucket capacity: 3.5m³
– Operating weight: 17600kg
– Maximum breakout force: 180kN
– Three-item sum: 9.64s
– Performance Features
– Powerful动力: The equipped engine has strong and stable power output, which can meet the operation needs of various complex working conditions.
– High efficiency and energy saving: Adopting a fixed-variable hydraulic system, it has large loading force, fast arm lifting speed, short action time, low overall hydraulic power consumption, and significant energy-saving effect.
– Stable and reliable: 3.4-meter wheelbase design, 12.1-ton full steering tipping load, strong stability. At the same time, key components have IP67 protection level, which is not afraid of harsh environments.
– Intelligent control: Equipped with an image display, intelligent voice control, and functions such as intelligent loading, intelligent weighing, and lifting limit, enabling precise operation. In addition, the panoramic image system can realize 360° dead-angle-free monitoring, making operations safer.
