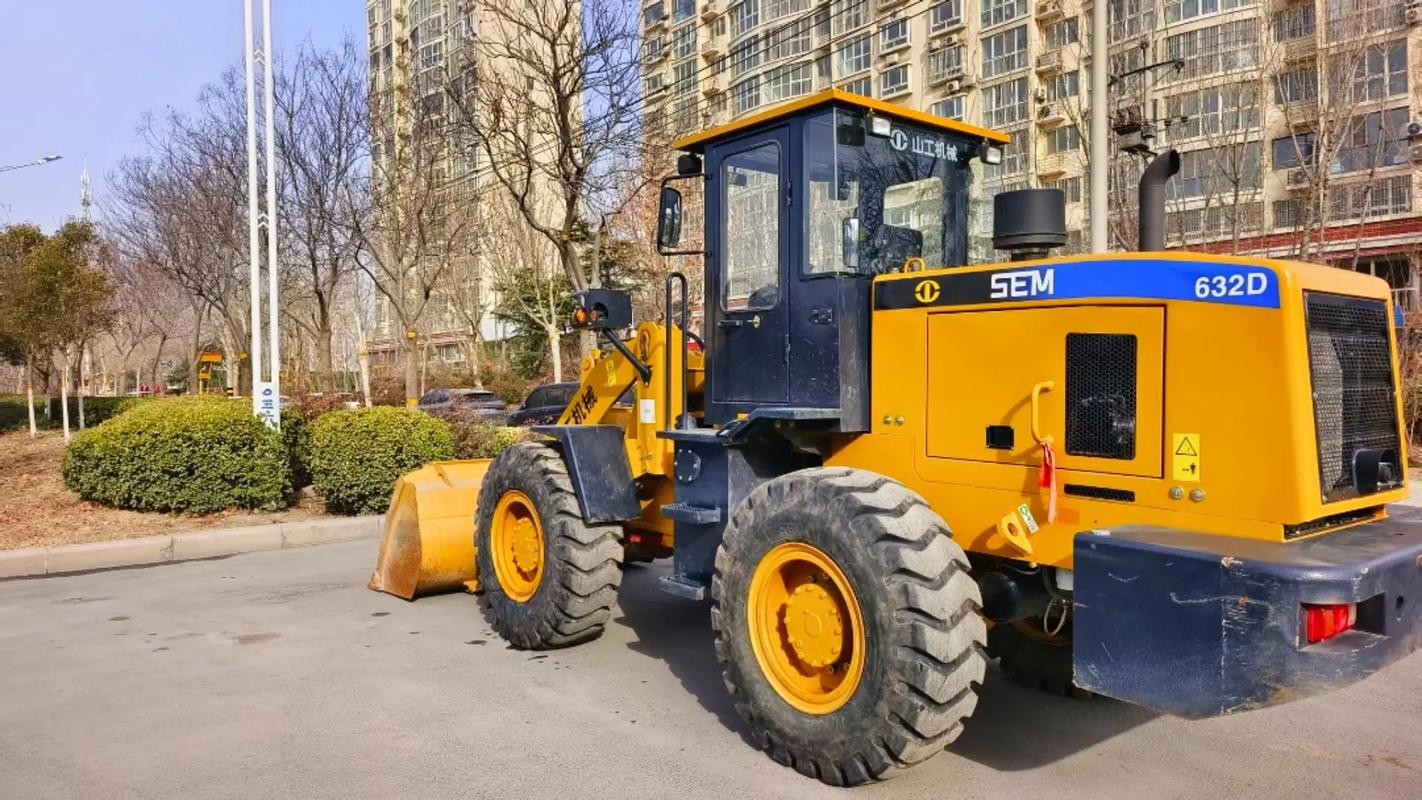

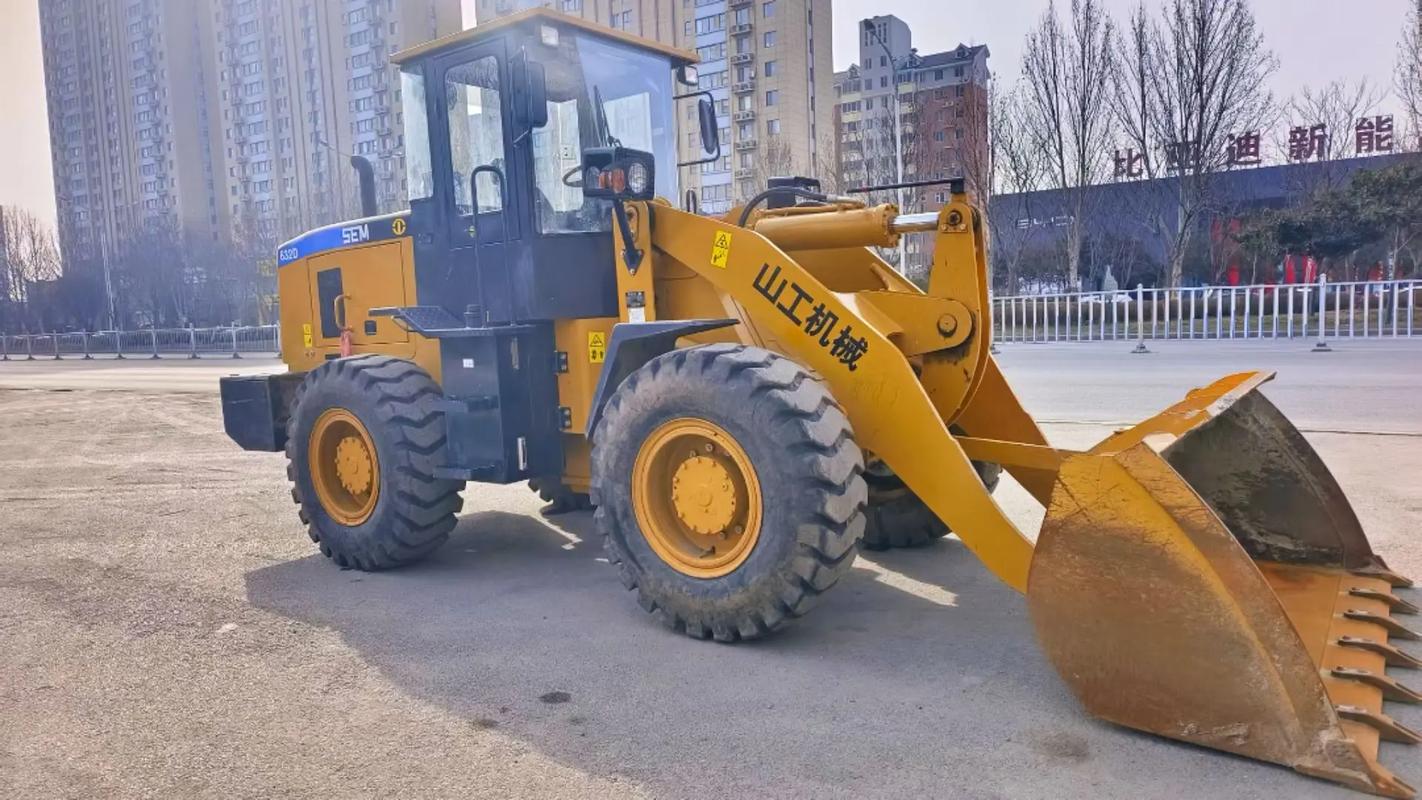

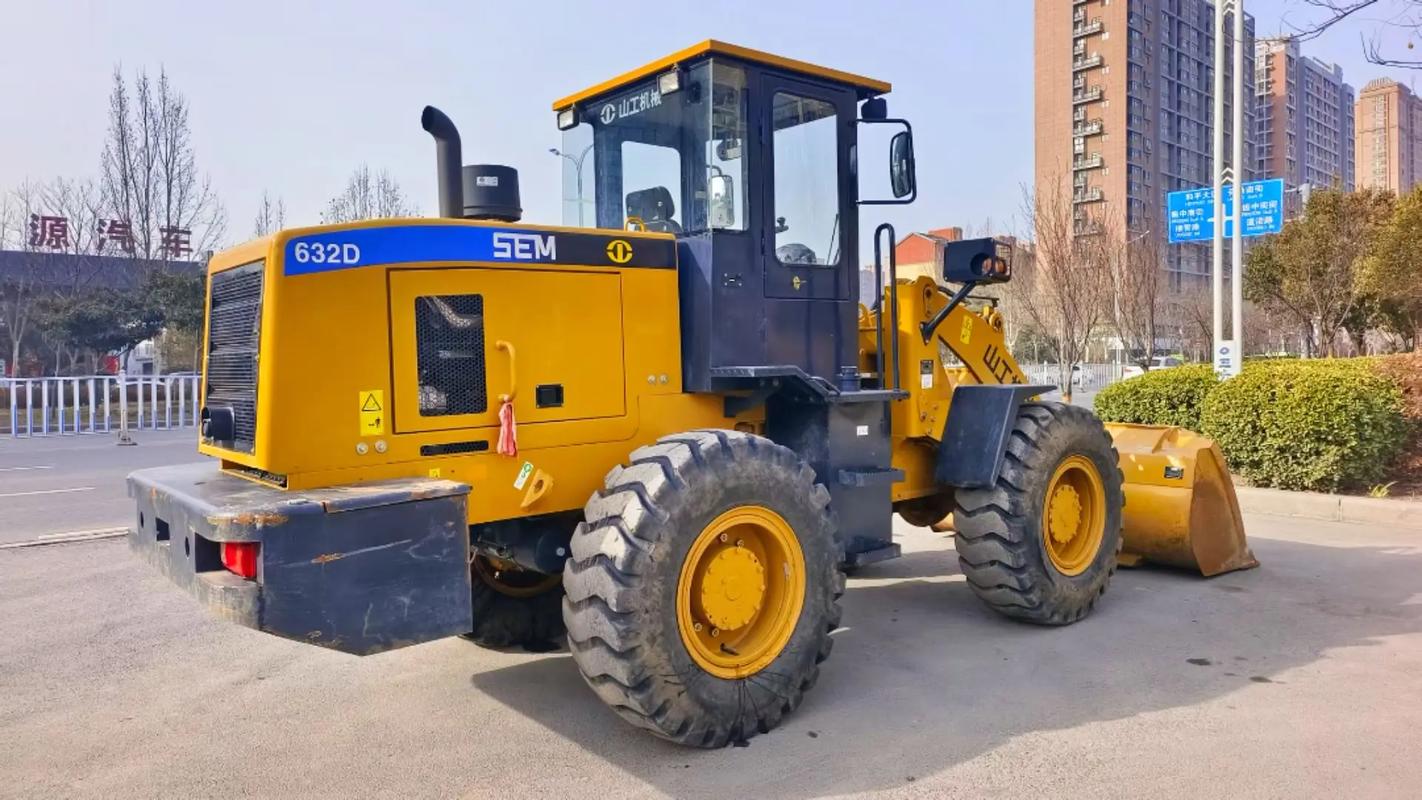

SEM632D

Basic parameters: The rated load capacity is 3000kg, the overall operating weight is 9700kg, the bucket capacity is 1.53-2.50m³, the maximum breakout force is 120kN, and the maximum traction force is 97kN.

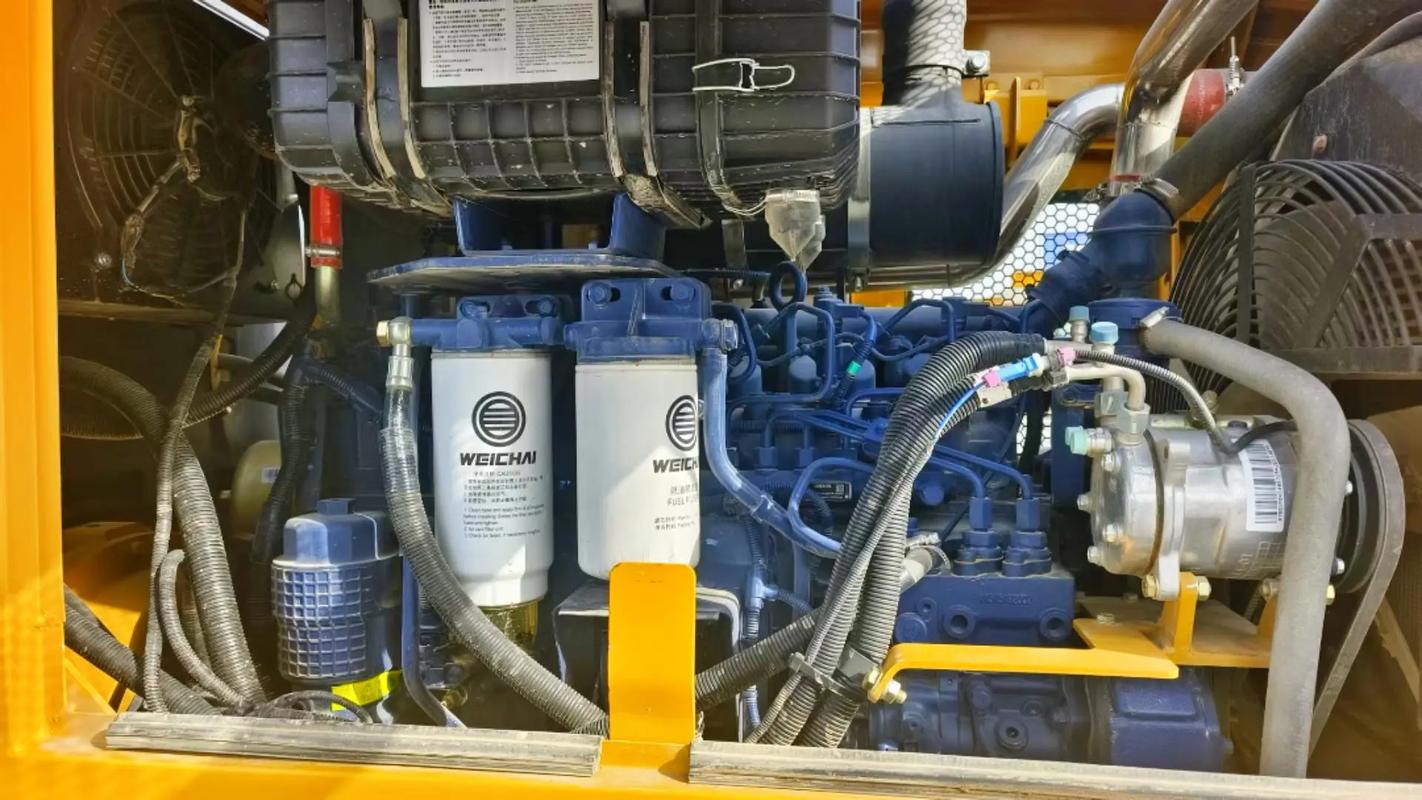

– Engine parameters: The engine model is WP6G125E333, the rated power is 92kW/2000rpm, the displacement is 6.75L, and the emission standard is National III.
– Overall dimensions: The overall length is 7162mm, width is 2354mm, height is 3051mm, wheelbase is 2630mm, track width is 1800mm, minimum ground clearance is 376mm, and the turning radius (outside of the bucket) is 5869mm.
– Driving parameters: The transmission is a fixed-shaft power shift. The driving speeds are 7.4km/h in 1st gear, 13.6km/h in 2nd gear, 26km/h in 3rd gear, and 39km/h in 4th gear.
– Hydraulic system parameters: The rated working pressure is 16.5MPa, the boom lifting time is 4.6s, and the total time for three actions of the working device is 8.2s.
