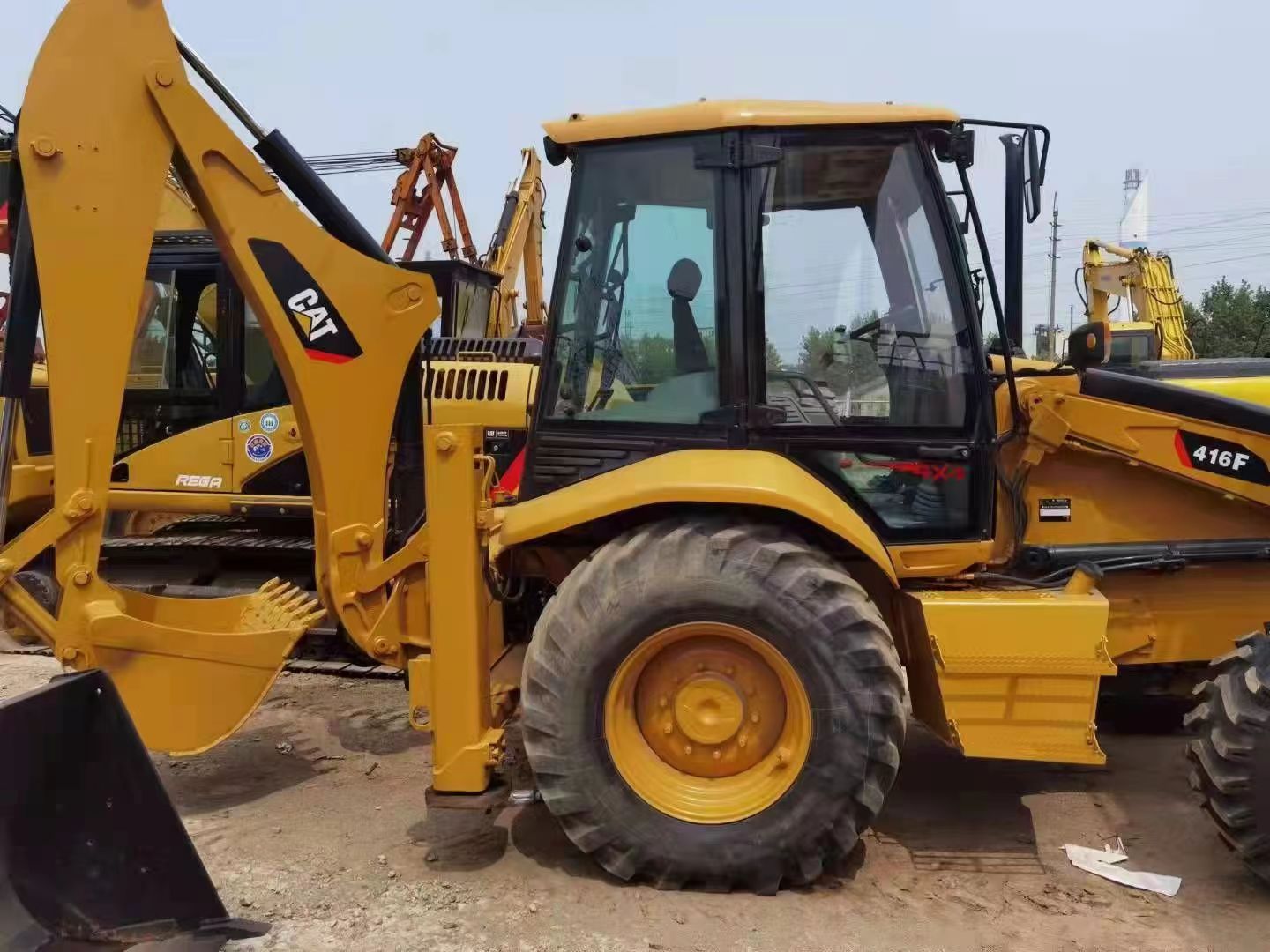

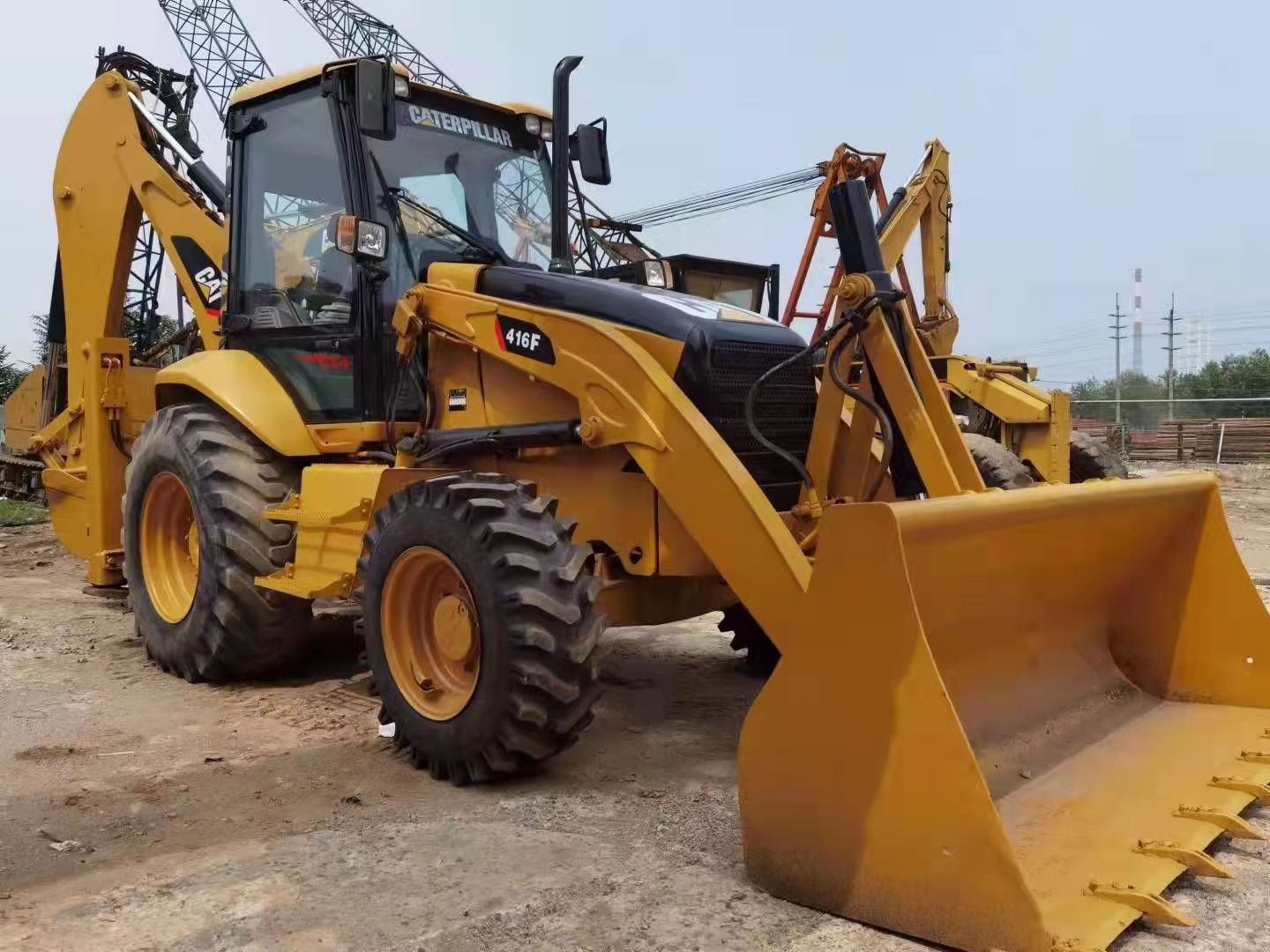

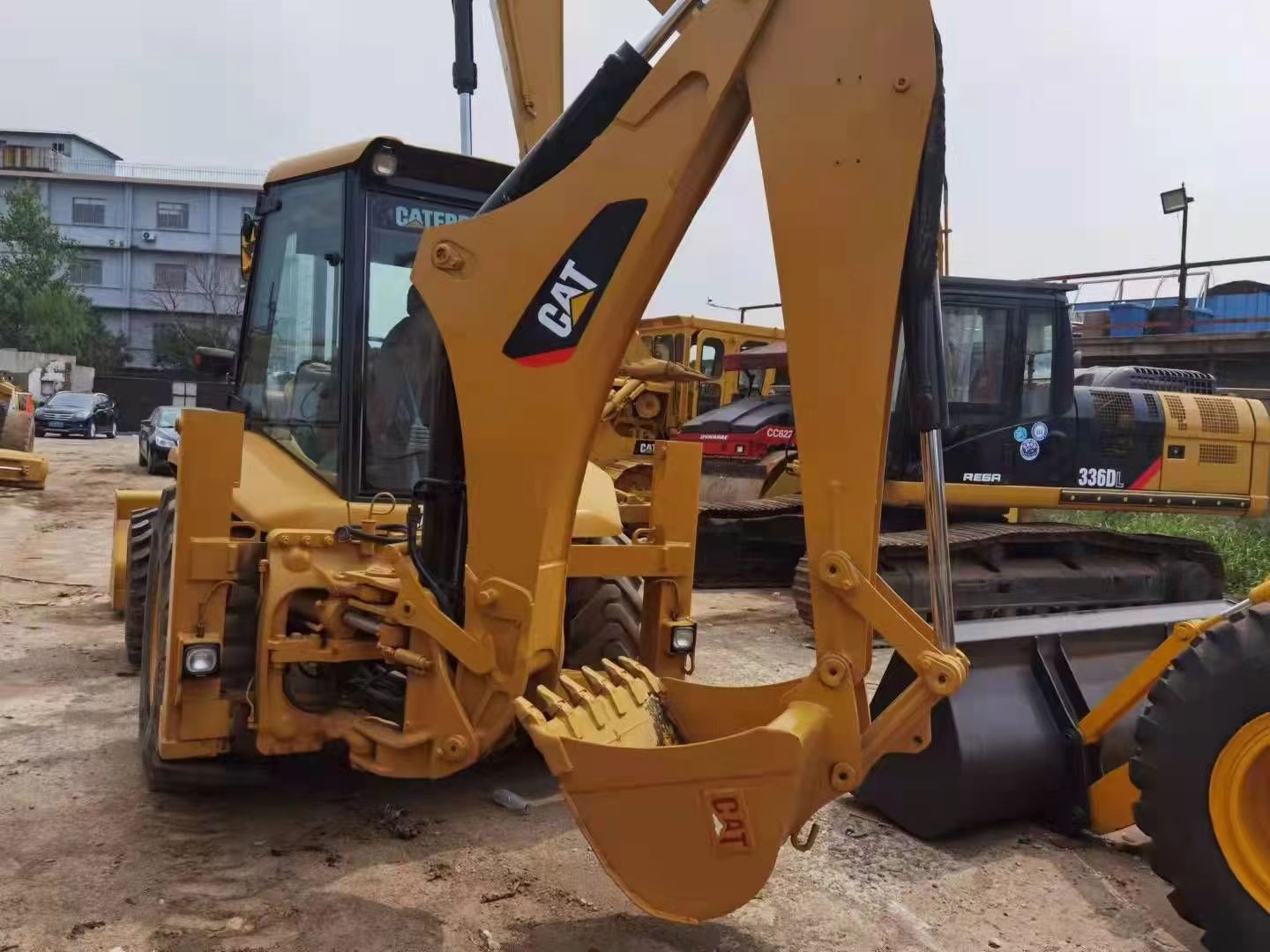

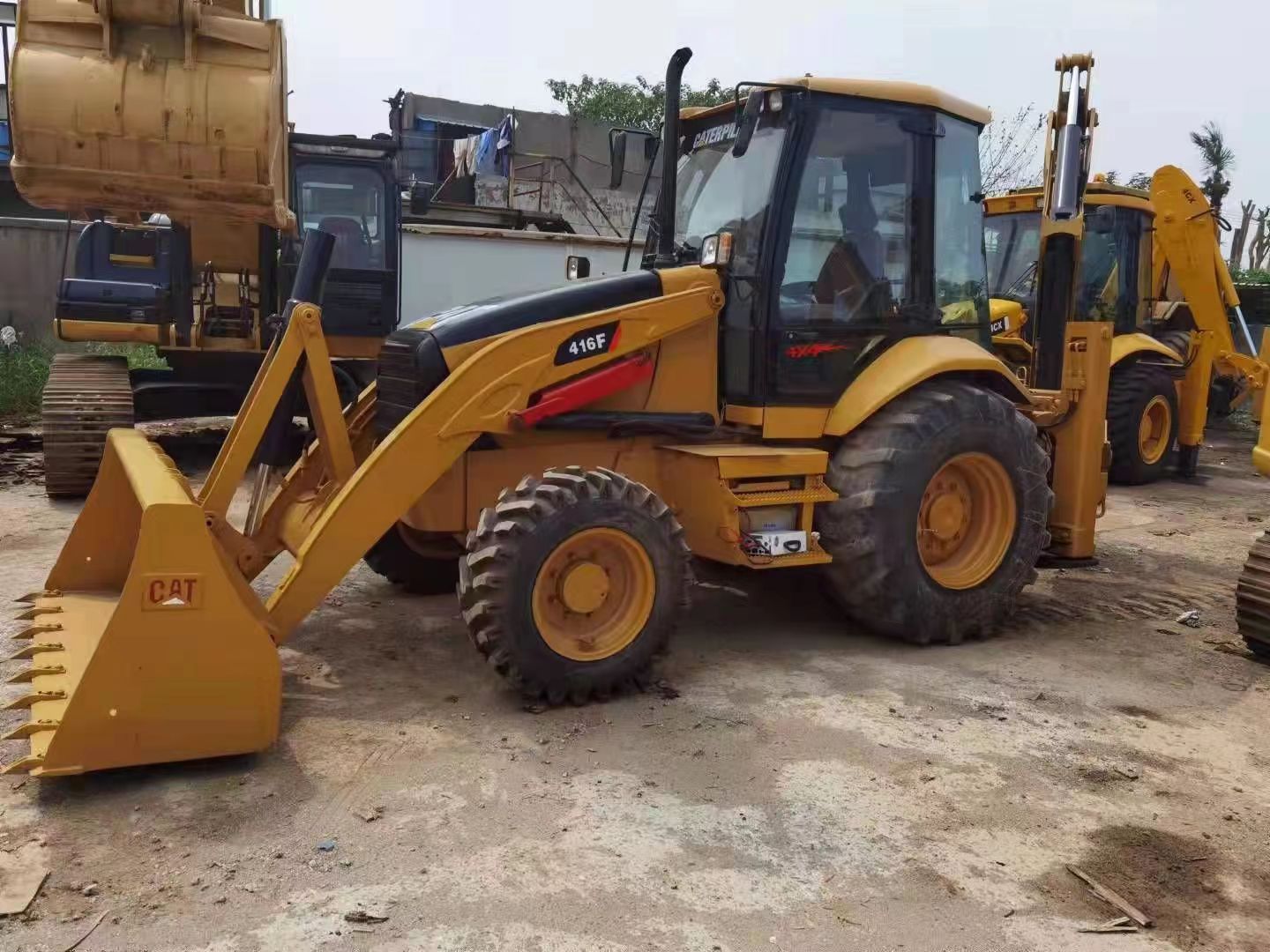

Cat 416F

Basic Parameters

– Engine Model: Cat C3.6
– Rated Power: 86hp (64kW)
– Overall Operating Weight: Approximately 16532-24251lb (7499-11000kg)
– Bucket Capacity: Approximately 0.96m³ for the loading end, and approximately 0.42 cubic meters as standard for the excavating end
– Maximum Digging Depth: Approximately 4.348m
– Maximum Digging Radius: Not explicitly mentioned (please refer to the specific technical manual)

Performance Features

– Powerful: Equipped with a Cat C3.6 engine, adopting Selective Catalytic Reduction (SCR) technology and a Diesel Oxidation Catalyst (DOC), meeting the US EPA Tier 4 Final/EU Stage V emission standards, with strong and stable power output.
– Efficient Operation: Equipped with a load-sensing piston pump, which can provide full hydraulic lifting and digging force at any engine speed. The variable displacement pump can match the hydraulic power according to work requirements, with a hydraulic system pressure of 3336psi, ensuring high operating efficiency.
– Comfortable Operation: The cab is spacious with ample legroom. The seat is air-suspended, adjustable, and comfortable. In addition, a pilot joystick is available as an option, making operation easier and more convenient, which can effectively reduce driver fatigue.
– Easy Maintenance: Adopting a modular design, each component and system is independent of each other, facilitating replacement and repair. At the same time, the maintenance points of the machine are easily accessible, which can reduce downtime and maintenance costs.
– Versatile Functions: Equipped with an Integrated Tool Carrier (IT coupler), which can quickly connect various Cat attachments, such as quick couplers, thumbs, various buckets, and brooms, etc., meeting the needs of different operating scenarios with strong versatility.
