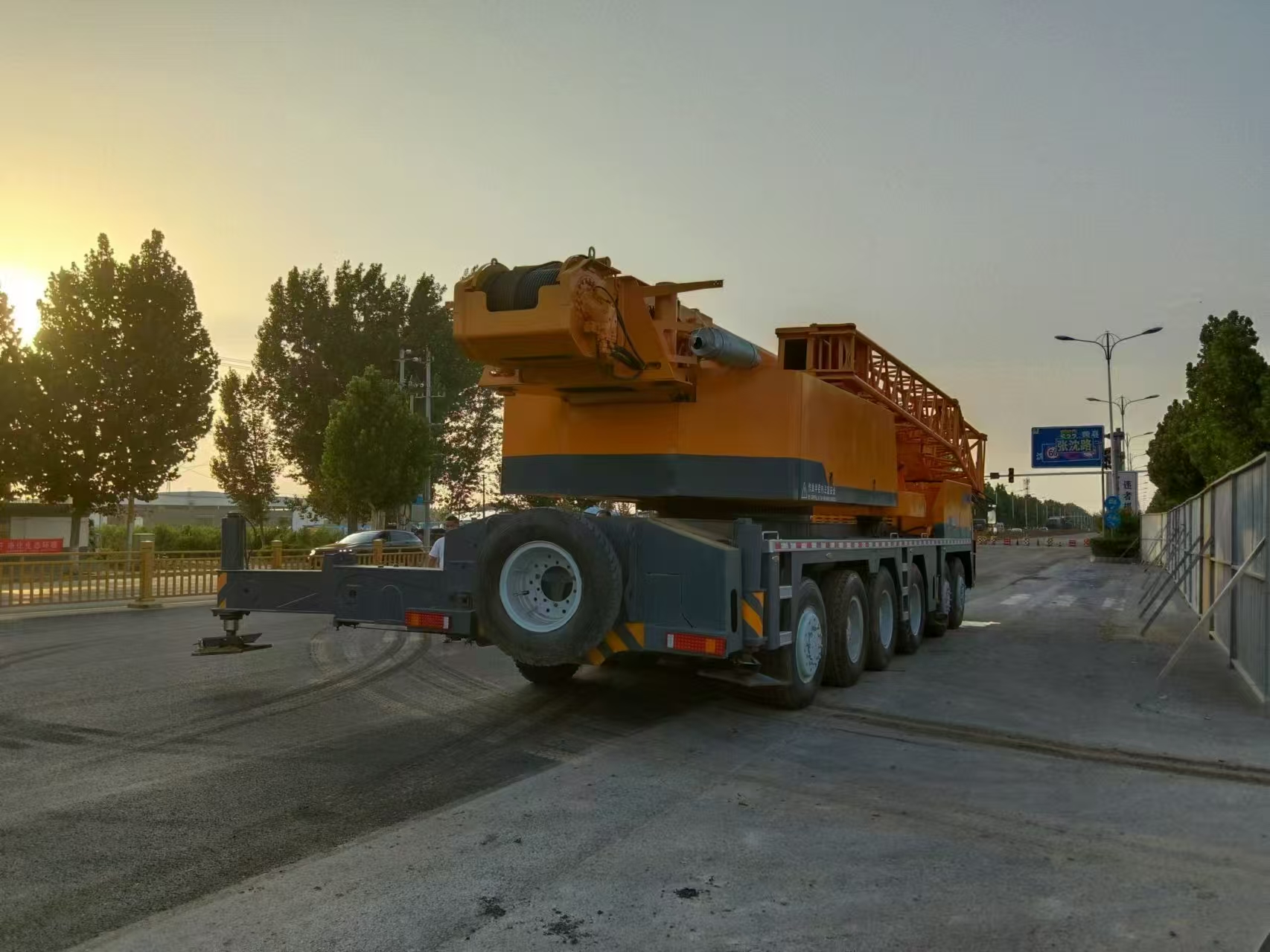

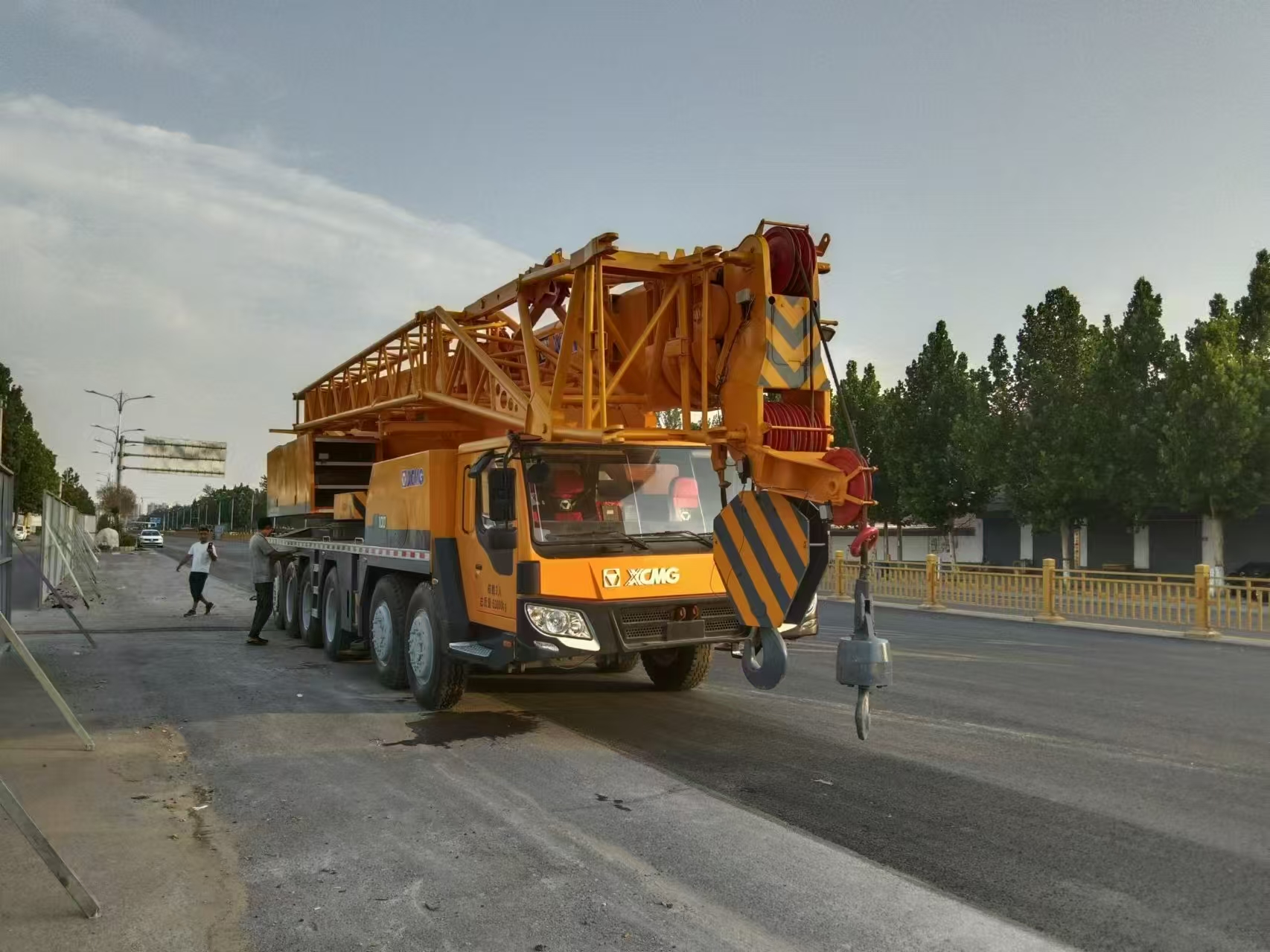

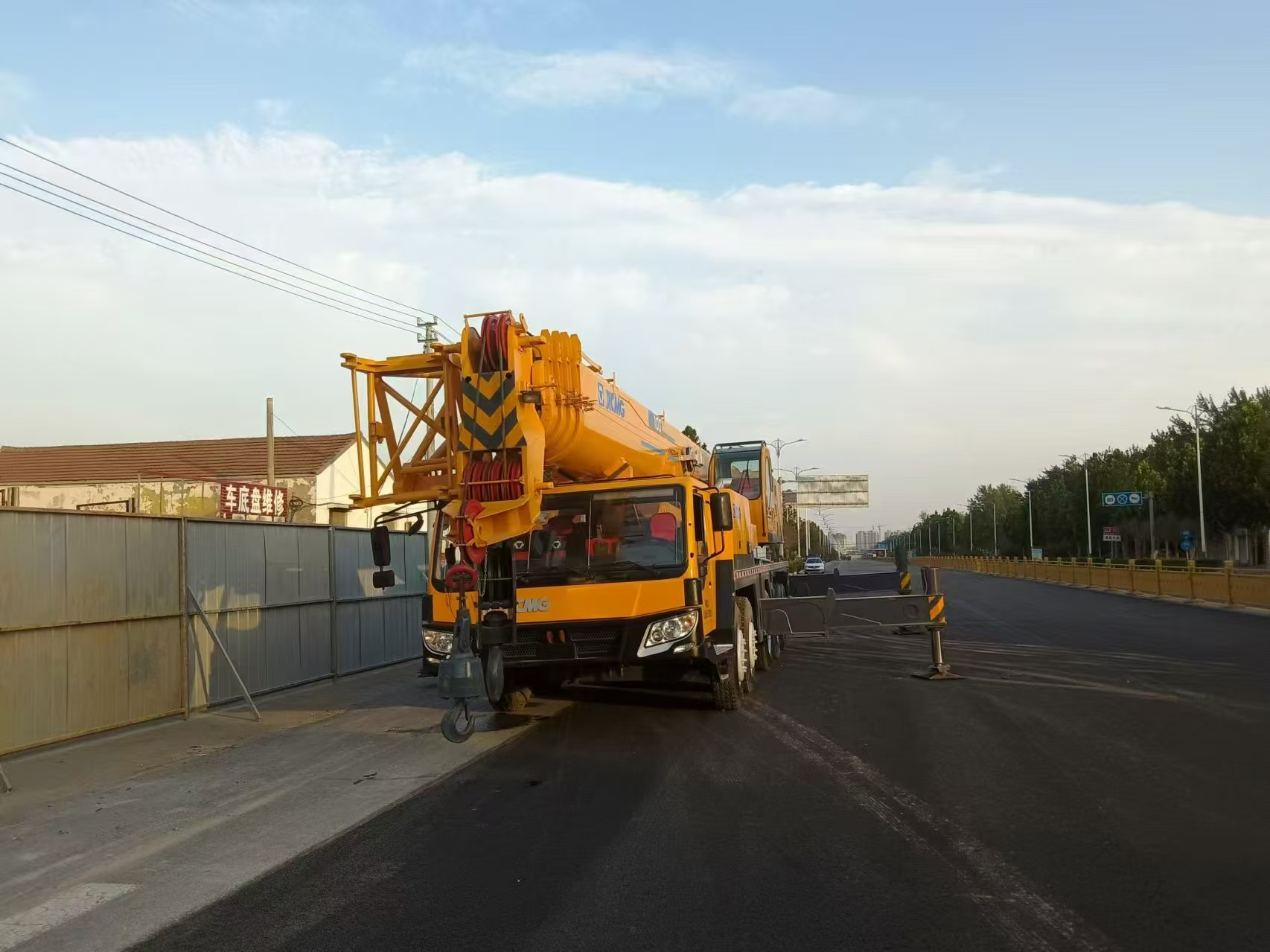

XCMG 100T

Power and Transmission: Equipped with a low-speed, high-torque power system, the comprehensive fuel consumption is reduced by more than 12%, and the climbing ability is improved by more than 10%. It is China’s first on-demand four-wheel drive truck crane, featuring rear axle hydraulically controlled follow-up steering technology for the chassis, enabling two steering modes: highway driving and small turning.
– Hydraulic System: The hoisting mechanism adopts a variable displacement pump-variable displacement motor open hydraulic system, with a maximum single-rope pull of 104KN and a maximum hoisting speed of 135m/min. The luffing mechanism is a single luffing cylinder, using a luffing balance valve with load compensation function, ensuring high reliability.
– Handling Performance: It features accurate and smooth control technology under all working conditions, with a 20% improvement in subjective evaluation of handling, and a 30% improvement in micro-mobility and smoothness. The total number of steering wheel turns is reduced from 6 to 4.9, and the steering operating force is reduced by 20%.
