Doosan 60
Application Fields
– Municipal Engineering: Suitable for operations in narrow spaces such as urban pipe network renovation and pipeline laying.
– Agricultural and Forestry Construction: The length of the boom and stick is moderate, which can meet diverse excavation needs.
– Construction Sites: Capable of completing small earthworks, foundation excavation and other works.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Overall weight: approximately 5700kg.
– Bucket capacity: generally 0.21m³.
– Engine model: usually equipped with YANMAR 4TNV94L engine, with a rated power of 54kW/2200rpm.
– Fuel tank capacity: 115L.
Performance characteristics
– Power system: The engine has stable performance, provides sufficient power output to meet various operating needs, and complies with the National IV emission standards.
– Hydraulic system: The maximum flow rate of the main pump reaches 60.5×2 + 36L/min (or 55×2L/min, which varies according to specific models), and the working pressure is high, ensuring efficient operating efficiency.

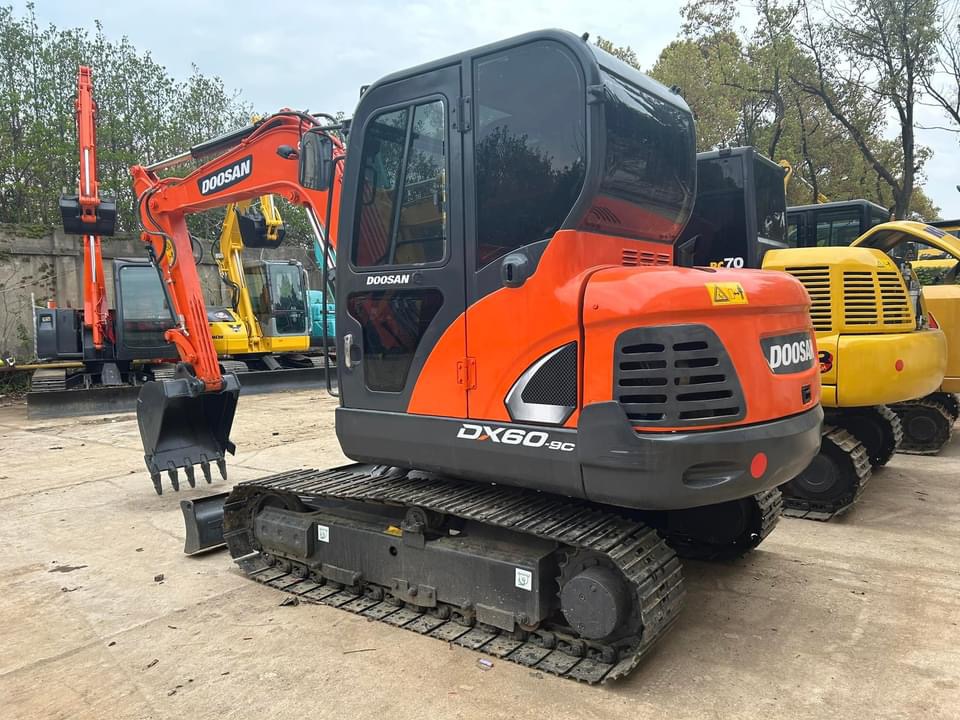

– Operating range: Taking DX60W-9CN as an example, the maximum digging depth can reach 3100mm, the maximum digging height is 5977mm, and the maximum dumping height is 4263mm, which is suitable for various operating scenarios.
– Structural design: Some models such as DX60E-10 adopt optimized chassis structure, new integrated cast idler, which simplifies installation and improves connection strength. The boom and arm are designed with reinforcement, and the boom speed is increased by more than 20%.
