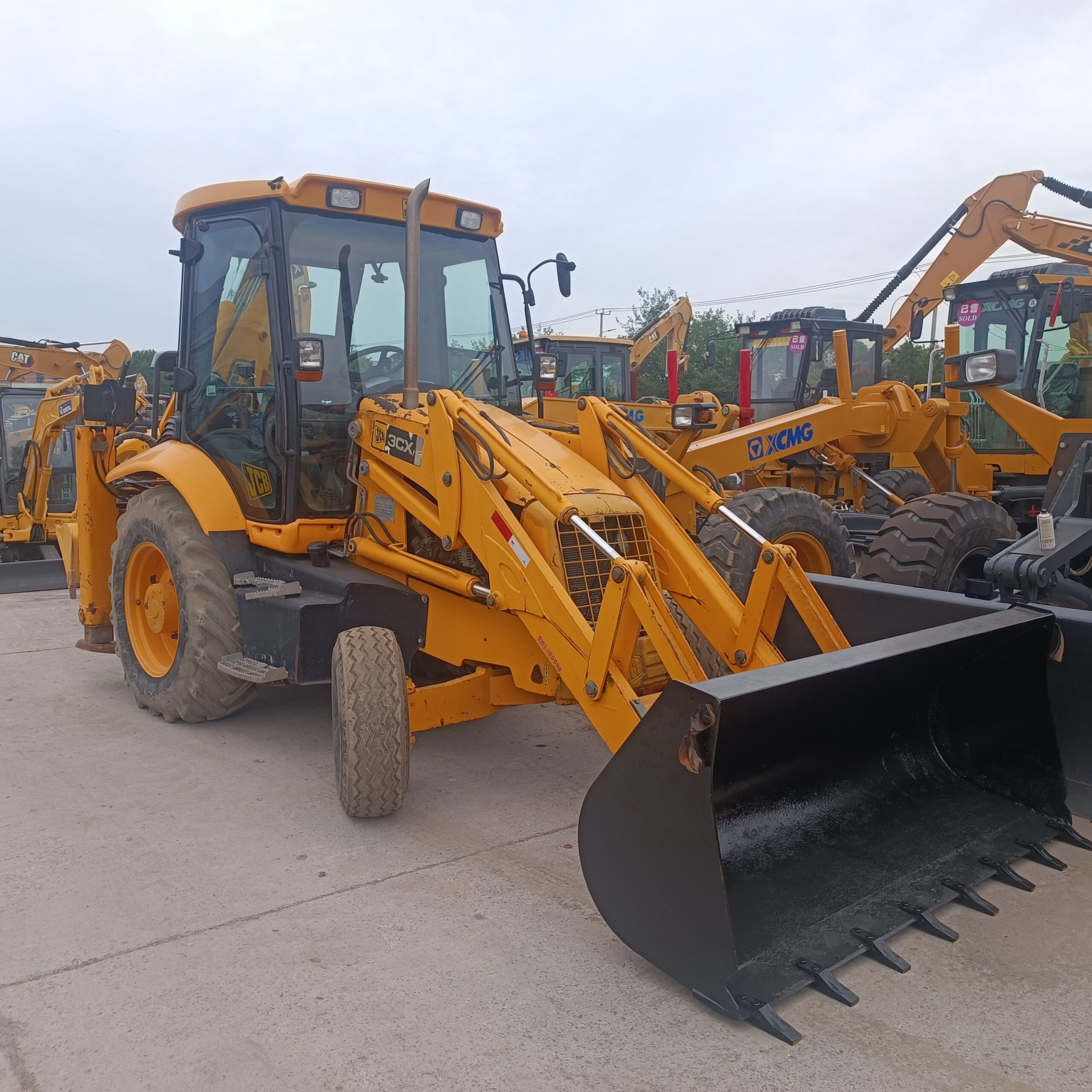

JCB 3CX

Basic Parameters

– Engine power: Equipped with a JCB EcoMax engine, with a power of 55kW (74hp).
– Overall operating weight: Approximately 7370kg.
– Bucket capacity: The loading bucket capacity is 1.0-1.1m³, and the excavating bucket capacity is 0.06-0.3m³ (standard section bucket) or 0.09-0.48m³ (deep section bucket).
– Maximum digging depth: 4240mm when the standard digging arm is retracted, and 5460mm when extended.
– Travel speed: 5.5/5.6km/h for 1st gear forward/backward, and 34.8/34.8km/h for 4th gear forward/backward.
– Fuel tank capacity: 160L.

Performance Features

– Power and economy: The engine can output high power and torque at low speeds, with high fuel efficiency. It does not require after-treatment devices such as diesel particulate filters (DPF) and diesel exhaust fluid (DEF), resulting in low maintenance costs. The 500-hour maintenance interval also reduces downtime.
– Operational efficiency: The hydraulic speed control (HSC) system combined with the low-speed, high-torque engine provides strong traction, fast cycle times, and excellent bulldozing and climbing performance.

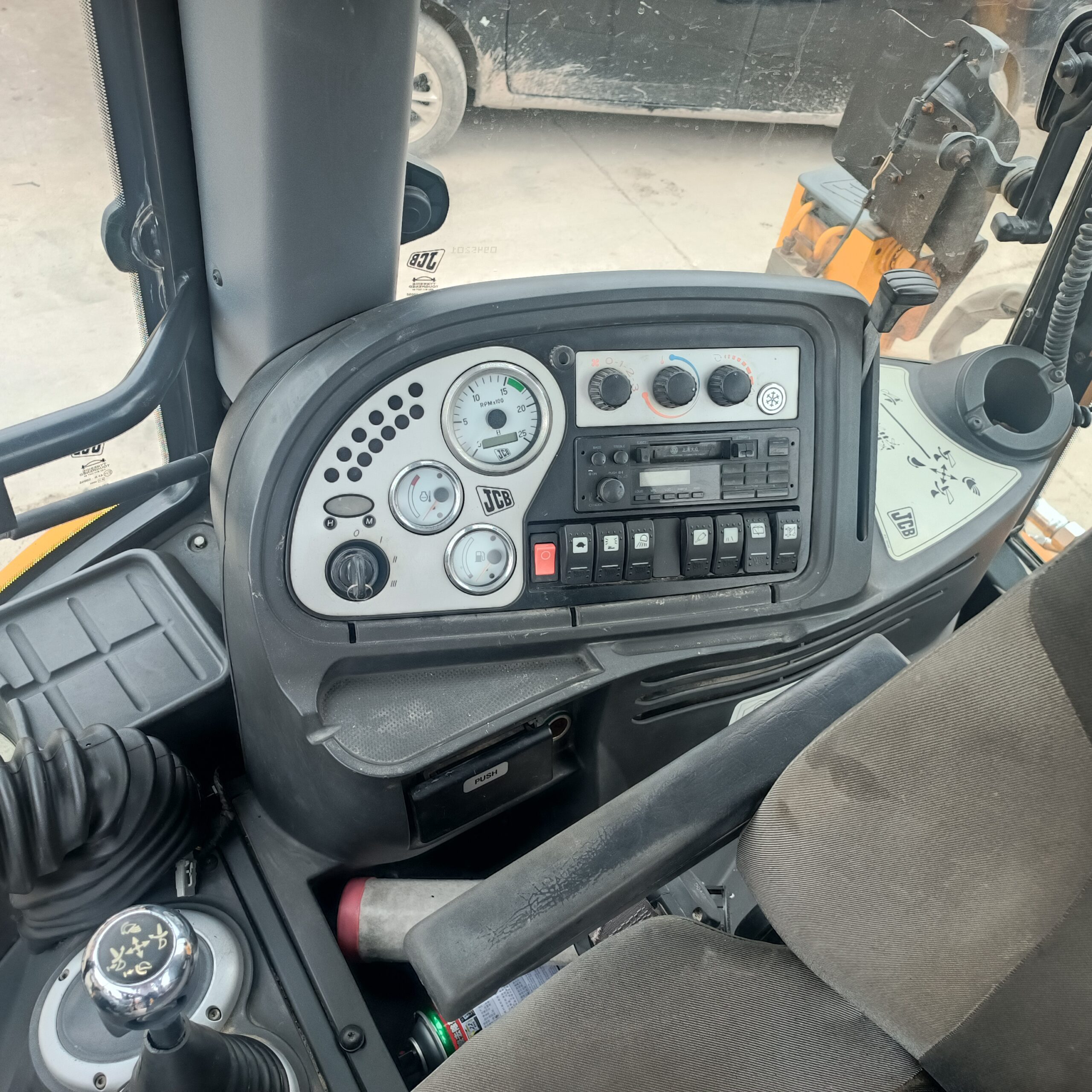

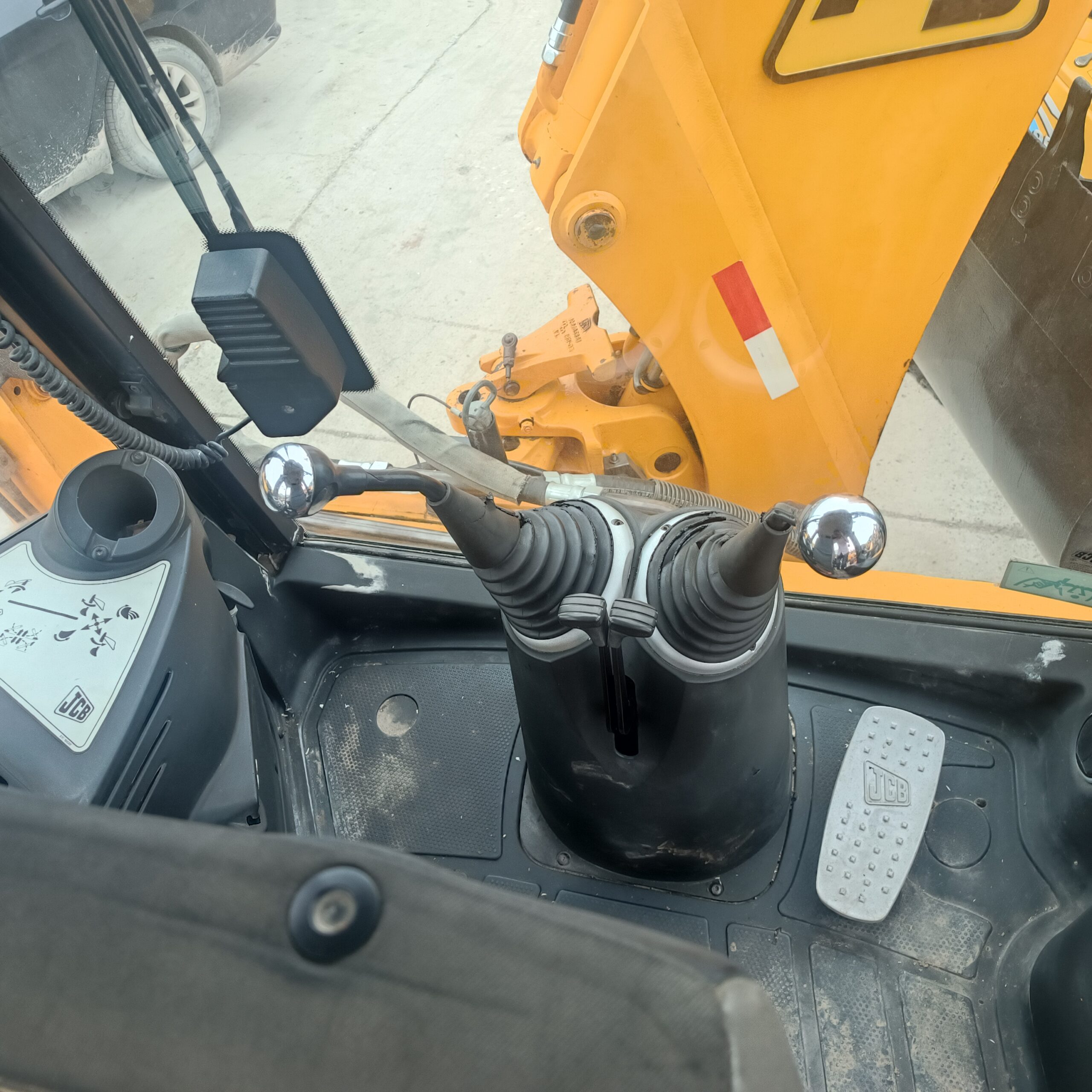

– Operational comfort: The cab has a large space, the largest in its class. All controls are ergonomically designed, equipped with a suspended seat and armrests to reduce operator fatigue. There is also a 12V power supply for convenient charging of personal electronic devices.
– Versatility: It can be equipped with various attachments, such as 6-in-1 buckets and breakers. It can also be installed with front and rear road milling machines for road construction. Its front end is equipped with a skid-steer loader quick-change device, which can quickly replace different attachments to adapt to various operational needs.
– Safety: Some models are equipped with front and rear cameras, dust suppression systems, etc., to improve operational safety. The cab meets ROPS/FOPS standards, providing safety protection for operators.
