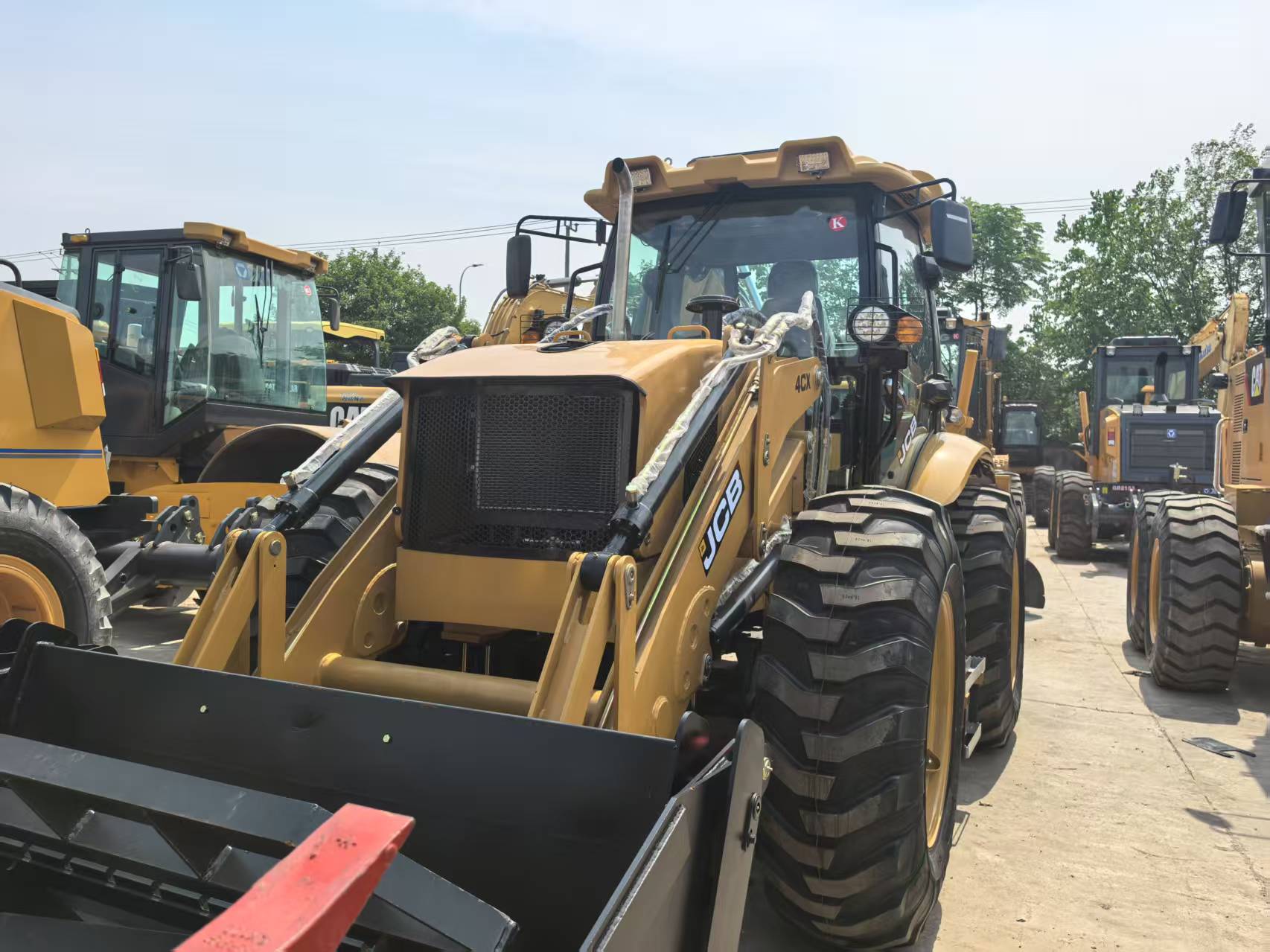

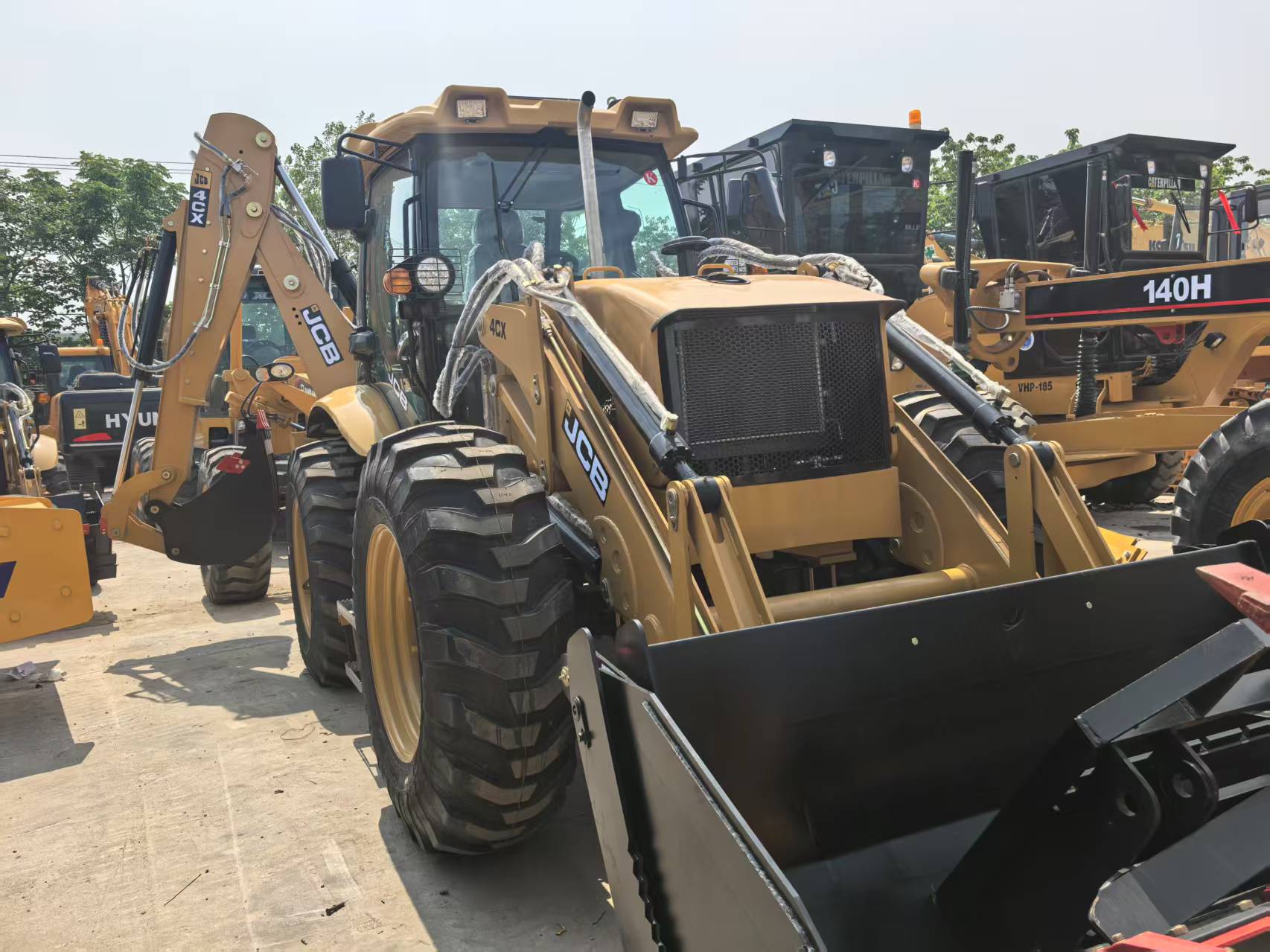

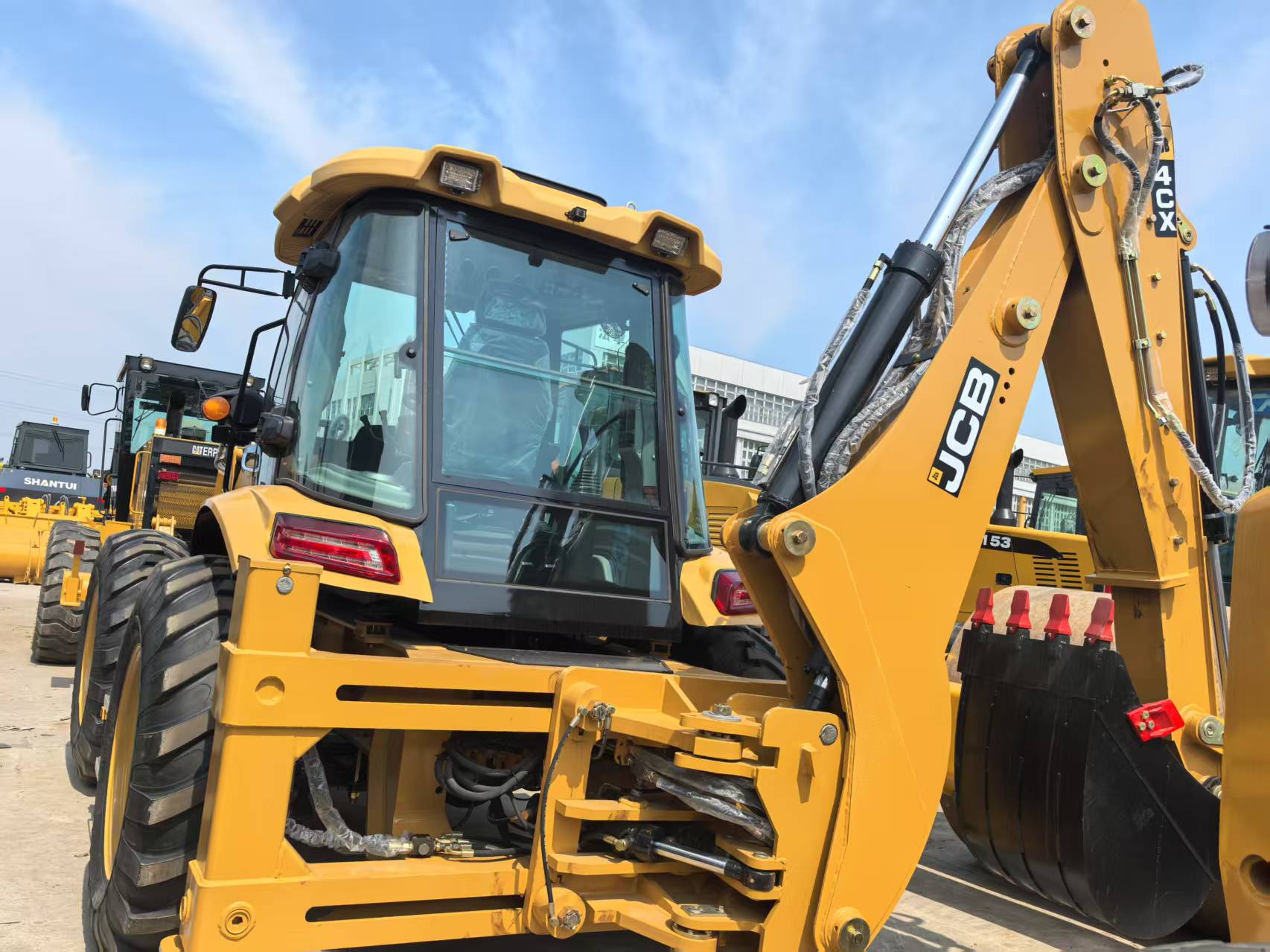

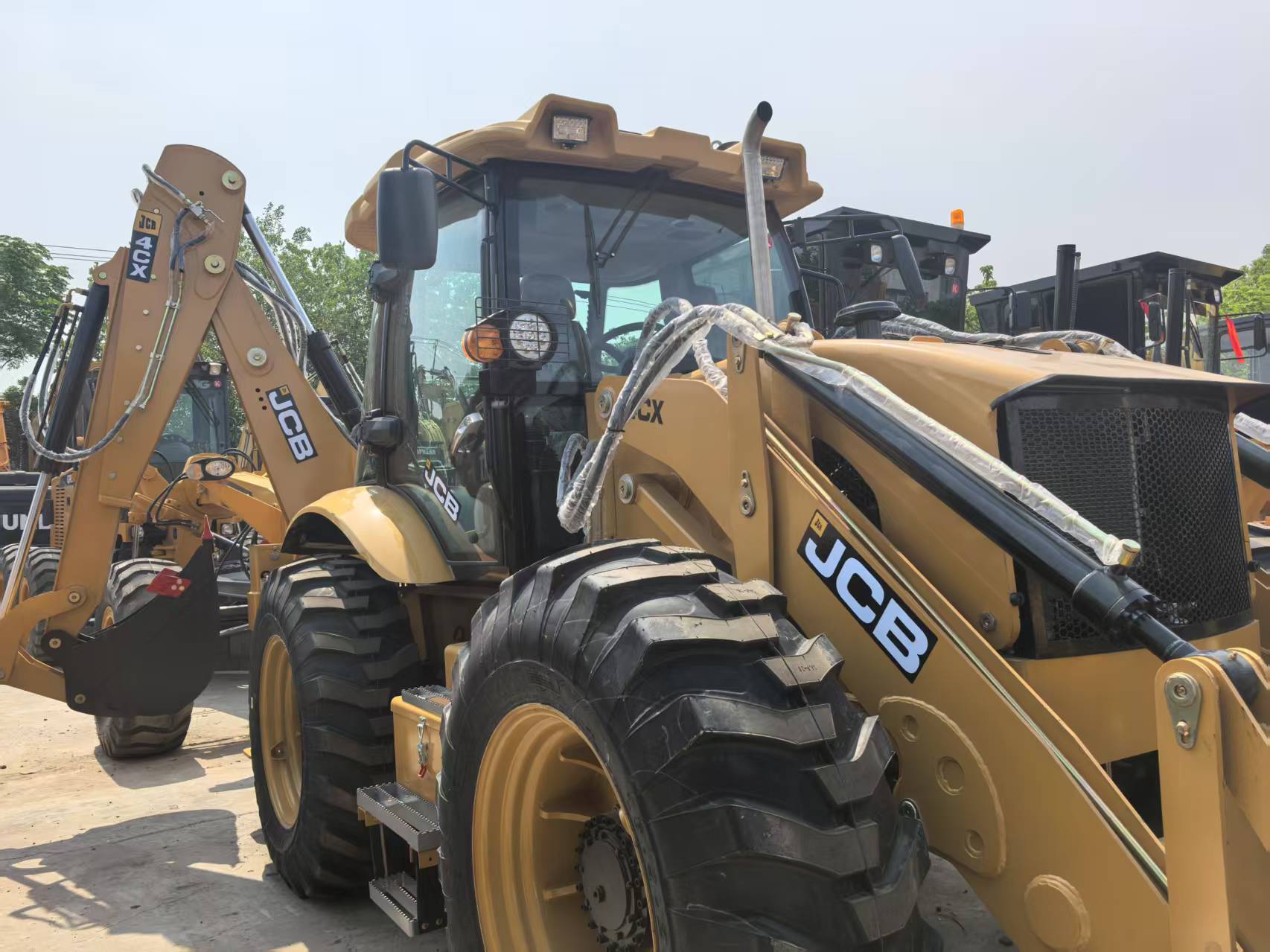

JCB 4CX

Basic Parameters

– Engine Model: JCB Dieselmax
– Rated Power: 81kW (109hp)
– Overall Operating Weight: Approximately 8178kg
– Bucket Capacity: Loading end: 1.0m³ and 1.3m³ optional; Excavating end: standard approximately 0.42 cubic meters
– Maximum Digging Depth: 6.51m
– Maximum Digging Radius: Approximately 7.43m

Performance Features

– Power and Efficiency: Equipped with the JCB Dieselmax engine and EcoDig technology, it uses a three-pump hydraulic system to provide high hydraulic flow and pressure at low engine speeds. This improves fuel economy by 15% during excavation while reducing engine wear and carbon emissions. Its Torque Lock technology, combined with a 6-speed automatic transmission, can save 25% fuel during road travel and reduce travel time by 10%.
– Operational Performance: It has 3 steering modes, including four-wheel steering and crab steering, ensuring flexible operation and adaptability to narrow work sites. The Limited Slip Differential (LSD) axle can automatically provide additional traction in complex road conditions, and the dynamic braking system offers proportional braking with good braking effect and precise control.
– Comfort and Safety: It is equipped with a rubber-suspended cab, resulting in low noise and vibration. It also features a heated air-suspended seat, LCD display, etc., providing a comfortable operating environment. Additionally, the machine is equipped with large-sized armrests, wide-opening doors, and non-slip pedals for safe getting on and off. The Livelink telematics system can prevent equipment theft and unauthorized use.

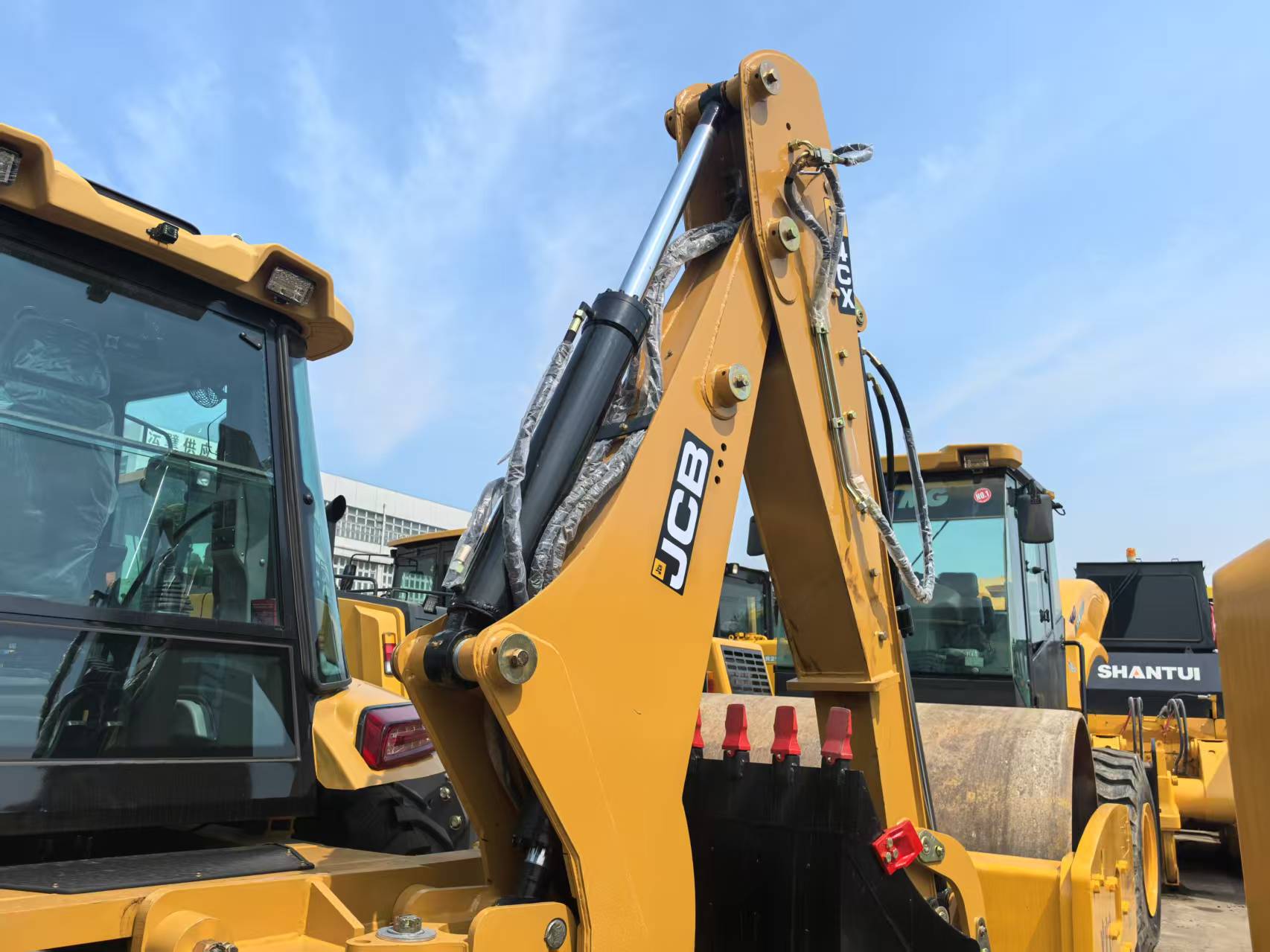

– Durability and Maintenance: The excavating end adopts a heavy-duty reinforced design, with replaceable wear plates on the bucket and stick. The loader end is equipped with steel guards, ensuring strong overall durability. Its simple gear pump hydraulic system and easily accessible maintenance points reduce maintenance costs and downtime.
