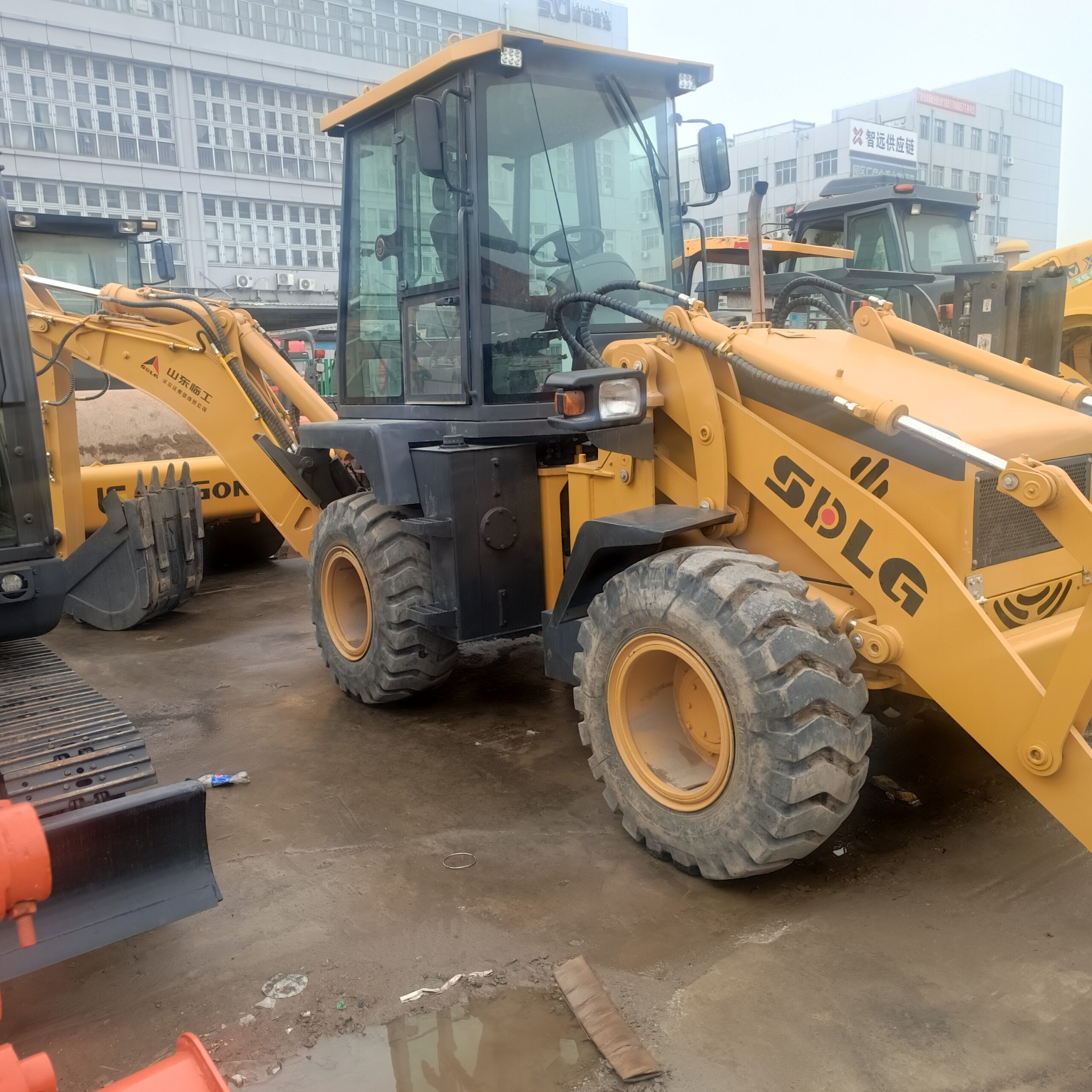

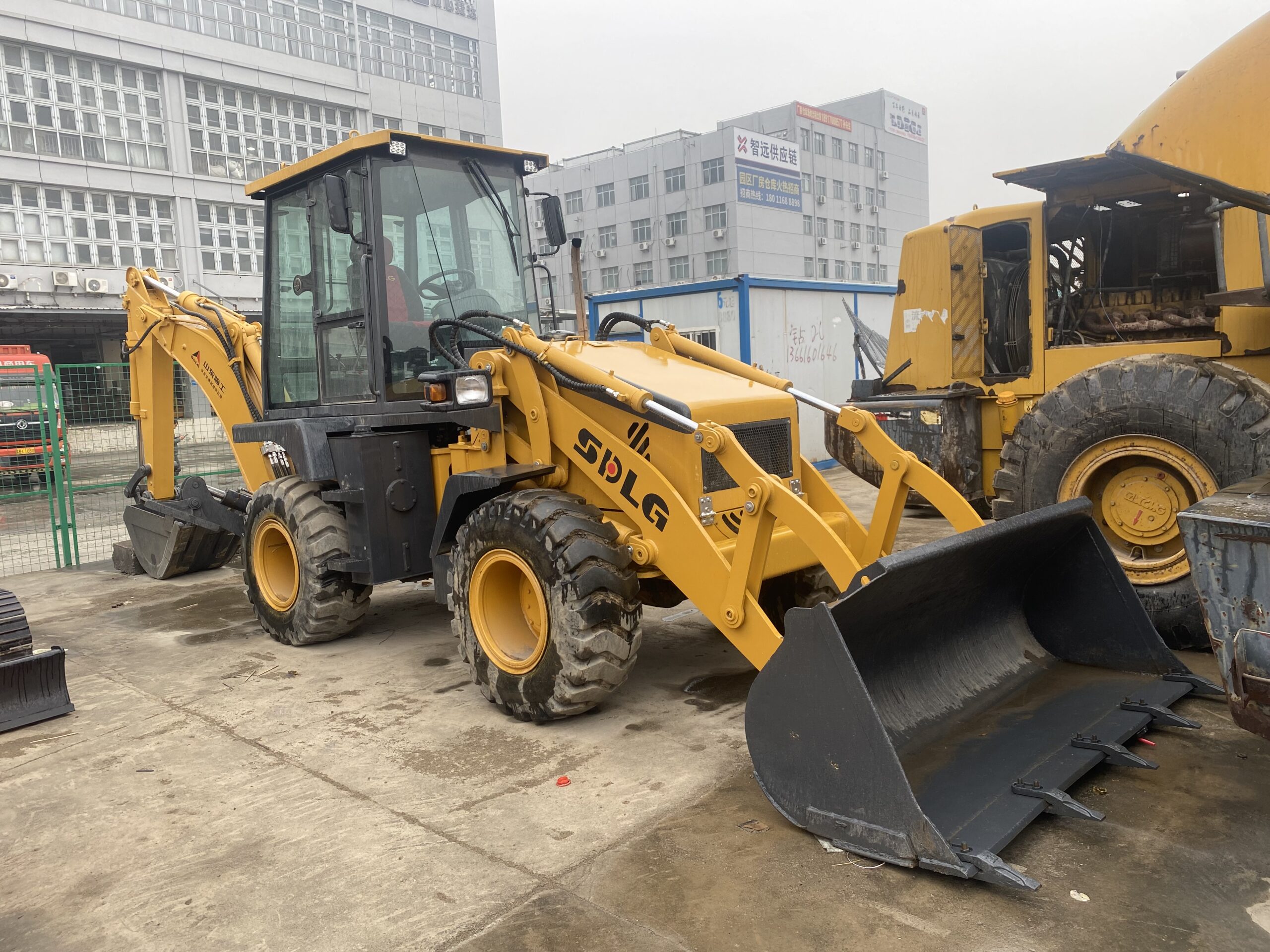

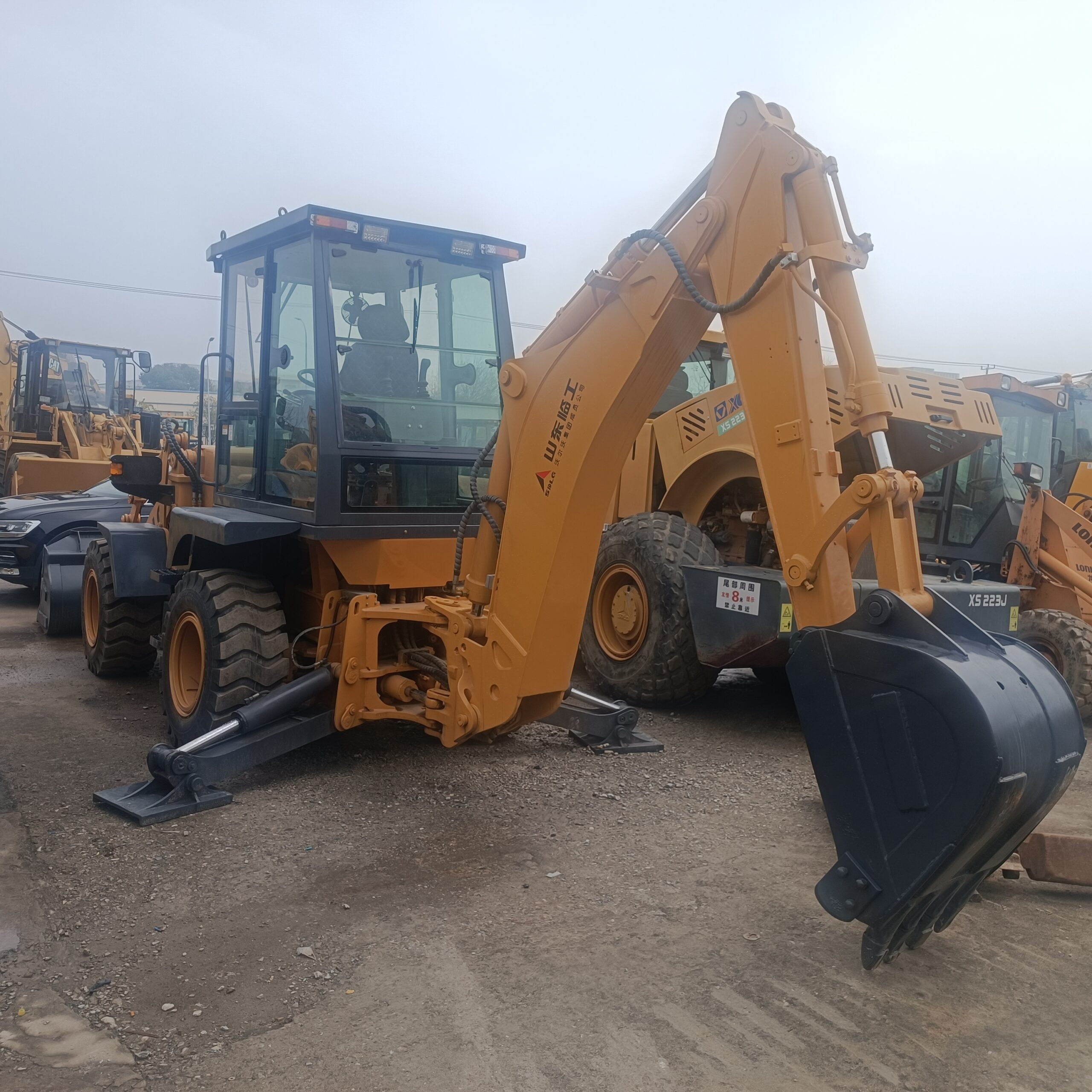

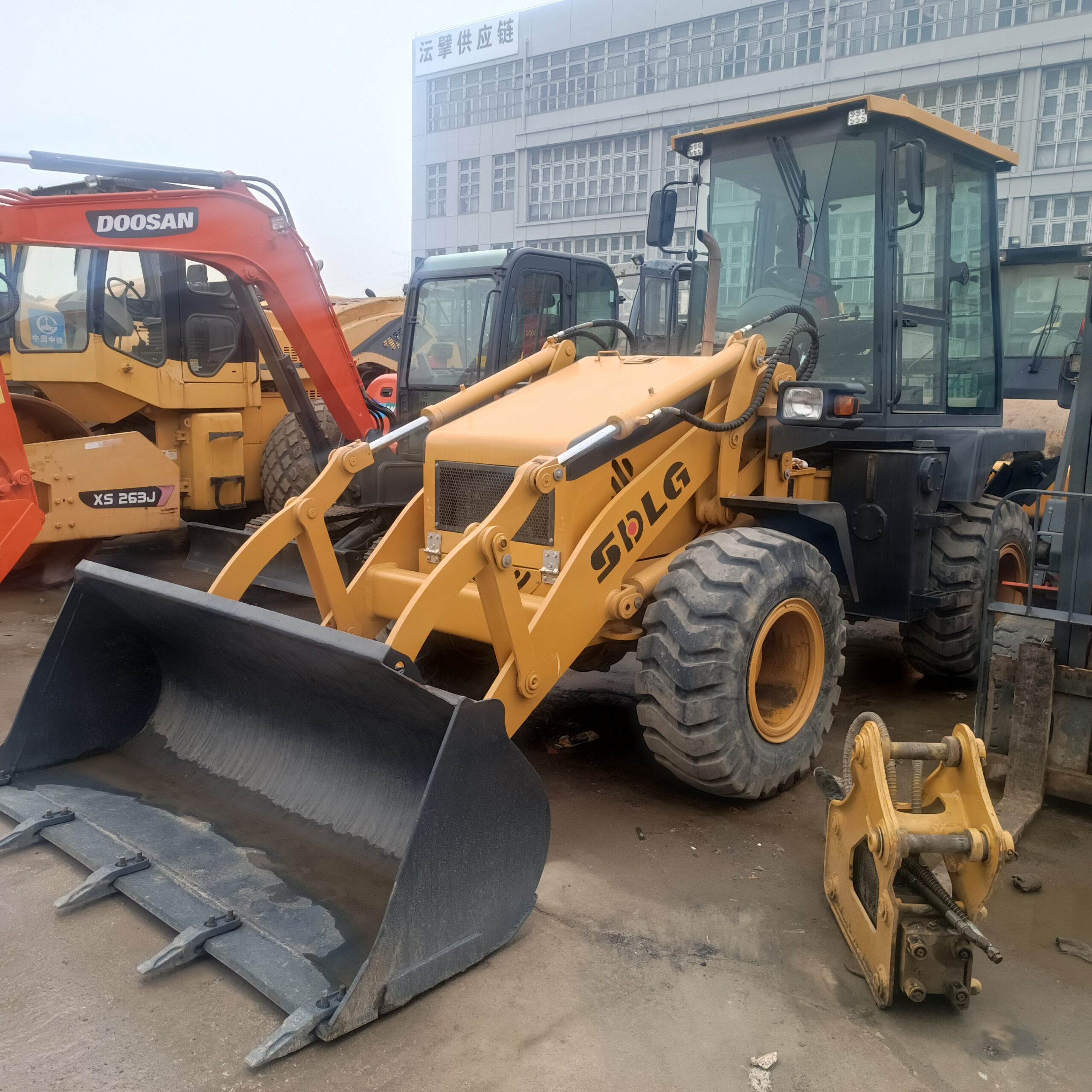

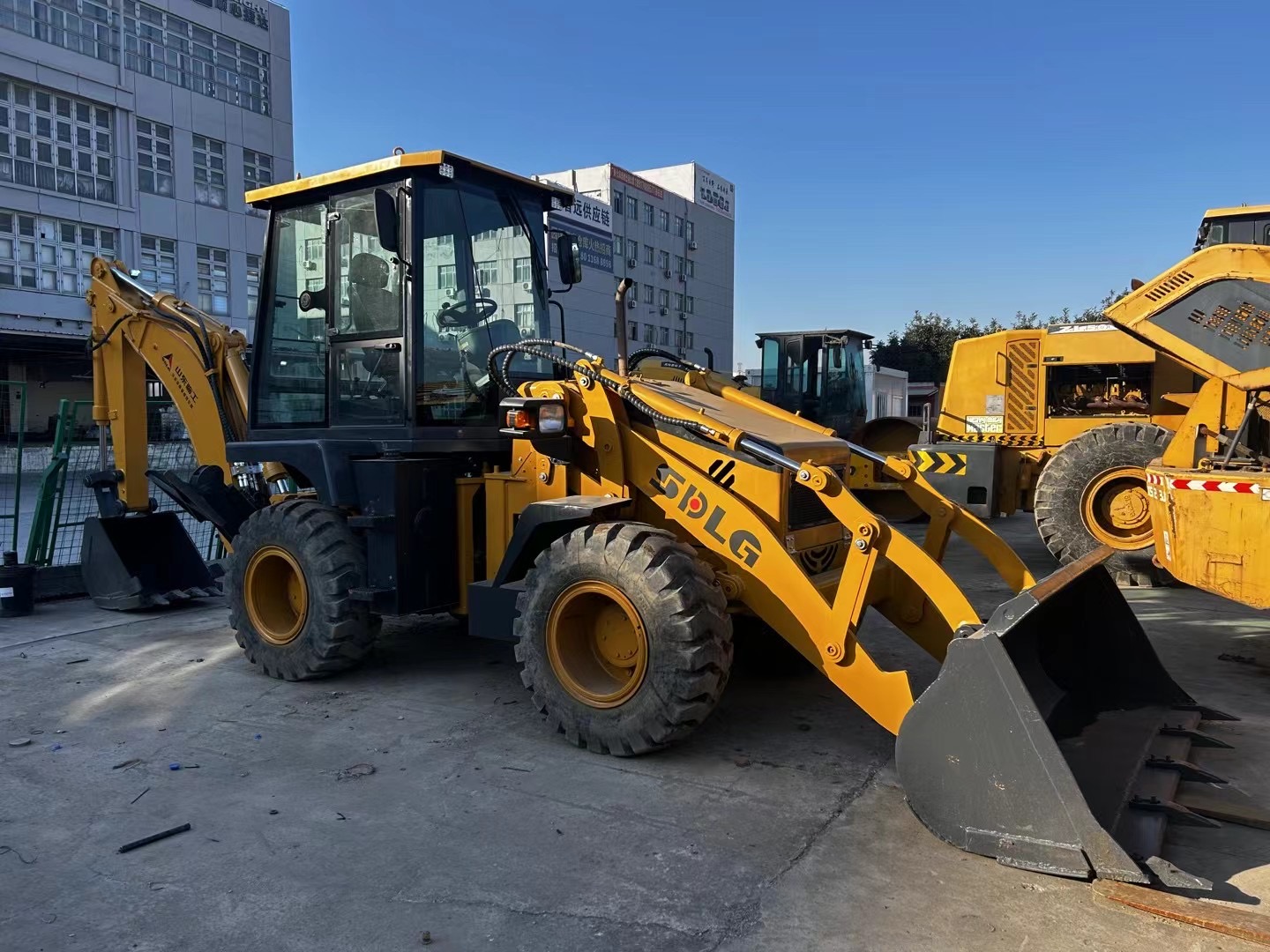

LGB680

Basic Parameters
– Overall operating weight: 8300kg
– Engine model: YC4D80-T10
– Rated power: 58kW
– Rated loading bucket capacity: 1.0m³
– Rated backhoe bucket capacity: 0.3m³
– Maximum digging depth: 4380mm
– Maximum dumping height: 2700mm

Performance Features
– Powerful power: Equipped with Yuchai YC4D80-T10 engine, which has strong power, low noise, energy saving and environmental protection. It adopts four-wheel drive with front and rear axles and wheel-side reduction drive mode, enabling the machine to maintain good passability and stability in various terrains and working conditions.
– Flexible operation: Adopts a dual-lever, hydraulic shift transmission system, which is light and reliable to operate, with good economy and high productivity. The load-sensing full-hydraulic steering system makes steering more light and accurate. The articulated frame has a small turning radius and high horizontal passing capacity.
– Comfort and safety: Fully enclosed cab, equipped with front and rear wipers and cleaning system, which is spacious, bright and has a wide field of vision. The built-in luxurious seat can slide back and forth and rotate 360 degrees, which is convenient for alternating digging and loading operations, and can also be optionally equipped with air conditioning and radio system. The unique centrally located frog-shaped outriggers provide better stability when breaking rocks and digging deeply.
– Convenient maintenance: Key hydraulic and electronic components are of world-renowned brands, easy to repair and replace, reducing maintenance costs and downtime. The rear frame with a single-plate structure welded from alloy steel plates can absorb vibration and torsional loads, has high strength, is firm and durable, and is also convenient for daily maintenance.
