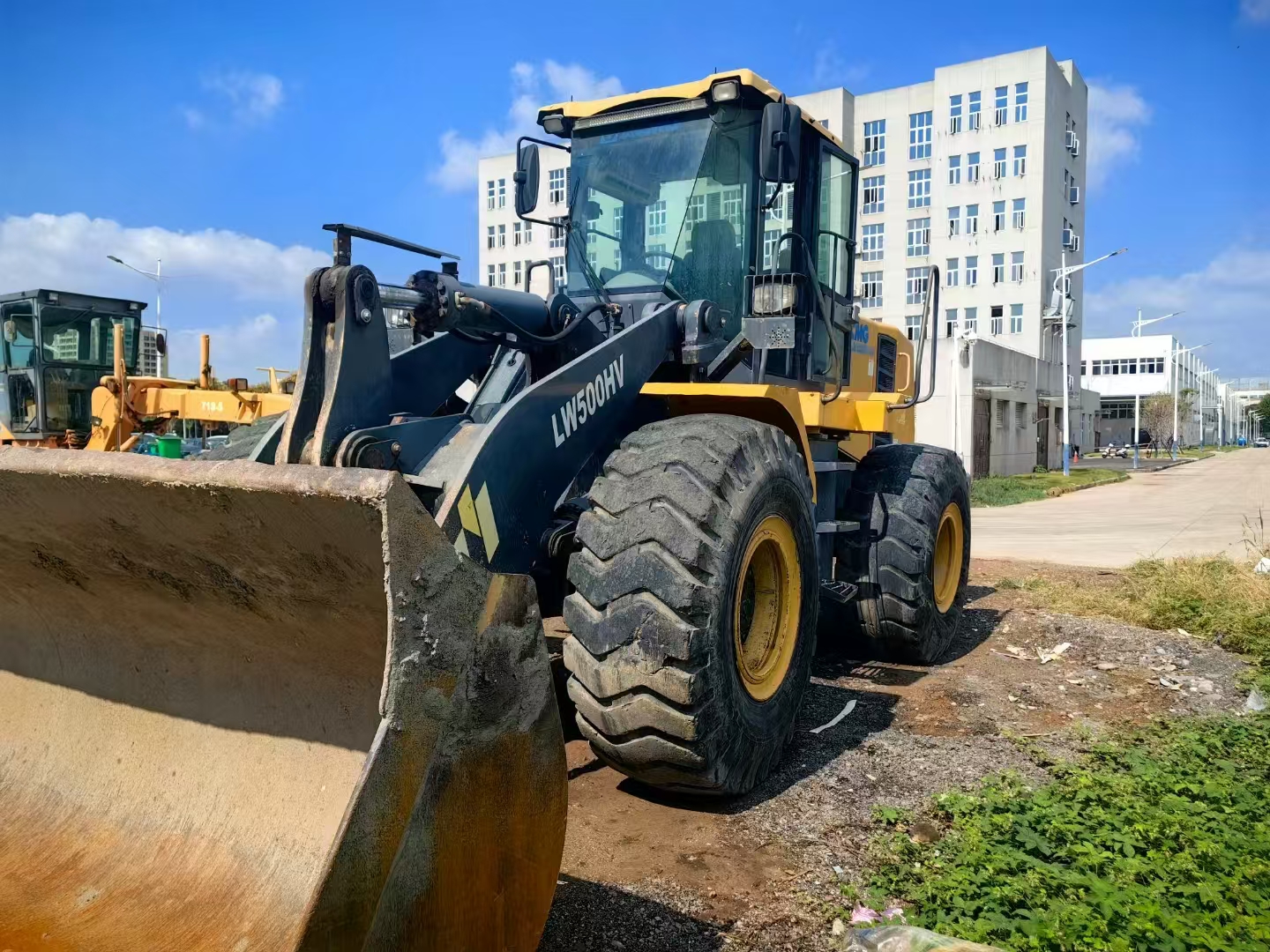

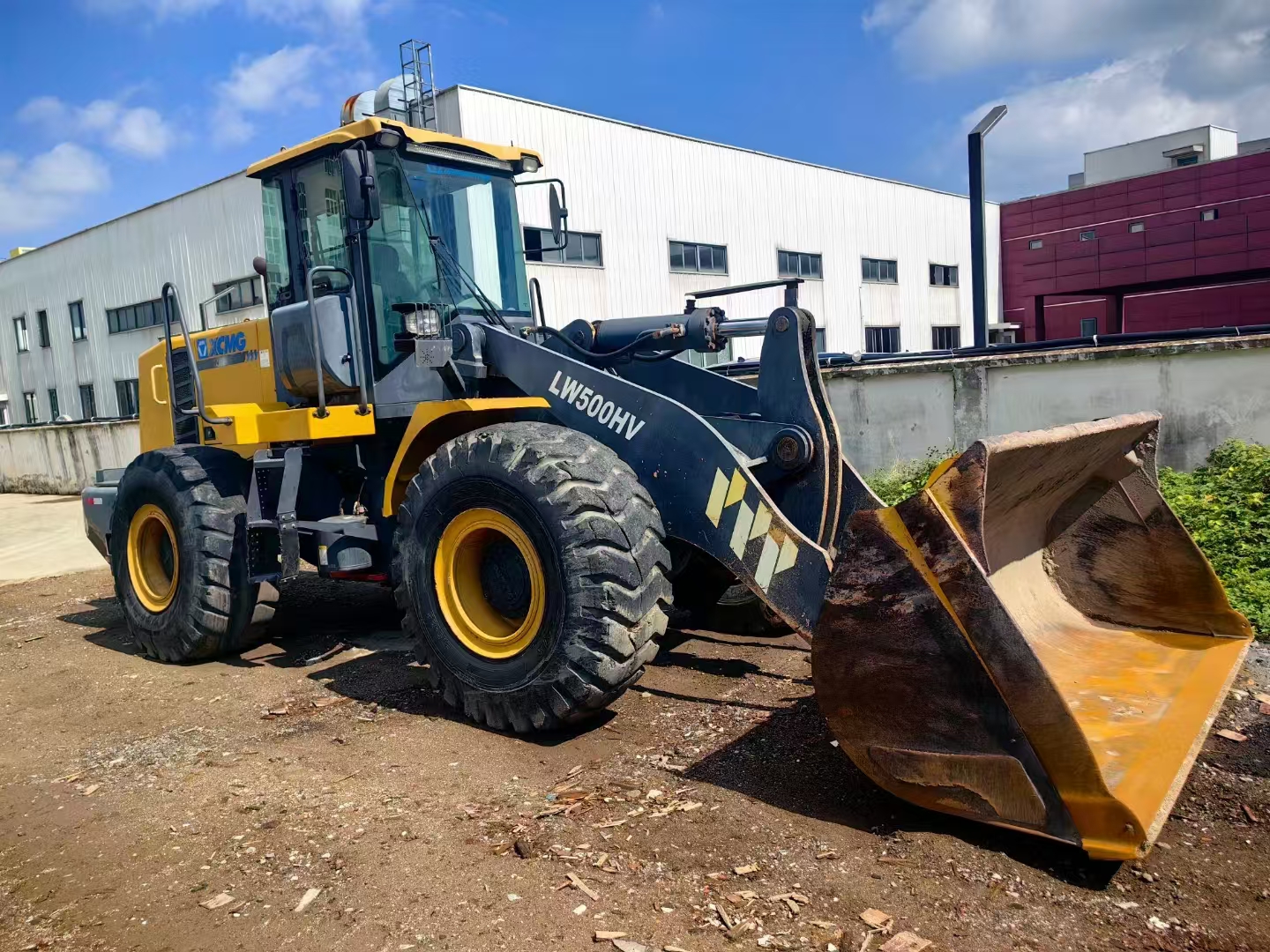

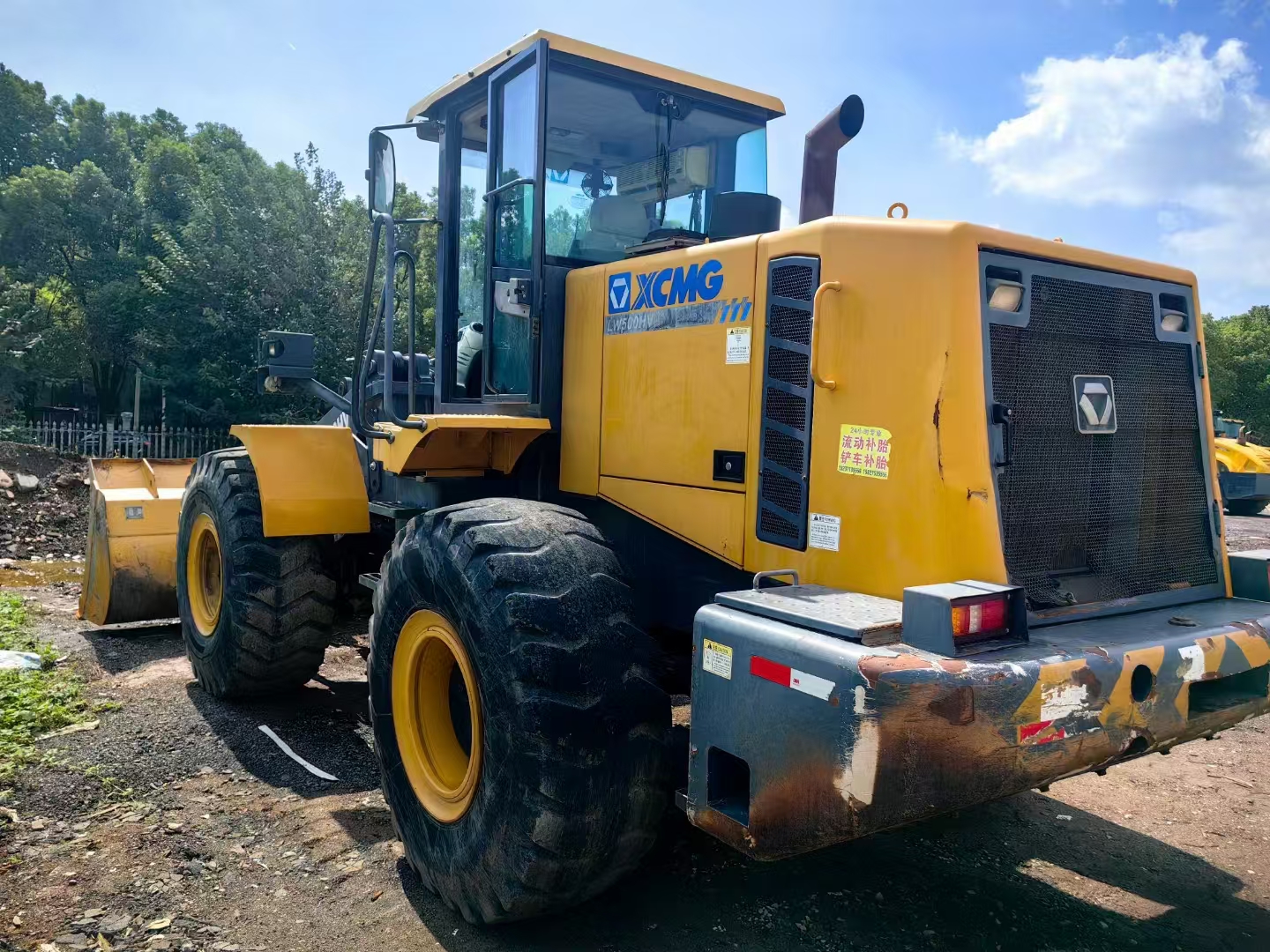

LW500HV

Performance Parameters

– Rated load capacity: 5000kg
– Overall operating weight: 17000±300kg
– Bucket capacity: 3.0 cubic meters as standard, optional 2.5~4.5 cubic meters
– Rated power: 162kW
– Maximum traction force: approximately 160kN
– Maximum breakout force: 175±5kN

Power System

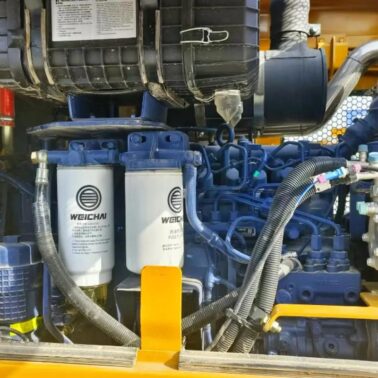

– Engine: Adopts Weichai air-to-air intercooled, electronically controlled high-pressure common rail energy-saving engine, equipped with a three-stage filtered desert air filter, which can adapt to dusty working conditions, meets the National III emission standards, and has three working modes.
– Transmission torque converter: Equipped with an energy-saving planetary hydraulic transmission, using a large-capacity, energy-saving dual-turbine torque converter and a reinforced transmission, achieving good matching with the engine.
– Drive axle: Uses a construction machinery-specific reinforced drive axle, with stable quality, reliable performance, and convenient maintenance.

Hydraulic System

Adopts dual-pump confluence technology, which is energy-saving and efficient; full hydraulic load-sensing steering, which is light and flexible; international standard sealing form effectively solves the leakage problem; pre-pressurized hydraulic oil tank can reduce dust entry and extend the hydraulic oil replacement cycle.

Cab and Operating System

New international version fully enclosed micro-pressurized cab with heating and air conditioning, spacious interior and wide field of vision; high-performance shock-absorbing seat combined with a multi-directionally adjustable steering column, which can meet the needs of different drivers; new digital combined instrument with fault diagnosis and alarm functions, ensuring comfortable and convenient operation.

Frame Structure

The front and rear frames are designed for heavy loads, with thick steel plates, high strength, and strong bearing capacity. The distance between the upper and lower hinge pins of the hinge center is increased, which can reduce the stress on the hinge pins and improve the service life of the bearings.
