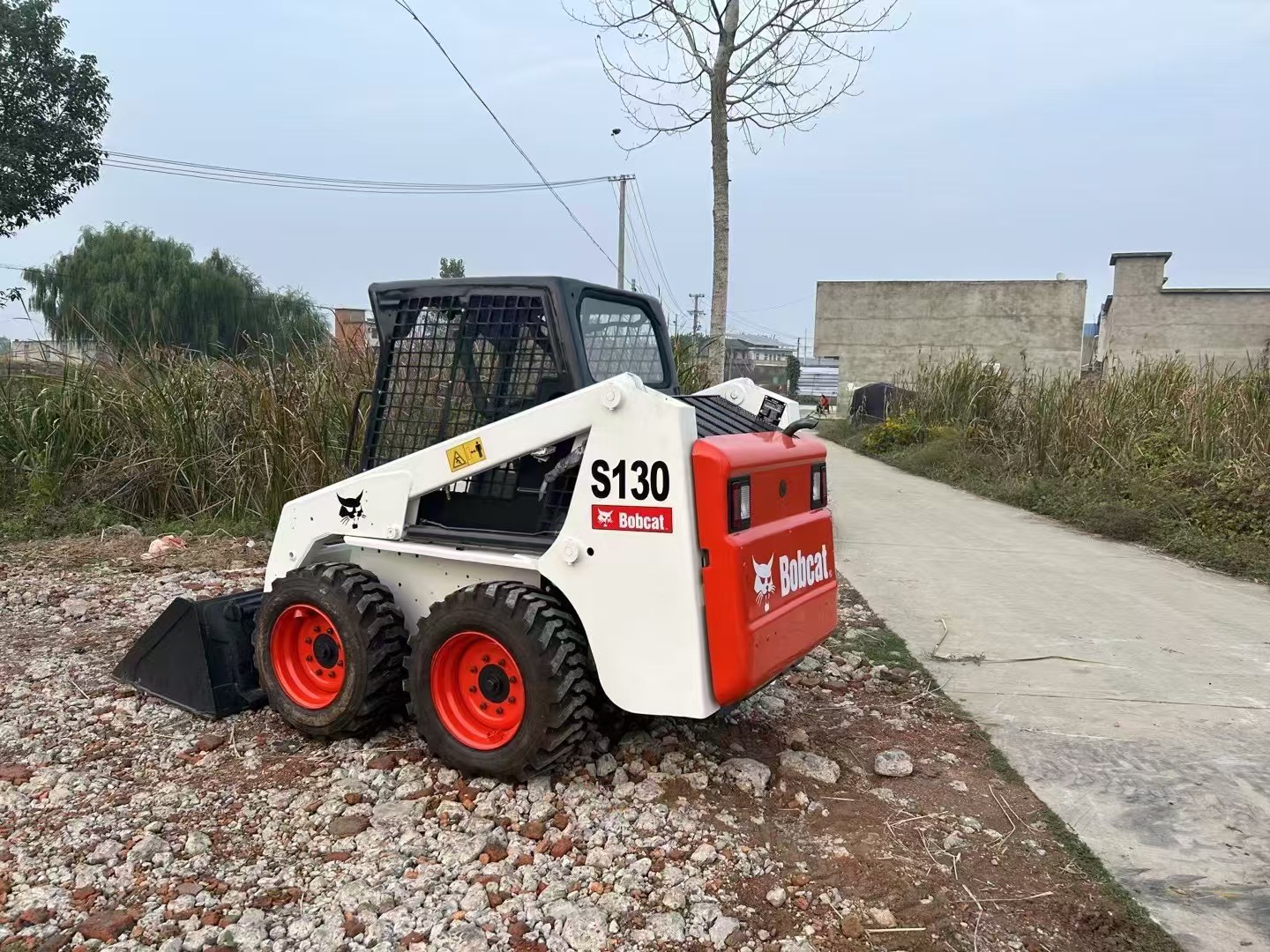

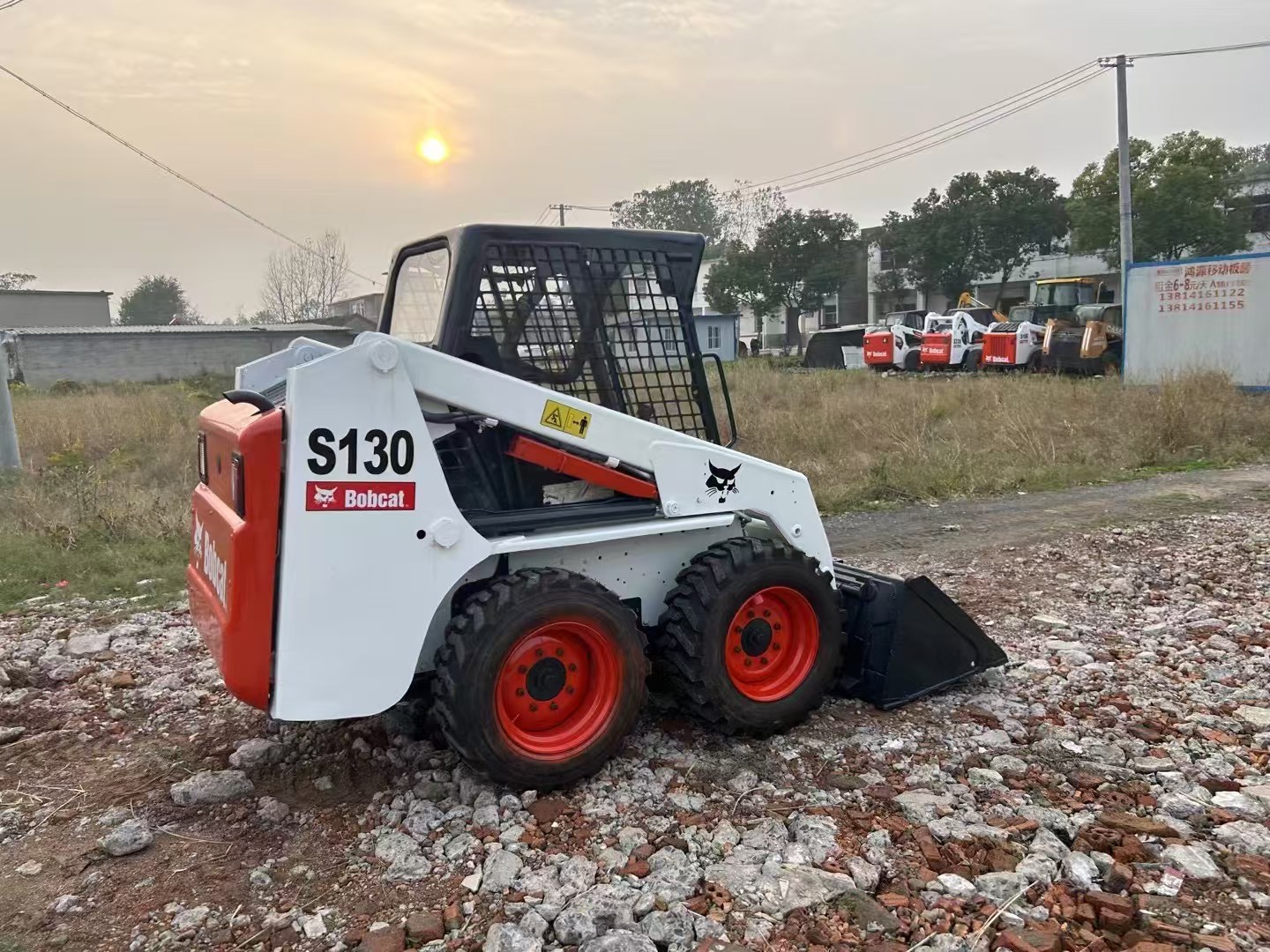

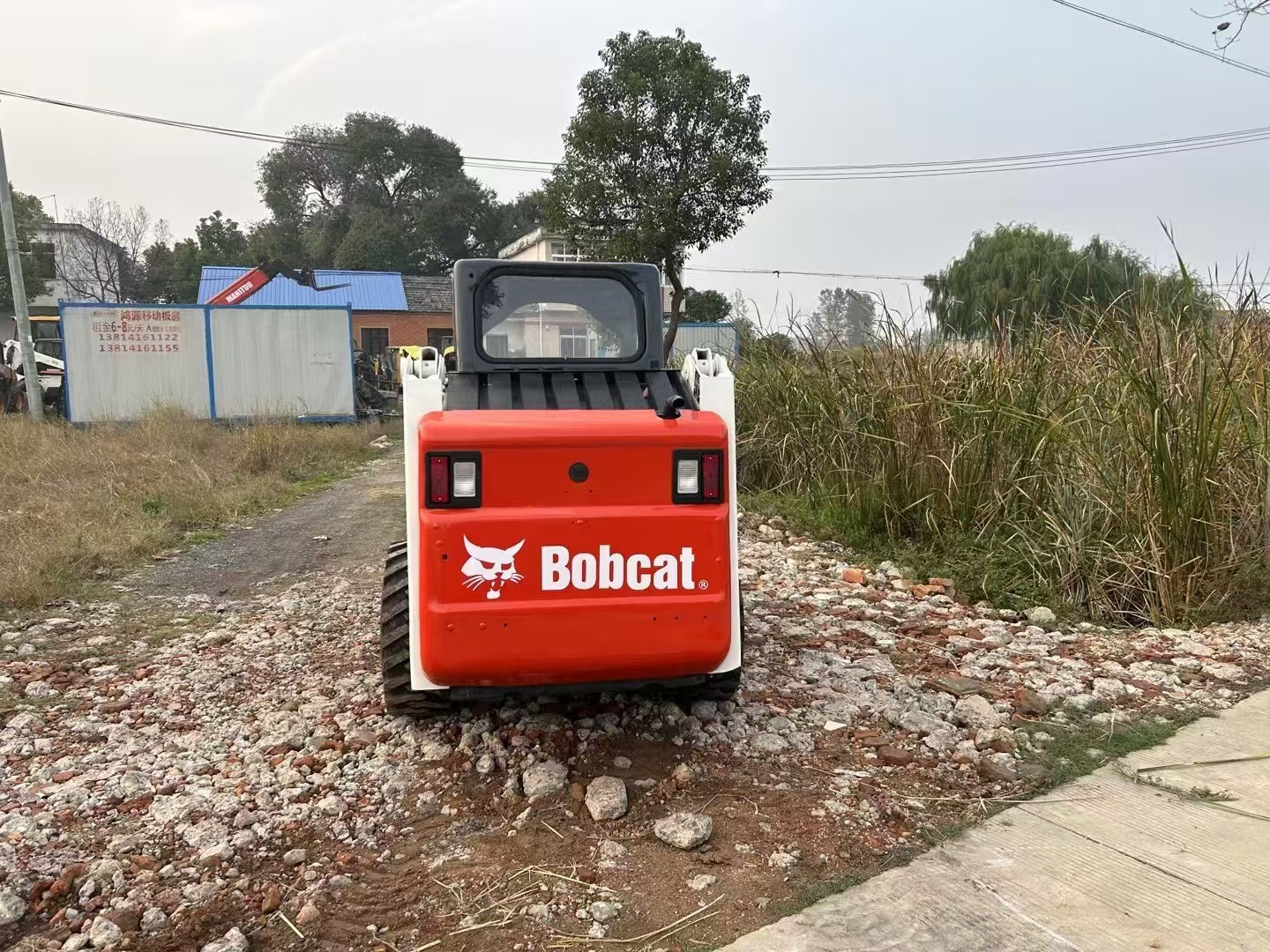

S130

Performance Parameters

– Engine: Equipped with Kubota V2203-M-DI-E2B-BC-3 engine, with a rated power of 34.3 kW (46 horsepower), maximum torque of 150 N·m, displacement of 2.2 liters, and 4 cylinders.
– Loading Capacity: Rated load capacity is 597 kg, tipping load is 1195 kg, and the total weight of the machine is 2465 kg.
– Hydraulic System: The system safety pressure is 182.7-189.6 bar, and the rated flow is 64 liters per minute.
– Travel Speed: Maximum travel speed is 11.8 km/h.
– Dimensions: Overall length (without attachments) is 2432 mm, overall length (with bucket) is 3152 mm, overall width (at tire edges) is 1365 mm, overall height (to the top of the cab) is 1964 mm, and wheelbase is 900 mm.

Performance Features

– Heavy-Duty Structure: Adopts a heavy-duty structural design, capable of withstanding large working loads. Equipped with an intelligent heat dissipation system, the intelligent fan can rotate at high speed as needed. The dual-channel cooling technology is efficient, and the radiator protection design extends the operating time.
– Hydraulic Drive: Hydraulic drive mode, with flexible speed change and easy operation. The large hydraulic flow can meet the operation needs of complex working conditions.
– Flexible Operation: Moderate width, with a turning radius of only 1745 mm, enabling flexible operation in narrow areas. The keel-type landing gear design increases the minimum ground clearance of the wheels, allowing it to cross more obstacles.
