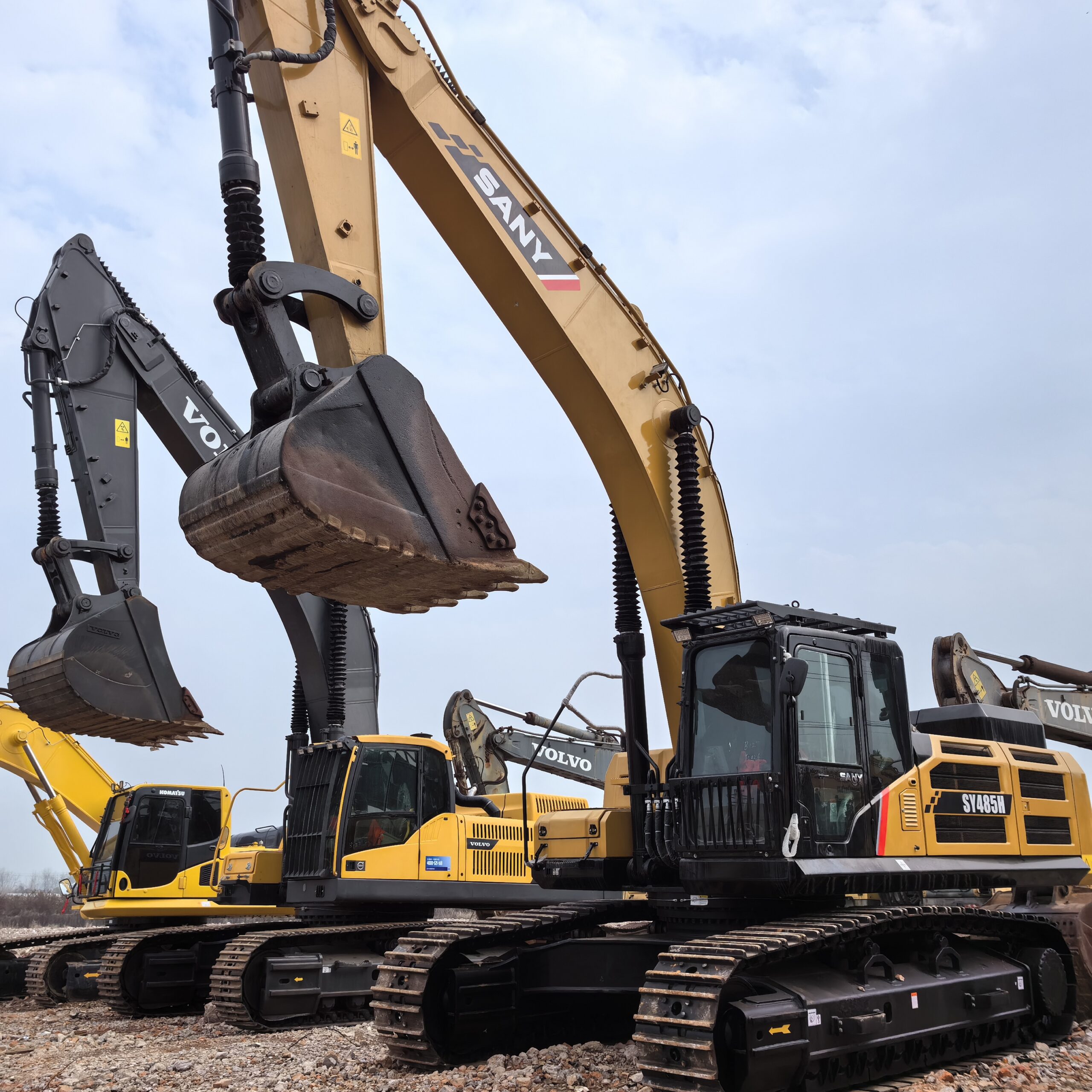

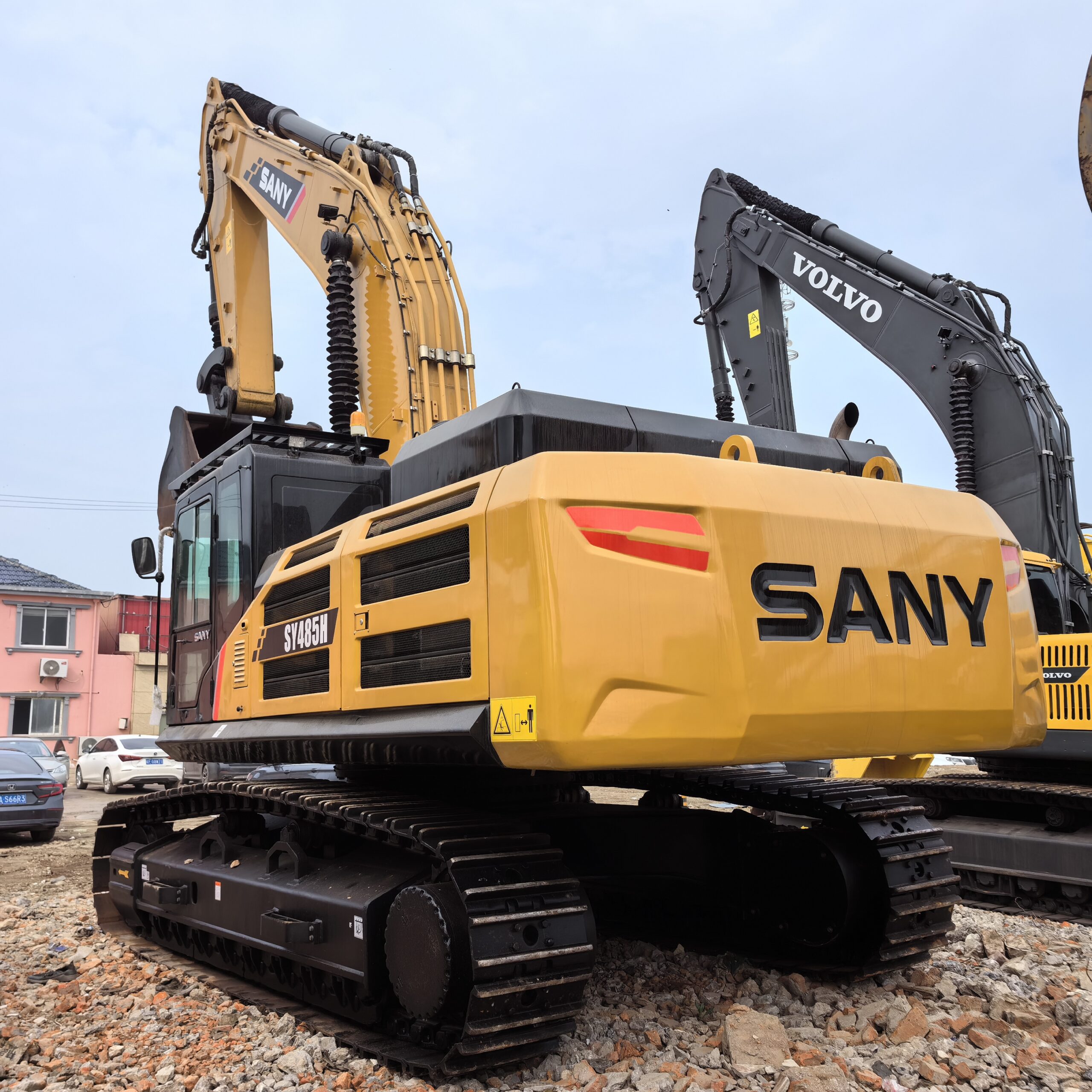

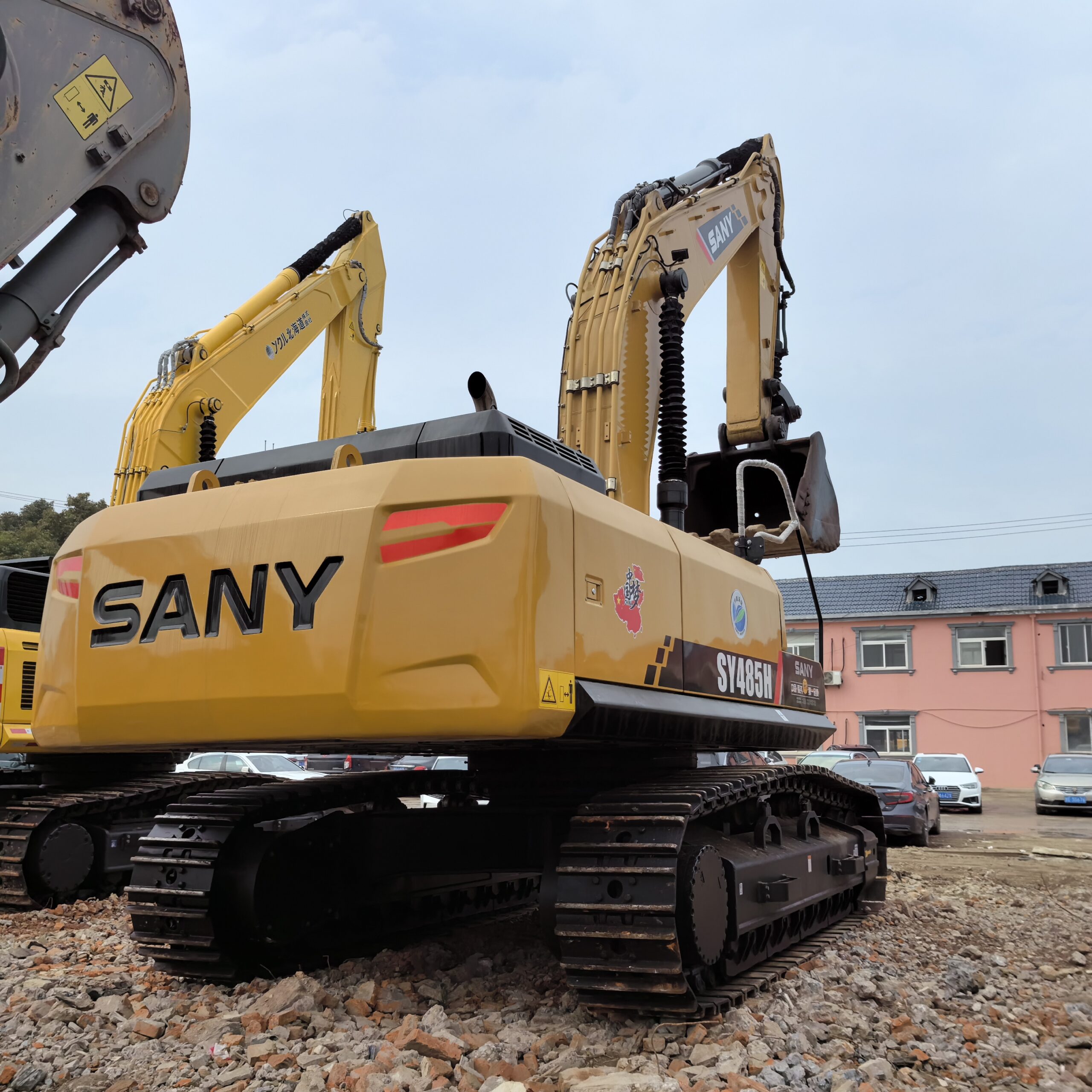

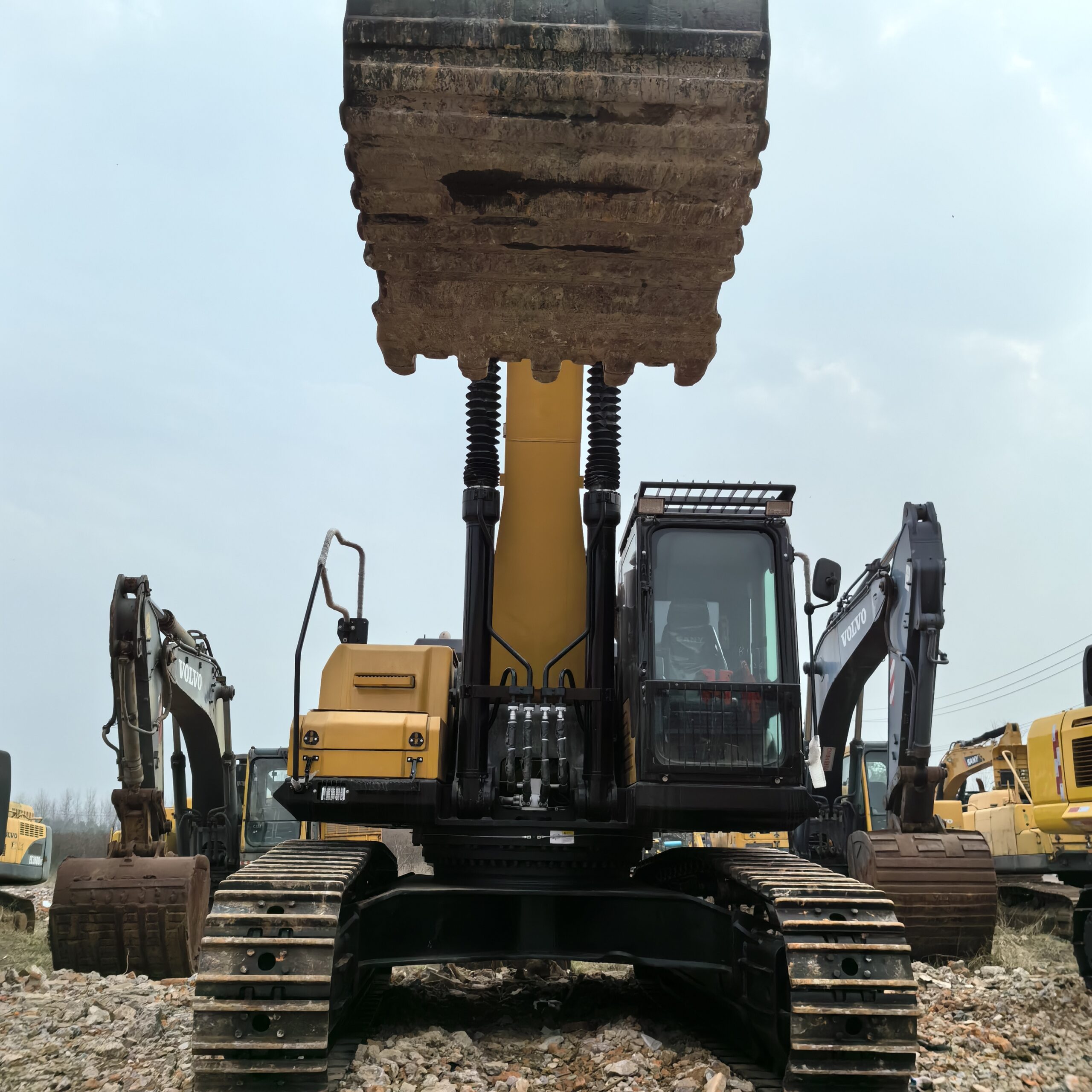

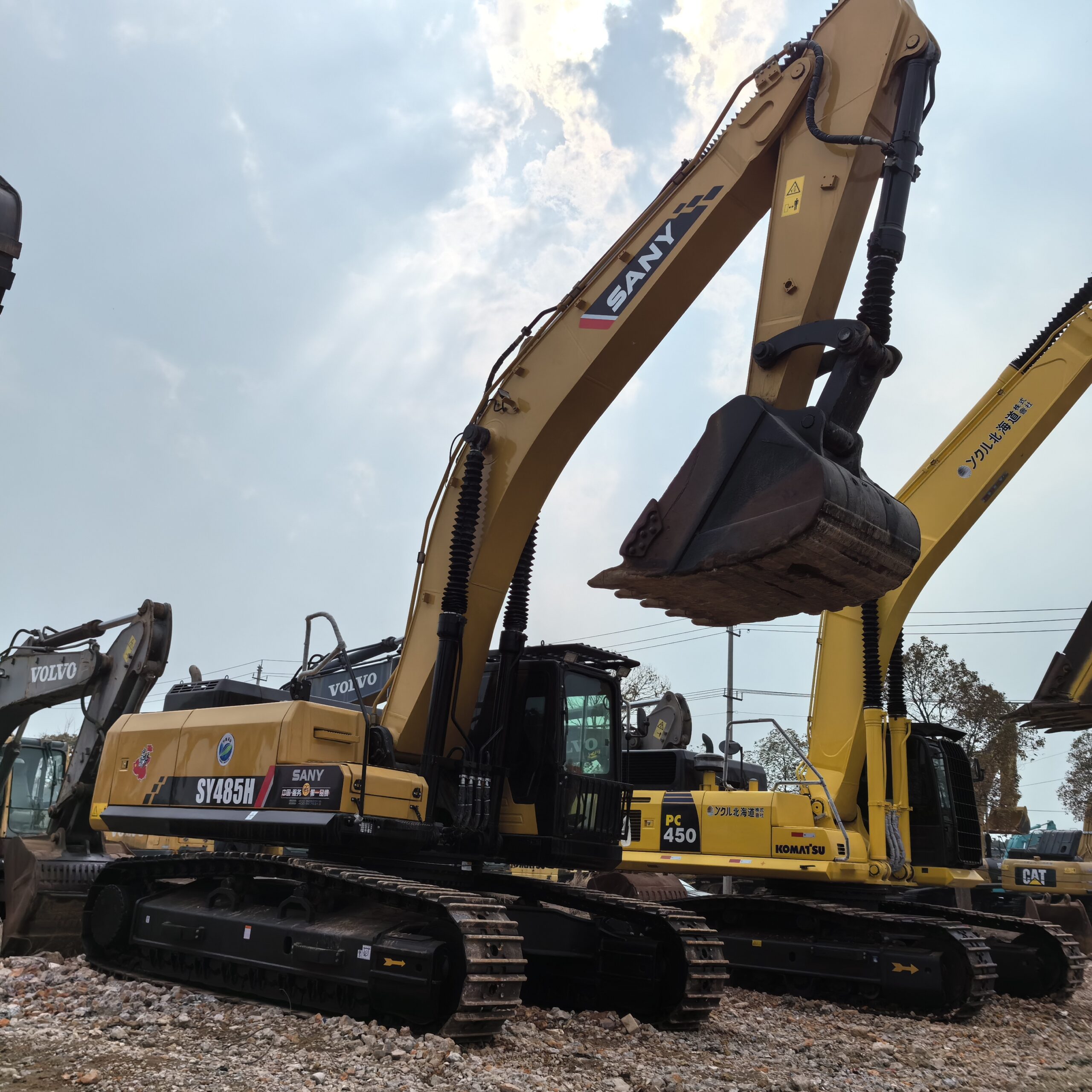

SANY SY485H
– Intelligent configuration: Equipped with a 10-inch smart display, integrating functions such as air conditioning, radio, Bluetooth, and GPS. It comes standard with one-button startup, supports fault detection and alarm, intelligent debugging and diagnosis, and adds a one-button call function. Equipped with the “Yiweixun” system, a mobile phone can control and check the machine status through an APP.
– Cab upgrade: Adopting the C12 cab, developed with five major intelligent functions. The size is widened by 25mm, the front window is widened by 10%, and the total glass area of the vehicle is increased by 10%, providing a wider field of vision. The interior has been upgraded, including a suspended National IV armrest box, cup holder, etc., and is equipped with a “12h non-fatigue” large-damping suspended shock-absorbing seat. The air conditioning air duct has a new design, with the cooling effect improved by 10%. The condenser is enlarged by 30%, which can be cleaned on the vehicle for convenient maintenance. The cab’s sealing structure is optimized, and the thermal comfort is improved by 10%.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Basic parameters: The total weight of the machine is 48500kg, the rated power is 310kW/1800rpm, the standard bucket capacity is 2.6m³, and an optional 3.1m³ large bucket is available. The high/low travel speed is 5.5/3.5km/h, the rotation speed is 8rpm, and the climbing ability is 70% (35°).
– Power system: Equipped with an Isuzu imported original 6WG1 engine, which has sufficient torque reserve and stable output. It adopts DOC+DPF+SCR after-treatment technology, with electric heating for the urea pipeline, reducing fuel consumption and ensuring clean emissions.
– Hydraulic system: Uses a classic hydraulically controlled multi-way valve combined with an ACE control system. The stick control is semi-electronic, which reduces stick back pressure and pressure loss, improves digging force, enables more flexible operation, and better action coordination.
– Structural design: The boom and stick box structures are reinforced. The 20,000-hour working device technology is applied, and advanced inspections such as multi-working-condition stress tests are conducted, ensuring high reliability of key structural components. The undercarriage is of a reinforced type, equipped with heavy-duty track rollers, carrier rollers, super wear-resistant tracks, etc. The vehicle body is equipped with full-protection track guards to ensure the strength of the traveling device.
