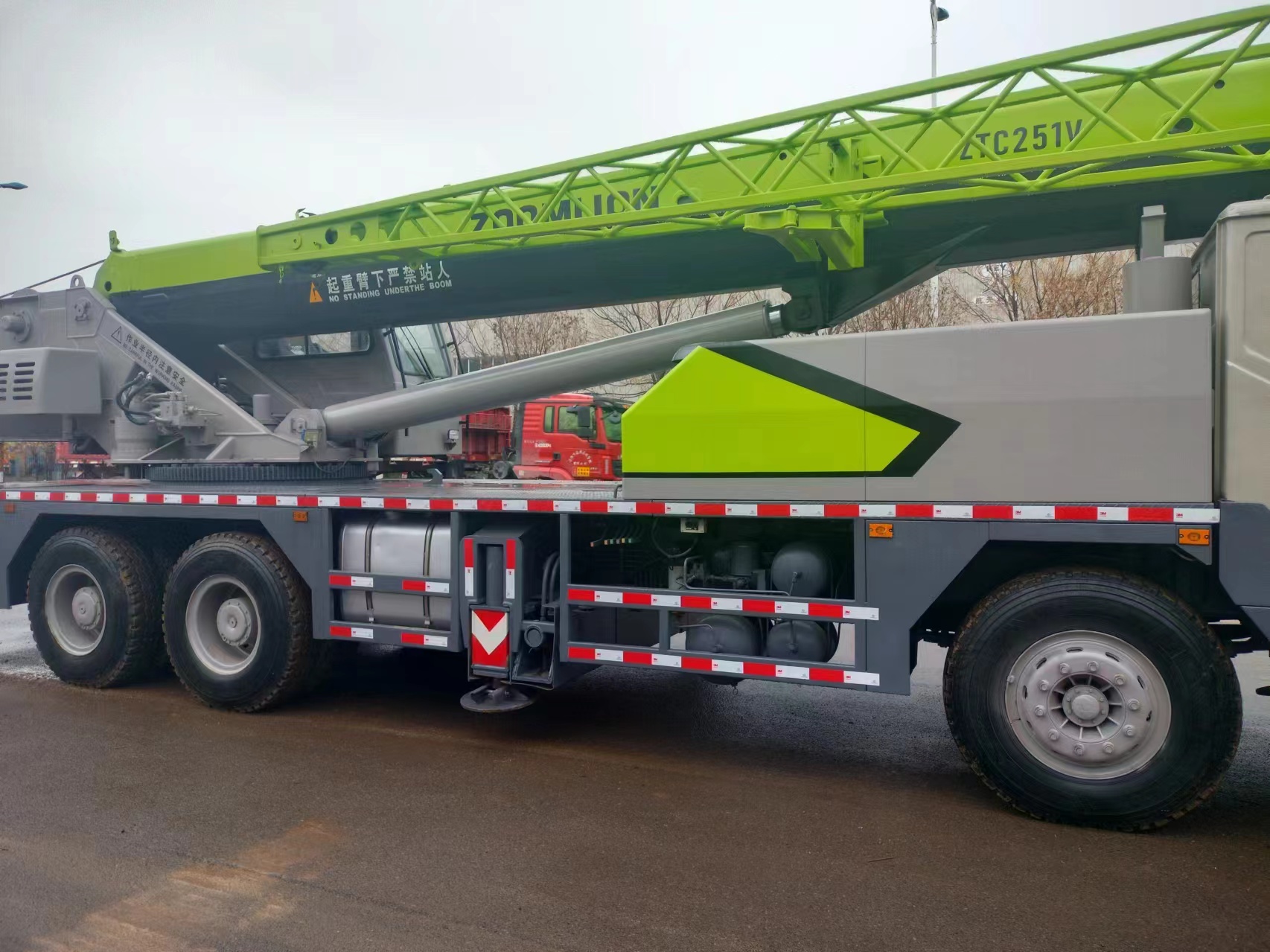

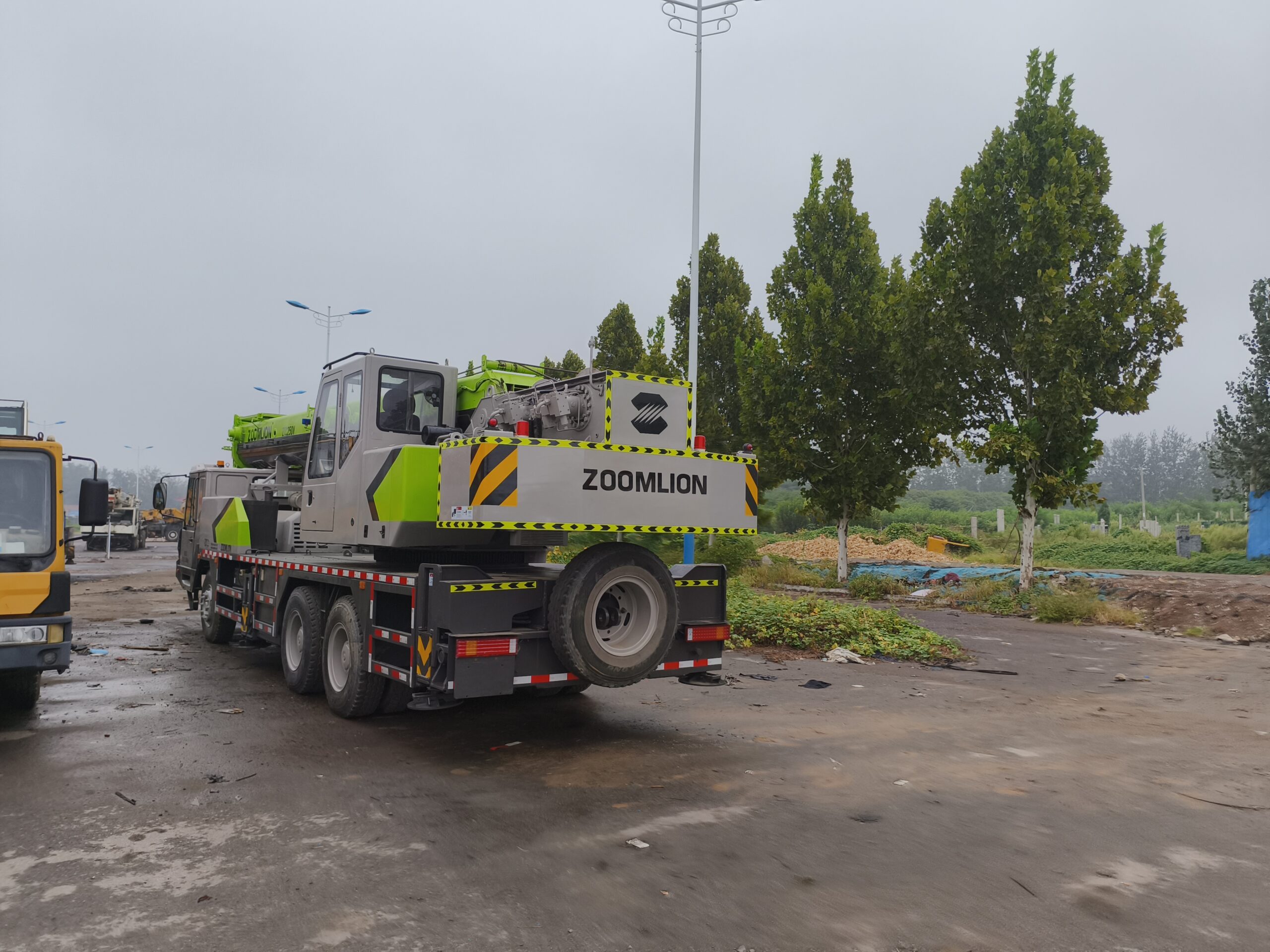

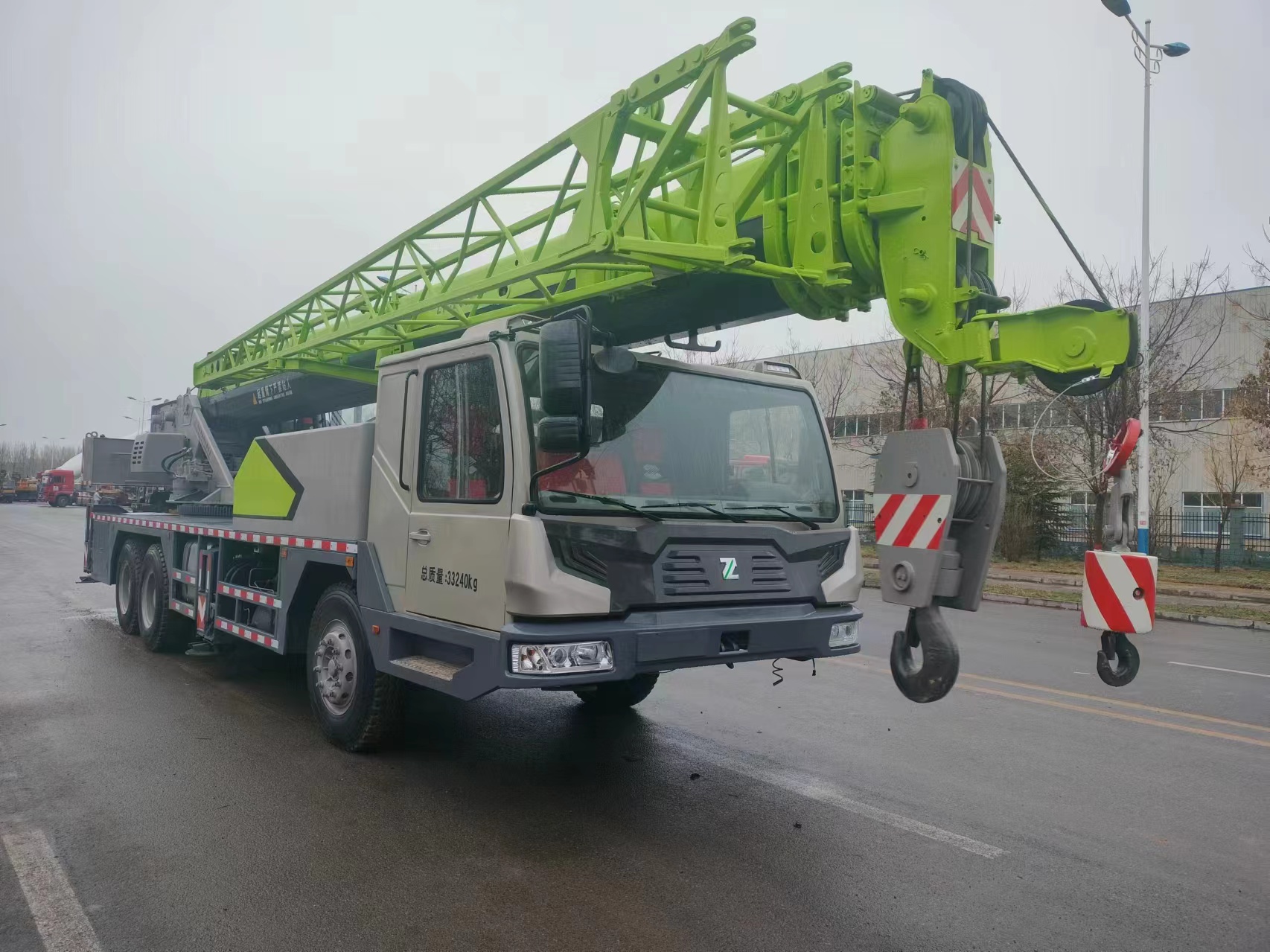

Zoomlion ZTC251V
Safety and Comfort
It is equipped with various safety devices such as a torque limiter and a complete lighting system. Overflow valves, balance valves, etc., are provided to prevent accidents caused by oil circuit overload and oil pipe rupture. It meets the CE standard in terms of noise reduction, and the electrical system has excellent protection with good waterproof and shockproof effects.
Intelligent Technology
Some models are equipped with an intelligent platform, which can realize three-dimensional monitoring of equipment operation. Comprehensive information management can be carried out through a mobile app, and some are also equipped with a remote information platform, which moves vehicle-mounted information to the remote end for the convenience of users’ management.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Maximum rated total lifting capacity is 25 tons, with a maximum lifting moment of 1142 kN·m for the basic boom and 768 kN·m for the longest main boom. The maximum lifting height of the basic boom is 11.3 meters, the maximum lifting height of the main boom is 42.1 meters, and the maximum lifting height of the jib is 50 meters. The maximum single-rope speed of the main winch is 135 m/min, the maximum driving speed is 90 km/h, and the fuel consumption per 100 kilometers is 29 L.
Boom Design
Some models such as ZTC251V562-1 are equipped with a 5-section large-section U-shaped boom, which can extend up to 43 meters in full extension. The ZTC251V562-2 adopts a 35-ton class large-section high-strength steel boom with a full extension length of 43 meters, configured with an 8.5-meter jib. Its maximum lifting moment for the basic boom is 1245 kN·m, and the maximum lifting moment for the longest main boom is 823 kN·m.
Power and Control
It adopts a self-made full-cab three-axle special chassis with 6×4 drive. Equipped with a Weichai engine and matched with a Fast gearbox, it has strong power. It is equipped with an IECO energy-saving module, which can realize automatic and semi-automatic throttle control to reduce fuel consumption.
