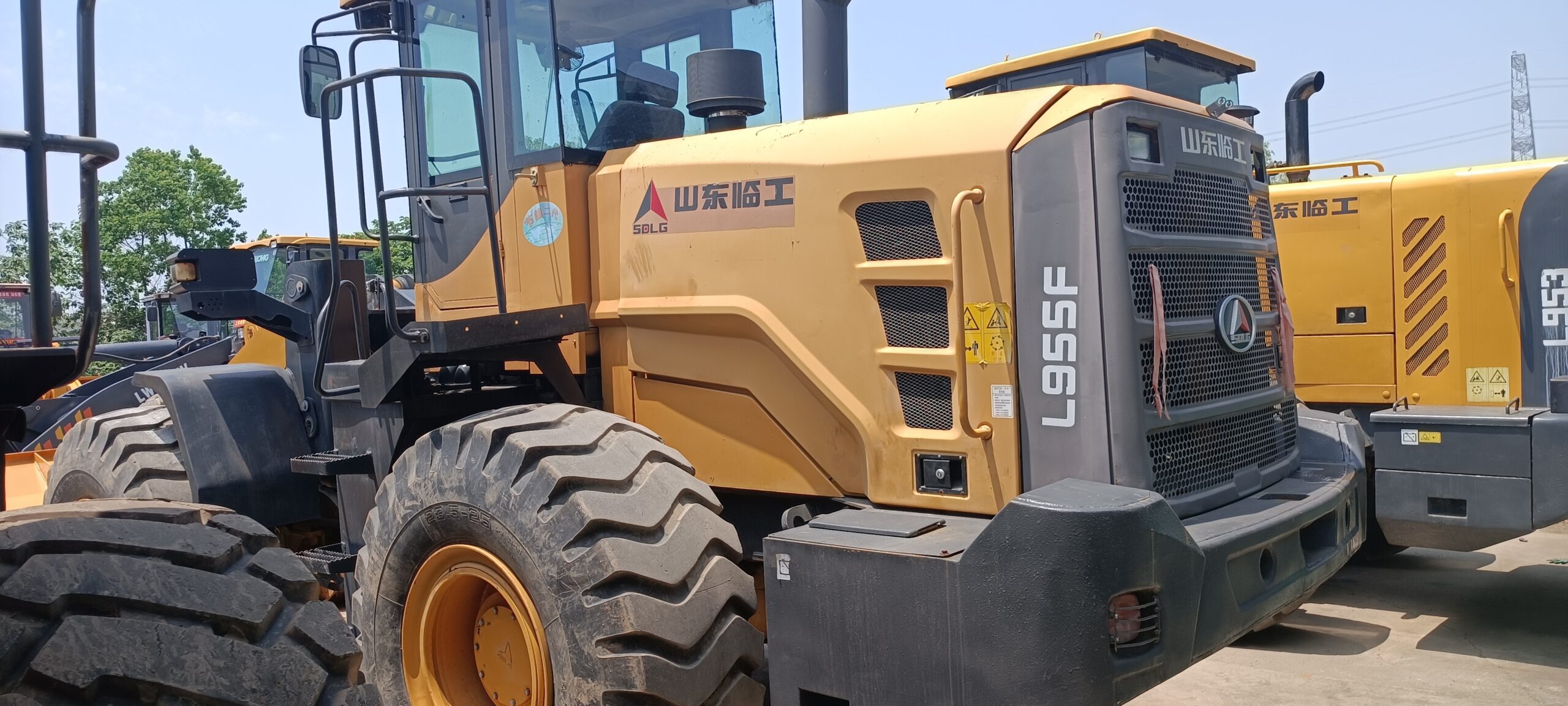

L955F

Basic Parameters

– Dimensions and Weight: The overall length of the machine is approximately 8000-8885mm, the width is approximately 3000-3076mm, the height is 3423mm, the wheelbase is 3.3m, the operating weight is 17000-19100kg, and the minimum ground clearance is 534mm.
– Performance Parameters: The rated load capacity is 5000kg, the bucket capacity is generally 2.8m³, the maximum digging force is ≥128kN, the maximum traction force is 155-165kN, the unloading height (at 45°) is approximately 3150-4125mm, and the three-item sum time is ≤9.8s.
– Engine Parameters: Equipped with a Weichai engine, such as WP10G220E341, with a rated power of 162kW/2200rpm, a maximum torque of 980N·m/1400-1600rpm, a total displacement of 9.726L, and the emission standard is National IV.

Product Features

– Energy-saving and Efficient: Adopting the second-generation energy-saving technology, it achieves a comprehensive energy saving of 20% and can save 6000L of fuel per year.
– Reliable Structure: Articulated reinforced box-type frame, combined articulation of tapered roller bearings and spherical plain bearings, and the wheelbase is extended to 3200mm, making operation and travel more stable.
– Comfortable and Safe: The new-generation cab has a 15% larger space, with improved sealing, noise reduction, and air filtration performance, and arc glass without dizziness dead angles. It is also equipped with high-performance braking systems, mesh rear window grilles for protection, and other safety designs.
