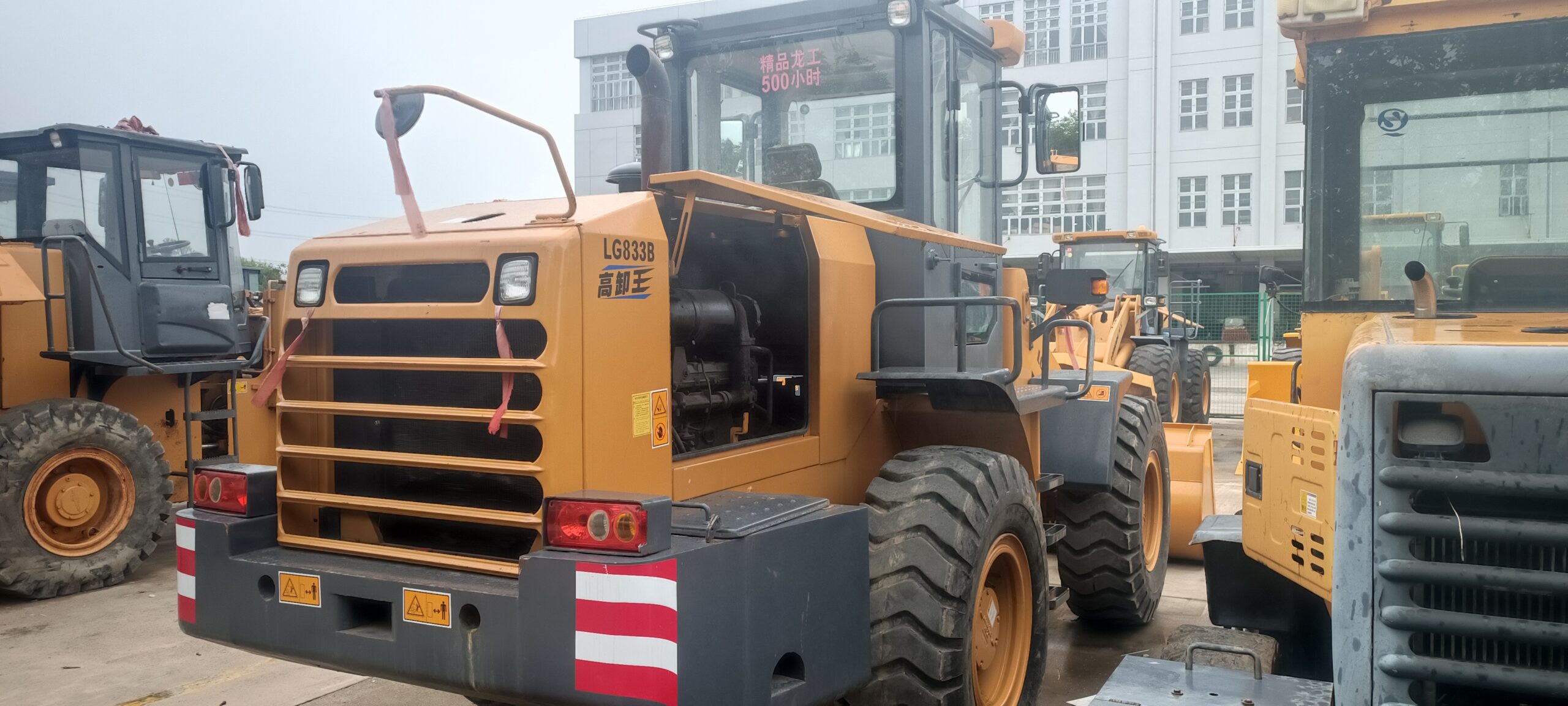

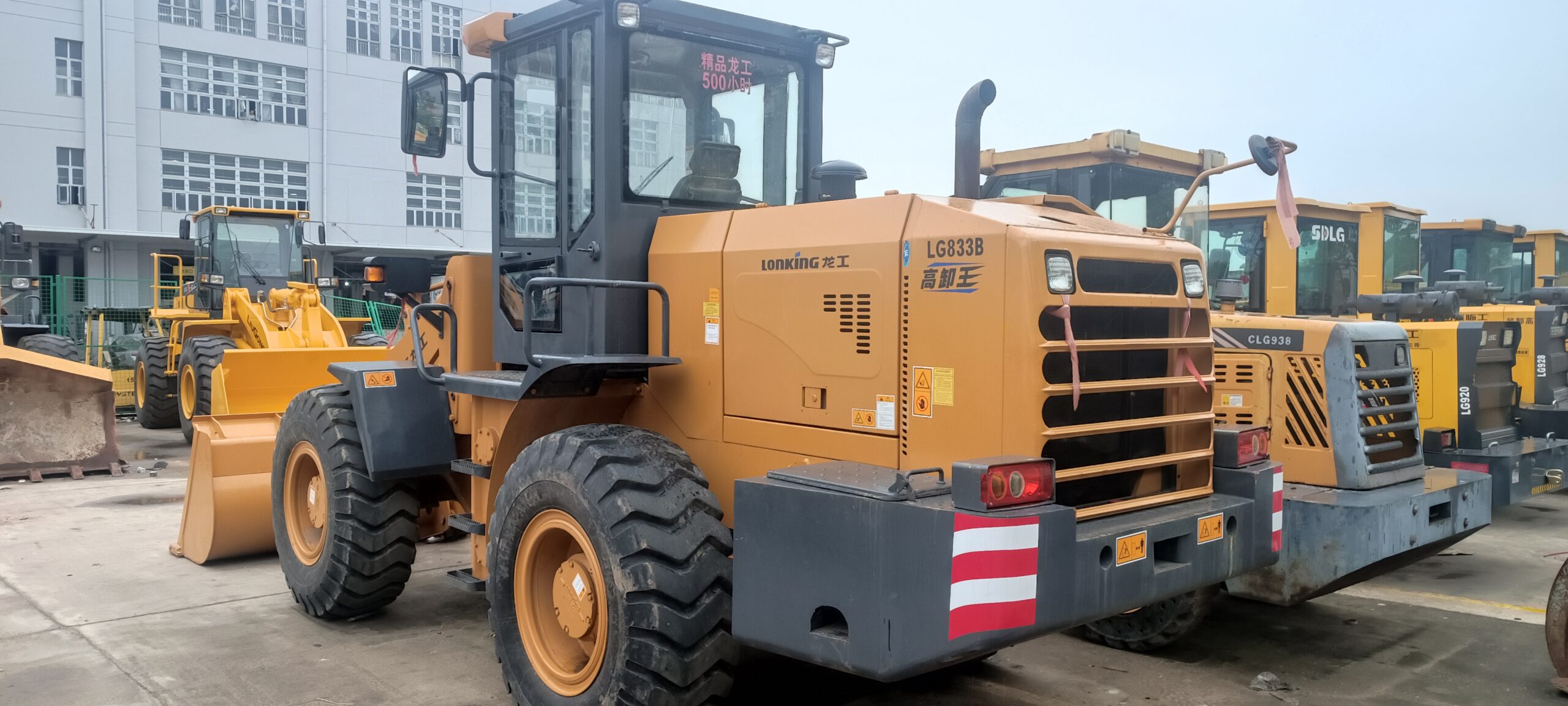

LG833B

Basic Parameters

– Overall operating weight: 10300kg
– Standard bucket capacity: 1.7m³
– Rated load capacity: 3000kg
– Engine model: TD226B-6IG15
– Rated power: 92kW
– Maximum digging force: 101kN
– Unloading height: 2903mm
– Unloading distance: 1069mm
– Maximum steering angle: 35°
– Forward speed: 1st gear 0-7km/h, 2nd gear 0-12km/h, 3rd gear 0-24km/h, 4th gear 0-36km/h
– Reverse speed: 1st gear 0-8.5km/h, 2nd gear 0-28km/h

Performance Features

– Powerful power: Equipped with Deutz TD226B-6IG15 engine, which is in-line, water-cooled, four-stroke, and direct injection type. It has stable and strong power output, and can meet the operation needs under various working conditions.
– Efficient operation: Adopting single-pump split flow technology, equipped with a priority valve and D25 small-diameter multi-way valve, the sum of three actions can be reduced to 9.8 seconds, and the working efficiency is increased by 6.7%. The long-wheelbase centered layout design also helps to reduce the action cycle time and improve work efficiency.
– Comfortable operation: The elastically suspended cab has good sealing performance, is spacious and bright, with a wide field of vision, and the interior decoration is luxurious and humanized. The new joystick is beautiful and comfortable, and the connection of the joystick is changed from a shaft sleeve to a bearing, reducing the operating force.
– Convenient maintenance: The hood has a novel shape, which is convenient for the maintenance of the whole machine. The new pipeline layout increases the length of the steel pipe, effectively avoiding wear caused by pipeline interference. At the same time, it adopts a pressure plate O-ring seal, which greatly reduces leakage. The drain valve is operated externally, which is convenient for users’ daily maintenance.
