Showing all 10 results

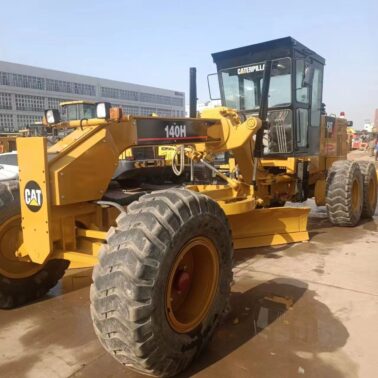

Technical Parameters: Equipped with a Caterpillar 3176CDITAATAACVHP engine with a rated power of 138kW, 6 cylinders, and a displacement of 10.3L. The blade length Ă— height is 3658mm Ă— 610mm, the blade lifting height is 1480mm, the digging depth is 715mm, the minimum turning radius is 7.5m, and the fuel tank capacity is 397L. –…

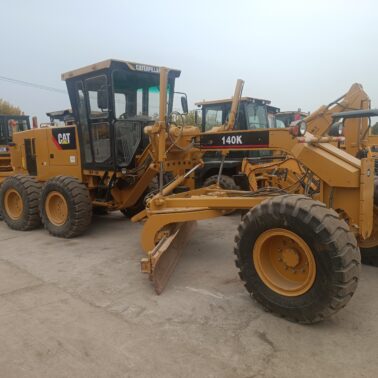

Engine: Equipped with a Cat C7 ACERT engine, with a rated power of 128kW (171hp), a displacement of 7.2L, and a maximum torque of 996N·m. – Transmission: Power shift transmission, featuring 8 forward gears and 6 reverse gears. – Blade parameters: Blade width 3.7m, height 610mm, thickness 22mm, blade lifting height 480mm, soil cutting depth…

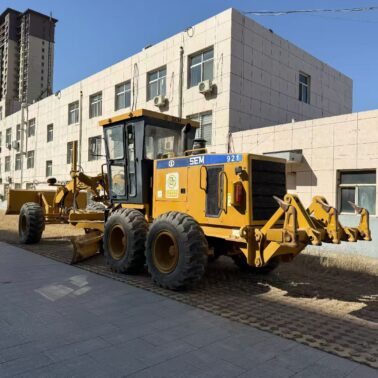

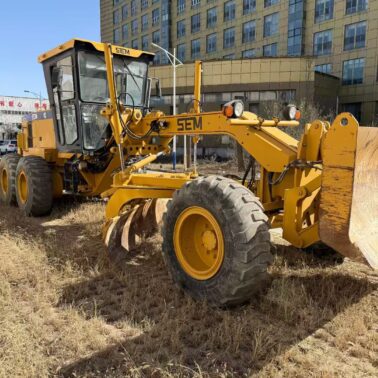

The SEM921 motor grader from Shandong SEM Machinery Co., Ltd. (a wholly-owned subsidiary of Caterpillar) is a construction machinery product. Basic Parameters The total weight of the machine is 15930kg, and the overall dimensions (length Ă— width Ă— height) are 8854mm Ă— 2630mm Ă— 3360mm. The rated power is 162kW, and the emission standard meets…
The total weight of the machine is 16722kg, the total length is 8785-8880mm, the total width is 2630mm, and the total height is 3140mm. The engine model is SC9DF220G4 with a rated power of 162kW and meets the National IV emission standard. The gearbox is from Hangzhou Gear, with 6 forward gears and 3 reverse…
– Engine parameters: The engine model is Weichai WP6G200E330, with an emission level of National III. The rated power is 147kW/2200rpm, and the maximum torque is 900/1400N·m. – Overall dimensions and weight: The overall dimensions (standard configuration) are 9080Ă—2740Ă—3310mm, and the overall operating weight (standard configuration) is 15800kg. – Travel speed: There are six forward…

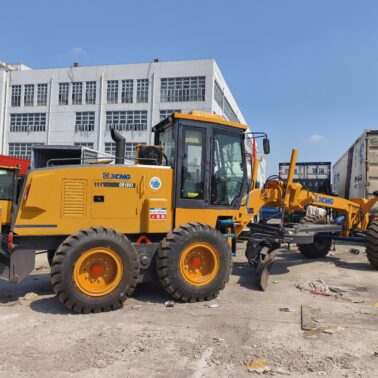

Basic Information The overall length of the GR180 grader is 8900mm, the width is 2625mm, and the height is 3470mm. The overall operating weight is approximately 15400kg. It can be used for large-area ground leveling in highways, airports, farmland, etc., as well as operations such as trenching, slope scraping, earthmoving, loosening soil, and snow removal….
Power system: Adopts Shangchai Phase IV variable power engine with model SC7H190.1G4, rated power of 140kW, and rotation speed of 2000r/min. The optimal torque converter cycle diameter is selected to achieve the best matching between the torque converter and the engine, reducing the vehicle’s start-up and acceleration time, increasing torque output during low-speed operation, and…
Engine: Equipped with a Cummins 6CTA8.3-C215 turbocharged diesel engine, with a rated power of 160 kW / 2200 rpm, featuring strong power and low fuel consumption. – Travel speed: There are six forward speed options: 5, 8, 11, 19, 23, and 38 km/h; reverse speeds are 5, 11, and 23 km/h. – Traction and climbing…
Powerful performance: Equipped with the Shangchai high-efficiency National IV variable-power engine SC7H220.1G4, with a rated power of 162kW and a rotational speed of 2000rpm, matched with a hydraulic torque converter to achieve optimal matching, reduce start-up and acceleration time, and increase low-speed torque output. Optional herringbone pattern tires can improve adhesion by approximately 10%. –…
Engine: The Cummins 6CTA8.3-C190-II engine is commonly used, with a rated power of 142kW and a rotational speed of 2200rpm. – Overall dimensions: The overall appearance (standard configuration) is approximately 8900x2625x3420mm. – Overall weight: Approximately 15400kg in standard configuration. – Tire specification: 17.5-25. Performance Features – Working device: The blade is 3965mm long with a…
