XCMG GR215

Engine: Equipped with a Cummins 6CTA8.3-C215 turbocharged diesel engine, with a rated power of 160 kW / 2200 rpm, featuring strong power and low fuel consumption.
– Travel speed: There are six forward speed options: 5, 8, 11, 19, 23, and 38 km/h; reverse speeds are 5, 11, and 23 km/h.
– Traction and climbing ability: Traction force is 87 kN, and the maximum climbing ability reaches 20%.

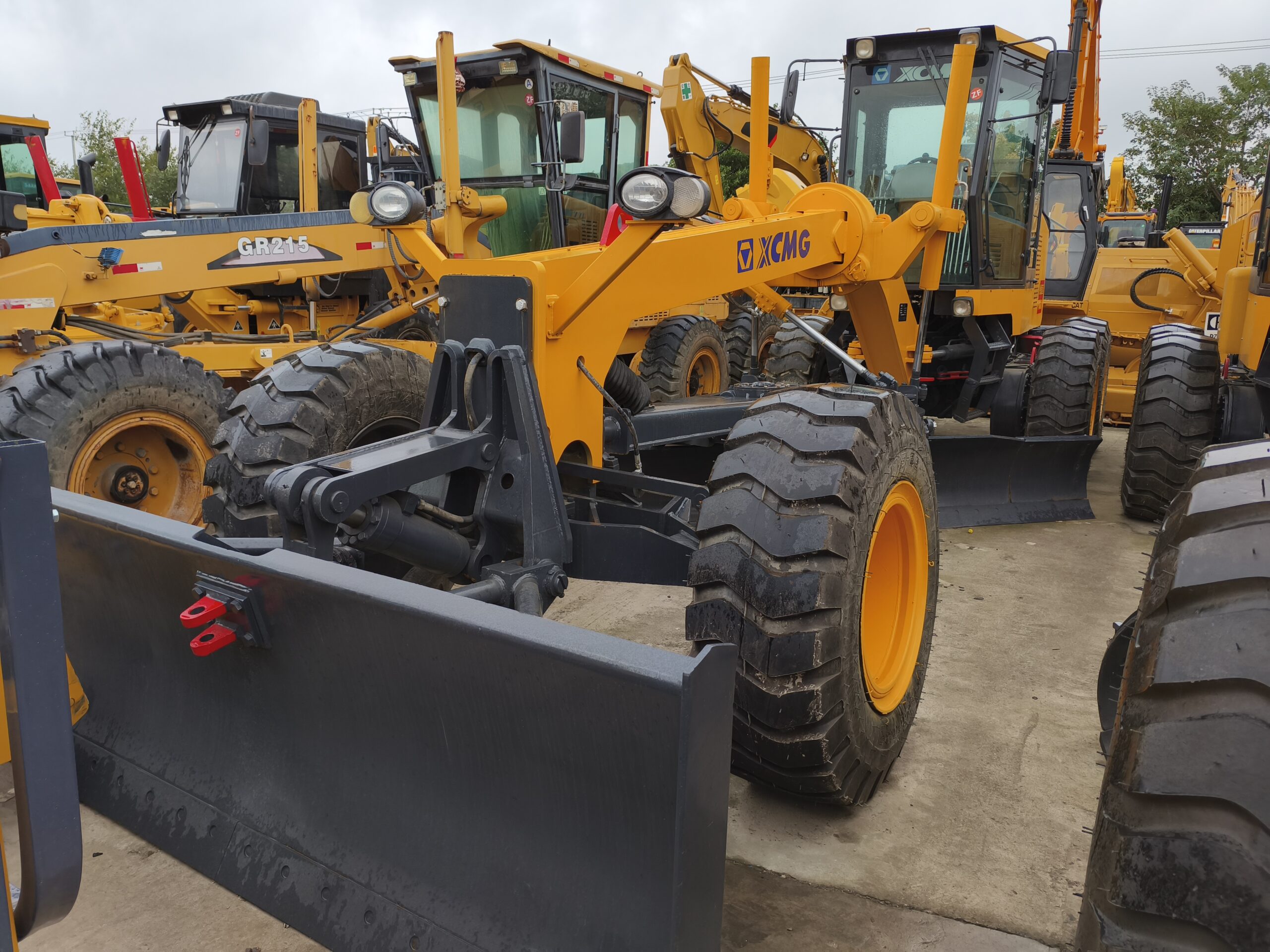

– Blade parameters: The blade length × height is 4270 × 610 mm, with a maximum lifting height of 450 mm, a maximum cutting depth of 500 mm, a tilt angle of 90°, a rotation angle of 360°, and a cutting angle of 28°—70°, which can adapt to various complex operation requirements.

Structural features

– Transmission system: Equipped with Dongfeng Cummins engine, ZF technology gearbox, and Meritor drive axle, making the power matching of the transmission system more reasonable and reliable.
– Brake system: Adopts a dual-circuit hydraulic brake system, ensuring more reliable and stable braking.

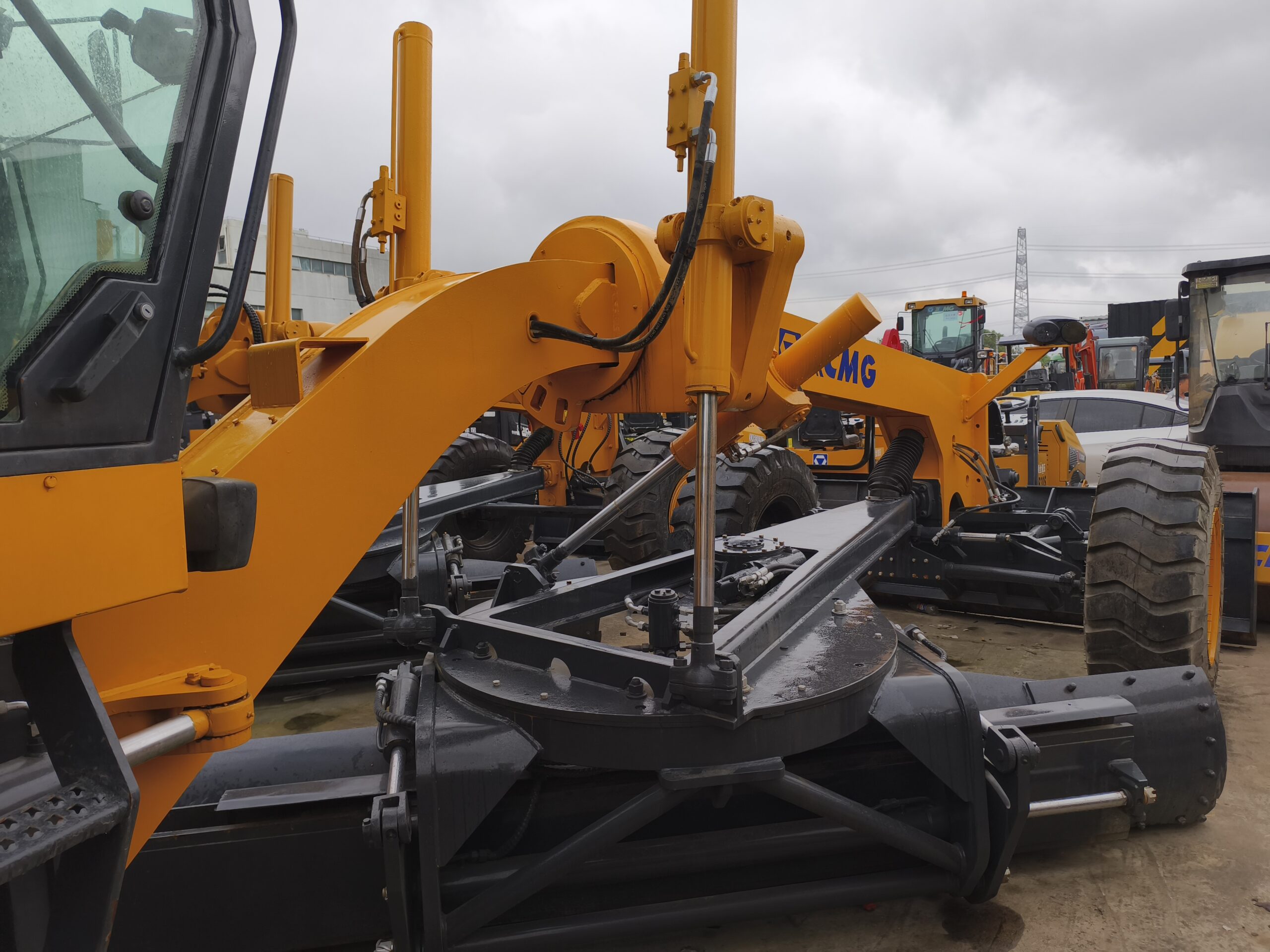

– Working device: Uses XCMG’s special reinforced working device; the blade body adopts an adjustable large chute and double slide rail mechanism; the working blade is made of high-strength wear-resistant material, with strong durability.

Operating comfort

– Cab: Uses a sealed cab, which can be equipped with an air conditioning system; internal components use stylish and compact plastic parts, meeting ergonomic requirements. At the same time, measures such as vibration damping, sound absorption, and sound insulation are adopted to reduce noise radiation inside the cab and outside the machine.
– Operating mechanism: The operating mechanism is optimized, reducing the operating force by 30%, making the operation more flexible and comfortable.
