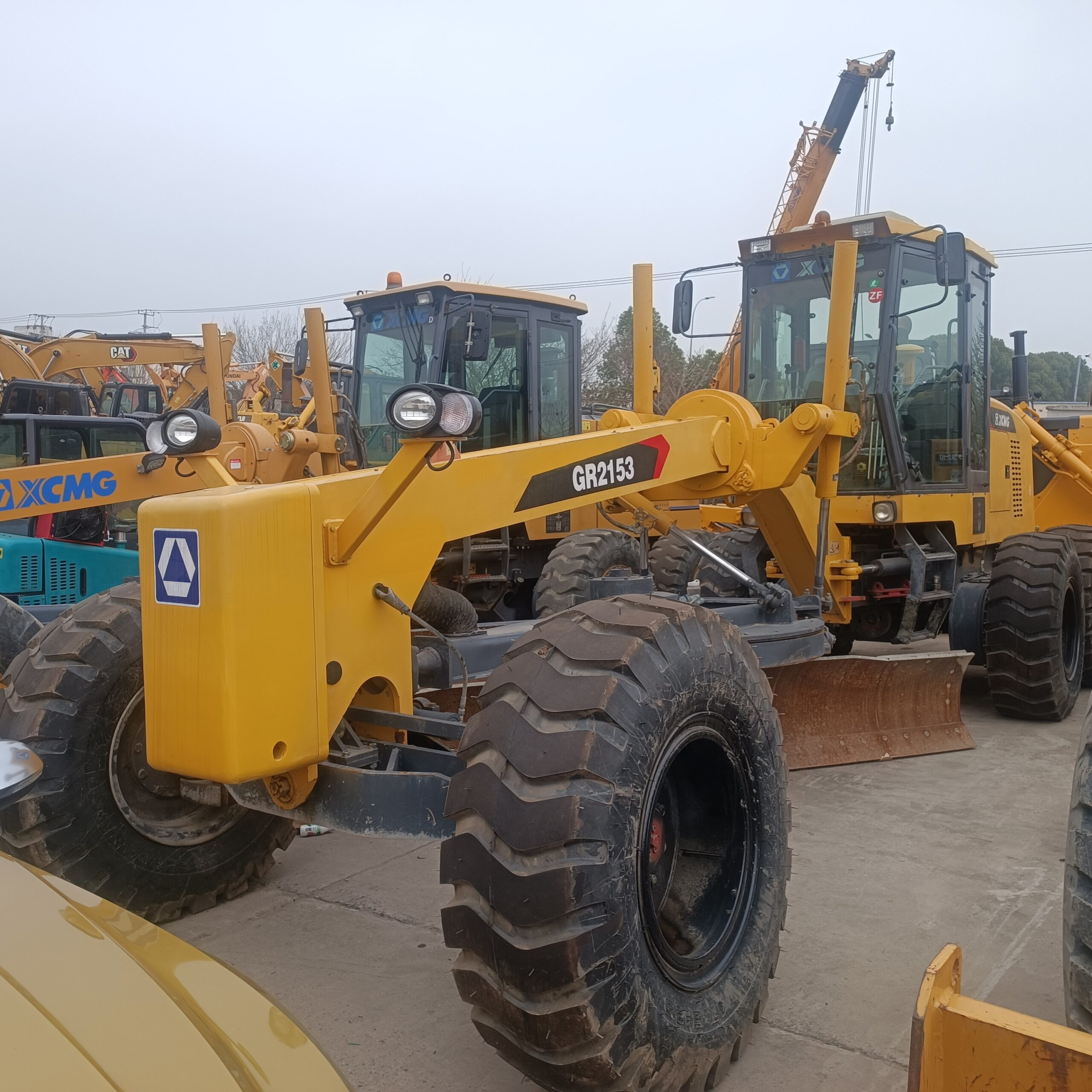

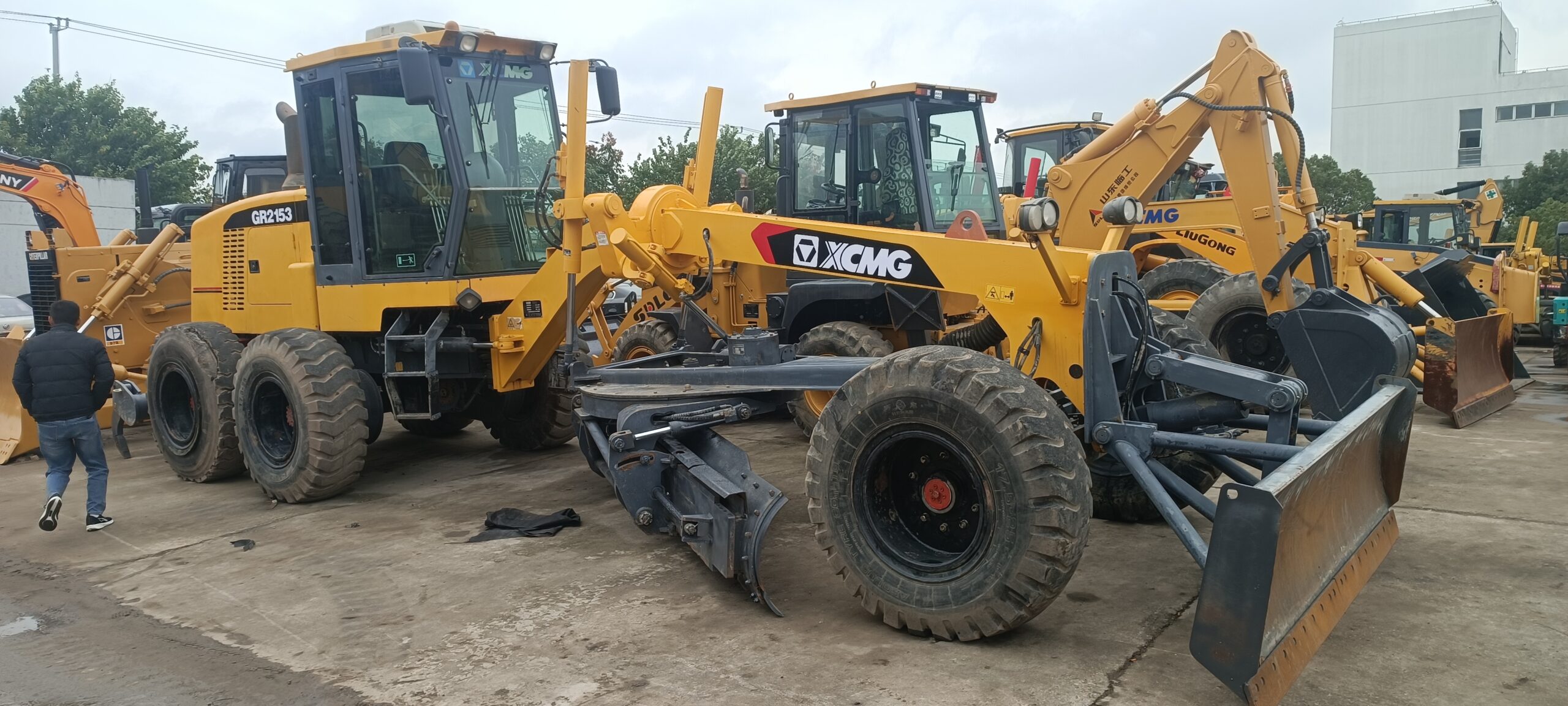

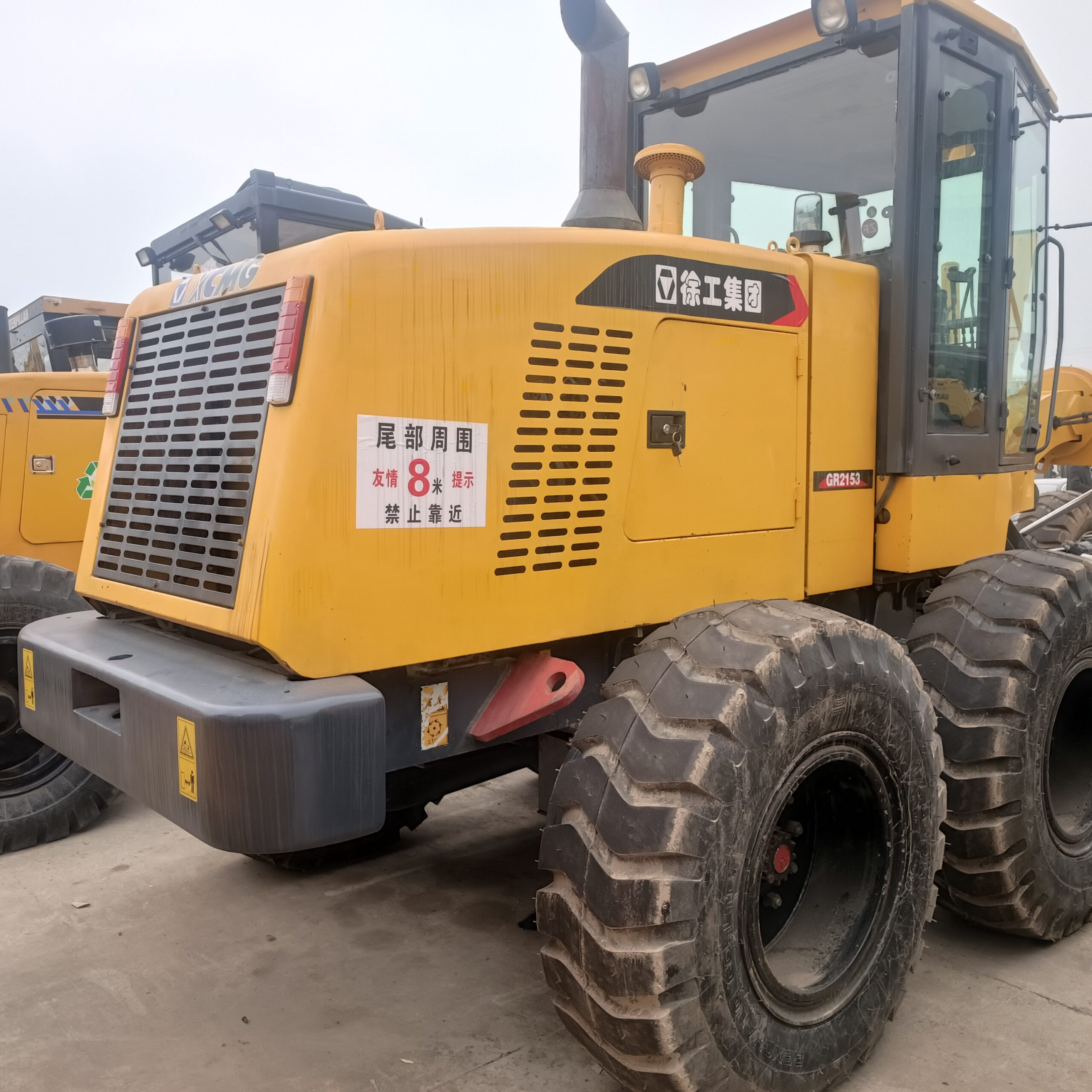

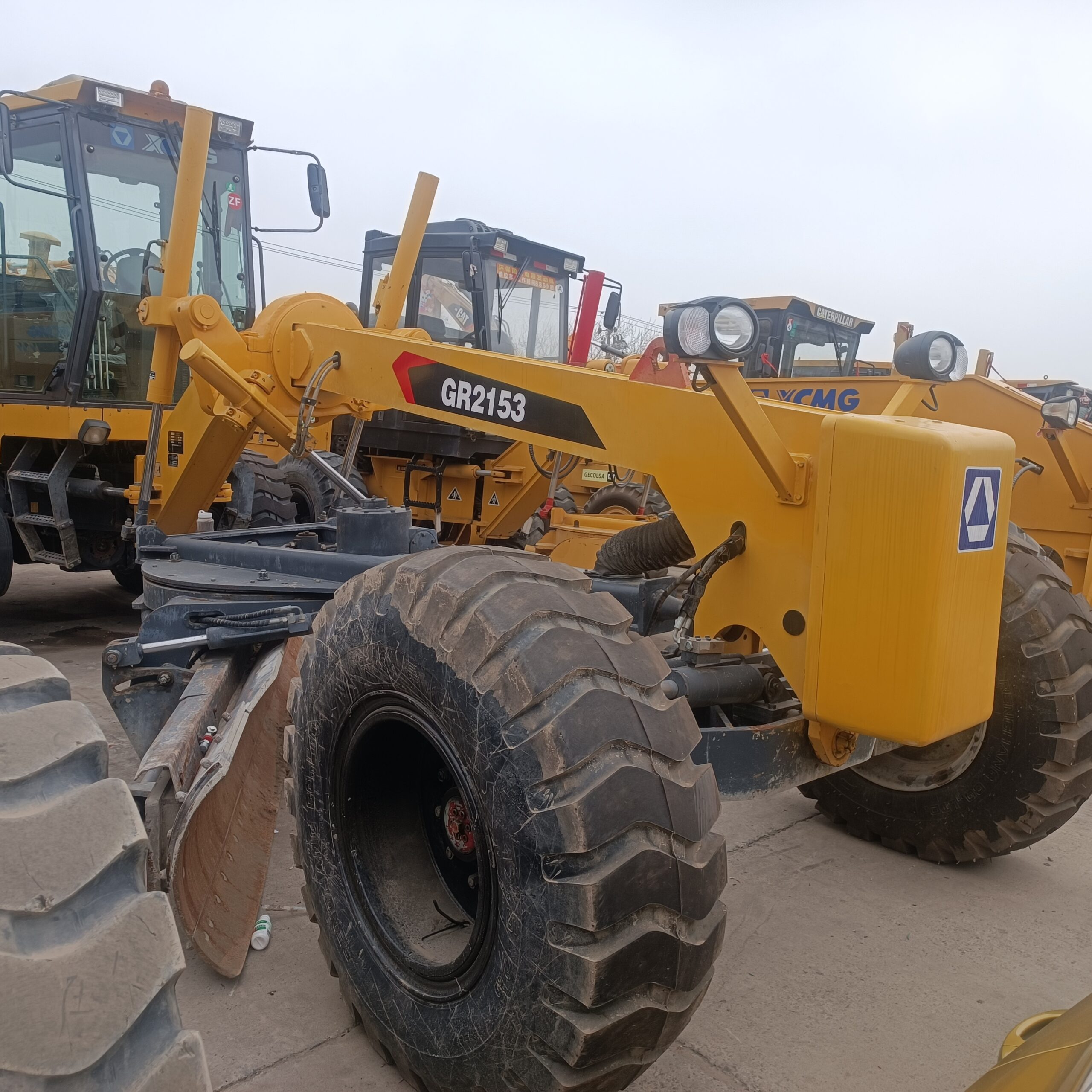

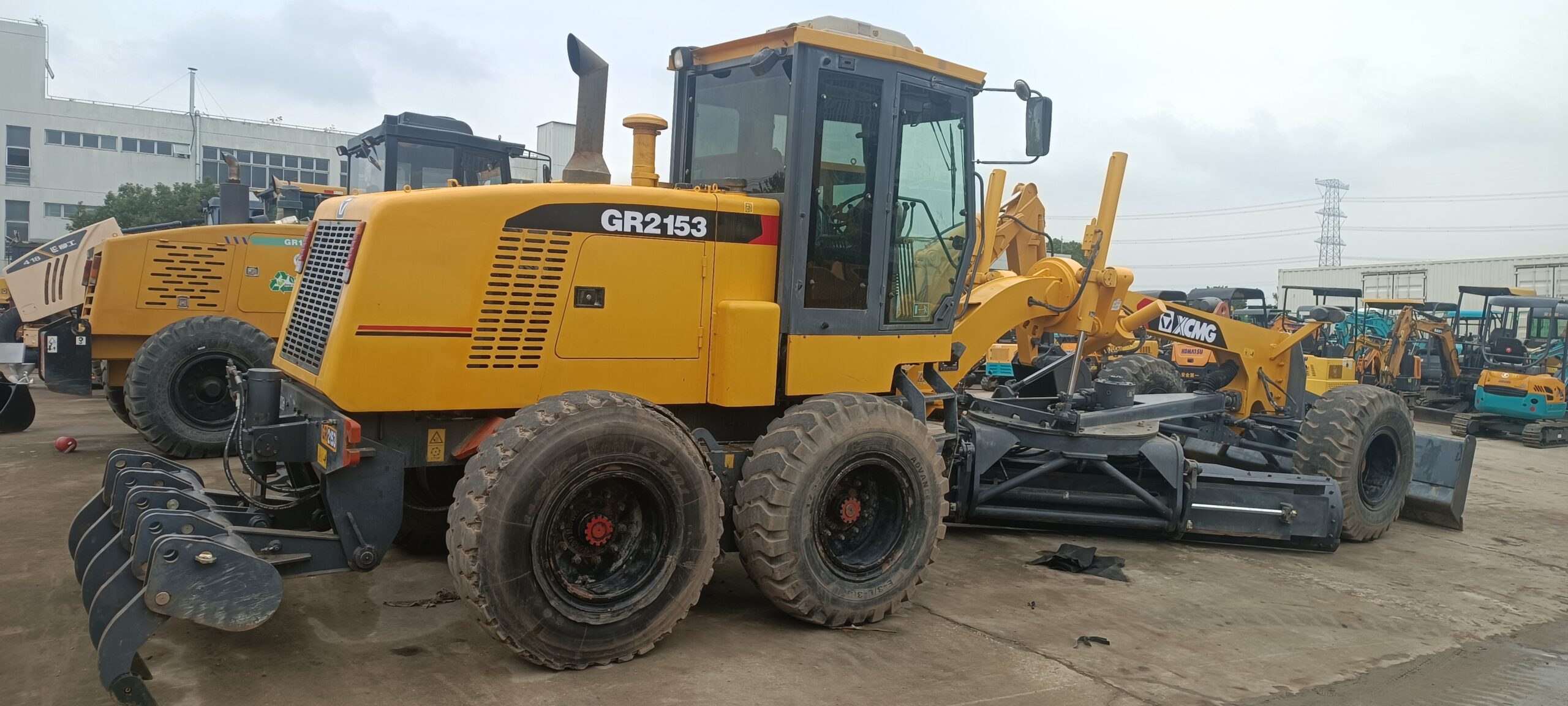

XCMG GR2153

Powerful performance: Equipped with the Shangchai high-efficiency National IV variable-power engine SC7H220.1G4, with a rated power of 162kW and a rotational speed of 2000rpm, matched with a hydraulic torque converter to achieve optimal matching, reduce start-up and acceleration time, and increase low-speed torque output. Optional herringbone pattern tires can improve adhesion by approximately 10%.
– Energy-saving and noise reduction: Adopting a low-speed engine transmission route and low-speed ratio configuration of the transmission system, the average fuel consumption is reduced by about 8%. At the same time, the overall noise is reduced through multiple measures such as three-level vibration reduction of the engine, cab, and seats.
– Loaded rotation: Increase the pressure of the hydraulic system, greatly improve the rotation force of the blade, and the gear ring is treated with high-frequency quenching to realize loaded rotation operation.

Main parameters

– Travel speed: There are six forward speeds: 5, 8, 11, 18, 30, 38km/h, and three reverse speeds: 5, 11, 23km/h.
– Traction force: When f=0.75, the traction force is ≥85kN.
– Blade size: The blade length × chord height is 4270x610mm.
– Overall dimensions and weight: The overall dimensions are 9070x4270x3420mm, and the standard overall weight is 16500kg.
