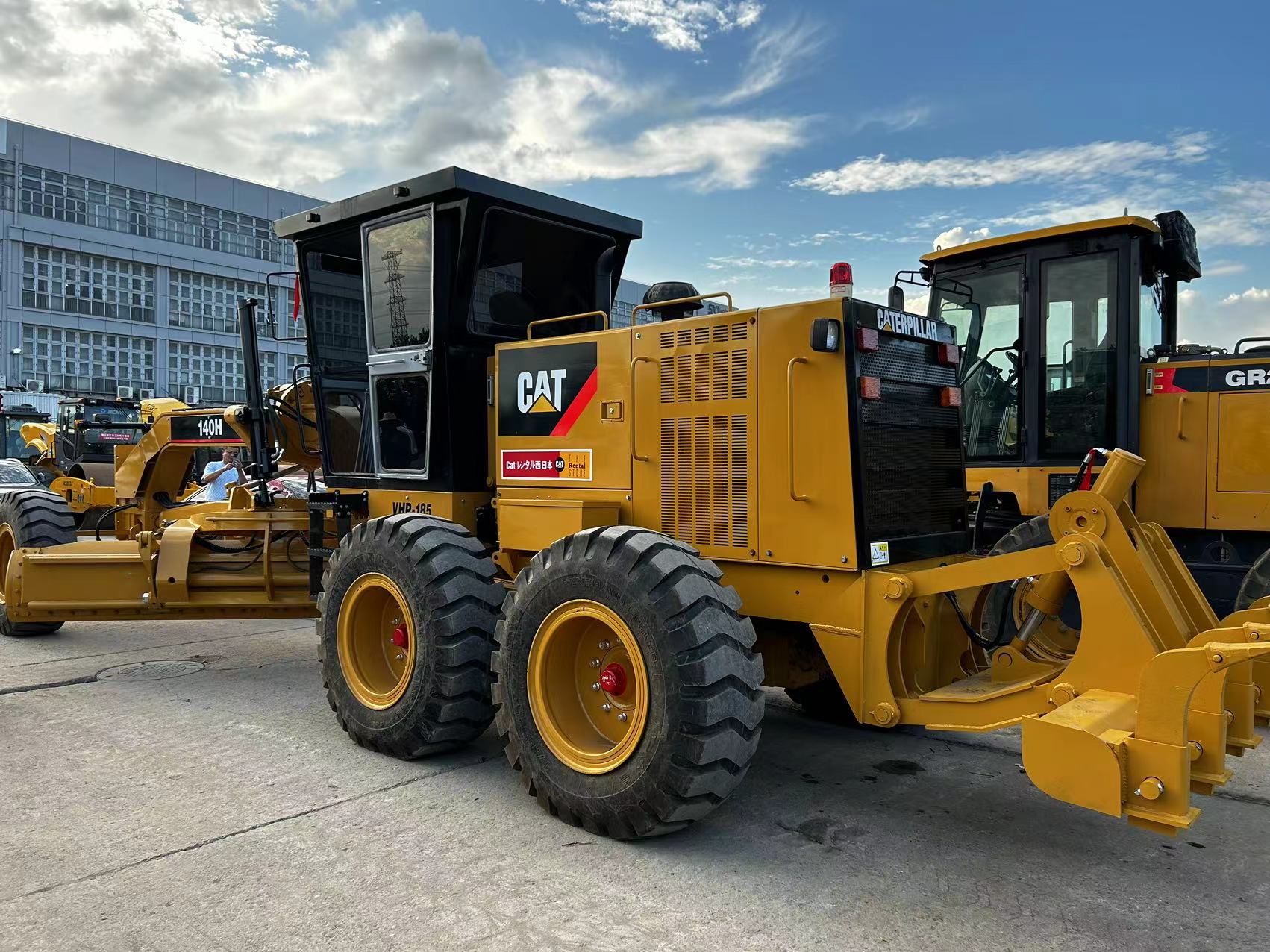

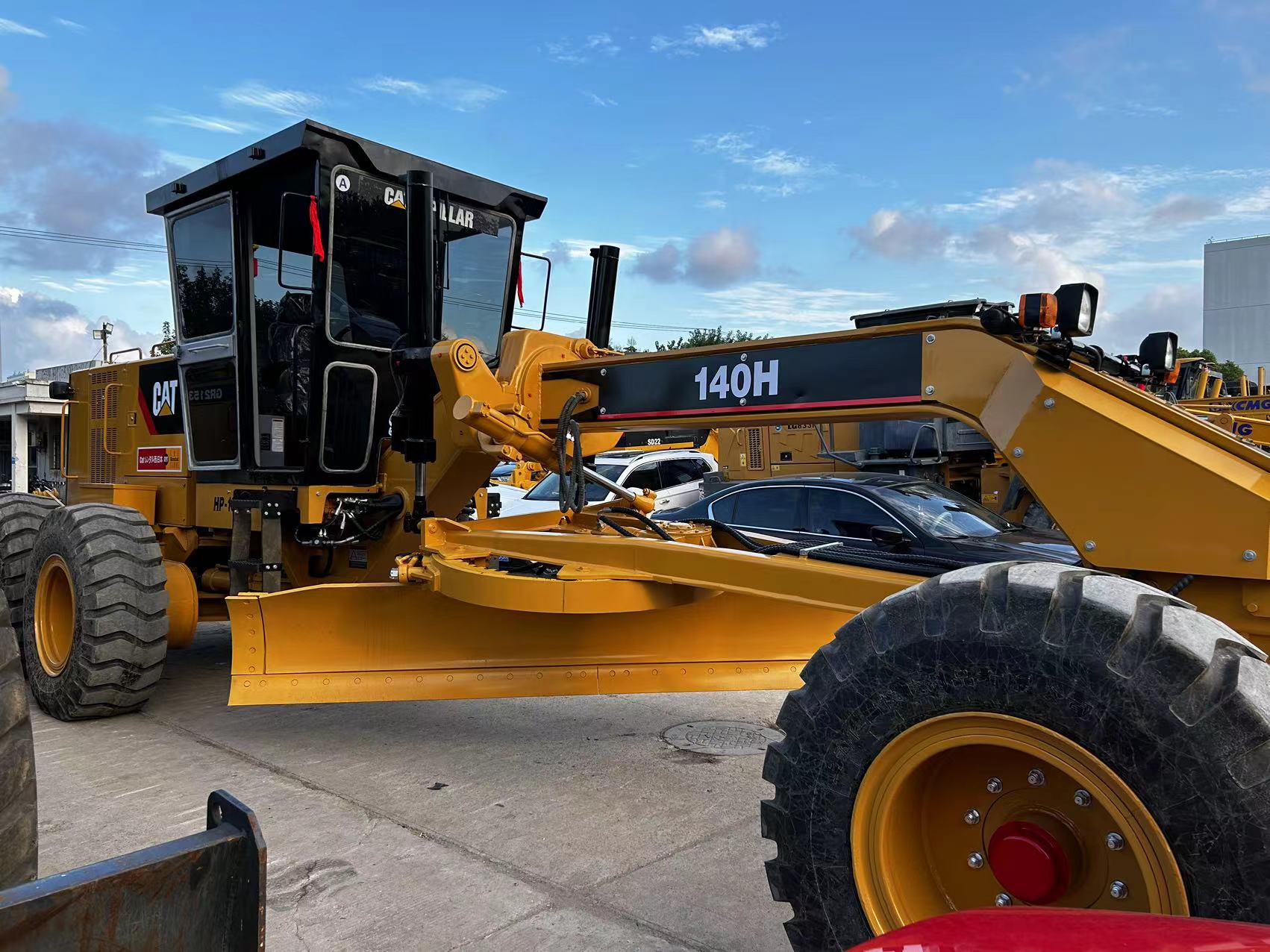

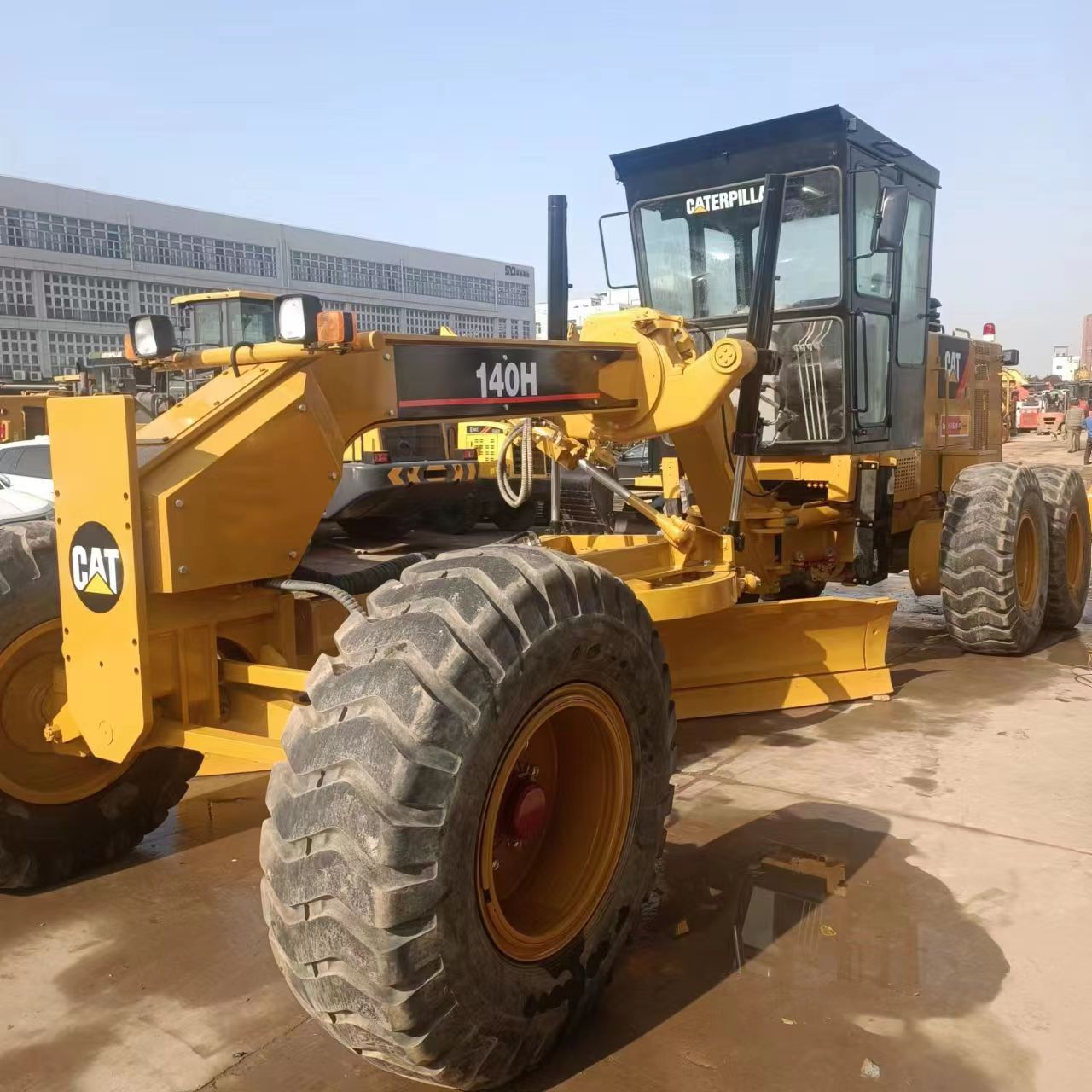

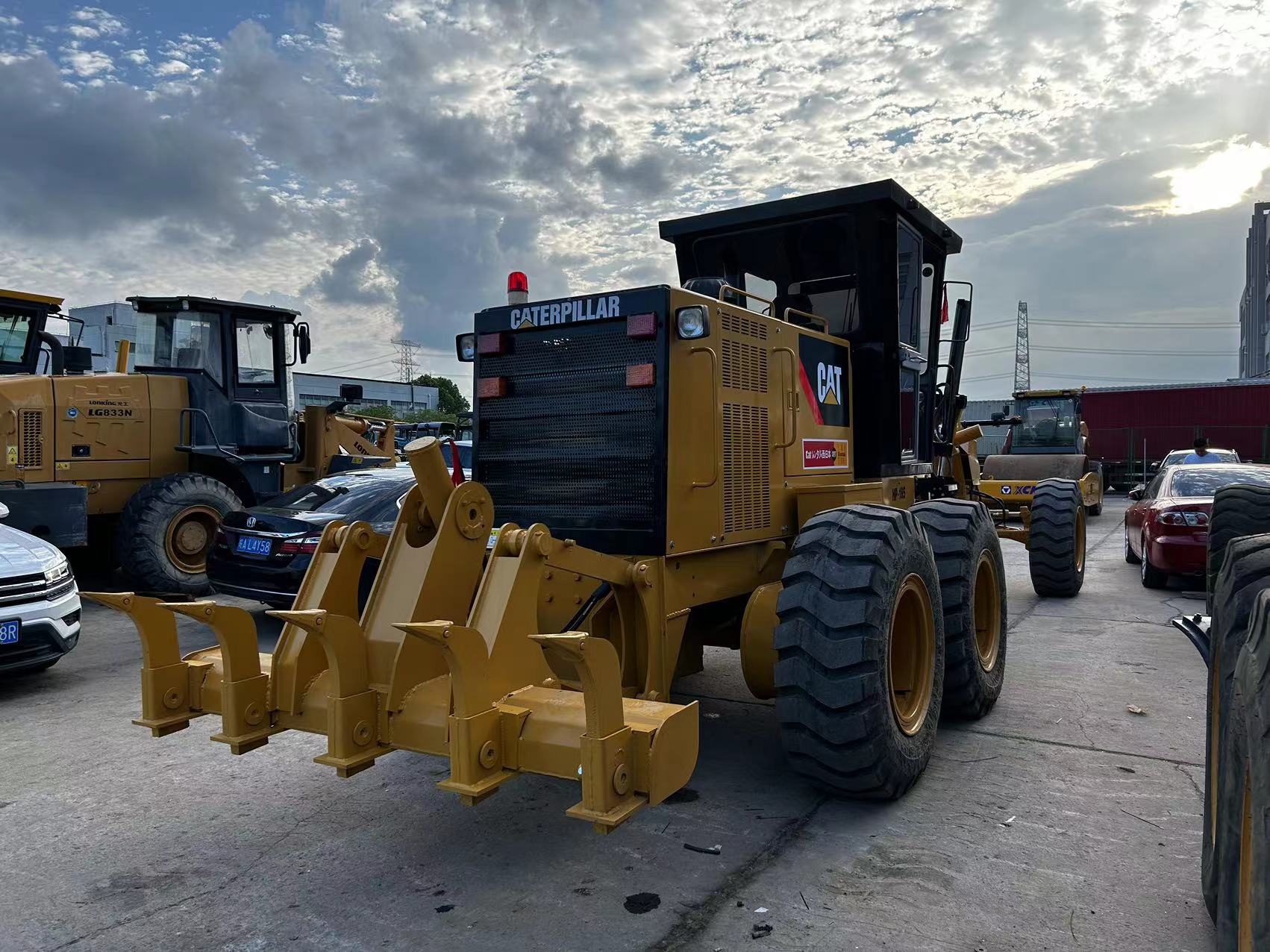

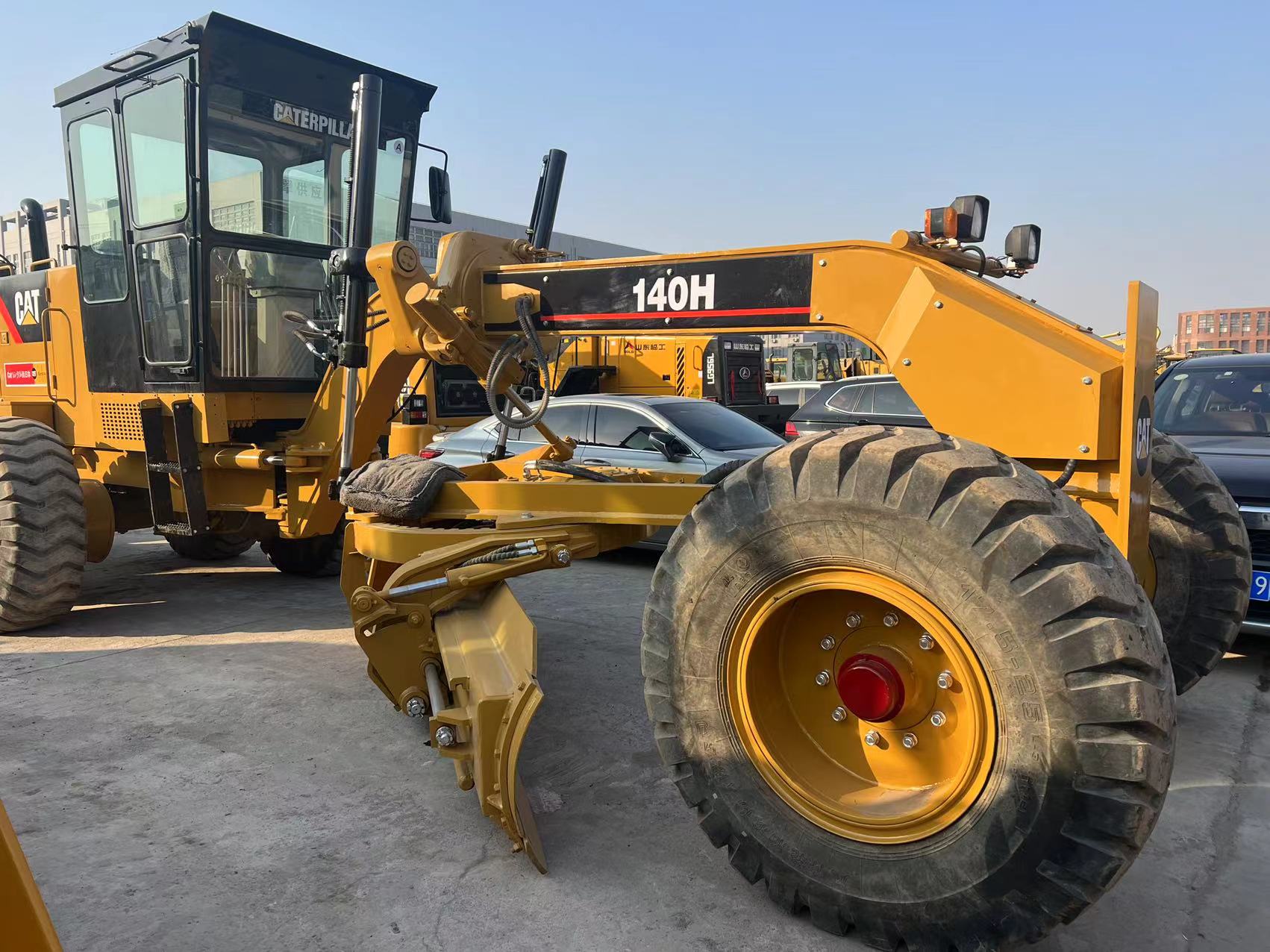

CAT 140H

Technical Parameters: Equipped with a Caterpillar 3176CDITAATAACVHP engine with a rated power of 138kW, 6 cylinders, and a displacement of 10.3L. The blade length × height is 3658mm × 610mm, the blade lifting height is 1480mm, the digging depth is 715mm, the minimum turning radius is 7.5m, and the fuel tank capacity is 397L.
– Performance Features: Adopts a Proportional Priority Pressure Compensated (PPPC) control system with load sensing, which outputs energy on demand, reducing power loss and system heating, and enabling fast compound actions. The blade can rotate at large angles in 8 directions, and the turntable can rotate 360 degrees, meeting various operational needs such as leveling and slope trimming. The cab has a wide field of vision, is equipped with a fully automatic air conditioner, a anti-impact cab, etc., and has good maneuverability.
– Structural Design: The rotary main shaft rotates in a sealed bearing box, enhancing the service life of the bearing. With an arch structure design, the maximum ground clearance of the frame is 625mm, which is 17% higher than that of similar products, ensuring stable operation and good permeability. The overall upper and lower steel plates reduce the number of welds, resulting in better rigidity and reliability.
