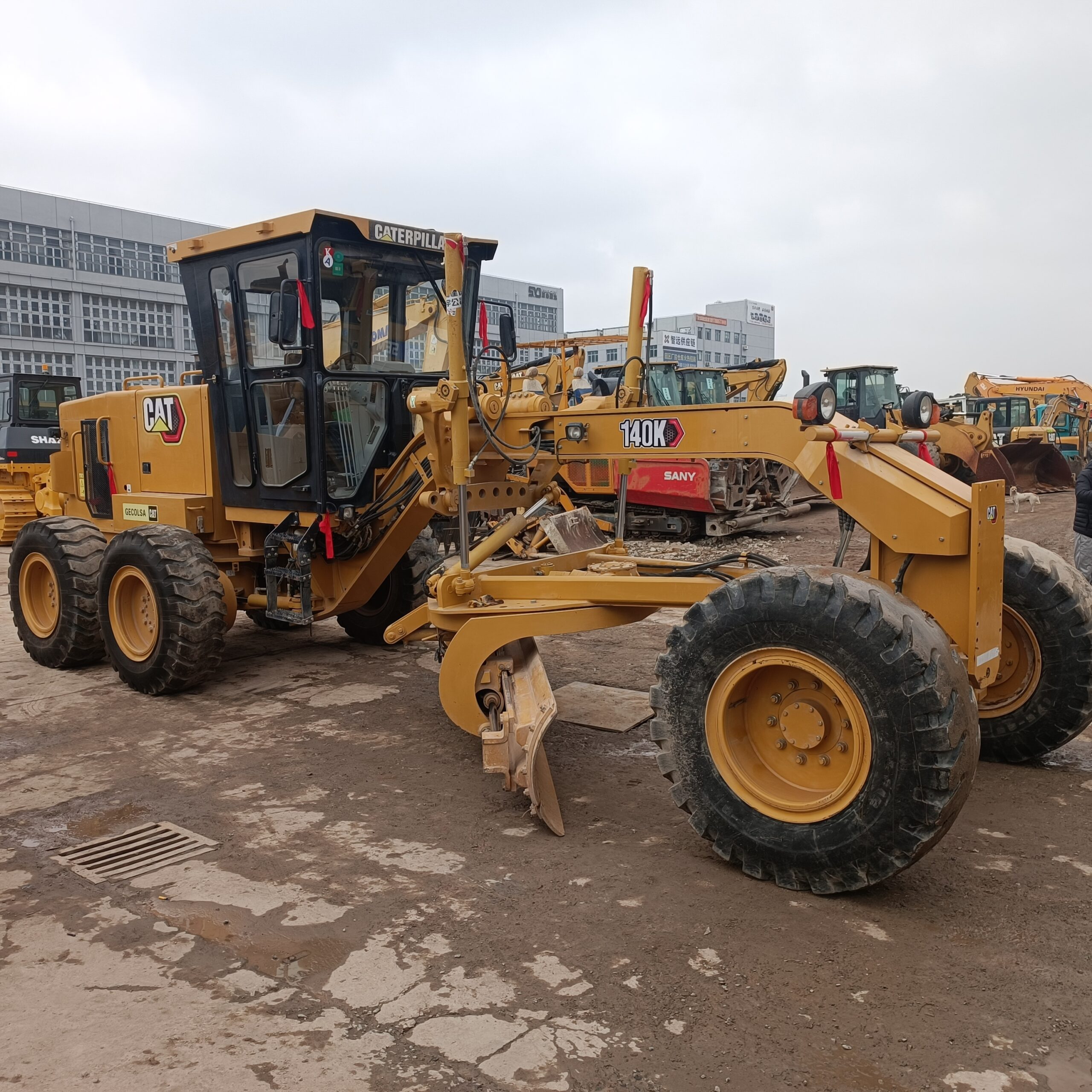

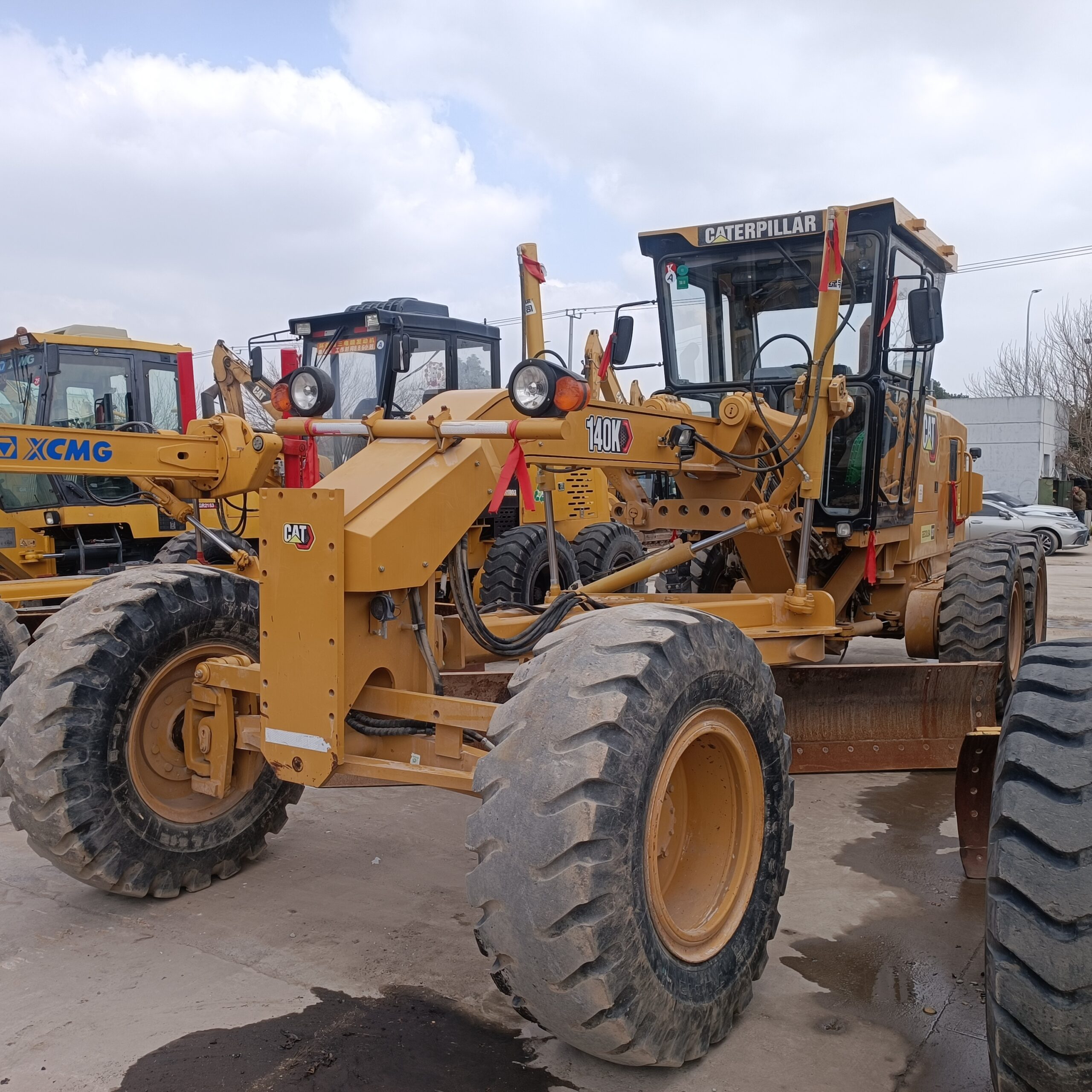

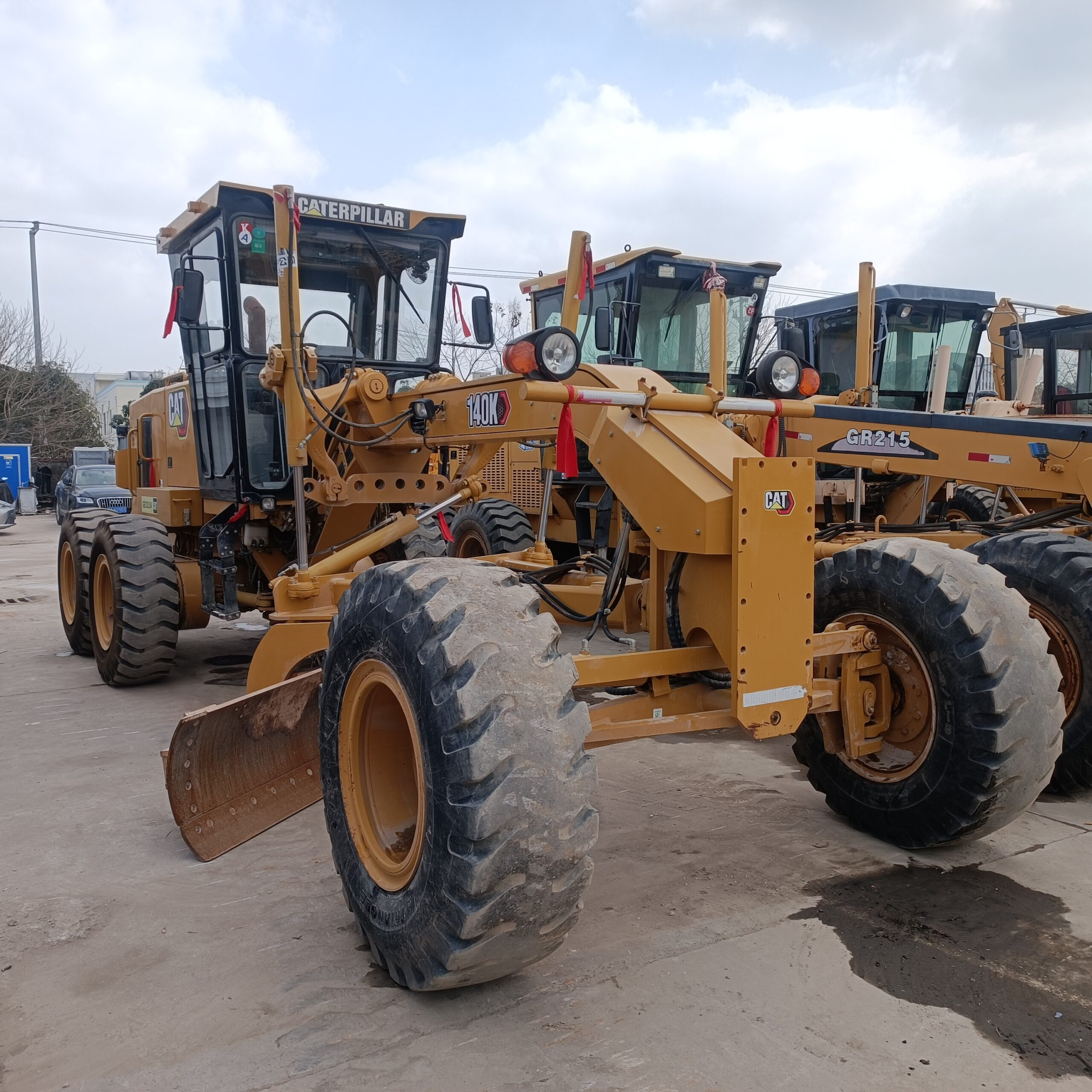

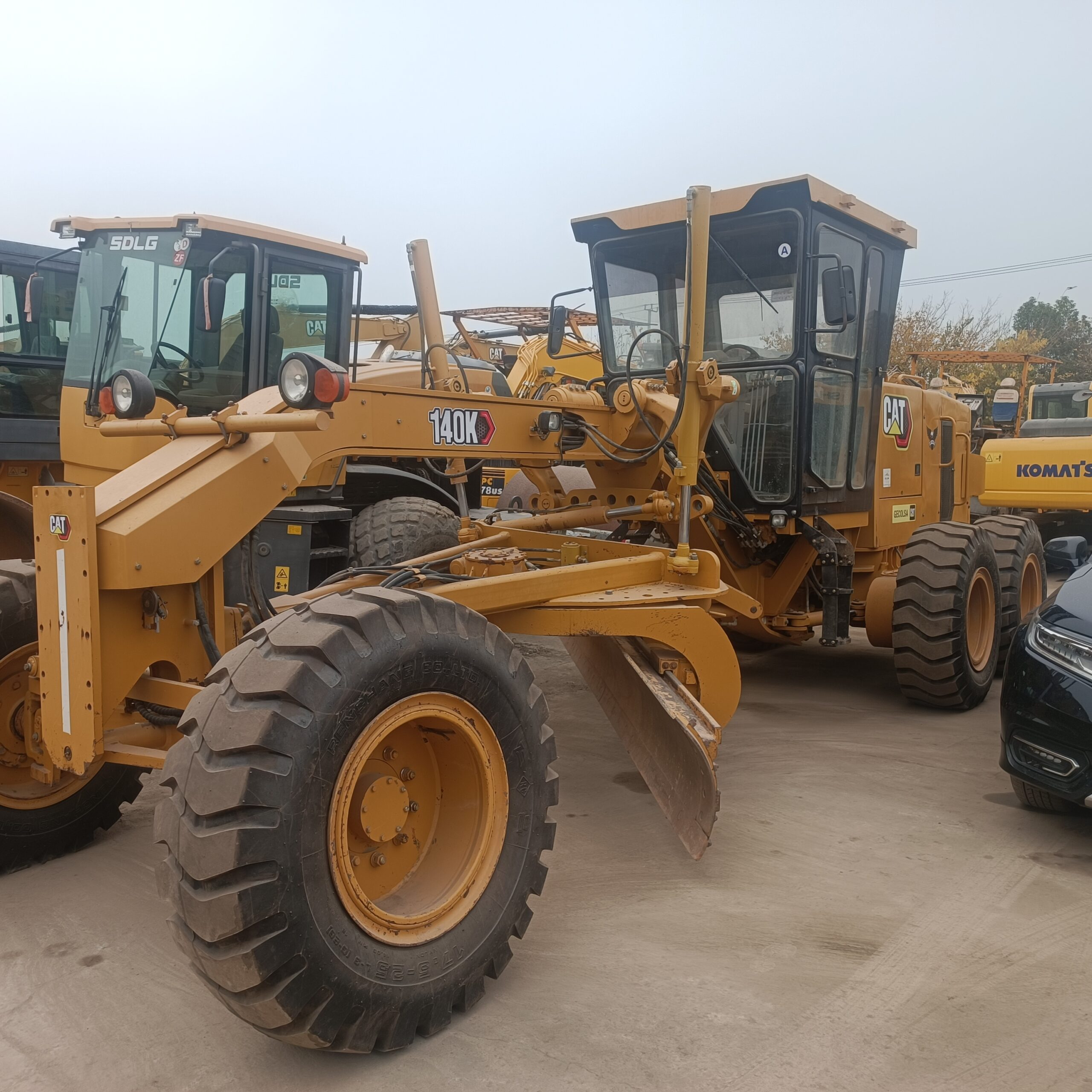

CAT 140K

Engine: Equipped with a Cat C7 ACERT engine, with a rated power of 128kW (171hp), a displacement of 7.2L, and a maximum torque of 996N·m.
– Transmission: Power shift transmission, featuring 8 forward gears and 6 reverse gears.
– Blade parameters: Blade width 3.7m, height 610mm, thickness 22mm, blade lifting height 480mm, soil cutting depth 735mm.
– Overall dimensions: Total length approximately 8504-10013mm, total width 2481mm, total height 3354mm, total vehicle weight 17271kg, operating weight 22870kg.

Performance features

– Powerful动力: The Cat C7 engine provides sufficient power and meets the equivalent of US EPA Tier 3/EU Stage IIIA emission standards or Tier 2/Stage II equivalent emission standards.
– Efficient transmission: The power shift transmission enables quick and smooth gear shifting, improving work efficiency.
– Advanced hydraulic system: Adopts a load-sensing hydraulic system, with a large main pump flow and high pressure, ensuring stable and fast operation of devices such as the blade.
– Superior blade performance: The blade has a large tilt angle and rotation angle, which can flexibly cope with various operating scenarios.

Operation and maintenance

– Easy operation: Uses conventional control devices and provides industry-standard control modes. Operators can clearly observe the root of the scraper and the tires of the dual wheel sets, improving productivity and operational safety.
– Convenient maintenance: The left maintenance area is close to the ground, facilitating routine maintenance. The equipment is also equipped with a complete fault diagnosis and alarm system, which can help maintenance personnel quickly locate and troubleshoot faults.

Optional configurations

– Cat Grade: Uses positioning and guidance technology, machine sensors, and automatic blade control to improve the efficiency of leveling operations.
– Cat Product Link™: Can help users manage equipment through remote monitoring functions.
